API Reference Hub

This section provides comprehensive documentation for all REST API endpoints in the NEM home security monitoring system.

Quick Reference

API Domain Base Path Description Documentation
Events /api/events Security event lifecycle management events-api.md
Cameras /api/cameras Camera CRUD and media operations cameras-api.md
Detections /api/detections Object detection data and media detections-api.md
System /api/system Health, monitoring, configuration system-api.md

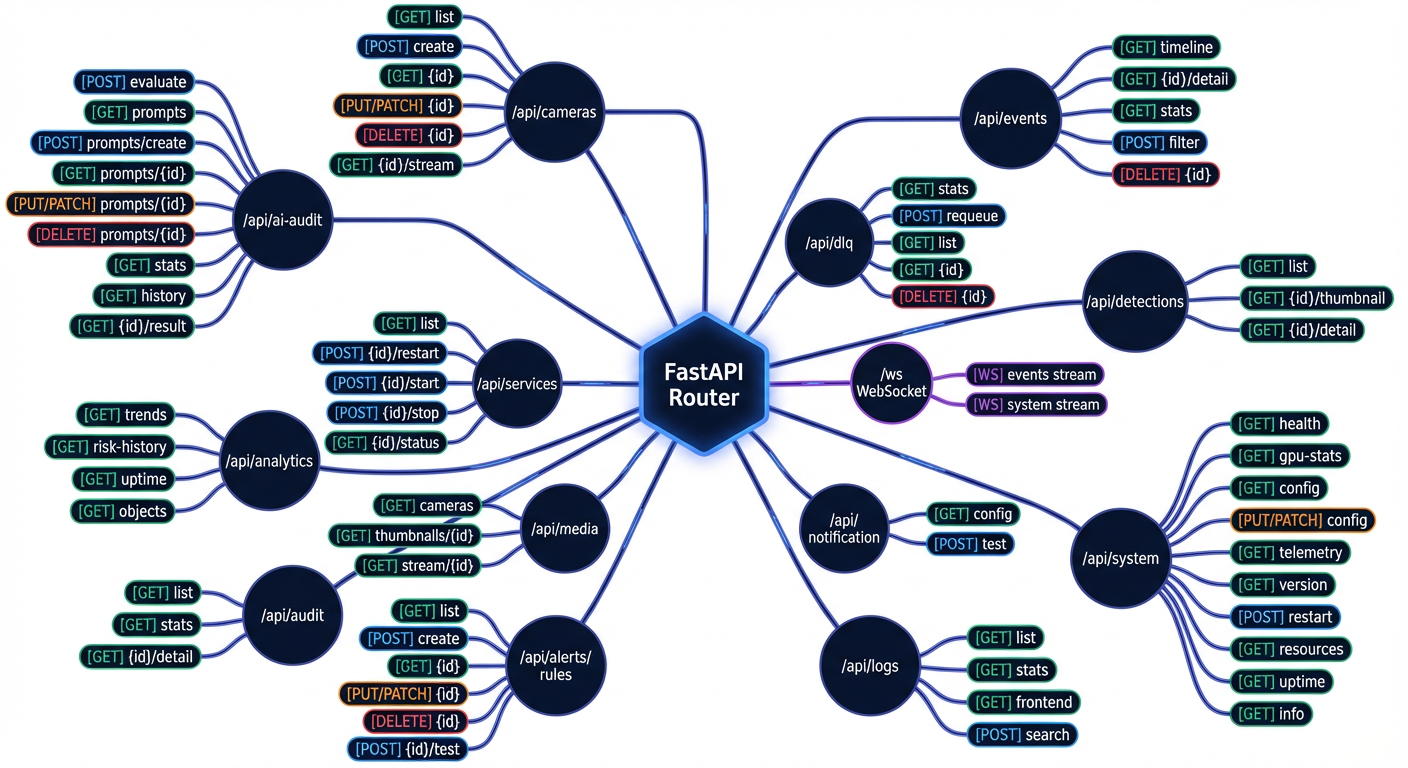

API Endpoint Relationship Graph showing connections between Events, Cameras, Detections, and System API domains

Cross-Cutting Concerns

Topic Documentation
Request/Response Schemas request-response-schemas.md
Error Handling error-handling.md

Endpoint Summary

Events API (/api/events)

Method Endpoint Description Source
GET /api/events List events with filtering and pagination backend/api/routes/events.py:224-468
GET /api/events/stats Get aggregated event statistics backend/api/routes/events.py:471-603
GET /api/events/timeline-summary Get bucketed timeline data backend/api/routes/events.py:621-779
GET /api/events/search Full-text search events backend/api/routes/events.py:782-892
GET /api/events/export Export events as CSV/Excel backend/api/routes/events.py:895-999
GET /api/events/deleted List soft-deleted events backend/api/routes/events.py
GET /api/events/{event_id} Get single event by ID backend/api/routes/events.py
PATCH /api/events/{event_id} Update event (reviewed, notes) backend/api/routes/events.py
DELETE /api/events/{event_id} Soft-delete an event backend/api/routes/events.py
POST /api/events/{event_id}/restore Restore soft-deleted event backend/api/routes/events.py
POST /api/events/bulk Bulk create events backend/api/routes/events.py
PATCH /api/events/bulk Bulk update events backend/api/routes/events.py
DELETE /api/events/bulk Bulk delete events backend/api/routes/events.py

Cameras API (/api/cameras)

Method Endpoint Description Source
GET /api/cameras List all cameras backend/api/routes/cameras.py:106-221
POST /api/cameras Create new camera backend/api/routes/cameras.py:362-453
GET /api/cameras/deleted List soft-deleted cameras backend/api/routes/cameras.py:231-282
GET /api/cameras/validation/paths Validate camera paths backend/api/routes/cameras.py:912-996
GET /api/cameras/{camera_id} Get camera by ID backend/api/routes/cameras.py:342-359
PATCH /api/cameras/{camera_id} Update camera backend/api/routes/cameras.py:456-532
DELETE /api/cameras/{camera_id} Delete camera backend/api/routes/cameras.py:535-589
POST /api/cameras/{camera_id}/restore Restore deleted camera backend/api/routes/cameras.py:285-339
GET /api/cameras/{camera_id}/snapshot Get camera snapshot backend/api/routes/cameras.py:799-909
GET /api/cameras/{camera_id}/baseline Get camera baseline backend/api/routes/cameras.py:999-1048
GET /api/cameras/{camera_id}/baseline/anomalies Get baseline anomalies backend/api/routes/cameras.py:1051-1086
GET /api/cameras/{camera_id}/baseline/activity Get activity baseline backend/api/routes/cameras.py:1089-1160
GET /api/cameras/{camera_id}/baseline/classes Get class baseline backend/api/routes/cameras.py:1163-1222
GET /api/cameras/{camera_id}/scene-changes Get scene changes backend/api/routes/cameras.py:1225-1319
POST /api/cameras/{camera_id}/scene-changes/{id}/acknowledge Acknowledge scene change backend/api/routes/cameras.py:1322-1421

Detections API (/api/detections)

Method Endpoint Description Source
GET /api/detections List detections with filtering backend/api/routes/detections.py:172-360
GET /api/detections/stats Get detection statistics backend/api/routes/detections.py:363-502
GET /api/detections/search Search detections backend/api/routes/detections.py:505-576
GET /api/detections/labels Get unique detection labels backend/api/routes/detections.py:579-588
GET /api/detections/{detection_id} Get detection by ID backend/api/routes/detections.py:591-608
GET /api/detections/{detection_id}/thumbnail Get detection thumbnail backend/api/routes/detections.py:611-720
GET /api/detections/{detection_id}/enrichment Get enrichment data backend/api/routes/detections.py:993-1026
GET /api/detections/{detection_id}/image Get detection image backend/api/routes/detections.py:1185-1313
GET /api/detections/{detection_id}/video Stream detection video backend/api/routes/detections.py:1361-1508
GET /api/detections/{detection_id}/video/thumbnail Get video thumbnail backend/api/routes/detections.py:1511-1624
POST /api/detections/bulk Bulk create detections backend/api/routes/detections.py:1638-1762
PATCH /api/detections/bulk Bulk update detections backend/api/routes/detections.py:1765-1881
DELETE /api/detections/bulk Bulk delete detections backend/api/routes/detections.py:1884-1997

System API (/api/system)

Method Endpoint Description Source
GET /api/system/health Detailed health check backend/api/routes/system.py:1049-1181
GET /api/system/health/ready Readiness probe backend/api/routes/system.py:1188-1328
GET /api/system/health/websocket WebSocket health backend/api/routes/system.py:1331-1394
GET /api/system/health/full Full health with AI services backend/api/routes/system.py
GET /api/system/monitoring/health Prometheus-style health backend/api/routes/system.py
GET /api/system/monitoring/targets Monitoring targets backend/api/routes/system.py
GET /api/system/gpu/stats GPU statistics backend/api/routes/system.py:634-683
GET /api/system/config System configuration backend/api/routes/system.py
PATCH /api/system/config Update configuration backend/api/routes/system.py

Authentication

The API supports optional API key authentication via the X-API-Key header.

# With API key authentication enabled
curl -H "X-API-Key: your-api-key" https://api.example.com/api/events

# Endpoints exempt from authentication (media serving):
# - GET /api/cameras/{camera_id}/snapshot
# - GET /api/detections/{detection_id}/thumbnail
# - GET /api/detections/{detection_id}/image
# - GET /api/detections/{detection_id}/video

Source: backend/api/routes/system.py:261-291

Pagination

The API supports two pagination strategies:

{
  "items": [...],
  "pagination": {
    "total": 150,
    "limit": 50,
    "offset": 0,
    "next_cursor": "eyJpZCI6IDUwLCAiY3JlYXRlZF9hdCI6ICIyMDI2LTAxLTIzVDEyOjAwOjAwWiJ9",  // pragma: allowlist secret
    "has_more": true
  }
}

Offset Pagination (Deprecated)

GET /api/events?limit=50&offset=100

Warning: Offset pagination is deprecated. The API returns a deprecation_warning field and HTTP Deprecation header when offset pagination is used.

Source: backend/api/pagination.py

Rate Limiting

Rate limits are applied per endpoint tier:

Tier Rate Burst Endpoints
DEFAULT 100/min 10 Most API endpoints
MEDIA 30/min 5 Image/video serving
BULK 10/min 2 Bulk operations
EXPORT 5/min 1 Data export

Source: backend/api/middleware/rate_limit.py

Response Envelope

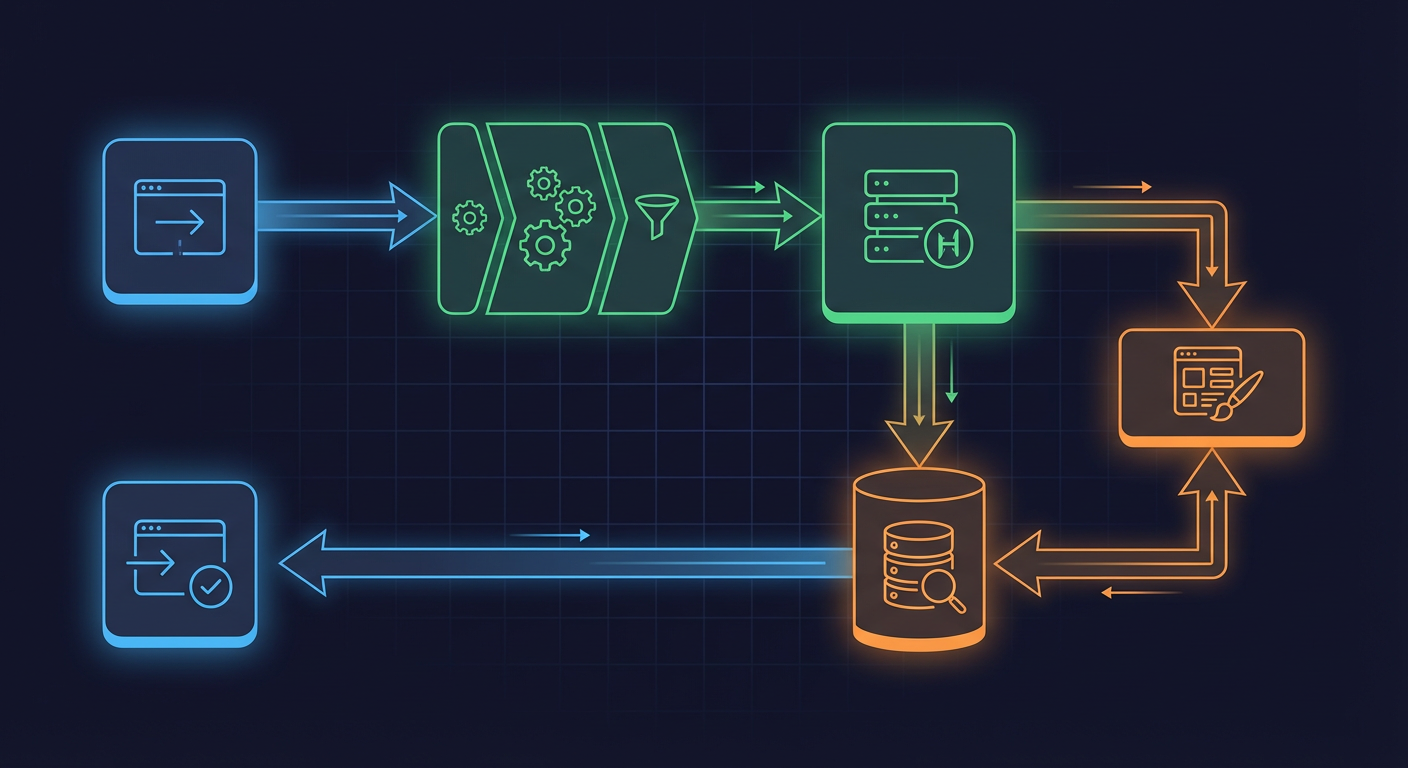

Request Lifecycle Flow

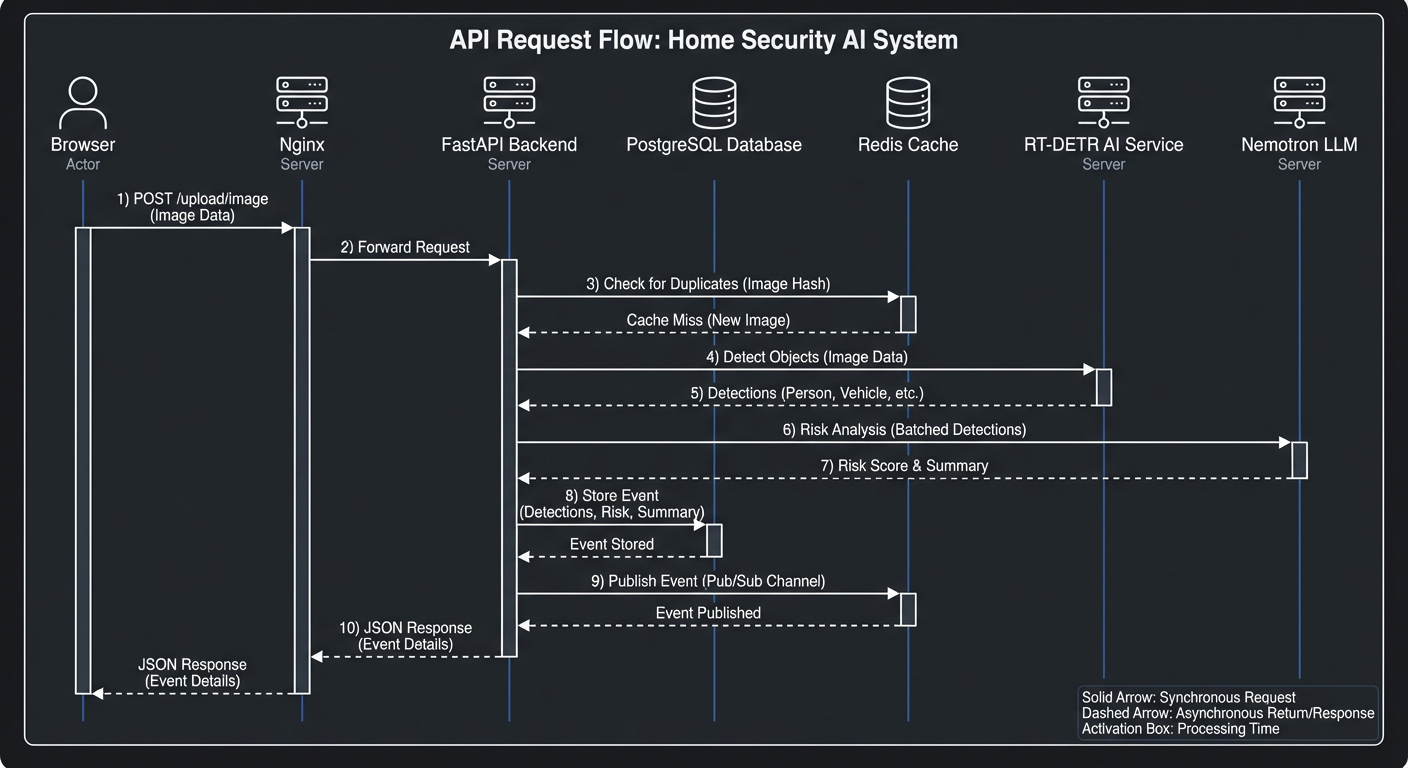

Request-Response Flow diagram showing the complete lifecycle from client request through middleware, routing, and response

All list endpoints use a standardized response envelope:

{
  "items": [...],
  "pagination": {
    "total": 100,
    "limit": 50,
    "offset": 0,
    "next_cursor": "...",
    "has_more": true
  }
}

Source: backend/api/schemas/pagination.py
