Request/Response Schemas

This document provides detailed documentation for all Pydantic schemas used in the NEM home security monitoring API.

Overview

All API schemas are defined using Pydantic v2 and are located in backend/api/schemas/. Schemas provide:

  • Request validation
  • Response serialization
  • OpenAPI documentation generation

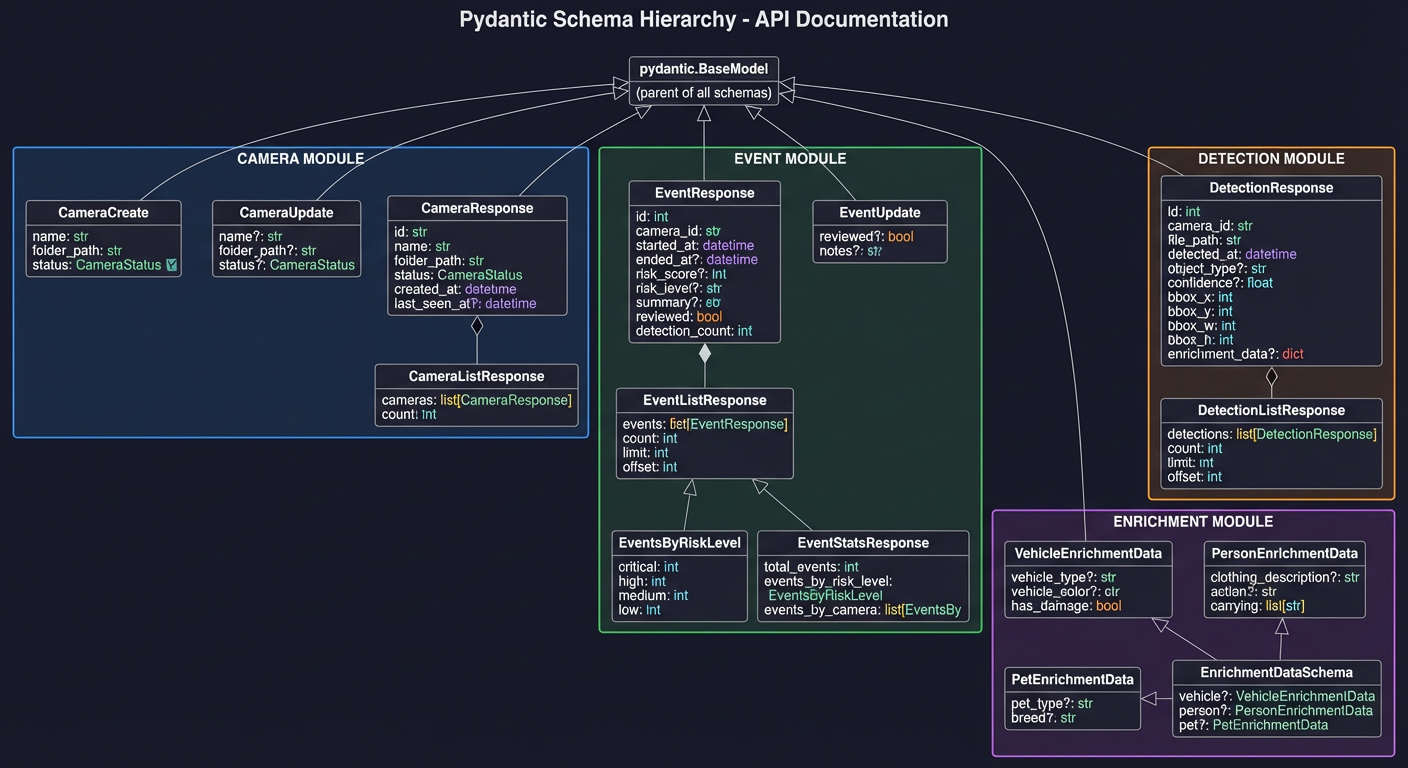

Schema Inheritance Hierarchy

Pydantic Schema Inheritance Hierarchy

The schema design follows a consistent inheritance pattern where base schemas define common fields, and specialized schemas extend them for create, update, and response operations.

Common Patterns

Pagination Envelope

All list endpoints use a standardized pagination envelope.

Source: backend/api/schemas/pagination.py

{
  "items": [...],
  "pagination": {
    "total": 100,
    "limit": 50,
    "offset": 0,
    "cursor": null,
    "next_cursor": "eyJpZCI6IDUwfQ==",
    "has_more": true
  }
}

PaginationMeta

Field Type Description
total integer Total items matching query
limit integer Maximum items per page
offset integer Number of items skipped
cursor string Current pagination cursor
next_cursor string Cursor for next page
has_more boolean Whether more results exist

Cursor-Based Pagination

Cursors are base64-encoded JSON containing:

{
  "id": 50,
  "created_at": "2026-01-23T12:00:00Z"
}

Source: backend/api/pagination.py

Sparse Fieldsets

Many list endpoints support the fields query parameter to request only specific fields.

GET /api/events?fields=id,camera_id,risk_score,summary

Invalid field requests return HTTP 400.

Event Schemas

EventResponse

Source: backend/api/schemas/events.py:61-125

{
  "id": 1,
  "camera_id": "front_door",
  "started_at": "2026-01-23T12:00:00Z",
  "ended_at": "2026-01-23T12:02:30Z",
  "risk_score": 75,
  "risk_level": "medium",
  "summary": "Person detected near front entrance",
  "reasoning": "Person approaching entrance during daytime, no suspicious behavior",
  "llm_prompt": "<|im_start|>system\nYou are a home security risk analyzer...",
  "reviewed": false,
  "notes": null,
  "snooze_until": null,
  "detection_count": 5,
  "detection_ids": [1, 2, 3, 4, 5],
  "thumbnail_url": "/api/detections/1/image",
  "enrichment_status": {...},
  "deleted_at": null
}
Field Type Required Description
id integer Yes Event ID
camera_id string Yes Normalized camera ID
started_at datetime Yes Event start timestamp
ended_at datetime No Event end timestamp
risk_score integer No Risk score (0-100)
risk_level string No low, medium, high, critical
summary string No LLM-generated summary
reasoning string No LLM reasoning
llm_prompt string No Full prompt sent to LLM
reviewed boolean No Review status (default: false)
notes string No User notes
snooze_until datetime No Alert snooze timestamp
detection_count integer No Number of detections
detection_ids array No List of detection IDs
thumbnail_url string No URL to thumbnail
enrichment_status object No Enrichment pipeline status
deleted_at datetime No Soft-delete timestamp

EventUpdate

Source: backend/api/schemas/events.py:127-144

{
  "reviewed": true,
  "notes": "Verified - delivery person",
  "snooze_until": "2026-01-24T12:00:00Z"
}
Field Type Required Description
reviewed boolean No Mark as reviewed
notes string No User notes
snooze_until datetime No Snooze timestamp

EnrichmentStatusResponse

Source: backend/api/schemas/events.py:27-58

{
  "status": "partial",
  "successful_models": ["violence", "weather", "face"],
  "failed_models": ["clothing"],
  "errors": { "clothing": "Model not loaded" },
  "success_rate": 0.75
}
Field Type Description
status string full, partial, failed, skipped
successful_models array Models that succeeded
failed_models array Models that failed
errors object Model to error mapping
success_rate float Success rate (0.0-1.0)

EventStatsResponse

Source: backend/api/schemas/events.py:243-284

{
  "total_events": 44,
  "events_by_risk_level": {
    "critical": 2,
    "high": 5,
    "medium": 12,
    "low": 25
  },
  "risk_distribution": [{ "risk_level": "critical", "count": 2 }],
  "events_by_camera": [
    { "camera_id": "front_door", "camera_name": "Front Door", "event_count": 30 }
  ]
}

TimelineSummaryResponse

Source: backend/api/schemas/events.py:310-349

{
  "buckets": [
    {
      "timestamp": "2026-01-15T06:00:00Z",
      "event_count": 5,
      "max_risk_score": 45
    }
  ],
  "total_events": 17,
  "start_date": "2026-01-15T06:00:00Z",
  "end_date": "2026-01-15T08:00:00Z"
}

Camera Schemas

CameraResponse

Source: backend/api/schemas/camera.py:184-208

{
  "id": "front_door",
  "name": "Front Door Camera",
  "folder_path": "/export/foscam/front_door",
  "status": "online",
  "created_at": "2026-01-01T10:00:00Z",
  "last_seen_at": "2026-01-23T12:00:00Z"
}
Field Type Description
id string Normalized camera ID
name string Camera name
folder_path string File system path
status string online, offline, error, unknown
created_at datetime Creation timestamp
last_seen_at datetime Last activity timestamp

CameraCreate

Source: backend/api/schemas/camera.py:96-136

{
  "name": "Front Door Camera",
  "folder_path": "/export/foscam/front_door",
  "status": "online"
}
Field Type Required Validation
name string Yes 1-255 chars, no control chars
folder_path string Yes 1-500 chars, no path traversal
status string No Default: online

CameraUpdate

Source: backend/api/schemas/camera.py:139-181

All fields are optional for partial updates.

{
  "name": "Front Door Camera - Updated",
  "status": "offline"
}

CameraPathValidationResponse

Source: backend/api/schemas/camera.py:314-356

{
  "base_path": "/export/foscam",
  "total_cameras": 6,
  "valid_count": 4,
  "invalid_count": 2,
  "valid_cameras": [...],
  "invalid_cameras": [
    {
      "id": "garage",
      "name": "Garage Camera",
      "folder_path": "/export/foscam/garage",
      "status": "offline",
      "resolved_path": "/export/foscam/garage",
      "issues": ["directory does not exist"]
    }
  ]
}

Detection Schemas

DetectionResponse

Source: backend/api/schemas/detections.py:142-214

{
  "id": 1,
  "camera_id": "front_door",
  "file_path": "/export/foscam/front_door/20260123_120000.jpg",
  "file_type": "image/jpeg",
  "detected_at": "2026-01-23T12:00:00Z",
  "object_type": "person",
  "confidence": 0.95,
  "bbox_x": 100,
  "bbox_y": 150,
  "bbox_width": 200,
  "bbox_height": 400,
  "thumbnail_path": "/data/thumbnails/1_thumb.jpg",
  "media_type": "image",
  "duration": null,
  "video_codec": null,
  "video_width": null,
  "video_height": null,
  "enrichment_data": {...}
}

EnrichmentDataSchema

Source: backend/api/schemas/detections.py:94-139

{
  "vehicle": {
    "vehicle_type": "sedan",
    "vehicle_color": "blue",
    "has_damage": false,
    "is_commercial": false
  },
  "person": {
    "clothing_description": "dark jacket, blue jeans",
    "action": "walking",
    "carrying": ["backpack"],
    "is_suspicious": false
  },
  "pet": {
    "pet_type": "dog",
    "breed": "golden retriever"
  },
  "weather": "sunny",
  "errors": []
}

VehicleEnrichmentData

Source: backend/api/schemas/detections.py:17-41

Field Type Default Description
vehicle_type string null sedan, suv, truck, van
vehicle_color string null Primary color
has_damage boolean false Damage detected
is_commercial boolean false Commercial vehicle

PersonEnrichmentData

Source: backend/api/schemas/detections.py:44-70

Field Type Default Description
clothing_description string null Clothing description
action string null Detected action
carrying array [] Items being carried
is_suspicious boolean false Suspicious flag

PetEnrichmentData

Source: backend/api/schemas/detections.py:73-91

Field Type Default Description
pet_type string null dog, cat
breed string null Detected breed

DetectionStatsResponse

Source: backend/api/schemas/detections.py:290-342

{
  "total_detections": 107,
  "detections_by_class": {
    "person": 23,
    "car": 20
  },
  "object_class_distribution": [{ "object_class": "person", "count": 23 }],
  "average_confidence": 0.87,
  "trends": [{ "timestamp": 1737504000000, "detection_count": 10 }]
}

Note: trends.timestamp is Unix epoch milliseconds for Grafana compatibility.

DetectionSearchResult

Source: backend/api/schemas/detections.py:348-376

Field Type Description
id integer Detection ID
camera_id string Camera ID
object_type string Detected object type
confidence float Detection confidence
detected_at datetime Detection timestamp
file_path string Source file path
thumbnail_path string Thumbnail path
relevance_score float Search relevance (0-1)
labels array Searchable labels
bbox_* integer Bounding box coordinates
enrichment_data object Enrichment data

Health Schemas

LivenessResponse

Source: backend/api/schemas/health.py:22-46

{
  "status": "alive"
}

ReadinessResponse

Source: backend/api/schemas/health.py:86-134

{
  "ready": true,
  "checks": {
    "database": {
      "status": "healthy",
      "latency_ms": 2.5,
      "error": null
    },
    "redis": {
      "status": "healthy",
      "latency_ms": 1.2,
      "error": null
    }
  }
}

CheckResult

Source: backend/api/schemas/health.py:49-83

Field Type Description
status string healthy, unhealthy, degraded
latency_ms float Check latency (ms)
error string Error message

FullHealthResponse

Source: backend/api/schemas/health.py:316-385

{
  "status": "healthy",
  "ready": true,
  "message": "All systems operational",
  "postgres": {...},
  "redis": {...},
  "ai_services": [...],
  "circuit_breakers": {...},
  "workers": [...],
  "timestamp": "2026-01-23T12:00:00Z",
  "version": "0.1.0"
}

AIServiceHealthStatus

Source: backend/api/schemas/health.py:201-234

Field Type Description
name string Service identifier
display_name string Human-readable name
status string Health state
url string Service URL
response_time_ms float Response time
circuit_state string closed, open, half_open
error string Error message
last_check datetime Last check timestamp

CircuitBreakerSummary

Source: backend/api/schemas/health.py:262-292

{
  "total": 5,
  "closed": 4,
  "open": 1,
  "half_open": 0,
  "breakers": {
    "yolo26": "closed",
    "nemotron": "closed",
    "florence": "open"
  }
}

WorkerHealthStatus

Source: backend/api/schemas/health.py:295-313

Field Type Description
name string Worker name
running boolean Running status
critical boolean Whether critical for operation

Bulk Operation Schemas

BulkOperationResponse

Source: backend/api/schemas/bulk.py

{
  "total": 10,
  "succeeded": 8,
  "failed": 2,
  "skipped": 0,
  "results": [
    {
      "index": 0,
      "status": "success",
      "id": 123,
      "error": null
    },
    {
      "index": 1,
      "status": "failed",
      "id": null,
      "error": "Camera not found"
    }
  ]
}

BulkOperationStatus Enum

  • success - Operation succeeded
  • failed - Operation failed
  • skipped - Operation skipped

Validation Rules

Date Range Validation

Source: backend/api/validators.py

  • start_date must be before end_date
  • End dates are normalized to end-of-day for date-only inputs
  • Maximum range: 90 days (configurable per endpoint)

Camera Name Validation

Source: backend/api/schemas/camera.py:66-93

  • 1-255 characters
  • No control characters (null, tab, newline)
  • Leading/trailing whitespace stripped

Folder Path Validation

Source: backend/api/schemas/camera.py:36-63

  • 1-500 characters
  • No path traversal (..)
  • Forbidden characters: < > : " | ? *

Confidence Score Validation

  • Range: 0.0 to 1.0
  • Validated at Pydantic level with ge=0.0, le=1.0
