Dataflows Hub

This hub documents the end-to-end data flows within the Home Security Intelligence system. Each document traces data through specific pathways, including timing information, error handling, and recovery mechanisms.

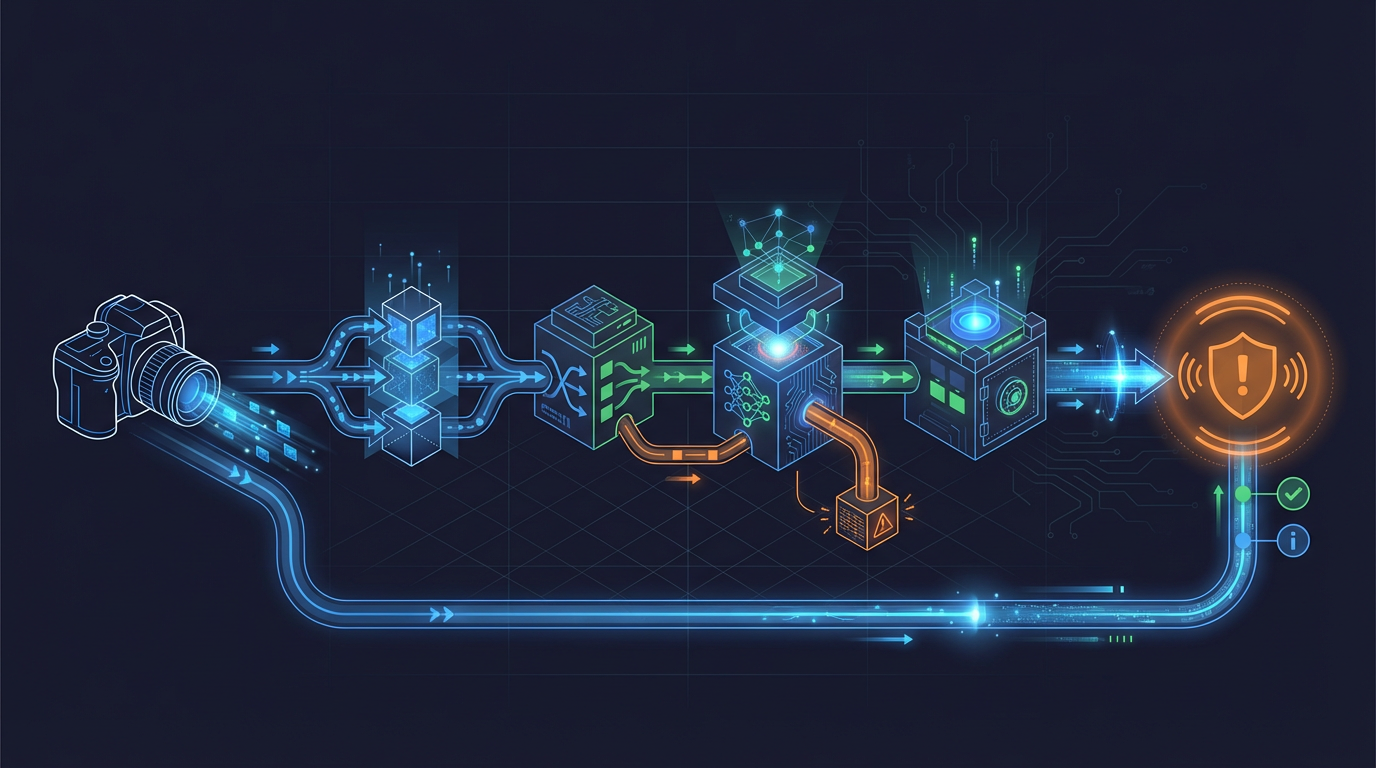

Dataflows Overview

End-to-End Flow Summary

%%{init: {'theme': 'dark'}}%%
flowchart TB
    Camera["Camera Upload (FTP)"]
    FW["File Watcher<br/>(inotify/poll)<br/>Debounce: 0.5s, Stability: 2s"]
    DQ["Detection Queue<br/>(Redis)<br/>Max size: configurable"]
    DW["Detection Worker"]
    YOLO["YOLO26 API<br/>(Circuit Breaker)<br/>Timeout: 60s, Retries: 3"]
    BA["Batch Aggregator<br/>(90s window)<br/>Idle timeout: 30s"]
    AQ["Analysis Queue<br/>(Redis)"]
    AW["Analysis Worker"]
    EP["Enrichment Pipeline (opt.)<br/>Florence-2, CLIP, Depth, Pose"]
    NEM["Nemotron Analyzer<br/>(LLM API)<br/>Timeout: 120s, Retries: 3"]
    DB[("Event Creation<br/>(PostgreSQL)")]
    EB["Event Broadcaster<br/>(Redis Pub/Sub)<br/>Message buffer: 100"]
    WS["WebSocket Clients"]

    Camera --> FW
    FW --> DQ
    DQ --> DW
    DW --> YOLO
    YOLO --> BA
    BA --> AQ
    AQ --> AW
    AW --> EP
    EP --> NEM
    NEM --> DB
    DB --> EB
    EB --> WS

Quick Reference

Document Description
image-to-event.md Complete detection pipeline from camera image to security event
event-lifecycle.md Event states from creation to archival
websocket-message-flow.md Real-time WebSocket event broadcasting
api-request-flow.md REST API request processing
batch-aggregation-flow.md Detection batching with timing diagram
llm-analysis-flow.md Nemotron LLM analysis request/response
enrichment-pipeline.md Florence-2, CLIP, depth, pose enrichment
error-recovery-flow.md Circuit breaker and retry sequences
startup-shutdown-flow.md Application lifecycle sequences

Key Timing Parameters

Parameter Default Source
File debounce delay 0.5s backend/services/file_watcher.py:355
File stability time 2.0s backend/services/file_watcher.py:362
Batch window 90s backend/services/batch_aggregator.py:145
Batch idle timeout 30s backend/services/batch_aggregator.py:146
YOLO26 connect timeout 10s backend/services/detector_client.py:97
YOLO26 read timeout 60s backend/services/detector_client.py:98
Nemotron connect timeout 10s backend/services/nemotron_analyzer.py:130
Nemotron read timeout 120s backend/services/nemotron_analyzer.py:131
WebSocket idle timeout 300s Configurable in settings
WebSocket heartbeat interval 30s Configurable in settings

Key Circuit Breaker Parameters

Service Failure Threshold Recovery Timeout Source
YOLO26 5 60s backend/services/detector_client.py:300-310
Nemotron 5 30s backend/main.py:265-270
PostgreSQL 10 60s backend/main.py:273-278
Redis 10 60s backend/main.py:273-278

Concurrency Control

The system uses a shared semaphore to prevent GPU/AI service overload:

# backend/services/nemotron_analyzer.py:19-22
# Uses a shared asyncio.Semaphore to limit concurrent AI inference operations.
# This prevents GPU/AI service overload under high traffic. The limit is
# configurable via AI_MAX_CONCURRENT_INFERENCES setting (default: 4).

Error Categories

The enrichment pipeline classifies errors for observability:

Category Description Retry?
SERVICE_UNAVAILABLE Connection errors, service down Yes
TIMEOUT Request timed out Yes
RATE_LIMITED HTTP 429, back off Yes
SERVER_ERROR HTTP 5xx, transient issue Yes
CLIENT_ERROR HTTP 4xx, bad request No
PARSE_ERROR JSON/response parsing failed No
VALIDATION_ERROR Invalid input data No
UNEXPECTED Unknown error type Yes

Source: backend/services/enrichment_pipeline.py:170-189
