API Request Flow¶

This document describes the complete lifecycle of a REST API request, from HTTP reception through response, including middleware processing, route handling, and error responses.

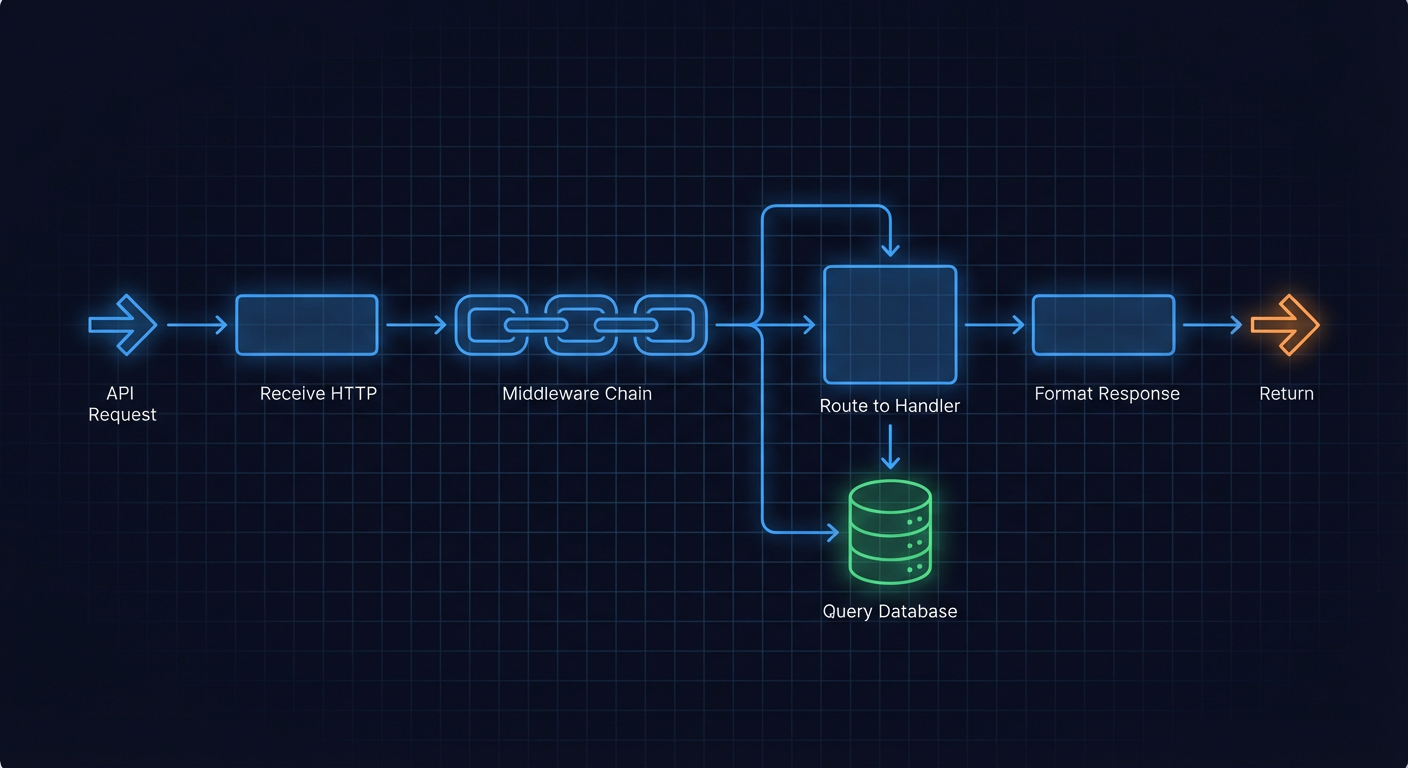

API Request Flow

Request Flow Sequence Diagram¶

sequenceDiagram
    participant Client as HTTP Client
    participant Nginx as Nginx (Reverse Proxy)
    participant Uvicorn as Uvicorn ASGI
    participant MW as Middleware Stack
    participant Router as FastAPI Router
    participant Handler as Route Handler
    participant Service as Service Layer
    participant DB as PostgreSQL
    participant Cache as Redis Cache

    Client->>Nginx: HTTP Request
    Nginx->>Uvicorn: Proxy request

    rect rgb(240, 240, 255)
        Note over MW: Middleware Stack (in order)
        Uvicorn->>MW: RequestIDMiddleware
        MW->>MW: BodySizeLimitMiddleware
        MW->>MW: ContentTypeValidationMiddleware
        MW->>MW: SecurityHeadersMiddleware
        MW->>MW: AuthMiddleware
        MW->>MW: RequestLoggingMiddleware
        MW->>MW: RequestTimingMiddleware
    end

    MW->>Router: Route matching
    Router->>Handler: Call handler with deps

    rect rgb(255, 240, 240)
        Note over Handler: Request Processing
        Handler->>Service: Business logic
        Service->>Cache: Check cache
        alt Cache hit
            Cache-->>Service: Cached data
        else Cache miss
            Service->>DB: Query
            DB-->>Service: Results
            Service->>Cache: Store in cache
        end
        Service-->>Handler: Data
    end

    Handler-->>MW: Response
    MW-->>Uvicorn: Response with headers
    Uvicorn-->>Nginx: HTTP Response
    Nginx-->>Client: Response

Middleware Stack¶

Source: backend/main.py:21-34

Middleware Order (outer to inner)¶

# backend/main.py:21-34
from backend.api.middleware import (
    AuthMiddleware,
    BodySizeLimitMiddleware,
    ContentTypeValidationMiddleware,
    DeprecationConfig,
    DeprecationLoggerMiddleware,
    DeprecationMiddleware,
    IdempotencyMiddleware,
    RequestLoggingMiddleware,
    RequestRecorderMiddleware,
    RequestTimingMiddleware,
    SecurityHeadersMiddleware,
)
from backend.api.middleware.request_id import RequestIDMiddleware

Order	Middleware	Purpose
1	`RequestIDMiddleware`	Assign unique request ID
2	`BodySizeLimitMiddleware`	Limit request body size
3	`ContentTypeValidationMiddleware`	Validate Content-Type header
4	`SecurityHeadersMiddleware`	Add security response headers
5	`AuthMiddleware`	API key authentication
6	`IdempotencyMiddleware`	Idempotent request handling
7	`DeprecationMiddleware`	API deprecation warnings
8	`RequestLoggingMiddleware`	Log request/response
9	`RequestTimingMiddleware`	Track request latency

Request ID¶

Every request receives a unique identifier for tracing:

X-Request-ID: req-abc123def456

This ID is:

Generated if not provided by client
Propagated through all service calls
Included in all log entries
Returned in response headers

Security Headers¶

# Security headers added to all responses
X-Content-Type-Options: nosniff
X-Frame-Options: DENY
X-XSS-Protection: 1; mode=block
Strict-Transport-Security: max-age=31536000; includeSubDomains

Authentication Flow¶

API Key Authentication¶

sequenceDiagram
    participant Client
    participant Auth as AuthMiddleware
    participant Settings

    Client->>Auth: Request with X-API-Key header
    Auth->>Settings: Check api_key_enabled
    alt Auth disabled
        Auth-->>Client: Continue (no auth required)
    else Auth enabled
        Auth->>Auth: Extract API key from header
        alt Key matches
            Auth-->>Client: Continue
        else Key missing/invalid
            Auth-->>Client: 401 Unauthorized
        end
    end

Supported Authentication Methods¶

Method	Header/Parameter	Example
API Key	`X-API-Key` header	`X-API-Key: your-api-key`
Query param	`api_key`	`/api/events?api_key=your-key`

Route Registration¶

Source: backend/main.py:35-71

Route Groups¶

# backend/main.py:35-71
from backend.api.routes import (
    admin,
    ai_audit,
    alertmanager,
    alerts,
    analytics,
    audit,
    calibration,
    cameras,
    debug,
    detections,
    dlq,
    entities,
    events,
    exports,
    feedback,
    health_ai_services,
    hierarchy,
    household,
    jobs,
    logs,
    media,
    metrics,
    notification,
    notification_preferences,
    prompt_management,
    queues,
    rum,
    services,
    settings_api,
    summaries,
    system,
    webhooks,
    websocket,
    zone_household,
    zones,
)

Key API Groups¶

Route Prefix	Purpose	Rate Limited
`/api/events`	Security events CRUD	No
`/api/cameras`	Camera management	No
`/api/detections`	Detection records	No
`/api/alerts`	Alert rules	No
`/api/zones`	Zone management	No
`/api/metrics`	Prometheus metrics	No
`/health`	Health checks	No
`/api/admin`	Administrative ops	Yes

Dependency Injection¶

Database Session¶

# Route handler with database dependency
@router.get("/events/{event_id}")
async def get_event(
    event_id: int,
    session: AsyncSession = Depends(get_session),
) -> EventResponse:
    result = await session.execute(
        select(Event).where(Event.id == event_id)
    )
    event = result.scalar_one_or_none()
    if not event:
        raise HTTPException(status_code=404, detail="Event not found")
    return EventResponse.from_orm(event)

Redis Client¶

# Route handler with Redis dependency
@router.get("/queue-stats")
async def get_queue_stats(
    redis: RedisClient = Depends(get_redis),
) -> QueueStatsResponse:
    detection_queue_len = await redis.llen(DETECTION_QUEUE)
    analysis_queue_len = await redis.llen(ANALYSIS_QUEUE)
    return QueueStatsResponse(
        detection_queue=detection_queue_len,
        analysis_queue=analysis_queue_len,
    )

Request Processing Timeline¶

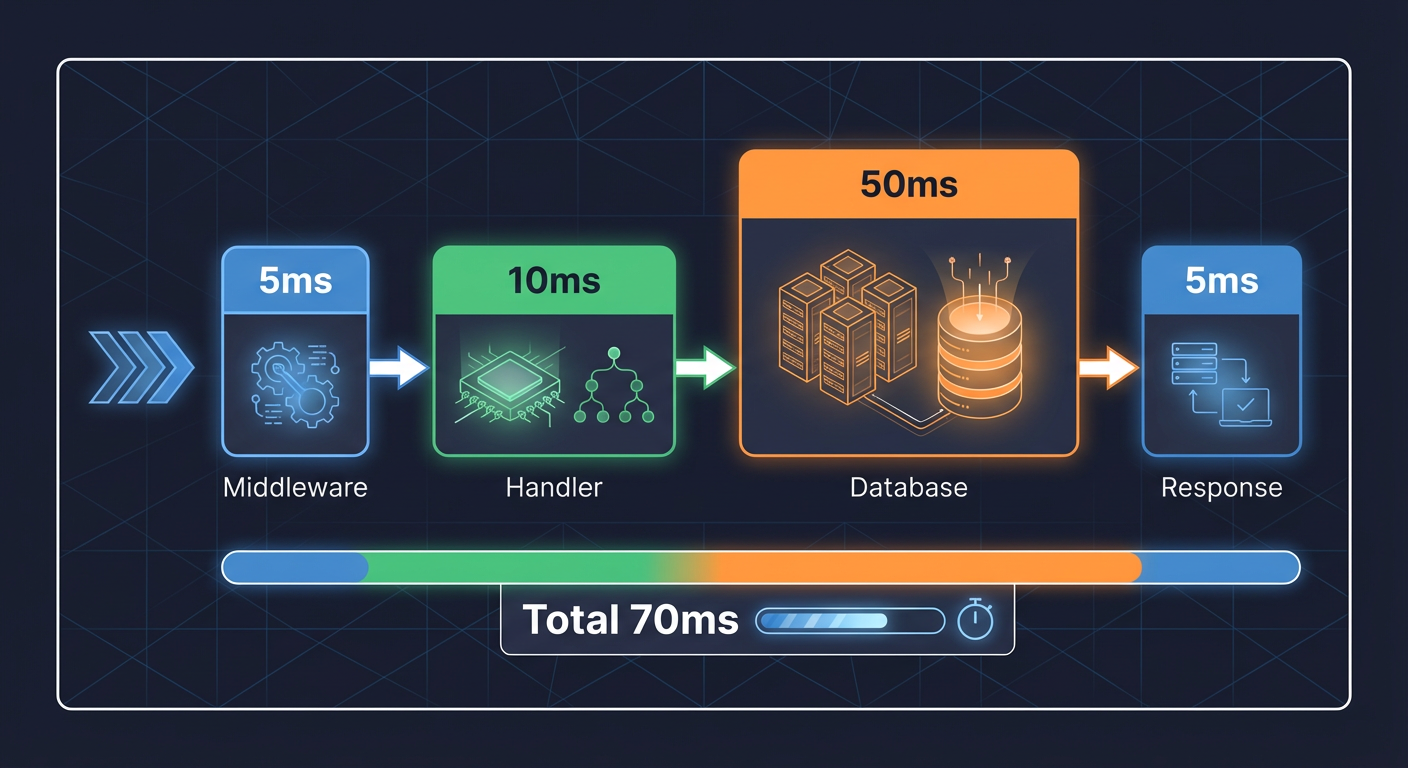

Request Timing

Time 0ms:   Request received by Uvicorn
Time 1ms:   RequestIDMiddleware assigns ID
Time 2ms:   BodySizeLimitMiddleware checks size
Time 3ms:   ContentTypeValidationMiddleware validates
Time 4ms:   SecurityHeadersMiddleware prepares headers
Time 5ms:   AuthMiddleware validates API key
Time 6ms:   RequestLoggingMiddleware logs start
Time 7ms:   Route matching
Time 8ms:   Dependency resolution (get_session, etc.)
Time 10ms:  Handler execution starts
            ...
            Handler execution (variable)
            ...
Time N ms:  Handler returns response
Time N+1ms: RequestLoggingMiddleware logs completion
Time N+2ms: RequestTimingMiddleware records latency
Time N+3ms: Response sent

Caching Strategy¶

Cache-Aside Pattern¶

sequenceDiagram
    participant Handler
    participant Cache as Redis Cache
    participant DB as PostgreSQL

    Handler->>Cache: GET cache_key
    alt Cache Hit
        Cache-->>Handler: Cached data
    else Cache Miss
        Handler->>DB: SELECT query
        DB-->>Handler: Fresh data
        Handler->>Cache: SET cache_key (TTL)
        Cache-->>Handler: OK
    end

Cache Keys¶

Resource	Key Pattern	TTL
Events list	`events:list:{hash}`	30s
Event by ID	`events:{id}`	60s
Camera list	`cameras:list`	120s
Camera by ID	`cameras:{id}`	120s
Zone list	`zones:list`	300s
Metrics	`metrics:{type}`	10s

Error Handling¶

Exception Handlers¶

Source: backend/api/exception_handlers.py

# Exception handler registration
register_exception_handlers(app)

Standard Error Response Format¶

{
  "detail": "Event not found",
  "request_id": "req-abc123def456",
  "timestamp": "2025-12-23T12:00:00Z"
}

HTTP Status Codes¶

Code	Meaning	Use Case
200	OK	Successful GET/PUT/PATCH
201	Created	Successful POST creating resource
204	No Content	Successful DELETE
400	Bad Request	Invalid request body
401	Unauthorized	Missing/invalid auth
403	Forbidden	Insufficient permissions
404	Not Found	Resource doesn't exist
409	Conflict	Duplicate resource
422	Unprocessable Entity	Validation error
429	Too Many Requests	Rate limit exceeded
500	Internal Server Error	Unexpected error
503	Service Unavailable	Dependency unavailable

Circuit Breaker Errors¶

When a dependency circuit breaker is open:

{
  "detail": "Service temporarily unavailable",
  "service": "yolo26",
  "circuit_state": "open",
  "retry_after": 60
}

Request Validation¶

Pydantic Schema Validation¶

# Request body validation
class EventCreateRequest(BaseModel):
    camera_id: str = Field(..., min_length=1, max_length=50)
    risk_score: int = Field(..., ge=0, le=100)
    summary: str = Field(..., min_length=1, max_length=1000)

@router.post("/events")
async def create_event(
    request: EventCreateRequest,
) -> EventResponse:
    ...

Path Parameter Validation¶

@router.get("/events/{event_id}")
async def get_event(
    event_id: int = Path(..., ge=1, description="Event ID"),
) -> EventResponse:
    ...

Query Parameter Validation¶

@router.get("/events")
async def list_events(
    limit: int = Query(default=50, ge=1, le=100),
    offset: int = Query(default=0, ge=0),
    camera_id: str | None = Query(default=None),
    risk_level: str | None = Query(default=None),
) -> EventListResponse:
    ...

Response Serialization¶

Response Models¶

class EventResponse(BaseModel):
    id: int
    batch_id: str
    camera_id: str
    risk_score: int
    risk_level: str
    summary: str
    reasoning: str | None
    created_at: datetime
    acknowledged_at: datetime | None

    class Config:
        from_attributes = True

Pagination¶

class PaginatedResponse(BaseModel, Generic[T]):
    items: list[T]
    total: int
    limit: int
    offset: int
    has_more: bool

# Response
{
    "items": [...],
    "total": 150,
    "limit": 50,
    "offset": 0,
    "has_more": true
}

Complete Request Example¶

GET /api/events/{id}¶

1. Client sends:
   GET /api/events/42
   Headers:
     X-API-Key: your-api-key
     Accept: application/json

2. Middleware processing:
   - RequestID: req-abc123 assigned
   - Auth: API key validated
   - Logging: Request logged

3. Route matching:
   - Matched: GET /api/events/{event_id}
   - Path params: event_id=42

4. Dependency injection:
   - AsyncSession created
   - Connection from pool

5. Handler execution:
   - SELECT * FROM events WHERE id = 42
   - Result: Event object

6. Response:
   HTTP/1.1 200 OK
   Content-Type: application/json
   X-Request-ID: req-abc123
   X-Content-Type-Options: nosniff

   {
     "id": 42,
     "batch_id": "batch-a1b2c3d4",
     "camera_id": "front_door",
     "risk_score": 75,
     "risk_level": "high",
     ...
   }

Metrics and Observability¶

Request Metrics¶

hsi_http_requests_total - Total requests by path and status
hsi_http_request_duration_seconds - Request latency histogram
hsi_http_request_size_bytes - Request body size
hsi_http_response_size_bytes - Response body size

Request Tracing¶

When OpenTelemetry is enabled:

Trace: GET /api/events/42
  Span: http_request
    Span: db_query (SELECT events)
    Span: cache_check (Redis GET)
