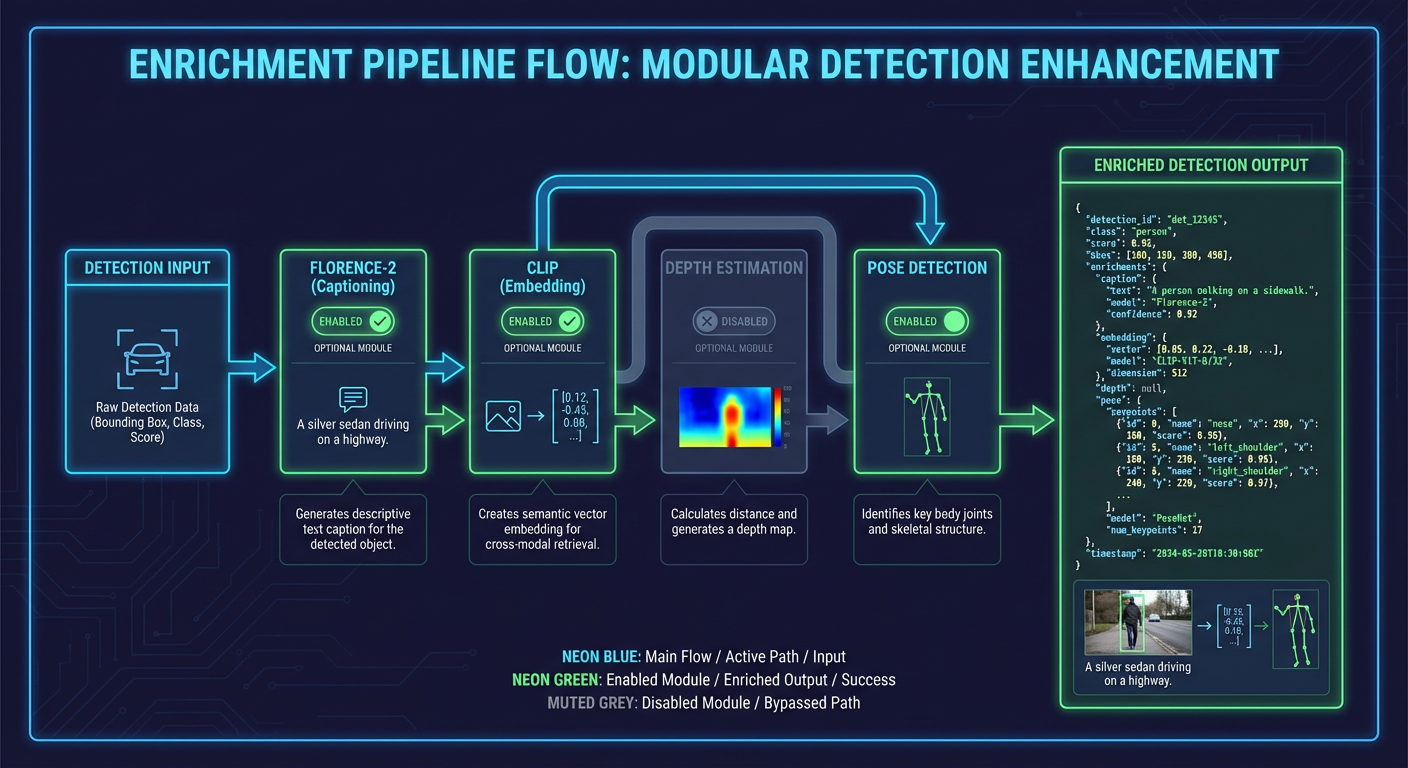

Enrichment Pipeline Flow¶

# backend/services/enrichment_pipeline.py:1-17
"""Enrichment Pipeline for detection context enhancement.

This module provides the EnrichmentPipeline service that enriches detections
with additional context by running on-demand AI models:

1. License Plate Detection: Runs YOLO11 on vehicle detections
2. License Plate OCR: Runs PaddleOCR on detected plates
3. Face Detection: Runs YOLO11 on person detections
4. Image Quality Assessment: BRISQUE for blur/noise/tampering detection

The pipeline can use either:
- Local models via ModelManager (default, for single-process deployments)
- Remote HTTP service at ai-enrichment:8094 (for containerized deployments)
"""

# backend/services/enrichment_pipeline.py:154-167
class EnrichmentStatus(str, Enum):
    """Status of enrichment pipeline execution.

    Tracks the overall success/failure state of enrichment operations:
    - FULL: All enabled enrichment models succeeded
    - PARTIAL: Some models succeeded, some failed (partial enrichment available)
    - FAILED: All models failed (no enrichment data available)
    - SKIPPED: Enrichment was not attempted (disabled or no applicable detections)
    """

    FULL = "full"
    PARTIAL = "partial"
    FAILED = "failed"
    SKIPPED = "skipped"

# backend/services/enrichment_pipeline.py:170-189
class ErrorCategory(str, Enum):
    """Category of enrichment error for observability.

    Error categories help distinguish between transient failures that
    can be retried and permanent failures that indicate bugs.
    """

    # Transient errors (use fallback, retry later)
    SERVICE_UNAVAILABLE = "service_unavailable"  # Connection errors, service down
    TIMEOUT = "timeout"                          # Request timed out
    RATE_LIMITED = "rate_limited"                # HTTP 429, back off
    SERVER_ERROR = "server_error"                # HTTP 5xx, transient issue

    # Permanent errors (likely a bug, requires investigation)
    CLIENT_ERROR = "client_error"                # HTTP 4xx, bad request
    PARSE_ERROR = "parse_error"                  # JSON/response parsing failed
    VALIDATION_ERROR = "validation_error"        # Invalid input data

    # Unexpected errors (catch-all, needs investigation)
    UNEXPECTED = "unexpected"                    # Unknown error type

# backend/services/enrichment_pipeline.py:192-225
@dataclass(slots=True)
class EnrichmentError:
    """Structured error information for enrichment failures.

    Provides detailed error context for observability and debugging,
    including the error category, reason, and original exception type.

    Attributes:
        operation: The operation that failed (e.g., "license_plate_detection")
        category: Error category for classification
        reason: Human-readable reason for the failure
        error_type: The type name of the original exception
        is_transient: Whether the error is transient (retry may succeed)
        details: Additional context-specific details
    """

    operation: str
    category: ErrorCategory
    reason: str
    error_type: str
    is_transient: bool = True
    details: dict[str, Any] = field(default_factory=dict)

# backend/services/enrichment_pipeline.py:227-356
@classmethod
def from_exception(
    cls,
    operation: str,
    exc: Exception,
    *,
    details: dict[str, Any] | None = None,
) -> EnrichmentError:
    """Create an EnrichmentError from an exception.

    Classifies the exception into the appropriate category and determines
    whether it is transient (retry may succeed) or permanent (likely a bug).
    """

# backend/services/enrichment_pipeline.py:359-400
@dataclass(slots=True)
class EnrichmentTrackingResult:
    """Tracks which enrichment models succeeded/failed for a batch.

    This provides visibility into partial failures instead of silently
    degrading when some enrichment models fail.

    Attributes:
        status: Overall enrichment status (full, partial, failed, skipped)
        successful_models: List of model names that succeeded
        failed_models: List of model names that failed
        errors: Dictionary mapping model names to error messages
        data: The actual EnrichmentResult data (if any models succeeded)
    """

    status: EnrichmentStatus = EnrichmentStatus.SKIPPED
    successful_models: list[str] = field(default_factory=list)
    failed_models: list[str] = field(default_factory=list)
    errors: dict[str, str] = field(default_factory=dict)
    data: EnrichmentResult | None = None

    @property
    def success_rate(self) -> float:
        """Calculate the success rate of enrichment models."""
        total = len(self.successful_models) + len(self.failed_models)
        if total == 0:
            return 1.0
        return len(self.successful_models) / total

# backend/services/enrichment_pipeline.py:67-147
# Model imports for various enrichment capabilities
from backend.services.depth_anything_loader import (
    DepthAnalysisResult,
    analyze_depth,
)
from backend.services.fashion_clip_loader import (
    ClothingClassification,
    classify_clothing,
)
from backend.services.household_matcher import (
    HouseholdMatch,
    get_household_matcher,
)
from backend.services.image_quality_loader import (
    ImageQualityResult,
    assess_image_quality,
)
from backend.services.model_zoo import (
    ANIMAL_CLASSES,
    PERSON_CLASS,
    VEHICLE_CLASSES,
    ModelManager,
)
from backend.services.pet_classifier_loader import (
    PetClassificationResult,
    classify_pet,
)
from backend.services.vehicle_classifier_loader import (
    VehicleClassificationResult,
    classify_vehicle,
)
from backend.services.vehicle_damage_loader import (
    VehicleDamageResult,
    detect_vehicle_damage,
)
from backend.services.violence_loader import (
    ViolenceDetectionResult,
    classify_violence,
)
from backend.services.vitpose_loader import (
    PoseResult,
    extract_poses_batch,
)
from backend.services.weather_loader import (
    WeatherResult,
    classify_weather,
)
from backend.services.xclip_loader import (
    classify_actions,
)

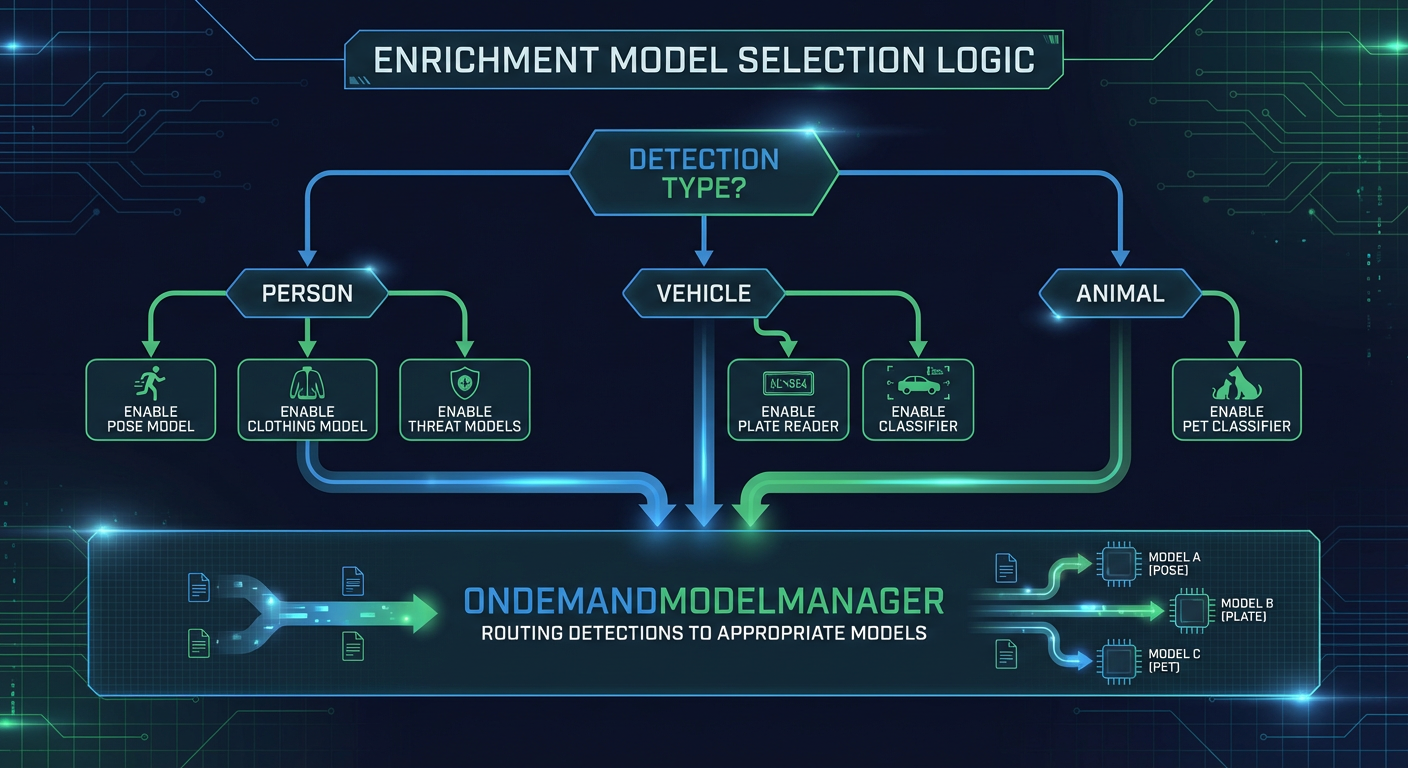

Vehicle Detection
       │
       ├──> License Plate Detection (YOLO11)
       │           │
       │           └──> OCR (PaddleOCR)
       │                    │
       │                    └──> Household Database Lookup
       │
       ├──> Vehicle Classification (make/model/color)
       │
       └──> Vehicle Damage Detection (optional)

Person Detection
       │
       ├──> Face Detection (YOLO11)
       │           │
       │           └──> Face Embedding (CLIP)
       │                    │
       │                    └──> Household Face Matching
       │
       ├──> Pose Estimation (ViTPose)
       │           │
       │           └──> Action Recognition
       │
       └──> Clothing Analysis (FashionCLIP)

Full Image
       │
       ├──> Weather Classification
       │
       ├──> Depth Analysis
       │
       ├──> Image Quality Assessment
       │
       └──> Florence-2 Vision Features

# backend/services/enrichment_pipeline.py:14-16
# Set use_enrichment_service=True to use the HTTP service for vehicle, pet,
# and clothing classification instead of loading models locally.

ai-enrichment:8094

# If license plate detection fails
try:
    plate_result = await detect_license_plate(vehicle_crop)
except Exception as e:
    error = EnrichmentError.from_exception("license_plate_detection", e)
    tracking.failed_models.append("license_plate")
    tracking.errors["license_plate"] = error.reason
    # Continue with other enrichments

# If face detection fails
try:
    face_result = await detect_face(person_crop)
except Exception as e:
    error = EnrichmentError.from_exception("face_detection", e)
    tracking.failed_models.append("face")
    tracking.errors["face"] = error.reason
    # Continue with other enrichments

EnrichmentTrackingResult(
    status=EnrichmentStatus.PARTIAL,
    successful_models=["weather", "depth", "face"],
    failed_models=["license_plate", "vehicle_classifier"],
    errors={
        "license_plate": "Service unavailable: Connection refused",
        "vehicle_classifier": "Timeout after 30s"
    },
    data=EnrichmentResult(
        weather=WeatherResult(condition="Clear", confidence=0.95),
        depth=DepthAnalysisResult(...),
        faces=[FaceResult(...)],
        license_plates=[],  # Empty due to failure
        vehicle_info=None,  # None due to failure
    )
)

from backend.core.metrics import (
    observe_enrichment_model_duration,
    record_enrichment_model_call,
    record_enrichment_model_error,
)
