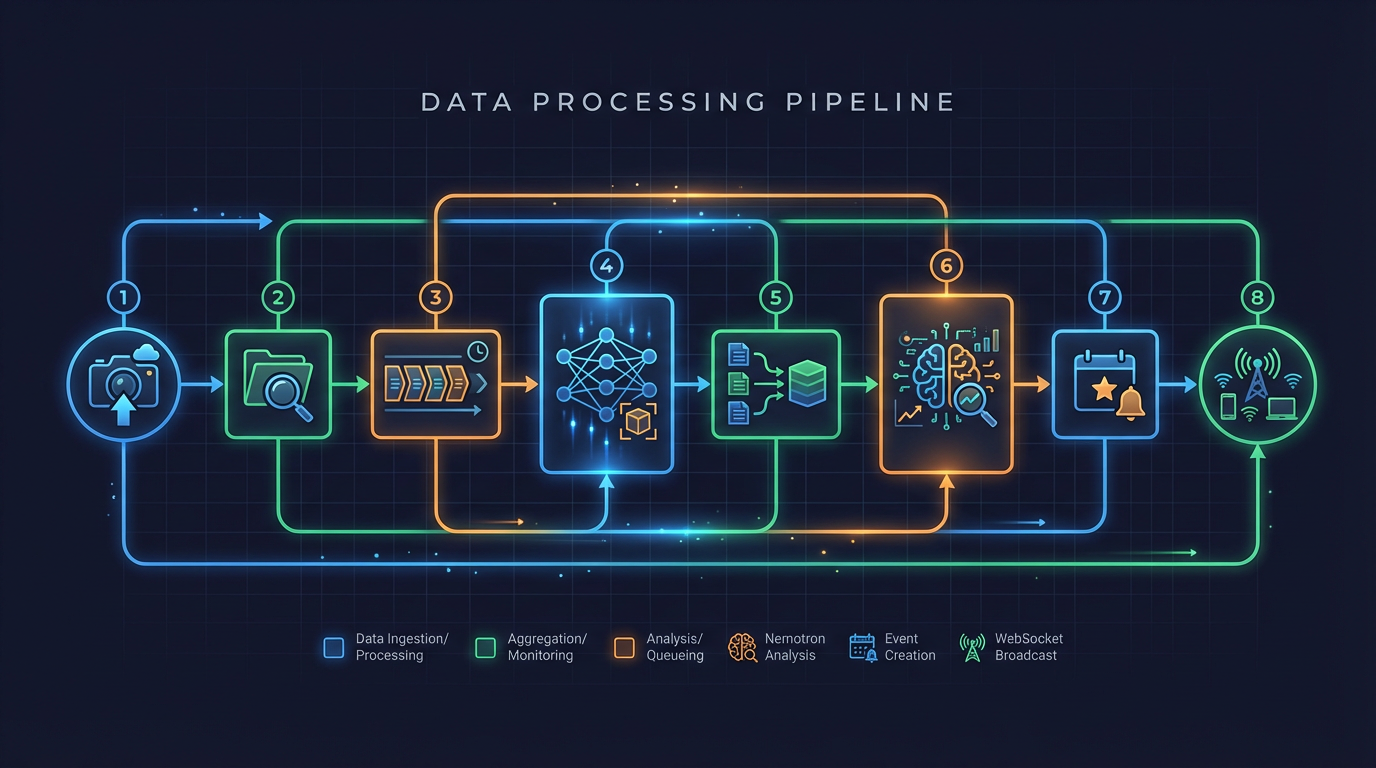

Image to Event Flow¶

# backend/services/file_watcher.py:351-384
def __init__(
    self,
    camera_root: str | None = None,
    redis_client: Any | None = None,
    debounce_delay: float = 0.5,          # Wait after last modification
    queue_name: str = DETECTION_QUEUE,
    ...
    stability_time: float = 2.0,          # File size stable for 2s
):

# backend/services/file_watcher.py:131-156
def _validate_image_sync(file_path: str) -> bool:
    # Try to open and verify image header
    with Image.open(file_path) as img:
        img.verify()  # Check headers

    # Re-open and fully load to catch truncation
    with Image.open(file_path) as img:
        img.load()  # Forces full decompression

    return True

# backend/services/file_watcher.py:13-19
# Files are deduplicated using SHA256 content hashes stored in Redis with TTL.
# This prevents duplicate processing caused by:
# - Watchdog create/modify event bursts
# - Service restarts during file processing
# - FTP upload retries

# backend/services/detector_client.py:1-35
# Detection Flow:
#     1. Read image file from filesystem
#     2. Validate image integrity (catch truncated/corrupt images)
#     3. Acquire shared AI inference semaphore (NEM-1463)
#     4. POST to detector server with image data (with retry on transient failures)
#     5. Release semaphore
#     6. Parse JSON response with detections
#     7. Filter by confidence threshold
#     8. Store detections in database
#     9. Return Detection model instances

# backend/services/detector_client.py:541-600
async def _send_detection_request(
    self,
    image_data: bytes,
    image_name: str,
    camera_id: str,
    image_path: str,
) -> dict[str, Any]:
    """Send detection request with retry logic and concurrency limiting."""
    ...
    # Use semaphore to limit concurrent GPU requests (NEM-1500)
    async with semaphore:
        async with asyncio.timeout(explicit_timeout):
            files = {"file": (image_name, image_data, "image/jpeg")}

# backend/services/detector_client.py:295-309
self._circuit_breaker = CircuitBreaker(
    name="yolo26",
    config=CircuitBreakerConfig(
        failure_threshold=5,        # Opens after 5 consecutive failures
        recovery_timeout=60.0,      # Wait 60s before attempting recovery
        half_open_max_calls=3,      # Allow 3 test calls in half-open
        success_threshold=2,        # 2 successes close the circuit
        excluded_exceptions=(ValueError,),  # HTTP 4xx don't trip circuit
    ),
)

# backend/services/batch_aggregator.py:1-40
# Batching Logic:
#     - Create new batch when first detection arrives for a camera
#     - Add subsequent detections within 90-second window
#     - Close batch if:
#         * 90 seconds elapsed from batch start (window timeout)
#         * 30 seconds with no new detections (idle timeout)
#     - On batch close: push to analysis_queue with batch_id, camera_id, detection_ids

batch:{camera_id}:current      - Current batch ID for camera
batch:{batch_id}:camera_id     - Camera ID for batch
batch:{batch_id}:detections    - LIST of detection IDs (RPUSH for atomic append)
batch:{batch_id}:started_at    - Batch start timestamp
batch:{batch_id}:last_activity - Last activity timestamp

# backend/services/batch_aggregator.py:282-304
async def _atomic_list_append(self, key: str, value: int, ttl: int) -> int:
    """Atomically append a value to a Redis list and refresh TTL.

    Uses Redis RPUSH for atomic append, eliminating race conditions
    in distributed environments.
    """
    client = self._redis._client
    length: int = await client.rpush(key, str(value))
    await client.expire(key, ttl)
    return length

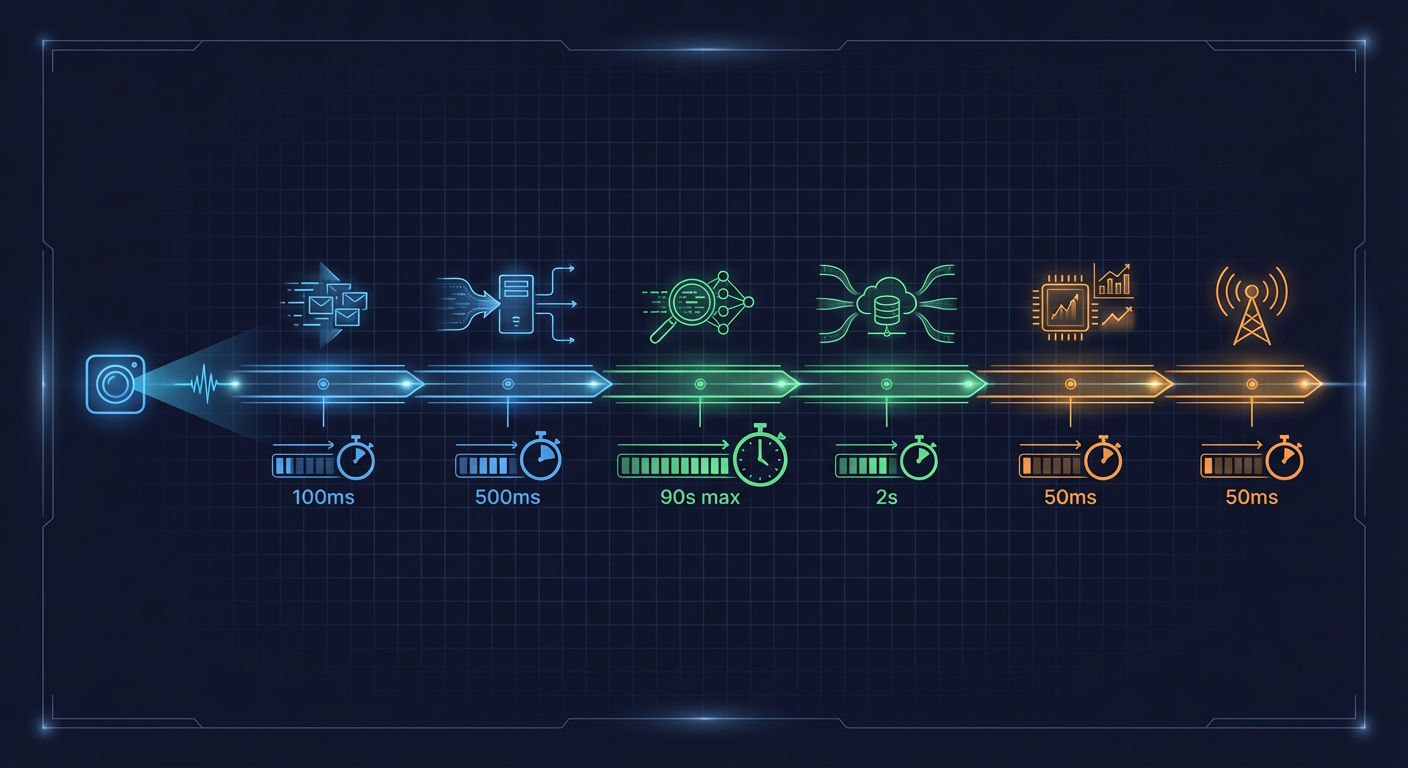

Time 0s: First detection arrives
         -> Create batch-{uuid}
         -> batch:started_at = now

Time 0-90s: Additional detections
            -> RPUSH to batch:detections
            -> Update batch:last_activity

CLOSE CONDITION 1: Window timeout (90s elapsed)
Time 90s: -> Close batch, push to analysis queue

CLOSE CONDITION 2: Idle timeout (30s no activity)
Time 30s+: -> Close batch, push to analysis queue

CLOSE CONDITION 3: Max detections reached
Any time:  -> Close batch, push to analysis queue

# backend/services/nemotron_analyzer.py:6-17
# Analysis Flow:
#     1. Fetch batch detections from Redis/database
#     2. Enrich context with zones, baselines, and cross-camera activity
#     3. Run enrichment pipeline for license plates, faces, OCR (optional)
#     4. Format prompt with enriched detection details
#     5. Acquire shared AI inference semaphore (NEM-1463)
#     6. POST to llama.cpp completion endpoint (with retry on transient failures)
#     7. Release semaphore
#     8. Parse JSON response
#     9. Create Event with risk assessment
#     10. Store Event in database
#     11. Broadcast via WebSocket (if available)

# backend/services/nemotron_analyzer.py:19-22
# Concurrency Control (NEM-1463):
#     Uses a shared asyncio.Semaphore to limit concurrent AI inference operations.
#     This prevents GPU/AI service overload under high traffic. The limit is
#     configurable via AI_MAX_CONCURRENT_INFERENCES setting (default: 4).

# backend/services/nemotron_analyzer.py:24-27
# Retry Logic (NEM-1343):
#     - Configurable max retries via NEMOTRON_MAX_RETRIES setting (default: 3)
#     - Exponential backoff: 2^attempt seconds between retries (capped at 30s)
#     - Only retries transient failures (connection, timeout, HTTP 5xx)

# backend/services/event_broadcaster.py:347-352
# Message Delivery Guarantees (NEM-1688):
# - All messages include monotonically increasing sequence numbers
# - Last MESSAGE_BUFFER_SIZE messages are buffered for replay
# - High-priority messages (risk_score >= 80 or critical) require acknowledgment
# - Per-client ACK tracking for delivery confirmation
