Startup and Shutdown Flow

This document describes the application lifecycle, including startup initialization sequence, signal handling, and graceful shutdown procedures.

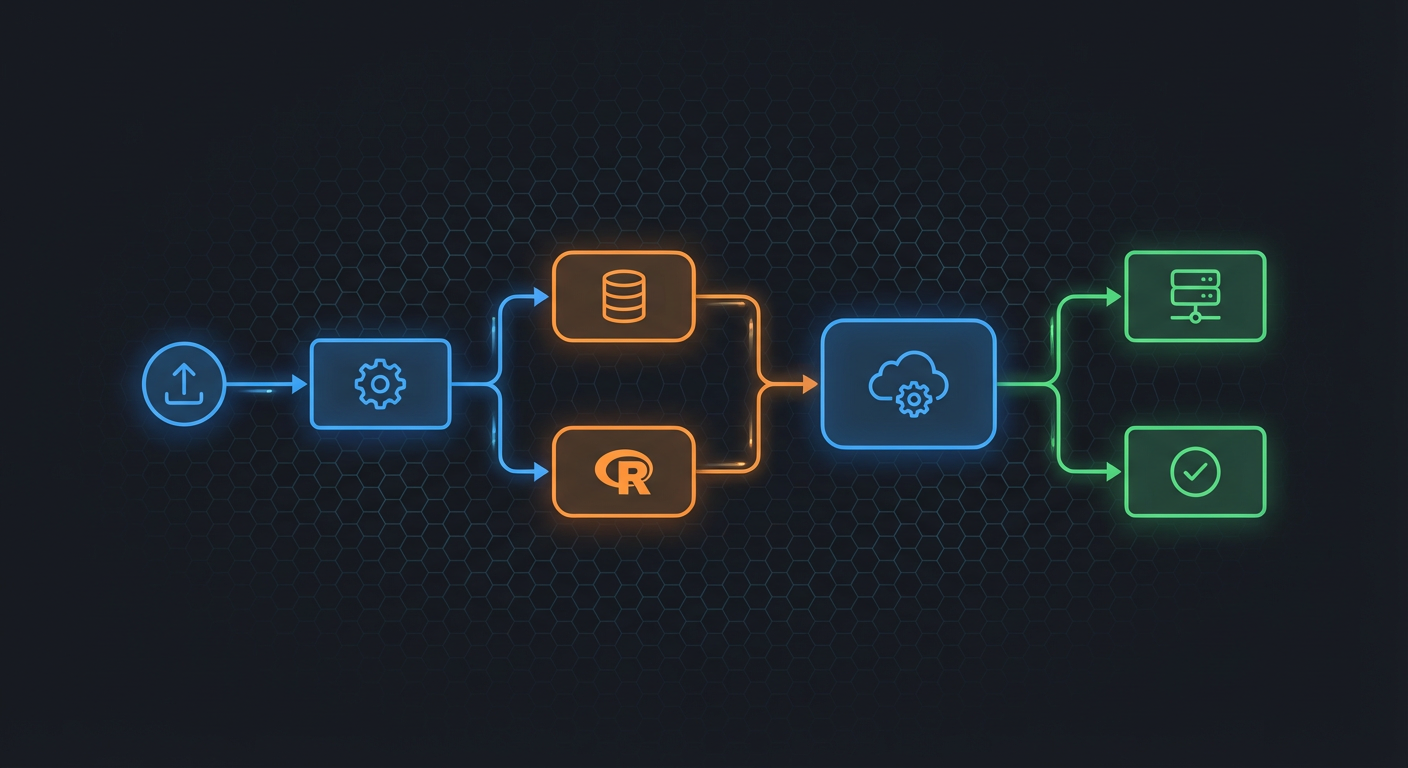

Startup Shutdown Overview

Application Lifecycle Overview

Source: backend/main.py:461-479

# backend/main.py:461-479
@asynccontextmanager
async def lifespan(_app: FastAPI) -> AsyncGenerator[None]:
    """Manage application lifecycle - startup and shutdown events.

    This lifespan context manager handles:
    1. Startup: Initialize all services (database, Redis, workers, etc.)
    2. Signal handling: Install SIGTERM/SIGINT handlers for graceful shutdown
    3. Shutdown: Stop all services in proper order, clean up resources

    Signal Handling:
        SIGTERM and SIGINT handlers are installed during startup. When a signal
        is received, the handler logs the event and sets a shutdown event.
        Uvicorn will then trigger the lifespan shutdown sequence.

    Container Orchestration:
        - Docker/Podman: SIGTERM sent on `docker stop` (30s default grace period)
        - Kubernetes: SIGTERM sent on pod termination (30s default grace period)
        - The application should complete shutdown within the grace period
    """

Startup Sequence Diagram

sequenceDiagram
    participant Container as Container Runtime
    participant Uvicorn as Uvicorn ASGI
    participant Lifespan as Lifespan Context
    participant DB as PostgreSQL
    participant Redis as Redis
    participant FW as FileWatcher
    participant PM as PipelineManager
    participant WS as WorkerSupervisor
    participant EB as EventBroadcaster

    Container->>Uvicorn: Start process
    Uvicorn->>Lifespan: Enter lifespan context

    rect rgb(240, 255, 240)
        Note over Lifespan: Startup Phase
        Lifespan->>Lifespan: setup_logging()
        Lifespan->>Lifespan: verify_free_threading()
        Lifespan->>Lifespan: install_signal_handlers()
        Lifespan->>Lifespan: init_profiling()
        Lifespan->>Lifespan: validate_config()
        Lifespan->>Lifespan: setup_telemetry()
        Lifespan->>Lifespan: init_circuit_breakers()
        Lifespan->>DB: init_db()
        Lifespan->>Lifespan: seed_cameras_if_empty()
        Lifespan->>Redis: init_redis()
        Lifespan->>Lifespan: wire_services() (DI)
        Lifespan->>EB: get_broadcaster()
        Lifespan->>FW: FileWatcher.start()
        Lifespan->>PM: PipelineManager.start()
        Lifespan->>WS: WorkerSupervisor.start()
    end

    Lifespan-->>Uvicorn: yield (ready for requests)
    Note over Uvicorn: Application running

    rect rgb(255, 240, 240)
        Note over Lifespan: Shutdown Phase
        Container->>Uvicorn: SIGTERM
        Uvicorn->>Lifespan: Exit context
        Lifespan->>WS: WorkerSupervisor.stop()
        Lifespan->>PM: PipelineManager.stop()
        Lifespan->>FW: FileWatcher.stop()
        Lifespan->>EB: stop_broadcaster()
        Lifespan->>Redis: close_redis()
        Lifespan->>DB: close_db()
    end

    Lifespan-->>Uvicorn: Context exited
    Uvicorn-->>Container: Process exit

Startup Initialization Order

Source: backend/main.py:480-649

Phase 1: Logging and Verification

# backend/main.py:482-495
# Initialize logging first (before any other initialization)
setup_logging()
lifespan_logger = get_logger(__name__)

# Verify free-threaded Python is active (Python 3.14t with PYTHON_GIL=0)
try:
    verify_free_threading()
    lifespan_logger.info(f"Python runtime: {get_threading_mode()}")
except RuntimeError as e:
    lifespan_logger.warning(f"Free-threading verification: {e}")

Phase 2: Signal Handlers

Source: backend/main.py:141-193

# backend/main.py:141-193
def install_signal_handlers() -> None:
    """Install signal handlers for graceful shutdown.

    Registers handlers for SIGTERM and SIGINT that:
    1. Log the received signal
    2. Set the shutdown event for coordination
    """
    loop = asyncio.get_running_loop()
    shutdown_event = get_shutdown_event()

    def create_signal_handler(sig: signal.Signals) -> None:
        def handler() -> None:
            logger.info(
                f"Received {sig.name}, initiating graceful shutdown...",
                extra={"signal": sig.name, "signal_number": sig.value},
            )
            shutdown_event.set()

        loop.add_signal_handler(sig, handler)

    create_signal_handler(signal.SIGTERM)
    create_signal_handler(signal.SIGINT)

Phase 3: Configuration and Telemetry

# backend/main.py:505-527
# Validate configuration and log summary (NEM-2026)
config_result = validate_config(settings)
log_config_summary(config_result)

# Initialize OpenTelemetry tracing (NEM-1629)
otel_initialized = setup_telemetry(_app, settings)

# Initialize Pyroscope continuous profiling (NEM-3103)
init_profiling()

Phase 4: Circuit Breakers

Source: backend/main.py:248-297

# backend/main.py:248-297
def init_circuit_breakers() -> list[str]:
    """Pre-register circuit breakers for known external services.

    Pre-registered circuit breakers:
    - yolo26: YOLO26 object detection service
    - nemotron: Nemotron LLM risk analysis service
    - postgresql: Database connection pool
    - redis: Redis cache and queue service
    """
    # AI services - more aggressive (quick failure detection)
    ai_service_config = CircuitBreakerConfig(
        failure_threshold=5,
        recovery_timeout=30.0,
        half_open_max_calls=3,
        success_threshold=2,
    )

    # Infrastructure services - more tolerant
    infrastructure_config = CircuitBreakerConfig(
        failure_threshold=10,
        recovery_timeout=60.0,
        half_open_max_calls=5,
        success_threshold=3,
    )

Phase 5: Database Initialization

# backend/main.py:533-543
await init_db()
lifespan_logger.info(f"Database initialized: {redact_url(settings.database_url)}")

# Re-enable database logging now that tables exist (NEM-2442)
enable_deferred_db_logging()

# Auto-seed cameras from filesystem if database is empty
seeded = await seed_cameras_if_empty()

Phase 6: Redis and Service Wiring

# backend/main.py:560-568
redis_client = await init_redis()
lifespan_logger.info(f"Redis initialized: {redact_url(settings.redis_url)}")

# Wire up DI container with all application services (NEM-2003)
container = get_container()
await wire_services(container)

Phase 7: Event Broadcaster

# backend/main.py:570-575
# Initialize and start event broadcaster for WebSocket real-time events
event_broadcaster = await get_broadcaster(redis_client)
channel = event_broadcaster.channel_name
lifespan_logger.info(f"Event broadcaster started, listening on channel: {channel}")

Phase 8: File Watcher

# backend/main.py:577-584
# Initialize file watcher (monitors camera directories for new images)
file_watcher = FileWatcher(
    redis_client=redis_client,
    camera_creator=create_camera_callback,
)
await file_watcher.start()
lifespan_logger.info(f"File watcher started: {settings.foscam_base_path}")

Phase 9: Pipeline Workers

# backend/main.py:586-591
# Initialize pipeline workers (detection queue, analysis queue, batch timeout)
pipeline_manager = await get_pipeline_manager(redis_client)
await pipeline_manager.start()
lifespan_logger.info(
    "Pipeline workers started (detection, analysis, batch timeout, metrics)"
)

Phase 10: Worker Supervisor

# backend/main.py:593-645
# Initialize WorkerSupervisor for automatic crash recovery (NEM-2460)
supervisor_config = SupervisorConfig(
    check_interval=settings.worker_supervisor_check_interval,
    default_max_restarts=settings.worker_supervisor_max_restarts,
)
worker_supervisor = get_worker_supervisor(
    config=supervisor_config,
    broadcaster=event_broadcaster,
    on_restart=on_worker_restart,
    on_failure=on_worker_failure,
)

# Register workers with the supervisor
await worker_supervisor.register_worker("detection", ...)
await worker_supervisor.register_worker("analysis", ...)
await worker_supervisor.register_worker("batch_timeout", ...)
await worker_supervisor.register_worker("metrics", ...)

await worker_supervisor.start()

Startup Timeline

Phase Duration Components
1 <100ms Logging, verification
2 <10ms Signal handlers
3 100-500ms Config validation, telemetry
4 <50ms Circuit breakers
5 500ms-2s Database connection, migrations
6 100-500ms Redis connection, DI wiring
7 50-200ms Event broadcaster
8 100-500ms File watcher
9 100-300ms Pipeline workers
10 50-200ms Worker supervisor

Total startup time: 1-5 seconds typical

Signal Handling

Supported Signals

Signal Source Behavior
SIGTERM Container stop, Kubernetes Graceful shutdown
SIGINT Ctrl+C, IDE stop Graceful shutdown

Shutdown Event

Source: backend/main.py:124-138

# backend/main.py:124-138
def get_shutdown_event() -> asyncio.Event:
    """Get the global shutdown event, creating it if necessary.

    The shutdown event is used to coordinate graceful shutdown between
    signal handlers and the FastAPI lifespan context. When a signal is
    received, the event is set, allowing async code to detect the shutdown
    request and clean up appropriately.
    """
    global _shutdown_event
    if _shutdown_event is None:
        _shutdown_event = asyncio.Event()
    return _shutdown_event

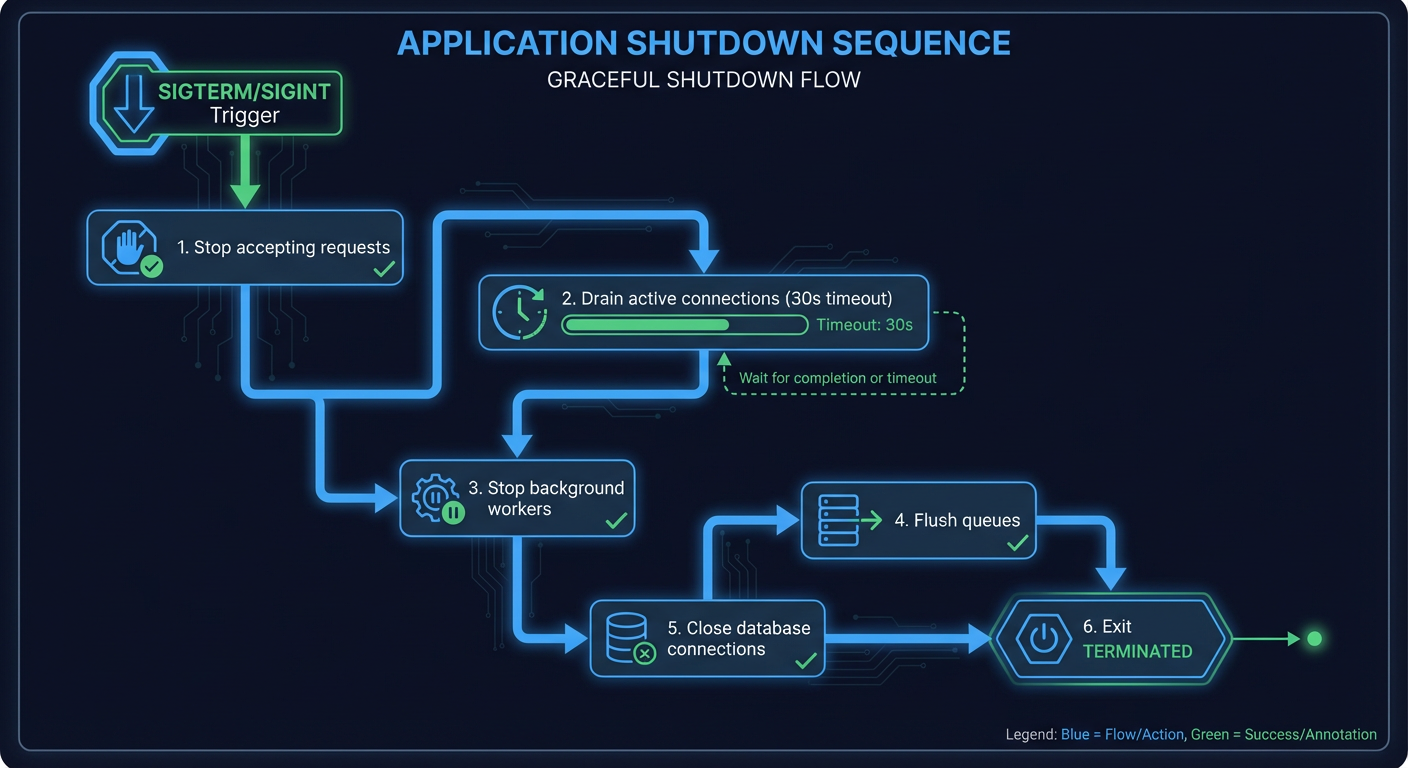

Shutdown Sequence

Shutdown Sequence

Graceful Shutdown Order

1. Signal received (SIGTERM/SIGINT)
2. Shutdown event set
3. Stop accepting new requests
4. Stop worker supervisor
5. Stop pipeline workers (drain queues)
6. Stop file watcher
7. Stop event broadcaster
8. Close Redis connection
9. Close database connection
10. Exit process

Worker Shutdown

# Pipeline workers stop sequence
1. Stop accepting new queue items
2. Complete in-progress work (with timeout)
3. Flush metrics
4. Close connections

Queue Draining

# Drain remaining queue items before shutdown
await drain_queues(timeout=30)  # 30 second timeout

Container Grace Periods

Platform Default Grace Configurable
Docker 30s docker stop -t N
Podman 30s podman stop -t N
Kubernetes 30s terminationGracePeriodSeconds
# Kubernetes pod spec
spec:
  terminationGracePeriodSeconds: 60 # Allow 60s for graceful shutdown
  containers:
    - name: backend
      lifecycle:
        preStop:
          exec:
            command: ['/bin/sh', '-c', 'sleep 5'] # Allow load balancer drain

Startup Health Checks

Readiness Probe

# /health/ready endpoint
async def readiness_check():
    """Check if application is ready to serve traffic."""
    # Check database connection
    # Check Redis connection
    # Check AI services available
    return {"status": "ready"}

Liveness Probe

# /health/live endpoint
async def liveness_check():
    """Check if application is alive."""
    return {"status": "alive"}

Error Handling During Startup

Source: backend/main.py:647-649

# backend/main.py:647-649
except Exception as e:
    lifespan_logger.error(f"Redis connection failed: {e}")
    lifespan_logger.warning("Continuing without Redis - some features may be unavailable")

Startup Failure Scenarios

Component Failure Behavior Impact
Database Exit with error Fatal - cannot start
Redis Continue with warning No real-time features
File watcher Continue with warning No new image processing
AI services Continue Circuit breaker will handle

Shutdown Monitoring

Metrics

  • hsi_shutdown_initiated_timestamp - When shutdown started
  • hsi_shutdown_duration_seconds - Total shutdown time
  • hsi_workers_drained_total - Workers successfully drained

Logging

# Shutdown logging
logger.info("Received SIGTERM, initiating graceful shutdown...")
logger.info("Stopping worker supervisor...")
logger.info("Stopping pipeline workers...")
logger.info("Draining queues...")
logger.info("Shutdown complete")

Startup Sequence Diagram (Detailed)

┌─────────────────────────────────────────────────────────────────────┐
│                        Startup Sequence                              │
├─────────────────────────────────────────────────────────────────────┤
│                                                                      │
│  T+0ms    setup_logging()                                           │
│           ├── Configure log handlers                                │
│           └── Set log levels                                        │
│                                                                      │
│  T+50ms   verify_free_threading()                                   │
│           └── Check PYTHON_GIL=0                                    │
│                                                                      │
│  T+60ms   install_signal_handlers()                                 │
│           ├── Register SIGTERM handler                              │
│           └── Register SIGINT handler                               │
│                                                                      │
│  T+70ms   init_profiling()                                          │
│           └── Start Pyroscope agent                                 │
│                                                                      │
│  T+100ms  validate_config()                                         │
│           └── Check required settings                               │
│                                                                      │
│  T+200ms  setup_telemetry()                                         │
│           └── Initialize OpenTelemetry                              │
│                                                                      │
│  T+250ms  init_circuit_breakers()                                   │
│           ├── Create yolo26 breaker                                 │
│           ├── Create nemotron breaker                               │
│           ├── Create postgresql breaker                             │
│           └── Create redis breaker                                  │
│                                                                      │
│  T+300ms  init_db()                                                 │
│           ├── Create connection pool                                │
│           └── Run migrations                                        │
│                                                                      │
│  T+1000ms seed_cameras_if_empty()                                   │
│           └── Auto-discover cameras from filesystem                 │
│                                                                      │
│  T+1200ms init_redis()                                              │
│           └── Create connection pool                                │
│                                                                      │
│  T+1400ms wire_services()                                           │
│           └── Initialize DI container                               │
│                                                                      │
│  T+1500ms get_broadcaster()                                         │
│           ├── Create EventBroadcaster                               │
│           └── Subscribe to Redis pub/sub                            │
│                                                                      │
│  T+1700ms FileWatcher.start()                                       │
│           ├── Initialize watchdog observer                          │
│           └── Start monitoring directories                          │
│                                                                      │
│  T+2000ms PipelineManager.start()                                   │
│           ├── Start detection worker                                │
│           ├── Start analysis worker                                 │
│           ├── Start batch timeout worker                            │
│           └── Start metrics worker                                  │
│                                                                      │
│  T+2200ms WorkerSupervisor.start()                                  │
│           └── Begin monitoring workers                              │
│                                                                      │
│  T+2300ms Application ready for requests                            │
│                                                                      │
└─────────────────────────────────────────────────────────────────────┘
