WebSocket Message Flow¶

# backend/api/routes/websocket.py:1-39
# WebSocket Authentication:
#     When API key authentication is enabled (api_key_enabled=true in settings),
#     WebSocket connections must provide a valid API key via one of:
#     1. Query parameter: ws://host/ws/events?api_key=YOUR_KEY
#     2. Sec-WebSocket-Protocol header: "api-key.YOUR_KEY"
#
#     Connections without a valid API key will be rejected with code 1008
#     (Policy Violation).

# Before accepting connection
if not await check_websocket_rate_limit(websocket, redis):
    logger.warning("WebSocket connection rejected: rate limit exceeded")
    await websocket.close(code=1008)  # Policy Violation
    return

# backend/api/routes/websocket.py:79-133
async def validate_websocket_message(
    websocket: WebSocket, raw_data: str
) -> WebSocketMessage | None:
    """Validate an incoming WebSocket message.

    Uses Pydantic's model_validate_json() for single-pass JSON parsing and
    validation, powered by jiter for 10-30% better performance compared to
    the two-step json.loads() + model_validate() approach.
    """
    # Use single-pass JSON parsing + validation with jiter (NEM-3396)
    try:
        message = WebSocketMessage.model_validate_json(raw_data)
        return message
    except ValidationError as e:
        # Check if any error is a JSON parsing error
        errors = e.errors()
        is_json_error = any(
            err.get("type") in ("json_invalid", "value_error.jsondecode") for err in errors
        )

        if is_json_error:
            error_response = WebSocketErrorResponse(
                error=WebSocketErrorCode.INVALID_JSON,
                message="Message must be valid JSON",
                details={"raw_data_preview": raw_data[:100] if raw_data else None},
            )
        else:
            error_response = WebSocketErrorResponse(
                error=WebSocketErrorCode.INVALID_MESSAGE_FORMAT,
                message="Message does not match expected schema",
                details={"validation_errors": errors},
            )

        await websocket.send_text(error_response.model_dump_json())
        return None

# backend/api/routes/websocket.py:136-243

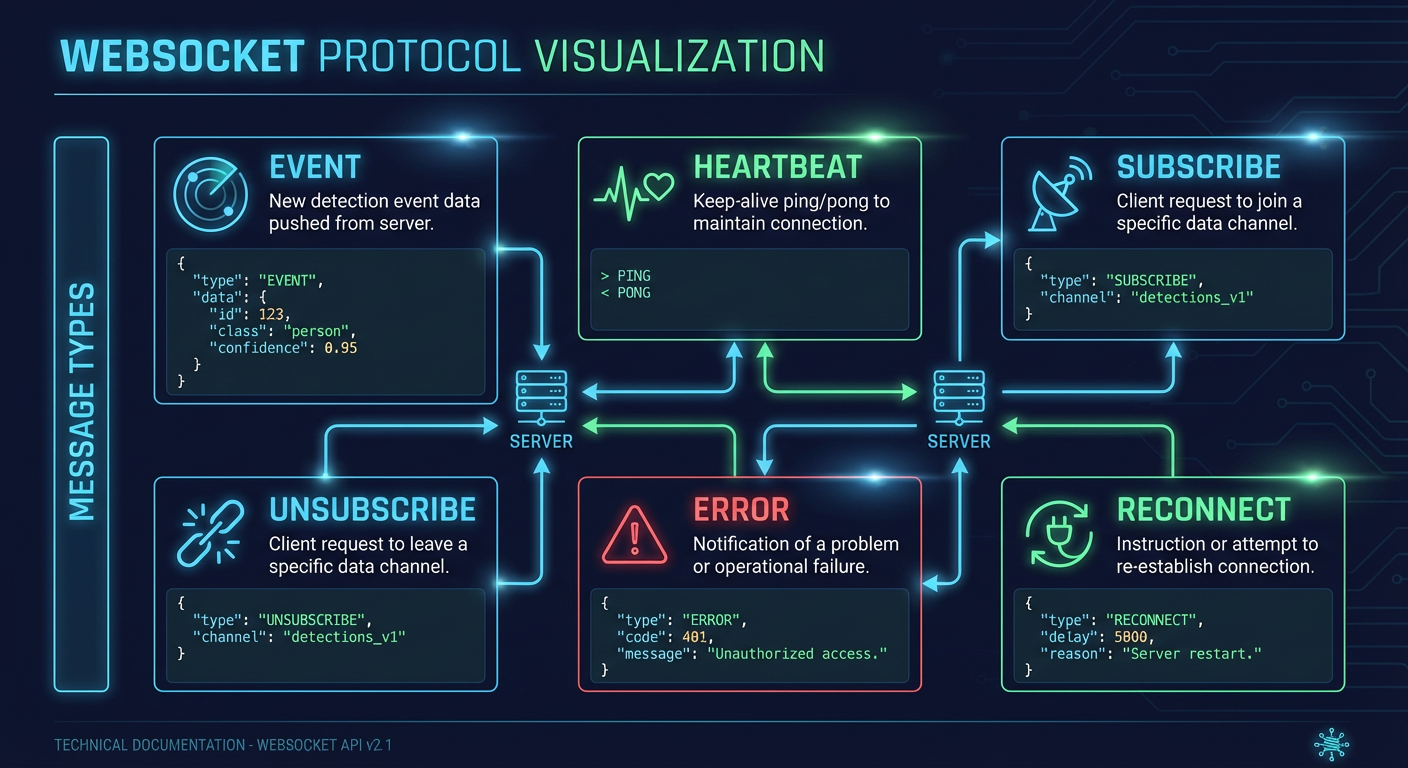

match message_type:
    case WebSocketMessageType.PING.value:
        # Client keepalive - respond with pong

    case WebSocketMessageType.SUBSCRIBE.value:
        # Subscribe to event patterns

    case WebSocketMessageType.UNSUBSCRIBE.value:
        # Unsubscribe from patterns

    case WebSocketMessageType.PONG.value:
        # Response to server ping

    case WebSocketMessageType.RESYNC.value:
        # Request missed messages

// Client -> Server
{"type": "ping"}

// Server -> Client
{"type": "pong"}

# backend/api/routes/websocket.py:20-28
# WebSocket Event Filtering (NEM-2383):
#     Clients can subscribe to specific event patterns to reduce bandwidth:
#     - Send: {"action": "subscribe", "events": ["alert.*", "camera.status_changed"]}
#     - Receive: {"action": "subscribed", "events": ["alert.*", "camera.status_changed"]}
#
#     Pattern syntax:
#     - "*" - All events (default if no subscription sent)
#     - "alert.*" - All alert events
#     - "camera.status_changed" - Exact match

// Client -> Server
{"type": "subscribe", "data": {"events": ["alert.*", "camera.status_changed"]}}

// Server -> Client
{"action": "subscribed", "events": ["alert.*", "camera.status_changed"]}

// Client -> Server (gap detected)
{"type": "resync", "data": {"channel": "events", "last_sequence": 42}}

// Server -> Client
{"type": "resync_ack", "channel": "events", "last_sequence": 42}

{
  "type": "event",
  "sequence": 42,
  "requires_ack": true,
  "data": {
    "id": 1,
    "event_id": 1,
    "batch_id": "batch_abc123",
    "camera_id": "front_door",
    "risk_score": 85,
    "risk_level": "critical",
    "summary": "Person detected at front door",
    "reasoning": "Unknown individual approaching entrance",
    "started_at": "2025-12-23T12:00:00Z"
  }
}

{
  "type": "camera.status_changed",
  "sequence": 43,
  "data": {
    "camera_id": "front_door",
    "status": "online",
    "last_seen_at": "2025-12-23T12:00:00Z"
  }
}

{
  "type": "service.status",
  "sequence": 44,
  "data": {
    "service": "yolo26",
    "status": "healthy",
    "latency_ms": 245
  }
}

# backend/api/routes/websocket.py:280-323
async def send_heartbeat(
    websocket: WebSocket,
    interval: int,
    stop_event: asyncio.Event,
    connection_id: str = "",
) -> None:
    """Send periodic heartbeat pings to keep the WebSocket connection alive.

    This server-initiated heartbeat helps detect disconnected clients and
    keeps connections alive through proxies/load balancers that may have
    idle timeouts.

    Heartbeat messages include the current sequence number (lastSeq) to allow
    clients to detect message gaps even during idle periods.
    """
    sequence_tracker = get_sequence_tracker()

    while not stop_event.is_set():
        await asyncio.sleep(interval)
        if websocket.client_state == WebSocketState.CONNECTED:
            last_seq = sequence_tracker.get_current_sequence(connection_id)
            heartbeat_msg = {"type": "ping", "lastSeq": last_seq}
            await websocket.send_text(json.dumps(heartbeat_msg))

# backend/api/routes/websocket.py:246-277
async def send_sequenced_message(
    websocket: WebSocket,
    connection_id: str,
    message: dict[str, Any],
) -> bool:
    """Send a message with a sequence number to a WebSocket client.

    Adds a 'seq' field to the message with the next sequence number for this
    connection. This enables clients to detect missed messages.
    """
    sequence_tracker = get_sequence_tracker()
    seq = sequence_tracker.next_sequence(connection_id)
    message["seq"] = seq

    try:
        await websocket.send_text(json.dumps(message))
        return True
    except Exception as e:
        logger.debug(f"Failed to send sequenced message: {e}")
        return False

// Client-side gap detection
let lastSeq = 0;

ws.onmessage = (event) => {
  const msg = JSON.parse(event.data);

  if (msg.seq !== undefined) {
    if (msg.seq > lastSeq + 1) {
      // Gap detected - request resync
      ws.send(
        JSON.stringify({
          type: 'resync',
          data: { channel: 'events', last_sequence: lastSeq },
        })
      );
    }
    lastSeq = msg.seq;
  }
};

# backend/services/event_broadcaster.py:345-372

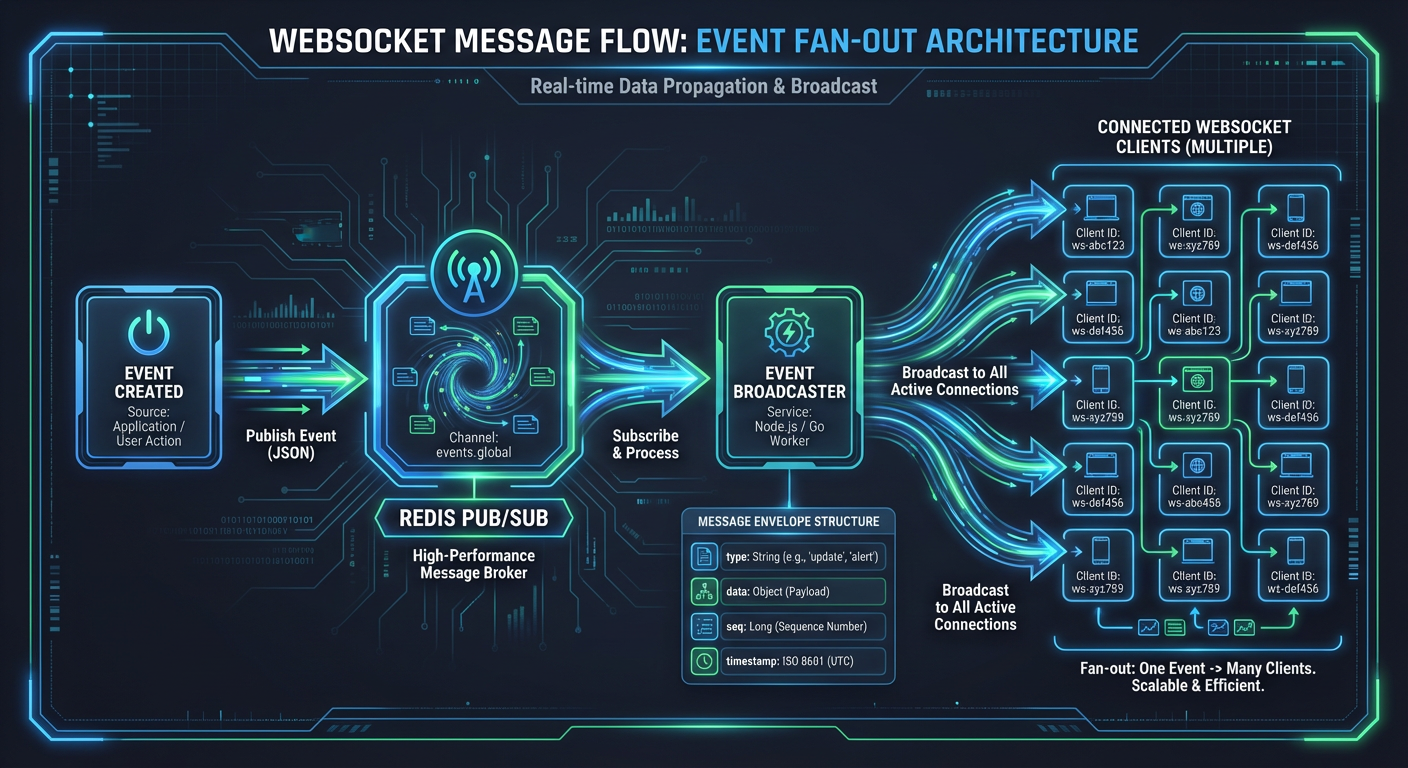

class EventBroadcaster:
    """Manages WebSocket connections and broadcasts events via Redis pub/sub.

    This class acts as a bridge between Redis pub/sub events and WebSocket
    connections, allowing multiple backend instances to share event notifications.

    Includes a supervision task that monitors listener health and automatically
    restarts dead listeners to ensure reliability.

    Message Delivery Guarantees (NEM-1688):
    - All messages include monotonically increasing sequence numbers
    - Last MESSAGE_BUFFER_SIZE messages are buffered for replay
    - High-priority messages (risk_score >= 80 or critical) require acknowledgment
    - Per-client ACK tracking for delivery confirmation
    """

    MAX_RECOVERY_ATTEMPTS = 5
    SUPERVISION_INTERVAL = 30.0
    MESSAGE_BUFFER_SIZE = MESSAGE_BUFFER_SIZE  # 100

# backend/services/event_broadcaster.py:493-513
def _add_sequence_and_buffer(self, message: dict[str, Any]) -> dict[str, Any]:
    """Add sequence number and buffer the message for replay.

    Creates a copy of the message with sequence and requires_ack fields,
    then adds it to the message buffer.
    """
    # Create a copy to avoid modifying the original
    sequenced = dict(message)
    sequenced["sequence"] = self._next_sequence()
    sequenced["requires_ack"] = requires_ack(message)

    # Add to buffer
    self._message_buffer.append(sequenced)

    return sequenced

# backend/services/event_broadcaster.py:155-192
async def broadcast_with_retry[T](
    broadcast_func: Callable[[], Awaitable[T]],
    message_type: str,
    *,
    max_retries: int = DEFAULT_MAX_RETRIES,    # 3
    base_delay: float = DEFAULT_BASE_DELAY,     # 1.0s
    max_delay: float = DEFAULT_MAX_DELAY,       # 30.0s
    metrics: BroadcastRetryMetrics | None = None,
) -> T:
    """Execute a broadcast function with retry logic and exponential backoff.

    This function wraps any broadcast operation with retry logic that:
    - Uses exponential backoff (1s, 2s, 4s, etc.) with jitter
    - Logs each retry attempt with context
    - Records metrics for monitoring
    - Raises the final exception if all retries are exhausted
    """

# backend/services/event_broadcaster.py:215-219
# Calculate exponential backoff with jitter
delay = min(base_delay * (2**attempt), max_delay)
jitter = delay * random.uniform(0.1, 0.3)
total_delay = delay + jitter

# backend/api/routes/websocket.py:326-412 (excerpt)
@router.websocket("/ws/events")
async def websocket_events_endpoint(
    websocket: WebSocket,
    redis: RedisClient = Depends(get_redis),
    _token_valid: bool = Depends(validate_websocket_token),
) -> None:
    """WebSocket endpoint for streaming security events in real-time."""

    # Check rate limit before accepting connection
    if not await check_websocket_rate_limit(websocket, redis):
        await websocket.close(code=1008)
        return

    # Authenticate WebSocket connection before accepting
    if not await authenticate_websocket(websocket):
        return

    broadcaster = await get_broadcaster(redis)
    settings = get_settings()
    idle_timeout = settings.websocket_idle_timeout_seconds
    heartbeat_interval = settings.websocket_ping_interval_seconds

    # Generate unique connection ID
    connection_id = f"ws-events-{uuid.uuid4().hex[:8]}"
    set_connection_id(connection_id)

{
  "error": "INVALID_JSON",
  "message": "Message must be valid JSON",
  "details": {
    "raw_data_preview": "not valid json..."
  }
}
