Frontend Hooks Architecture¶

Overview¶

The frontend uses custom React hooks to manage real-time WebSocket connections, REST API polling, and state management for the home security dashboard. These hooks provide a clean abstraction layer over WebSocket communication and REST endpoints, enabling components to receive live updates for security events, system status, GPU metrics, and health monitoring.

The hook architecture follows a layered design:

Infrastructure Layer: Singleton WebSocket connection manager with deduplication (webSocketManager)
Foundation Layer: Low-level WebSocket connection management (useWebSocket)
Enhanced Layer: Connection status tracking (useWebSocketStatus)
Domain Layer: Feature-specific hooks for events, system status, AI metrics, and multi-channel management
REST Layer: Polling-based hooks for health, GPU history, storage stats, and AI model status
UI Layer: Context hooks and localStorage persistence (useSidebarContext, useSavedSearches)

All WebSocket URLs are constructed via buildWebSocketUrl() from the API service, which respects environment variables (VITE_WS_BASE_URL, VITE_API_KEY) and provides SSR-safe connection handling.

Hook Hierarchy¶

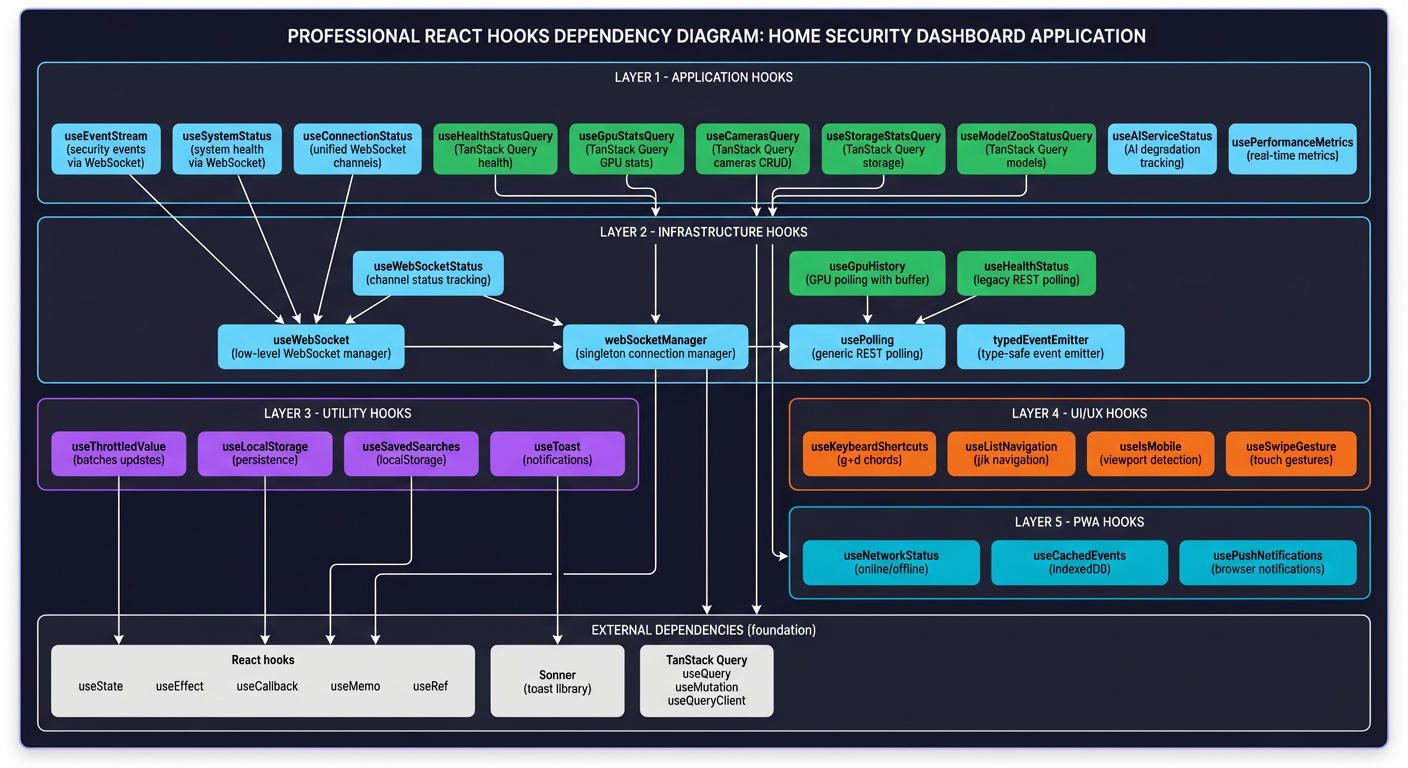

Frontend Hooks

Frontend React hooks dependency diagram showing the layered architecture from WebSocket manager to domain-specific hooks.

flowchart TB
    subgraph Infrastructure["Infrastructure Layer"]
        webSocketManager["webSocketManager<br/>Connection pooling singleton<br/>Reference counting, heartbeat"]
    end

    subgraph Foundation["Foundation Layer"]
        useWebSocket["useWebSocket<br/>Low-level WS manager<br/>Auto-reconnect, message handling"]
    end

    subgraph Enhanced["Enhanced Layer"]
        useWebSocketStatus["useWebSocketStatus<br/>Channel status tracking<br/>Reconnect state, timestamps"]
    end

    subgraph Domain["Domain Layer - WebSocket"]
        useEventStream["useEventStream<br/>Security events<br/>/ws/events"]
        useSystemStatus["useSystemStatus<br/>System health updates<br/>/ws/system"]
        useConnectionStatus["useConnectionStatus<br/>Multi-channel manager<br/>Events + System channels"]
        useServiceStatus["useServiceStatus<br/>Service health tracking<br/>yolo26, nemotron, redis"]
        usePerformanceMetrics["usePerformanceMetrics<br/>Real-time performance<br/>Multi-resolution history"]
    end

    subgraph REST["REST Layer - Polling"]
        useGpuHistory["useGpuHistory<br/>GPU metrics history<br/>GET /api/system/gpu"]
        useHealthStatus["useHealthStatus<br/>Health monitoring<br/>GET /api/system/health"]
        useStorageStats["useStorageStats<br/>Storage metrics<br/>GET /api/system/storage"]
        useAIMetrics["useAIMetrics<br/>AI pipeline metrics<br/>Multiple endpoints"]
        useModelZooStatus["useModelZooStatus<br/>Model registry status<br/>GET /api/system/models"]
        useDetectionEnrichment["useDetectionEnrichment<br/>Detection details<br/>GET /api/detections/:id/enrichment"]
    end

    subgraph UI["UI Layer"]
        useSidebarContext["useSidebarContext<br/>Mobile sidebar state<br/>Context-based"]
        useSavedSearches["useSavedSearches<br/>Persisted searches<br/>localStorage"]
    end

    webSocketManager --> useWebSocket
    useWebSocket --> useWebSocketStatus
    useWebSocketStatus --> useConnectionStatus
    useWebSocket --> useEventStream
    useWebSocket --> useSystemStatus
    useWebSocket --> useServiceStatus
    useWebSocket --> usePerformanceMetrics

    style Infrastructure fill:#ffcdd2
    style Foundation fill:#e1f5ff
    style Enhanced fill:#b3e5fc
    style Domain fill:#81d4fa
    style REST fill:#4fc3f7
    style UI fill:#c8e6c9

Hooks Reference¶

useWebSocket¶

Purpose: Low-level WebSocket connection manager with automatic reconnection logic.

Source: frontend/src/hooks/useWebSocket.ts:22

Features:

Automatic reconnection with configurable attempts and intervals (default: 5 attempts, 3s interval)
Message serialization (JSON) and deserialization with fallback to raw data
Connection state tracking (isConnected)
Manual connect/disconnect controls
Lifecycle callbacks: onOpen, onClose, onError, onMessage
SSR-safe: checks for window.WebSocket availability
Prevents duplicate connections (checks OPEN/CONNECTING states)

Type Definitions:

interface WebSocketOptions {
  url: string;
  onMessage?: (data: unknown) => void;
  onOpen?: () => void;
  onClose?: () => void;
  onError?: (error: Event) => void;
  reconnect?: boolean; // default: true
  reconnectInterval?: number; // default: 3000ms
  reconnectAttempts?: number; // default: 5
}

interface UseWebSocketReturn {
  isConnected: boolean;
  lastMessage: unknown;
  send: (data: unknown) => void;
  connect: () => void;
  disconnect: () => void;
}

Example:

const { isConnected, lastMessage, send } = useWebSocket({
  url: 'ws://localhost:8000/ws/events',
  onMessage: (data) => console.log('Received:', data),
  reconnectAttempts: 5,
  reconnectInterval: 3000,
});

// Send message when connected
if (isConnected) {
  send({ type: 'ping' });
}

useWebSocketStatus¶

Purpose: Enhanced WebSocket hook that tracks detailed channel status including reconnection state and message timestamps.

Source: frontend/src/hooks/useWebSocketStatus.ts:33

Features:

Full WebSocket lifecycle management with reconnection
Channel-level status tracking (name, state, reconnect attempts)
Last message timestamp tracking
SSR-safe (checks for window.WebSocket availability)
Reconnect state transitions: connected → reconnecting → disconnected

Type Definitions:

type ConnectionState = 'connected' | 'disconnected' | 'reconnecting';

interface ChannelStatus {
  name: string;
  state: ConnectionState;
  reconnectAttempts: number;
  maxReconnectAttempts: number;
  lastMessageTime: Date | null;
}

interface WebSocketStatusOptions {
  url: string;
  channelName: string;
  onMessage?: (data: unknown) => void;
  onOpen?: () => void;
  onClose?: () => void;
  onError?: (error: Event) => void;
  reconnect?: boolean; // default: true
  reconnectInterval?: number; // default: 3000ms
  reconnectAttempts?: number; // default: 5
}

interface UseWebSocketStatusReturn {
  channelStatus: ChannelStatus;
  lastMessage: unknown;
  send: (data: unknown) => void;
  connect: () => void;
  disconnect: () => void;
}

Example:

const { channelStatus, lastMessage } = useWebSocketStatus({
  url: buildWebSocketUrl('/ws/events'),
  channelName: 'Events',
  onMessage: handleMessage,
});

// Display channel status
console.log(`${channelStatus.name}: ${channelStatus.state}`);
console.log(
  `Reconnect attempts: ${channelStatus.reconnectAttempts}/${channelStatus.maxReconnectAttempts}`
);

useEventStream¶

Purpose: High-level hook for receiving security events via WebSocket (/ws/events endpoint).

Source: frontend/src/hooks/useEventStream.ts:62

Features:

Receives backend event messages in envelope format: {type: "event", data: {...}}
Type guard functions (isSecurityEvent, isBackendEventMessage) for message validation
Ignores non-event messages (e.g., service_status, ping)
Maintains in-memory buffer of last 100 events (newest first, constant MAX_EVENTS)
Provides latestEvent computed value via useMemo
clearEvents() method to reset buffer
Uses buildWebSocketUrl() from api service for URL construction

Type Definitions:

interface SecurityEvent {
  id: string | number;
  event_id?: number;
  batch_id?: string;
  camera_id: string;
  camera_name?: string;
  risk_score: number;
  risk_level: 'low' | 'medium' | 'high' | 'critical';
  summary: string;
  timestamp?: string;
  started_at?: string;
}

interface BackendEventMessage {
  type: 'event';
  data: SecurityEvent;
}

interface UseEventStreamReturn {
  events: SecurityEvent[];
  isConnected: boolean;
  latestEvent: SecurityEvent | null;
  clearEvents: () => void;
}

Example:

const { events, isConnected, latestEvent, clearEvents } = useEventStream();

// Display latest event
if (latestEvent) {
  console.log(`New event: ${latestEvent.summary}`);
  console.log(`Risk: ${latestEvent.risk_level} (${latestEvent.risk_score})`);
  console.log(`Camera: ${latestEvent.camera_name}`);
}

// Render event list (newest first)
return (
  <div>
    <button onClick={clearEvents}>Clear Events</button>
    {events.map(event => (
      <EventCard key={event.id} event={event} />
    ))}
  </div>
);

useSystemStatus¶

Purpose: High-level hook for receiving system health updates via WebSocket (/ws/system endpoint).

Source: frontend/src/hooks/useSystemStatus.ts:64

Features:

Receives backend system_status messages and transforms to frontend format
Tracks GPU metrics: utilization, temperature, memory (used/total), inference FPS
Tracks active camera count and overall system health
Type guard function isBackendSystemStatus() for message validation
Uses buildWebSocketUrl() from api service for URL construction

Type Definitions:

interface SystemStatus {
  health: 'healthy' | 'degraded' | 'unhealthy';
  gpu_utilization: number | null;
  gpu_temperature: number | null;
  gpu_memory_used: number | null;
  gpu_memory_total: number | null;
  inference_fps: number | null;
  active_cameras: number;
  last_update: string;
}

interface BackendSystemStatus {
  type: 'system_status';
  data: {
    gpu: {
      utilization: number | null;
      memory_used: number | null;
      memory_total: number | null;
      temperature: number | null;
      inference_fps: number | null;
    };
    cameras: {
      active: number;
      total: number;
    };
    queue: {
      pending: number;
      processing: number;
    };
    health: 'healthy' | 'degraded' | 'unhealthy';
  };
  timestamp: string;
}

interface UseSystemStatusReturn {
  status: SystemStatus | null;
  isConnected: boolean;
}

Example:

const { status, isConnected } = useSystemStatus();

if (status) {
  return (
    <div>
      <span className={`status-${status.health}`}>
        System: {status.health}
      </span>
      <span>GPU: {status.gpu_utilization}%</span>
      <span>Temp: {status.gpu_temperature}°C</span>
      <span>Memory: {status.gpu_memory_used}/{status.gpu_memory_total} MB</span>
      <span>Active Cameras: {status.active_cameras}</span>
    </div>
  );
}

useConnectionStatus¶

Purpose: Unified hook that manages both /ws/events and /ws/system WebSocket channels, providing aggregated connection status and data from both sources.

Source: frontend/src/hooks/useConnectionStatus.ts:102

Features:

Single hook for all WebSocket connections
Aggregated connection summary (overall state, any reconnecting, all connected)
Stores events in memory buffer (max 100 events)
Parses backend system status messages
Provides channel-level status for each WebSocket connection
Overall connection state derived from both channels

Type Definitions:

interface ConnectionStatusSummary {
  eventsChannel: ChannelStatus;
  systemChannel: ChannelStatus;
  overallState: ConnectionState; // 'connected' | 'disconnected' | 'reconnecting'
  anyReconnecting: boolean;
  allConnected: boolean;
  totalReconnectAttempts: number;
}

interface UseConnectionStatusReturn {
  summary: ConnectionStatusSummary;
  events: SecurityEvent[];
  systemStatus: BackendSystemStatus | null;
  clearEvents: () => void;
}

Example:

const { summary, events, systemStatus, clearEvents } = useConnectionStatus();

// Display aggregated connection status
return (
  <div>
    <ConnectionIndicator state={summary.overallState} />

    {/* Channel-specific status */}
    <div>
      Events: {summary.eventsChannel.state}
      (Attempts: {summary.eventsChannel.reconnectAttempts})
    </div>
    <div>
      System: {summary.systemChannel.state}
      (Attempts: {summary.systemChannel.reconnectAttempts})
    </div>

    {/* Display events and system status */}
    <EventList events={events} />
    <SystemDashboard status={systemStatus} />
  </div>
);

useGpuHistory¶

Purpose: Hook for polling GPU stats and maintaining a rolling history buffer for time-series visualization.

Source: frontend/src/hooks/useGpuHistory.ts:55

Features:

Polls GET /api/system/gpu at configurable intervals (default: 5000ms)
Maintains rolling buffer of historical metrics (default: 60 data points)
Start/stop polling controls
Clear history method
Auto-start option (default: true)

Type Definitions:

interface GpuMetricDataPoint {
  timestamp: string;
  utilization: number;
  memory_used: number;
  temperature: number;
}

interface UseGpuHistoryOptions {
  pollingInterval?: number; // default: 5000ms
  maxDataPoints?: number; // default: 60
  autoStart?: boolean; // default: true
}

interface UseGpuHistoryReturn {
  current: GPUStats | null;
  history: GpuMetricDataPoint[];
  isLoading: boolean;
  error: string | null;
  start: () => void;
  stop: () => void;
  clearHistory: () => void;
}

Example:

const { current, history, isLoading, start, stop, clearHistory } = useGpuHistory({
  pollingInterval: 5000,
  maxDataPoints: 60,
});

// Use history array for time-series chart
return (
  <div>
    <LineChart
      data={history}
      dataKey="utilization"
      xAxis="timestamp"
    />
    <div>
      Current: {current?.utilization}% utilization, {current?.temperature}°C
    </div>
    <button onClick={stop}>Pause</button>
    <button onClick={start}>Resume</button>
    <button onClick={clearHistory}>Clear</button>
  </div>
);

useHealthStatus¶

Purpose: Hook for REST-based health status polling from GET /api/system/health.

Source: frontend/src/hooks/useHealthStatus.ts:55

Features:

Polls health endpoint at configurable intervals (default: 30000ms)
Provides overall system status and per-service status
Manual refresh capability
Mount-safe state updates (tracks mounted state)
Preserves previous health data on error (prevents UI flash)

Type Definitions:

interface ServiceStatus {
  status: 'healthy' | 'degraded' | 'unhealthy';
  message?: string;
  last_check?: string;
}

interface HealthResponse {
  status: 'healthy' | 'degraded' | 'unhealthy';
  services: Record<string, ServiceStatus>;
  timestamp: string;
}

interface UseHealthStatusOptions {
  pollingInterval?: number; // default: 30000ms
  enabled?: boolean; // default: true
}

interface UseHealthStatusReturn {
  health: HealthResponse | null;
  isLoading: boolean;
  error: string | null;
  overallStatus: 'healthy' | 'degraded' | 'unhealthy' | null;
  services: Record<string, ServiceStatus>;
  refresh: () => Promise<void>;
}

Example:

const { health, isLoading, error, overallStatus, services, refresh } = useHealthStatus({
  pollingInterval: 30000,
});

if (isLoading) return <Spinner />;
if (error) return <Error message={error} />;

return (
  <div>
    <h2>System Health: {overallStatus}</h2>
    <button onClick={refresh}>Refresh Now</button>

    {/* Per-service status */}
    {Object.entries(services).map(([name, status]) => (
      <div key={name}>
        <span>{name}: {status.status}</span>
        {status.message && <span>{status.message}</span>}
      </div>
    ))}
  </div>
);

useStorageStats¶

Purpose: Hook for polling storage statistics and previewing cleanup operations.

Source: frontend/src/hooks/useStorageStats.ts:66

Features:

Polls GET /api/system/storage at configurable intervals (default: 60s)
Provides disk usage metrics (used, total, free, percent)
Storage breakdown by category (thumbnails, images, clips)
Database record counts (events, detections, GPU stats, logs)
Cleanup preview functionality (dry run mode)

Type Definitions:

interface StorageStatsResponse {
  disk_usage_percent: number;
  disk_used_gb: number;
  disk_total_gb: number;
  disk_free_gb: number;
  storage: {
    thumbnails_mb: number;
    images_mb: number;
    clips_mb: number;
  };
  database: {
    events: number;
    detections: number;
    gpu_stats: number;
    logs: number;
  };
}

interface CleanupResponse {
  thumbnails_to_delete: number;
  images_to_delete: number;
  events_to_delete: number;
  estimated_space_mb: number;
}

interface UseStorageStatsOptions {
  pollInterval?: number; // default: 60000ms
  enablePolling?: boolean; // default: true
}

interface UseStorageStatsReturn {
  stats: StorageStatsResponse | null;
  loading: boolean;
  error: string | null;
  refresh: () => Promise<void>;
  previewCleanup: () => Promise<CleanupResponse | null>;
  previewLoading: boolean;
  cleanupPreview: CleanupResponse | null;
}

Example:

const {
  stats,
  loading,
  error,
  refresh,
  previewCleanup,
  cleanupPreview
} = useStorageStats({
  pollInterval: 60000,
});

if (loading) return <Spinner />;
if (error) return <Error message={error} />;

return (
  <div>
    <h2>Storage Usage: {stats?.disk_usage_percent}%</h2>
    <p>{stats?.disk_used_gb} GB / {stats?.disk_total_gb} GB</p>

    {/* Storage breakdown */}
    <div>
      <span>Thumbnails: {stats?.storage.thumbnails_mb} MB</span>
      <span>Images: {stats?.storage.images_mb} MB</span>
      <span>Clips: {stats?.storage.clips_mb} MB</span>
    </div>

    {/* Cleanup preview */}
    <button onClick={previewCleanup}>Preview Cleanup</button>
    {cleanupPreview && (
      <div>
        Will delete {cleanupPreview.events_to_delete} events
        and free {cleanupPreview.estimated_space_mb} MB
      </div>
    )}
  </div>
);

webSocketManager¶

Purpose: Singleton WebSocket connection manager that provides connection deduplication with reference counting.

Source: frontend/src/hooks/webSocketManager.ts:420

Features:

Connection deduplication: Multiple components subscribing to the same URL share one underlying WebSocket
Reference counting: Connections are only closed when all subscribers disconnect
Exponential backoff with jitter for reconnection attempts (base interval * 2^attempt + random jitter)
Connection timeout handling (configurable, closes connection if CONNECTING state exceeds timeout)
Heartbeat support: Automatically responds to server ping messages with pong
Last heartbeat timestamp tracking for connection health monitoring
SSR-safe: Checks for window.WebSocket availability before connecting

Type Definitions:

type MessageHandler = (data: unknown) => void;
type OpenHandler = () => void;
type CloseHandler = () => void;
type ErrorHandler = (error: Event) => void;
type HeartbeatHandler = () => void;
type MaxRetriesHandler = () => void;

interface Subscriber {
  id: string;
  onMessage?: MessageHandler;
  onOpen?: OpenHandler;
  onClose?: CloseHandler;
  onError?: ErrorHandler;
  onHeartbeat?: HeartbeatHandler;
  onMaxRetriesExhausted?: MaxRetriesHandler;
}

interface ConnectionConfig {
  reconnect: boolean;
  reconnectInterval: number;
  maxReconnectAttempts: number;
  connectionTimeout: number;
  autoRespondToHeartbeat: boolean;
}

// Connection state query result
interface ConnectionState {
  isConnected: boolean;
  reconnectCount: number;
  hasExhaustedRetries: boolean;
  lastHeartbeat: Date | null;
}

API Methods:

Method	Description
`subscribe(url, subscriber, config)`	Subscribe to a WebSocket URL, returns unsubscribe function
`send(url, data)`	Send a message on a connection, returns boolean success
`getConnectionState(url)`	Get current connection state and retry info
`reconnect(url)`	Force reconnection (resets retry counter)
`getSubscriberCount(url)`	Get number of active subscribers for a URL
`hasConnection(url)`	Check if a connection exists for a URL
`clearAll()`	Close all connections
`reset()`	Clear all connections and reset subscriber counter

Example:

import { webSocketManager, generateSubscriberId } from './webSocketManager';

// Subscribe to a WebSocket URL
const subscriberId = generateSubscriberId();
const unsubscribe = webSocketManager.subscribe(
  'ws://localhost:8000/ws/events',
  {
    id: subscriberId,
    onMessage: (data) => console.log('Received:', data),
    onOpen: () => console.log('Connected'),
    onClose: () => console.log('Disconnected'),
    onHeartbeat: () => console.log('Heartbeat received'),
    onMaxRetriesExhausted: () => console.log('Max retries reached'),
  },
  {
    reconnect: true,
    reconnectInterval: 3000,
    maxReconnectAttempts: 5,
    connectionTimeout: 10000,
    autoRespondToHeartbeat: true,
  }
);

// Send a message
webSocketManager.send('ws://localhost:8000/ws/events', { type: 'subscribe', channel: 'alerts' });

// Check connection state
const state = webSocketManager.getConnectionState('ws://localhost:8000/ws/events');
console.log(`Connected: ${state.isConnected}, Retries: ${state.reconnectCount}`);

// Unsubscribe when done
unsubscribe();

useSidebarContext¶

Purpose: React context hook for managing mobile sidebar state in the Layout component.

Source: frontend/src/hooks/useSidebarContext.ts:12

Features:

Provides mobile menu open/close state
Toggle function for hamburger menu interaction
Must be used within Layout component (throws error otherwise)
Context-based state sharing between Layout and child components

Type Definitions:

interface SidebarContextType {
  isMobileMenuOpen: boolean;
  setMobileMenuOpen: (open: boolean) => void;
  toggleMobileMenu: () => void;
}

Example:

import { useSidebarContext, SidebarContext } from './useSidebarContext';

// In the Layout component (provider)
function Layout({ children }) {
  const [isMobileMenuOpen, setMobileMenuOpen] = useState(false);

  const contextValue = {
    isMobileMenuOpen,
    setMobileMenuOpen,
    toggleMobileMenu: () => setMobileMenuOpen((prev) => !prev),
  };

  return (
    <SidebarContext.Provider value={contextValue}>
      <Header />
      <Sidebar />
      <main>{children}</main>
    </SidebarContext.Provider>
  );
}

// In a child component (consumer)
function Header() {
  const { isMobileMenuOpen, toggleMobileMenu } = useSidebarContext();

  return (
    <header>
      <button onClick={toggleMobileMenu} aria-expanded={isMobileMenuOpen}>
        {isMobileMenuOpen ? 'Close Menu' : 'Open Menu'}
      </button>
    </header>
  );
}

// In the Sidebar component (consumer)
function Sidebar() {
  const { isMobileMenuOpen, setMobileMenuOpen } = useSidebarContext();

  return (
    <aside className={isMobileMenuOpen ? 'sidebar-open' : 'sidebar-closed'}>
      <nav>
        <a href="/" onClick={() => setMobileMenuOpen(false)}>
          Dashboard
        </a>
        <a href="/events" onClick={() => setMobileMenuOpen(false)}>
          Events
        </a>
      </nav>
    </aside>
  );
}

Related Components:

Layout - Provides the SidebarContext
Header - Contains hamburger menu button
Sidebar - Navigation menu that responds to mobile state

Usage Patterns¶

Real-time Data Flow¶

The real-time data flow follows this pattern:

flowchart TB
    Backend["FastAPI Backend<br/>WebSocket Broadcaster"]

    subgraph WebSocket["WebSocket Channels"]
        EventsWS["/ws/events<br/>Security events"]
        SystemWS["/ws/system<br/>System status"]
    end

    subgraph Hooks["Frontend Hooks"]
        EventStream["useEventStream<br/>Event buffer (100 max)"]
        SystemStatus["useSystemStatus<br/>Latest system state"]
        Connection["useConnectionStatus<br/>Multi-channel manager"]
    end

    subgraph Components["React Components"]
        Dashboard["Dashboard"]
        EventList["Event List"]
        SystemMonitor["System Monitor"]
    end

    Backend --> EventsWS
    Backend --> SystemWS

    EventsWS --> EventStream
    EventsWS --> Connection
    SystemWS --> SystemStatus
    SystemWS --> Connection

    EventStream --> EventList
    SystemStatus --> SystemMonitor
    Connection --> Dashboard

    style Backend fill:#ffcdd2
    style WebSocket fill:#fff9c4
    style Hooks fill:#c8e6c9
    style Components fill:#bbdefb

Message Envelope Pattern:

Both useEventStream and useSystemStatus expect messages wrapped in an envelope:

// Backend sends messages in this format
{
  type: 'event' | 'system_status',  // Message type discriminator
  data: { ... },                     // Actual payload
  timestamp?: string                 // Optional timestamp
}

Type guards validate the envelope structure before processing:

function isBackendEventMessage(data: unknown): data is BackendEventMessage {
  if (!data || typeof data !== 'object') return false;
  const msg = data as Record<string, unknown>;
  return msg.type === 'event' && isSecurityEvent(msg.data);
}

Polling vs WebSocket¶

Use WebSocket when:

Real-time updates are critical (security events, system alerts)
Data changes frequently (multiple times per second)
Push-based architecture is preferred (server initiates updates)
Low latency is required

Use REST Polling when:

Updates are infrequent (health checks every 30s, storage stats every 60s)
Data is not time-critical
You need historical data (GPU metrics over time)
Preview/dry-run operations are needed (cleanup preview)

WebSocket Hooks:

useEventStream - Real-time security events
useSystemStatus - Live system health updates
useConnectionStatus - Multi-channel WebSocket manager

REST Polling Hooks:

useHealthStatus - Health checks (30s interval)
useGpuHistory - GPU metrics history (5s interval)
useStorageStats - Storage statistics (60s interval)

URL Construction Pattern¶

All WebSocket hooks use buildWebSocketUrl() for consistent URL construction:

import { buildWebSocketUrl } from '../services/api';

// Automatically handles:
// - VITE_WS_BASE_URL environment variable
// - Falls back to window.location.host
// - Appends api_key query param if VITE_API_KEY is set
// - Converts ws:// or wss:// protocol based on location
const wsUrl = buildWebSocketUrl('/ws/events');

const { isConnected } = useWebSocket({ url: wsUrl });

Reconnection Pattern¶

The base useWebSocket hook handles reconnection automatically:

Initial Connection: Attempts to connect on mount
Connection Lost: Transitions to reconnecting state
Retry Logic: Attempts reconnection up to reconnectAttempts times (default: 5)
Backoff: Waits reconnectInterval ms between attempts (default: 3000ms)
Success: Resets reconnect counter on successful connection
Failure: Transitions to disconnected after max attempts reached
Manual Disconnect: Stops reconnection when disconnect() is called
Cleanup: Clears pending reconnection timeouts on unmount

Reconnect State Tracking (via useWebSocketStatus):

const { channelStatus } = useWebSocketStatus({
  url: wsUrl,
  channelName: 'Events',
});

// channelStatus.state: 'connected' | 'reconnecting' | 'disconnected'
// channelStatus.reconnectAttempts: current attempt count
// channelStatus.maxReconnectAttempts: maximum attempts (default: 5)

Event Buffer Management¶

useEventStream maintains a rolling buffer of events:

const MAX_EVENTS = 100; // Constant buffer size

// Events are stored newest-first
const [events, setEvents] = useState<SecurityEvent[]>([]);

// New events are prepended
setEvents((prevEvents) => {
  const newEvents = [event, ...prevEvents];
  return newEvents.slice(0, MAX_EVENTS); // Keep only last 100
});

// Access latest event
const latestEvent = useMemo(() => {
  return events.length > 0 ? events[0] : null;
}, [events]);

Testing Patterns¶

All hooks have comprehensive test coverage using Vitest and React Testing Library:

Test Files¶

Hook/Module	Test File	Coverage
`useWebSocket`	`useWebSocket.test.ts`	Connection lifecycle, message handling, reconnects
`useWebSocket`	`useWebSocket.timeout.test.ts`	Timeout handling edge cases
`webSocketManager`	`webSocketManager.test.ts`	Connection pooling, reference counting, subscriptions
`webSocketManager`	`webSocketManager.timeout.test.ts`	Timeout and reconnection edge cases
`useWebSocketStatus`	`useWebSocketStatus.test.ts`	Channel status tracking, reconnect state
`useConnectionStatus`	`useConnectionStatus.test.ts`	Multi-channel status aggregation
`useEventStream`	`useEventStream.test.ts`	Event buffering, envelope parsing, non-event filtering
`useSystemStatus`	`useSystemStatus.test.ts`	Backend message transformation, type guards
`useGpuHistory`	`useGpuHistory.test.ts`	Polling, history buffer, start/stop controls
`useHealthStatus`	`useHealthStatus.test.ts`	REST polling, error handling, refresh
`useStorageStats`	`useStorageStats.test.ts`	Storage polling, cleanup preview
`usePerformanceMetrics`	`usePerformanceMetrics.test.ts`	WebSocket filtering, multi-resolution history buffers
`useAIMetrics`	`useAIMetrics.test.ts`	Multi-endpoint polling, metrics aggregation
`useServiceStatus`	`useServiceStatus.test.ts`	Service health tracking, derived flags
`useDetectionEnrichment`	`useDetectionEnrichment.test.ts`	Conditional fetching, refetch capability
`useModelZooStatus`	`useModelZooStatus.test.ts`	Model registry polling, VRAM stats calculation
`useSavedSearches`	`useSavedSearches.test.ts`	localStorage persistence, cross-tab sync
`useSidebarContext`	`useSidebarContext.test.tsx`	Context provider/consumer, error handling

Testing Best Practices¶

Mock WebSocket API: Use vi.stubGlobal() to mock WebSocket constructor
Fake Timers: Use vi.useFakeTimers() for polling interval tests
Cleanup: Always call cleanup() and clear mocks after each test
SSR Safety: Test behavior when window.WebSocket is undefined
Reconnection: Test reconnection logic with connection failures
Message Validation: Test type guards with invalid data

Real-time Architecture - WebSocket infrastructure and message flow
API Reference: WebSocket Endpoints - Backend WebSocket API
API Reference: System Endpoints - REST API endpoints
Frontend Architecture Overview - Component hierarchy and data flow
Testing Guide - Frontend testing patterns

Implementation Notes¶

SSR Safety¶

All WebSocket hooks check for window.WebSocket availability before connecting:

if (typeof window === 'undefined' || !window.WebSocket) {
  return;
}

This prevents errors during server-side rendering or in test environments.

Mount Safety¶

Hooks like useHealthStatus track mount state to prevent state updates after unmount:

const isMountedRef = useRef<boolean>(true);

useEffect(() => {
  isMountedRef.current = true;
  return () => {
    isMountedRef.current = false;
  };
}, []);

// Only update state if still mounted
if (isMountedRef.current) {
  setHealth(response);
}

Duplicate Connection Prevention¶

useWebSocket prevents duplicate connections by checking WebSocket ready state:

if (
  wsRef.current?.readyState === WebSocket.OPEN ||
  wsRef.current?.readyState === WebSocket.CONNECTING
) {
  return; // Already connected or connecting
}

Memory Management¶

Event buffers are automatically limited to prevent memory leaks:

// useEventStream maintains max 100 events
const MAX_EVENTS = 100;
const newEvents = [event, ...prevEvents].slice(0, MAX_EVENTS);

// useGpuHistory maintains configurable max data points (default: 60)
if (newHistory.length > maxDataPoints) {
  return newHistory.slice(-maxDataPoints);
}

usePerformanceMetrics¶

Purpose: Real-time system performance metrics via WebSocket (/ws/system endpoint), filtering for performance_update messages.

Source: frontend/src/hooks/usePerformanceMetrics.ts

Features:

Subscribes to /ws/system WebSocket and filters for performance_update messages
Maintains circular buffers for historical data at different time resolutions (5m, 15m, 60m)
Downsampling strategy: 5m buffer samples every update, 15m every 3rd, 60m every 12th
Provides GPU metrics, AI model status, inference latency, and database metrics
Tracks active alerts from the backend
Uses buildWebSocketOptions() for URL construction

Type Definitions:

interface PerformanceUpdate {
  timestamp: string;
  gpu: GpuMetrics | null;
  ai_models: Record<string, AiModelMetrics | NemotronMetrics>;
  nemotron: NemotronMetrics | null;
  inference: InferenceMetrics | null;
  databases: Record<string, DatabaseMetrics | RedisMetrics>;
  host: HostMetrics | null;
  containers: ContainerMetrics[];
  alerts: PerformanceAlert[];
}

interface UsePerformanceMetricsReturn {
  current: PerformanceUpdate | null;
  history: PerformanceHistory;
  alerts: PerformanceAlert[];
  isConnected: boolean;
  timeRange: TimeRange;
  setTimeRange: (range: TimeRange) => void;
}

Example:

const { current, history, alerts, isConnected, timeRange, setTimeRange } = usePerformanceMetrics();

// Display current GPU utilization
if (current?.gpu) {
  console.log(`GPU: ${current.gpu.utilization}%`);
  console.log(`VRAM: ${current.gpu.vram_used_gb}/${current.gpu.vram_total_gb} GB`);
}

// Get historical data for selected time range
const historicalData = history[timeRange];

useAIMetrics¶

Purpose: Fetches AI performance metrics from multiple REST endpoints and combines them into a unified state.

Source: frontend/src/hooks/useAIMetrics.ts

Features:

Polls multiple endpoints: /api/metrics, /api/system/telemetry, /api/system/health, /api/system/pipeline-latency
Combines data from Prometheus metrics, health checks, and pipeline latency API
Configurable polling interval (default: 5000ms)
Provides YOLO26 and Nemotron model status
Tracks detection/analysis latency percentiles
Mount-safe state updates

Type Definitions:

interface AIPerformanceState {
  yolo26: AIModelStatus;
  nemotron: AIModelStatus;
  detectionLatency: AILatencyMetrics | null;
  analysisLatency: AILatencyMetrics | null;
  pipelineLatency: PipelineLatencyResponse | null;
  totalDetections: number;
  totalEvents: number;
  detectionQueueDepth: number;
  analysisQueueDepth: number;
  pipelineErrors: Record<string, number>;
  queueOverflows: Record<string, number>;
  dlqItems: Record<string, number>;
  lastUpdated: string | null;
}

interface UseAIMetricsResult {
  data: AIPerformanceState;
  isLoading: boolean;
  error: string | null;
  refresh: () => Promise<void>;
}

Example:

const { data, isLoading, error, refresh } = useAIMetrics({
  pollingInterval: 5000,
});

if (data.yolo26.status === 'healthy') {
  console.log(`YOLO26 latency P95: ${data.detectionLatency?.p95}ms`);
}

useServiceStatus¶

Purpose: Tracks individual service health status via WebSocket (/ws/events endpoint), listening for service_status messages.

Source: frontend/src/hooks/useServiceStatus.ts

Features:

Subscribes to /ws/events and filters for service_status messages
Tracks status for each monitored service (yolo26, nemotron, redis)
Provides derived flags: hasUnhealthy, isAnyRestarting
Service status types: healthy, unhealthy, restarting, restart_failed, failed
Uses buildWebSocketOptions() for URL construction

Type Definitions:

type ServiceName = 'redis' | 'yolo26' | 'nemotron';
type ServiceStatusType = 'healthy' | 'unhealthy' | 'restarting' | 'restart_failed' | 'failed';

interface ServiceStatus {
  service: ServiceName;
  status: ServiceStatusType;
  message?: string;
  timestamp: string;
}

interface UseServiceStatusResult {
  services: Record<ServiceName, ServiceStatus | null>;
  hasUnhealthy: boolean;
  isAnyRestarting: boolean;
  getServiceStatus: (name: ServiceName) => ServiceStatus | null;
}

Example:

const { services, hasUnhealthy, isAnyRestarting, getServiceStatus } = useServiceStatus();

if (hasUnhealthy) {
  console.log('Warning: One or more services are unhealthy');
}

const yolo26Status = getServiceStatus('yolo26');
if (yolo26Status?.status === 'restarting') {
  console.log(`YOLO26 is restarting: ${yolo26Status.message}`);
}

useDetectionEnrichment¶

Purpose: Fetches enrichment data for a specific detection from the backend enrichment endpoint.

Source: frontend/src/hooks/useDetectionEnrichment.ts

Features:

Fetches structured enrichment results from /api/detections/{id}/enrichment
Contains results from 18+ vision models run during detection processing
Conditional fetching based on enabled option
Manual refetch capability
Handles loading, error, and null states

Type Definitions:

interface UseDetectionEnrichmentOptions {
  enabled?: boolean;
}

interface UseDetectionEnrichmentReturn {
  data: EnrichmentResponse | null;
  isLoading: boolean;
  error: string | null;
  refetch: () => Promise<void>;
}

Example:

const { data, isLoading, error, refetch } = useDetectionEnrichment(detectionId);

if (isLoading) return <Spinner />;
if (error) return <ErrorMessage error={error} />;
if (data) {
  // Display enrichment results from vision models
  return <EnrichmentPanel enrichment_data={data} />;
}

useModelZooStatus¶

Purpose: Fetches and polls Model Zoo status from /api/system/models endpoint.

Source: frontend/src/hooks/useModelZooStatus.ts

Features:

Polls Model Zoo registry at configurable intervals (default: 10000ms)
Provides list of all AI models in the registry
Calculates VRAM statistics (budget, used, available, percentage)
Manual refresh capability
Handles loading and error states

Type Definitions:

interface VRAMStats {
  budget_mb: number;
  used_mb: number;
  available_mb: number;
  usage_percent: number;
}

interface UseModelZooStatusOptions {
  pollingInterval?: number;
}

interface UseModelZooStatusReturn {
  models: ModelStatusResponse[];
  vramStats: VRAMStats | null;
  isLoading: boolean;
  error: string | null;
  refresh: () => Promise<void>;
}

Example:

const { models, vramStats, isLoading, error, refresh } = useModelZooStatus({
  pollingInterval: 10000,
});

if (vramStats) {
  console.log(`VRAM Usage: ${vramStats.usage_percent.toFixed(1)}%`);
  console.log(`${vramStats.used_mb}MB / ${vramStats.budget_mb}MB`);
}

// List loaded models
models
  .filter((m) => m.status === 'loaded')
  .forEach((m) => {
    console.log(`${m.name}: ${m.vram_mb}MB`);
  });

useSavedSearches¶

Purpose: Manages saved event searches in localStorage for the Events page.

Source: frontend/src/hooks/useSavedSearches.ts

Features:

Persists searches to localStorage (key: hsi_saved_searches)
Limits to 10 most recent searches
Provides CRUD operations (save, delete, load, clearAll)
Cross-tab synchronization via storage event listener
Handles localStorage errors gracefully (quota exceeded, unavailable)

Type Definitions:

interface SavedSearch {
  id: string;
  name: string;
  query: string;
  filters: SearchFilters;
  createdAt: string;
}

interface LoadedSearch {
  query: string;
  filters: SearchFilters;
}

interface UseSavedSearchesReturn {
  savedSearches: SavedSearch[];
  saveSearch: (name: string, query: string, filters: SearchFilters) => void;
  deleteSearch: (id: string) => void;
  loadSearch: (id: string) => LoadedSearch | null;
  clearAll: () => void;
}

Example:

const { savedSearches, saveSearch, deleteSearch, loadSearch, clearAll } = useSavedSearches();

// Save a new search
saveSearch('High Risk Events', 'suspicious person', { severity: 'high' });

// Load a saved search
const search = loadSearch('search-123');
if (search) {
  setQuery(search.query);
  setFilters(search.filters);
}

// Render saved searches dropdown
savedSearches.map(s => (
  <MenuItem key={s.id} onClick={() => loadSearch(s.id)}>
    {s.name}
  </MenuItem>
));

Future Enhancements¶

Potential improvements for the hooks architecture:

WebSocket Connection Pooling: Share single WebSocket connection across multiple hooks
Exponential Backoff: Implement exponential backoff for reconnection attempts
Message Queue: Queue messages when disconnected and replay on reconnection
Compression: Support WebSocket message compression (permessage-deflate)
Binary Messages: Support binary WebSocket frames (currently JSON only)
Connection Status UI: Built-in toast notifications for connection state changes
Metrics Collection: Track connection uptime, message rates, reconnection frequency
Request/Response Pattern: Support request-reply pattern over WebSocket (not just broadcast)

Frontend Hooks Architecture¶

Overview¶

Hook Hierarchy¶

Hooks Reference¶

useWebSocket¶

useWebSocketStatus¶

useEventStream¶

useSystemStatus¶

useConnectionStatus¶

useGpuHistory¶

useHealthStatus¶

useStorageStats¶

webSocketManager¶

useSidebarContext¶

Usage Patterns¶

Real-time Data Flow¶

Polling vs WebSocket¶

URL Construction Pattern¶

Reconnection Pattern¶

Event Buffer Management¶

Testing Patterns¶

Test Files¶

Testing Best Practices¶

Related Documentation¶

Implementation Notes¶

SSR Safety¶

Mount Safety¶

Duplicate Connection Prevention¶

Memory Management¶

usePerformanceMetrics¶

useAIMetrics¶

useServiceStatus¶

useDetectionEnrichment¶

useModelZooStatus¶

useSavedSearches¶

Future Enhancements¶
