Real-Time Architecture¶

AI-generated visualization of WebSocket real-time architecture with Redis pub/sub hub and client connections.

This document details the real-time communication architecture of the Home Security Intelligence system, including WebSocket channels, Redis pub/sub backbone, event broadcasting patterns, and message formats.

Table of Contents¶

1. Real-Time Overview
2. WebSocket Channels
3. Redis Pub/Sub Backbone
4. Event Broadcasting
5. System Status Broadcasting
6. SystemBroadcaster Features
7. Circuit Breaker Integration
8. Degraded Mode
9. Performance Broadcasting
10. Message Formats
11. Frontend Integration
12. Connection Management
13. Scaling Considerations

Real-Time Overview¶

The real-time system enables instant dashboard updates without polling by using WebSocket connections backed by Redis pub/sub for multi-instance scalability.

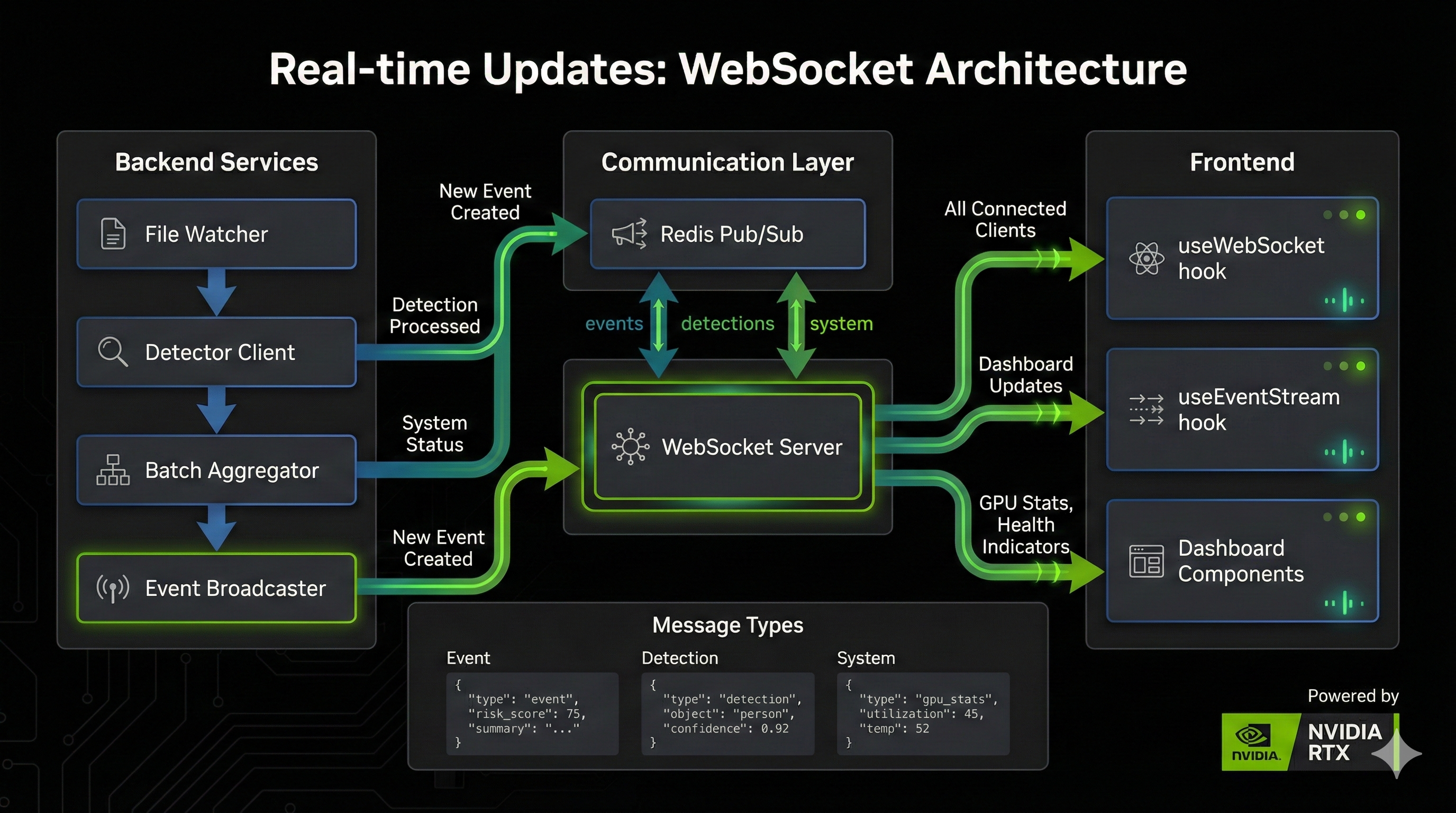

Architecture Diagram¶

Detailed Architecture Diagram¶

Diagram: WebSocket Architecture¶

flowchart TB
    subgraph Pipeline["AI Pipeline"]
        NA[NemotronAnalyzer<br/>Event Creation]
        GPU[GPUMonitor<br/>Stats Collection]
        HM[HealthMonitor<br/>Service Status]
    end

    subgraph Redis["Redis Pub/Sub"]
        CH1[security_events<br/>channel]
        CH2[system_status<br/>channel]
    end

    subgraph Backend["Backend Instances"]
        EB1[EventBroadcaster<br/>Instance 1]
        EB2[EventBroadcaster<br/>Instance 2]
        SB1[SystemBroadcaster<br/>Instance 1]
        SB2[SystemBroadcaster<br/>Instance 2]
    end

    subgraph WebSocket["WebSocket Endpoints"]
        WS1[/ws/events]
        WS2[/ws/system]
    end

    subgraph Clients["Dashboard Clients"]
        C1[Browser 1]
        C2[Browser 2]
        C3[Browser N]
    end

    NA -.->|publish| CH1
    GPU -.->|publish| CH2
    HM -.->|publish| CH2

    CH1 -.->|subscribe| EB1
    CH1 -.->|subscribe| EB2
    CH2 -.->|subscribe| SB1
    CH2 -.->|subscribe| SB2

    EB1 & EB2 --> WS1
    SB1 & SB2 --> WS2

    WS1 --> C1 & C2 & C3
    WS2 --> C1 & C2 & C3

    style CH1 fill:#A855F7,color:#fff
    style CH2 fill:#A855F7,color:#fff
    style WS1 fill:#3B82F6,color:#fff
    style WS2 fill:#3B82F6,color:#fff

Communication Patterns¶

WebSocket Channels¶

The system exposes three WebSocket endpoints for real-time updates.

Channel Overview¶

Events Channel (/ws/events)¶

Delivers real-time security event notifications as they are created by the AI pipeline.

Diagram: Events Channel Sequence¶

sequenceDiagram
    participant Client as Browser
    participant WS as /ws/events
    participant EB as EventBroadcaster
    participant Redis as Redis Pub/Sub
    participant NA as NemotronAnalyzer

    Client->>WS: Connect (upgrade)
    WS->>EB: register(websocket)
    EB-->>Client: Connection accepted

    Note over NA: Event created from batch

    NA->>Redis: PUBLISH security_events {...}
    Redis->>EB: Message received
    EB->>WS: send_text(json)
    WS->>Client: {"type": "event", "data": {...}}

    Note over Client: Dashboard updates

    Client->>WS: Disconnect
    WS->>EB: unregister(websocket)

System Channel (/ws/system)¶

Delivers periodic system status updates including GPU statistics and service health.

Diagram: System Channel Sequence¶

sequenceDiagram
    participant Client as Browser
    participant WS as /ws/system
    participant SB as SystemBroadcaster
    participant GPU as GPUMonitor
    participant HM as HealthMonitor

    Client->>WS: Connect (upgrade)
    WS->>SB: register(websocket)
    SB-->>Client: Connection accepted

    loop Every 5 seconds
        SB->>GPU: get_current_stats()
        GPU-->>SB: GPU metrics
        SB->>HM: get_status()
        HM-->>SB: Service health

        SB->>WS: send_text(json)
        WS->>Client: {"type": "system_status", "data": {...}}
    end

    Client->>WS: Disconnect
    WS->>SB: unregister(websocket)

Job Logs Channel (/ws/jobs/{job_id}/logs)¶

Streams real-time log entries for active jobs (pending or running status). This enables the Jobs page to display live log output as background tasks execute.

Authentication:

• Query parameter: ws://host/ws/jobs/{job_id}/logs?api_key=YOUR_KEY
• Sec-WebSocket-Protocol header: "api-key.YOUR_KEY"
• Token parameter: ws://host/ws/jobs/{job_id}/logs?token=YOUR_TOKEN

Message Format:

{
  "type": "log",
  "data": {
    "timestamp": "2026-01-17T10:32:05Z",
    "level": "INFO",
    "message": "Processing batch 2/3",
    "context": { "batch_id": "abc123" }
  }
}

Behavior:

• Subscribes to Redis pub/sub channel job:{job_id}:logs
• Logs are forwarded to the WebSocket as they are emitted by the job
• Connection closes when the client disconnects or the idle timeout is reached
• Server sends periodic heartbeat pings to detect disconnected clients

Source: backend/api/routes/websocket.py - websocket_job_logs endpoint

Redis Pub/Sub Backbone¶

Redis pub/sub enables real-time message distribution across multiple backend instances, ensuring all connected clients receive events regardless of which instance handles their WebSocket connection.

Channel Configuration¶

The channel name is configured in settings and retrieved via the get_event_channel function at line 27:

# backend/services/event_broadcaster.py:27
def get_event_channel() -> str:
    """Get the Redis event channel name from settings.

    Returns:
        The configured Redis event channel name.
    """
    return get_settings().redis_event_channel

Pub/Sub Flow¶

Diagram: Redis Pub/Sub Flow¶

flowchart TB
    subgraph Publishers["Event Publishers"]
        P1[NemotronAnalyzer]
        P2[HealthMonitor]
    end

    subgraph Redis["Redis Server"]
        PUB[PUBLISH<br/>Command]
        CH[security_events<br/>Channel]
        SUB[Subscriber<br/>List]
    end

    subgraph Subscribers["Backend Instances"]
        S1[EventBroadcaster 1<br/>SUBSCRIBE]
        S2[EventBroadcaster 2<br/>SUBSCRIBE]
        S3[EventBroadcaster N<br/>SUBSCRIBE]
    end

    subgraph Clients["Connected WebSocket Clients"]
        C1[Clients on Instance 1]
        C2[Clients on Instance 2]
        C3[Clients on Instance N]
    end

    P1 & P2 --> PUB
    PUB --> CH
    CH --> SUB
    SUB --> S1 & S2 & S3

    S1 --> C1
    S2 --> C2
    S3 --> C3

    style CH fill:#A855F7,color:#fff
    style SUB fill:#A855F7,color:#fff

Redis Message Format¶

Messages published to Redis include the full event envelope:

{
  "type": "event",
  "data": {
    "id": 123,
    "event_id": 123,
    "batch_id": "abc123def456",
    "camera_id": "front_door",
    "risk_score": 75,
    "risk_level": "high",
    "summary": "Person detected near entrance",
    "started_at": "2024-01-15T10:30:00.000000"
  }
}

Event Broadcasting¶

The EventBroadcaster class at line 36 manages WebSocket connections and distributes events.

EventBroadcaster Implementation¶

# backend/services/event_broadcaster.py:36
class EventBroadcaster:
    """Manages WebSocket connections and broadcasts events via Redis pub/sub.

    This class acts as a bridge between Redis pub/sub events and WebSocket
    connections, allowing multiple backend instances to share event notifications.
    """

    def __init__(self, redis_client: RedisClient, channel_name: str | None = None):
        self._redis = redis_client
        self._channel_name = channel_name or get_settings().redis_event_channel
        self._connections: set[WebSocket] = set()
        self._pubsub: PubSub | None = None
        self._listener_task: asyncio.Task[None] | None = None
        self._is_listening = False

Broadcasting Flow¶

flowchart TB
    subgraph Event["Event Creation"]
        NA[NemotronAnalyzer<br/>analyze_batch()]
    end

    subgraph Broadcast["EventBroadcaster"]
        GET[get_broadcaster()]
        PUB[broadcast_event()]
        REDIS[Redis PUBLISH]
    end

    subgraph Listen["Event Listener"]
        SUB[Redis SUBSCRIBE]
        LOOP[_listen_for_events()]
        SEND[_send_to_all_clients()]
    end

    subgraph Clients["WebSocket Connections"]
        WS1[WebSocket 1]
        WS2[WebSocket 2]
        WSN[WebSocket N]
    end

    NA --> GET
    GET --> PUB
    PUB --> REDIS

    REDIS -.->|Async| SUB
    SUB --> LOOP
    LOOP --> SEND
    SEND --> WS1 & WS2 & WSN

    style REDIS fill:#A855F7,color:#fff

Connection Management¶

The broadcaster maintains a set of active connections:

async def connect(self, websocket: WebSocket) -> None:
    """Register a new WebSocket connection."""
    await websocket.accept()
    self._connections.add(websocket)
    logger.info(f"WebSocket connected. Total connections: {len(self._connections)}")

async def disconnect(self, websocket: WebSocket) -> None:
    """Unregister a WebSocket connection."""
    self._connections.discard(websocket)
    with contextlib.suppress(Exception):
        await websocket.close()
    logger.info(f"WebSocket disconnected. Total connections: {len(self._connections)}")

Global Broadcaster Instance¶

The get_broadcaster function at line 263 provides a singleton instance:

# backend/services/event_broadcaster.py:263
async def get_broadcaster(redis_client: RedisClient) -> EventBroadcaster:
    """Get or create the global event broadcaster instance.

    This function is thread-safe and handles concurrent initialization
    attempts using an async lock to prevent race conditions.
    """
    global _broadcaster

    if _broadcaster is not None:
        return _broadcaster

    lock = _get_broadcaster_lock()
    async with lock:
        if _broadcaster is None:
            broadcaster = EventBroadcaster(redis_client)
            await broadcaster.start()
            _broadcaster = broadcaster

    return _broadcaster

System Status Broadcasting¶

The SystemBroadcaster periodically sends system status updates to all connected clients. It provides real-time system health information including GPU statistics, camera status, queue depths, and AI service health.

SystemBroadcaster Features¶

Status Update Content¶

flowchart TB
    subgraph Sources["Data Sources"]
        GPU[GPUMonitor<br/>GPU metrics]
        REDIS[Redis<br/>Queue lengths]
        DB[Database<br/>Camera counts]
        HEALTH[HealthMonitor<br/>Service status]
    end

    subgraph Aggregator["SystemBroadcaster"]
        COLLECT[Collect Metrics]
        FORMAT[Format Message]
        SEND[Broadcast to Clients]
    end

    subgraph Output["WebSocket Message"]
        MSG[system_status<br/>message]
    end

    GPU --> COLLECT
    REDIS --> COLLECT
    DB --> COLLECT
    HEALTH --> COLLECT

    COLLECT --> FORMAT
    FORMAT --> SEND
    SEND --> MSG

    style MSG fill:#3B82F6,color:#fff

Broadcast Interval¶

System status updates are sent every 5 seconds (configurable):

class SystemBroadcaster:
    """Broadcasts comprehensive system status updates."""

    def __init__(
        self,
        redis_client: RedisClient,
        broadcast_interval: float = 5.0,
    ):
        self._redis = redis_client
        self._interval = broadcast_interval
        # ...

Circuit Breaker Integration¶

The SystemBroadcaster integrates with a WebSocketCircuitBreaker to protect against cascading failures when the Redis pub/sub connection becomes unreliable.

Circuit Breaker States¶

stateDiagram-v2
    [*] --> CLOSED: Initialize
    CLOSED --> OPEN: failure_count >= threshold (5)
    OPEN --> HALF_OPEN: recovery_timeout elapsed (30s)
    HALF_OPEN --> CLOSED: success recorded
    HALF_OPEN --> OPEN: failure recorded
    OPEN --> CLOSED: manual reset()

Circuit Breaker Configuration¶

The SystemBroadcaster's circuit breaker uses these default settings:

Accessing Circuit Breaker State¶

from backend.services.system_broadcaster import get_system_broadcaster

broadcaster = get_system_broadcaster()

# Get current circuit breaker state
state = broadcaster.get_circuit_state()  # Returns WebSocketCircuitState enum

# Access circuit breaker directly for detailed metrics
cb = broadcaster.circuit_breaker
status = cb.get_status()  # Returns dict with state, counters, config

Degraded Mode¶

The SystemBroadcaster enters degraded mode when it cannot reliably broadcast real-time updates to clients. This is a graceful degradation strategy that maintains service availability even when the Redis pub/sub backbone is unavailable.

When Degraded Mode is Activated¶

Degraded mode (is_degraded() returns True) is activated when ANY of these conditions occur:

1. Circuit breaker opens: The pub/sub listener circuit breaker transitions to OPEN state after recording failure_threshold (default: 5) consecutive failures.

2. Recovery attempts exhausted: The broadcaster has attempted MAX_RECOVERY_ATTEMPTS (default: 5) reconnection attempts without success.

3. Pub/sub connection fails to re-establish: After a connection reset, if the new subscription cannot be created.

# Check if broadcaster is in degraded mode
from backend.services.system_broadcaster import get_system_broadcaster

broadcaster = get_system_broadcaster()
if broadcaster.is_degraded():
    # Real-time updates may be delayed or unavailable
    # Consider showing a warning to users
    pass

Behavior in Degraded Mode¶

When degraded mode is active:

Degraded State Notification¶

When entering degraded mode, the broadcaster sends a service_status message to all connected clients:

{
  "type": "service_status",
  "data": {
    "service": "system_broadcaster",
    "status": "degraded",
    "message": "System status broadcasting is degraded. Updates may be delayed or unavailable.",
    "circuit_state": "open"
  }
}

Frontend applications can listen for this message to show appropriate warnings to users.

Recovery from Degraded Mode¶

The broadcaster automatically recovers from degraded mode when:

1. The circuit breaker transitions from OPEN to HALF_OPEN (after recovery_timeout)
2. A successful pub/sub reconnection occurs
3. The circuit breaker transitions to CLOSED

# Manual recovery (restart pub/sub listener)
# This is typically done by restarting the broadcaster
from backend.services.system_broadcaster import stop_system_broadcaster, get_system_broadcaster_async

await stop_system_broadcaster()
broadcaster = await get_system_broadcaster_async(redis_client=redis)
# Degraded mode is automatically cleared on successful start

Degraded Mode Flow¶

flowchart TB
    subgraph Normal["Normal Operation"]
        BROADCAST[Broadcasting via<br/>Redis Pub/Sub]
    end

    subgraph Failure["Failure Detection"]
        F1[Pub/Sub Error]
        F2[Record Failure]
        F3{Failures >= 5?}
    end

    subgraph Recovery["Recovery Attempts"]
        R1[Wait 1 second]
        R2[Reset Pub/Sub Connection]
        R3{Attempts < 5?}
    end

    subgraph Degraded["Degraded Mode"]
        D1[_is_degraded = True]
        D2[Stop Pub/Sub Listener]
        D3[Broadcast Degraded<br/>State to Clients]
        D4[Local-only Updates]
    end

    BROADCAST --> F1
    F1 --> F2
    F2 --> F3
    F3 -->|No| R1
    F3 -->|Yes| D1
    R1 --> R2
    R2 --> R3
    R3 -->|Yes| BROADCAST
    R3 -->|No| D1
    D1 --> D2
    D2 --> D3
    D3 --> D4

    style D1 fill:#E74856,color:#fff
    style D4 fill:#F59E0B,color:#fff

Performance Broadcasting¶

The SystemBroadcaster can broadcast detailed performance metrics through its broadcast_performance() method. This requires a PerformanceCollector to be configured.

Enabling Performance Broadcasting¶

from backend.services.system_broadcaster import get_system_broadcaster
from backend.services.performance_collector import PerformanceCollector

# Get or create the broadcaster
broadcaster = get_system_broadcaster()

# Create and configure the performance collector
collector = PerformanceCollector(redis_client=redis, db_session_factory=get_session)

# Enable performance broadcasting
broadcaster.set_performance_collector(collector)

Performance Broadcast Flow¶

When enabled, performance metrics are automatically broadcast in the same loop as system status updates:

async def _broadcast_loop(self, interval: float) -> None:
    while self._running:
        if self.connections:
            # Broadcast system status
            status_data = await self._get_system_status()
            await self.broadcast_status(status_data)

            # Also broadcast detailed performance metrics
            await self.broadcast_performance()

        await asyncio.sleep(interval)

Redis Channels¶

The SystemBroadcaster uses two Redis pub/sub channels:

Both channels support multi-instance deployments where any backend can publish and all instances forward to their local WebSocket clients.

Message Formats¶

Event Message¶

Sent when a security event is created:

{
  "type": "event",
  "data": {
    "id": 123,
    "event_id": 123,
    "batch_id": "abc123def456",
    "camera_id": "front_door",
    "risk_score": 75,
    "risk_level": "high",
    "summary": "Person detected near entrance at unusual hour",
    "started_at": "2024-01-15T02:30:00.000000",
    "ended_at": "2024-01-15T02:31:30.000000"
  }
}

System Status Message¶

Sent periodically with system health:

{
  "type": "system_status",
  "data": {
    "gpu": {
      "name": "NVIDIA RTX A5500",
      "utilization": 45.2,
      "memory_used": 7168,
      "memory_total": 24576,
      "temperature": 65.0,
      "power_usage": 125.5
    },
    "queues": {
      "detection_queue": 3,
      "analysis_queue": 1,
      "dlq_total": 0
    },
    "cameras": {
      "total": 4,
      "online": 4,
      "offline": 0
    },
    "services": {
      "yolo26": "healthy",
      "nemotron": "healthy",
      "redis": "healthy"
    }
  },
  "timestamp": "2024-01-15T10:30:00.000000"
}

Service Status Message¶

Sent when service health changes:

{
  "type": "service_status",
  "data": {
    "service": "yolo26",
    "status": "unhealthy",
    "message": "Health check failed"
  },
  "timestamp": "2024-01-15T10:30:00.000000"
}

Performance Update Message¶

Sent periodically (every 5 seconds) with detailed system performance metrics. This message provides comprehensive monitoring data for the AI Performance dashboard.

Message Type: performance_update

Source: SystemBroadcaster via PerformanceCollector

Redis Channel: performance_update

Trigger: Broadcast loop (every 5 seconds when clients are connected)

Frontend Consumer: usePerformanceMetrics hook

Message Structure¶

{
  "type": "performance_update",
  "data": {
    "timestamp": "2024-01-15T10:30:00.000000",
    "gpu": { ... },
    "ai_models": { ... },
    "nemotron": { ... },
    "inference": { ... },
    "databases": { ... },
    "host": { ... },
    "containers": [ ... ],
    "alerts": [ ... ]
  }
}

Field Descriptions¶

GPU Metrics (gpu)¶

{
  "name": "NVIDIA RTX A5500",
  "utilization": 38.0,
  "vram_used_gb": 22.7,
  "vram_total_gb": 24.0,
  "temperature": 38,
  "power_watts": 31
}

AI Models (ai_models)¶

Dictionary containing metrics for each AI model:

YOLO26 (yolo26):

{
  "status": "healthy",
  "vram_gb": 0.17,
  "model": "yolo26_r50vd_coco_o365",
  "device": "cuda:0"
}

Nemotron Metrics (nemotron)¶

{
  "status": "healthy",
  "slots_active": 1,
  "slots_total": 2,
  "context_size": 4096
}

Inference Metrics (inference)¶

{
  "yolo26_latency_ms": { "avg": 45, "p95": 82, "p99": 120 },
  "nemotron_latency_ms": { "avg": 2100, "p95": 4800, "p99": 8200 },
  "pipeline_latency_ms": { "avg": 3200, "p95": 6100 },
  "throughput": { "images_per_min": 12.4, "events_per_min": 2.1 },
  "queues": { "detection": 0, "analysis": 0 }
}

Database Metrics (databases)¶

PostgreSQL:

{
  "status": "healthy",
  "connections_active": 5,
  "connections_max": 30,
  "cache_hit_ratio": 98.2,
  "transactions_per_min": 1200
}

Redis:

{
  "status": "healthy",
  "connected_clients": 8,
  "memory_mb": 1.5,
  "hit_ratio": 99.5,
  "blocked_clients": 0
}

Host Metrics (host)¶

{
  "cpu_percent": 12.0,
  "ram_used_gb": 8.2,
  "ram_total_gb": 32.0,
  "disk_used_gb": 156.0,
  "disk_total_gb": 500.0
}

Container Metrics (containers)¶

Array of container health statuses:

[
  { "name": "backend", "status": "running", "health": "healthy" },
  { "name": "frontend", "status": "running", "health": "healthy" },
  { "name": "postgres", "status": "running", "health": "healthy" },
  { "name": "redis", "status": "running", "health": "healthy" },
  { "name": "ai-yolo26", "status": "running", "health": "healthy" },
  { "name": "ai-llm", "status": "running", "health": "healthy" }
]

Performance Alerts (alerts)¶

Array of alerts when metrics exceed configured thresholds:

[
  {
    "severity": "warning",
    "metric": "gpu_temperature",
    "value": 82,
    "threshold": 80,
    "message": "GPU temperature high: 82C"
  }
]

Alert Thresholds:

Complete Example¶

{
  "type": "performance_update",
  "data": {
    "timestamp": "2024-01-15T10:30:00.000000",
    "gpu": {
      "name": "NVIDIA RTX A5500",
      "utilization": 38.0,
      "vram_used_gb": 22.7,
      "vram_total_gb": 24.0,
      "temperature": 38,
      "power_watts": 31
    },
    "ai_models": {
      "yolo26": {
        "status": "healthy",
        "vram_gb": 0.17,
        "model": "yolo26_r50vd_coco_o365",
        "device": "cuda:0"
      },
      "nemotron": {
        "status": "healthy",
        "slots_active": 1,
        "slots_total": 2,
        "context_size": 4096
      }
    },
    "nemotron": {
      "status": "healthy",
      "slots_active": 1,
      "slots_total": 2,
      "context_size": 4096
    },
    "inference": {
      "yolo26_latency_ms": { "avg": 45, "p95": 82, "p99": 120 },
      "nemotron_latency_ms": { "avg": 2100, "p95": 4800, "p99": 8200 },
      "pipeline_latency_ms": { "avg": 3200, "p95": 6100 },
      "throughput": { "images_per_min": 12.4, "events_per_min": 2.1 },
      "queues": { "detection": 0, "analysis": 0 }
    },
    "databases": {
      "postgresql": {
        "status": "healthy",
        "connections_active": 5,
        "connections_max": 30,
        "cache_hit_ratio": 98.2,
        "transactions_per_min": 1200
      },
      "redis": {
        "status": "healthy",
        "connected_clients": 8,
        "memory_mb": 1.5,
        "hit_ratio": 99.5,
        "blocked_clients": 0
      }
    },
    "host": {
      "cpu_percent": 12.0,
      "ram_used_gb": 8.2,
      "ram_total_gb": 32.0,
      "disk_used_gb": 156.0,
      "disk_total_gb": 500.0
    },
    "containers": [
      { "name": "backend", "status": "running", "health": "healthy" },
      { "name": "frontend", "status": "running", "health": "healthy" },
      { "name": "postgres", "status": "running", "health": "healthy" },
      { "name": "redis", "status": "running", "health": "healthy" },
      { "name": "ai-yolo26", "status": "running", "health": "healthy" },
      { "name": "ai-llm", "status": "running", "health": "healthy" }
    ],
    "alerts": []
  }
}

Message Type Summary¶

Frontend Integration¶

WebSocket Hooks¶

The frontend uses custom React hooks for WebSocket integration:

useWebSocket¶

Base hook for WebSocket connection management:

// frontend/src/hooks/useWebSocket.ts
export function useWebSocket(url: string, options?: WebSocketOptions) {
  const [isConnected, setIsConnected] = useState(false);
  const [lastMessage, setLastMessage] = useState<WebSocketMessage | null>(null);

  useEffect(() => {
    const ws = new WebSocket(url);

    ws.onopen = () => setIsConnected(true);
    ws.onclose = () => setIsConnected(false);
    ws.onmessage = (event) => {
      const message = JSON.parse(event.data);
      setLastMessage(message);
    };

    return () => ws.close();
  }, [url]);

  return { isConnected, lastMessage };
}

useEventStream¶

Hook for security event stream:

// frontend/src/hooks/useEventStream.ts
export function useEventStream() {
  const { isConnected, lastMessage } = useWebSocket('/ws/events');
  const [events, setEvents] = useState<Event[]>([]);

  useEffect(() => {
    if (lastMessage?.type === 'event') {
      setEvents((prev) => [lastMessage.data, ...prev].slice(0, 100));
    }
  }, [lastMessage]);

  return { isConnected, events };
}

useSystemStatus¶

Hook for system status updates:

// frontend/src/hooks/useSystemStatus.ts
export function useSystemStatus() {
  const { isConnected, lastMessage } = useWebSocket('/ws/system');
  const [status, setStatus] = useState<SystemStatus | null>(null);

  useEffect(() => {
    if (lastMessage?.type === 'system_status') {
      setStatus(lastMessage.data);
    }
  }, [lastMessage]);

  return { isConnected, status };
}

Frontend Architecture¶

flowchart TB
    subgraph Hooks["React Hooks Layer"]
        UWS[useWebSocket<br/>Base Hook]
        UES[useEventStream<br/>Events Hook]
        USS[useSystemStatus<br/>Status Hook]
    end

    subgraph Components["React Components"]
        DASH[DashboardPage]
        FEED[ActivityFeed]
        GAUGE[RiskGauge]
        GPU[GPUStats]
        HEALTH[HealthIndicators]
    end

    subgraph WebSocket["WebSocket Connections"]
        WS1[/ws/events]
        WS2[/ws/system]
    end

    UWS --> UES
    UWS --> USS

    UES --> WS1
    USS --> WS2

    DASH --> UES
    DASH --> USS

    UES --> FEED
    UES --> GAUGE
    USS --> GPU
    USS --> HEALTH

    style WS1 fill:#3B82F6,color:#fff
    style WS2 fill:#3B82F6,color:#fff

Connection Management¶

Lifecycle Management¶

flowchart TB
    subgraph Startup["Application Startup"]
        INIT[FastAPI Lifespan<br/>@asynccontextmanager]
        START[broadcaster.start()]
        SUB[Subscribe to Redis]
    end

    subgraph Runtime["Runtime"]
        CONN[Client Connects]
        REG[Register WebSocket]
        LISTEN[Listen for Messages]
        SEND[Send to Clients]
        DISC[Client Disconnects]
        UNREG[Unregister WebSocket]
    end

    subgraph Shutdown["Application Shutdown"]
        STOP[broadcaster.stop()]
        UNSUB[Unsubscribe from Redis]
        CLOSE[Close All WebSockets]
    end

    INIT --> START
    START --> SUB

    CONN --> REG
    REG --> LISTEN
    LISTEN --> SEND
    DISC --> UNREG

    STOP --> UNSUB
    UNSUB --> CLOSE

Error Handling¶

The broadcaster handles disconnections gracefully:

async def _send_to_all_clients(self, event_data: Any) -> None:
    """Send event data to all connected WebSocket clients."""
    if not self._connections:
        return

    message = event_data if isinstance(event_data, str) else json.dumps(event_data)

    disconnected = []
    for ws in self._connections:
        try:
            await ws.send_text(message)
        except Exception as e:
            logger.warning(f"Failed to send to WebSocket client: {e}")
            disconnected.append(ws)

    # Clean up disconnected clients
    for ws in disconnected:
        await self.disconnect(ws)

Scaling Considerations¶

Multi-Instance Deployment¶

Redis pub/sub enables horizontal scaling of backend instances:

flowchart TB
    subgraph LoadBalancer["Load Balancer"]
        LB[NGINX / HAProxy]
    end

    subgraph Backends["Backend Instances"]
        B1[Backend 1<br/>EventBroadcaster]
        B2[Backend 2<br/>EventBroadcaster]
        B3[Backend 3<br/>EventBroadcaster]
    end

    subgraph Redis["Redis (Shared)"]
        PUB[Pub/Sub<br/>security_events]
    end

    subgraph Clients["WebSocket Clients"]
        C1[Client Group 1]
        C2[Client Group 2]
        C3[Client Group 3]
    end

    LB --> B1 & B2 & B3

    B1 <--> PUB
    B2 <--> PUB
    B3 <--> PUB

    B1 --> C1
    B2 --> C2
    B3 --> C3

    style PUB fill:#A855F7,color:#fff
    style LB fill:#3B82F6,color:#fff

Key Scaling Properties¶

WebSocket Sticky Sessions¶

For WebSocket connections, load balancers must use sticky sessions:

# NGINX configuration for WebSocket sticky sessions
upstream backend {
    ip_hash;  # Sticky sessions based on client IP
    server backend1:8000;
    server backend2:8000;
    server backend3:8000;
}

location /ws/ {
    proxy_pass http://backend;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
    proxy_set_header Host $host;
}

Related Documentation¶

This document describes the real-time communication architecture for the Home Security Intelligence system. For implementation details, see the source files referenced in the frontmatter.
