Resilience Architecture

This document details the resilience patterns implemented in the Home Security Intelligence system to ensure reliable operation even when external services (YOLO26, Nemotron LLM, Redis) experience failures.

Table of Contents

  1. Resilience Overview
  2. Circuit Breaker Pattern
  3. Retry Handler with Exponential Backoff
  4. Dead-Letter Queue (DLQ) Management
  5. Service Health Monitoring
  6. Graceful Degradation
  7. Recovery Strategies
  8. Configuration Reference
  9. WebSocket Circuit Breaker and Degraded Mode

Resilience Overview

The system implements multiple layers of resilience to handle failures gracefully:

Resilience Architecture Overview

Layered resilience architecture showing circuit breakers, retry logic with exponential backoff, dead-letter queues, and health monitoring.

Mermaid source (click to expand)
flowchart TB
    subgraph Input["Incoming Request"]
        REQ[Service Call]
    end

    subgraph CircuitBreaker["Circuit Breaker Layer"]
        CB{Circuit<br/>State?}
        CLOSED[CLOSED<br/>Normal Operation]
        OPEN[OPEN<br/>Fast Fail]
        HALF[HALF_OPEN<br/>Test Recovery]
    end

    subgraph Retry["Retry Layer"]
        RT{Retry<br/>Attempt?}
        BACKOFF[Exponential<br/>Backoff]
        EXEC[Execute<br/>Operation]
    end

    subgraph Outcome["Outcome Handling"]
        SUCCESS[Success<br/>Reset Counters]
        FAIL[Failure<br/>Increment Counter]
        DLQ[Dead Letter<br/>Queue]
    end

    subgraph Recovery["Recovery Services"]
        HM[Health<br/>Monitor]
        AUTO[Auto<br/>Restart]
    end

    REQ --> CB
    CB -->|Closed| CLOSED --> RT
    CB -->|Open| OPEN --> FAIL
    CB -->|Half-Open| HALF --> RT

    RT -->|Yes| BACKOFF --> EXEC
    RT -->|Max Retries| DLQ

    EXEC -->|OK| SUCCESS
    EXEC -->|Error| FAIL

    FAIL -->|Threshold Met| OPEN
    SUCCESS --> CLOSED

    HM -->|Unhealthy| AUTO
    AUTO -->|Restart| HM

    style OPEN fill:#E74856,color:#fff
    style SUCCESS fill:#76B900,color:#fff
    style DLQ fill:#A855F7,color:#fff
    style HALF fill:#FFB800,color:#000

Resilience Components

Component Location Responsibility
CircuitBreaker backend/services/circuit_breaker.py:270 Prevents cascading failures by failing fast
RetryHandler backend/services/retry_handler.py:184 Exponential backoff with DLQ support
ServiceHealthMonitor backend/services/health_monitor.py:44 Periodic health checks and auto-recovery
DegradationManager backend/services/degradation_manager.py Graceful degradation during outages

Circuit Breaker Pattern

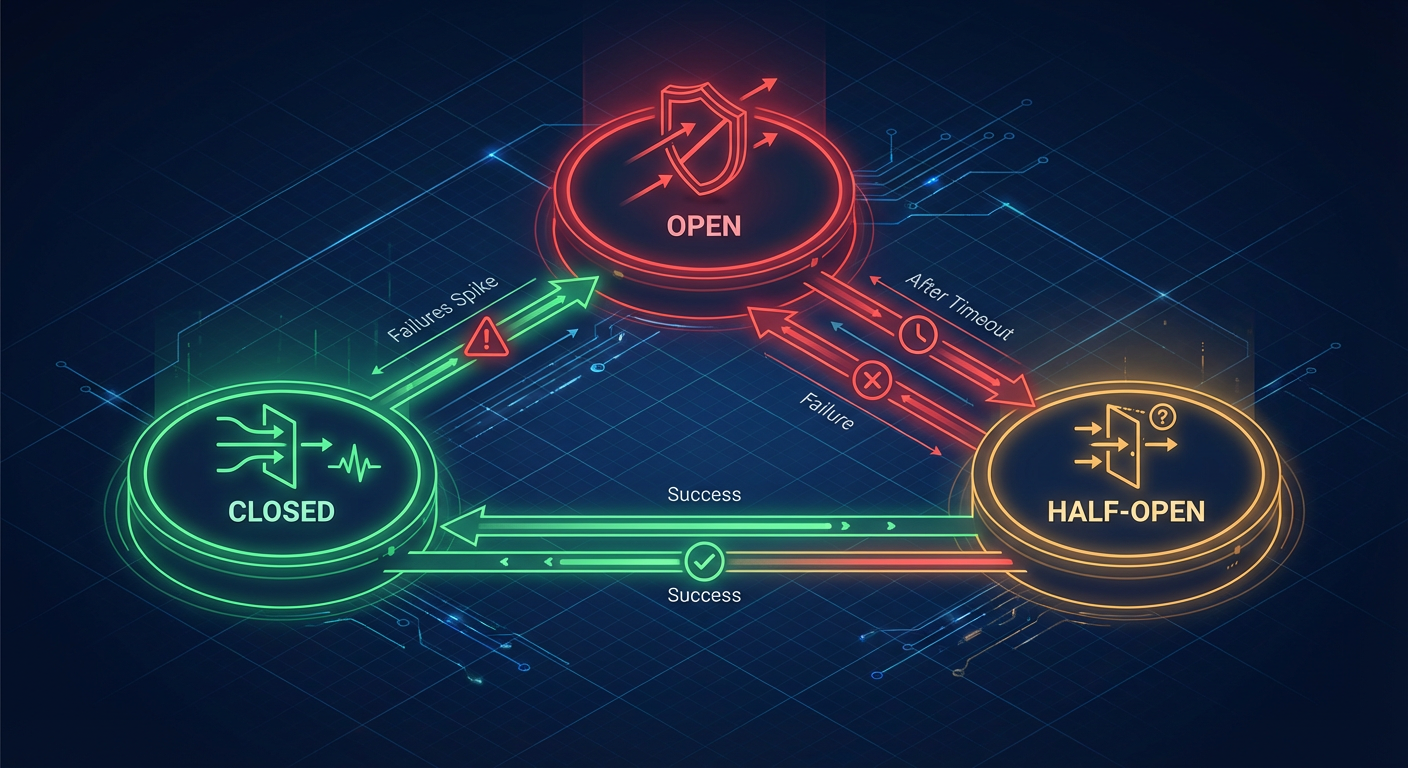

Circuit Breaker Pattern

The circuit breaker protects external services from cascading failures by monitoring failure rates and temporarily blocking calls to unhealthy services.

Circuit Breaker States

Circuit Breaker State Machine

State machine showing transitions between CLOSED (normal), OPEN (tripped), and HALF_OPEN (testing) states.

Mermaid source (click to expand)
stateDiagram-v2
    [*] --> CLOSED: Initial State

    CLOSED --> OPEN: failures >= threshold
    OPEN --> HALF_OPEN: recovery_timeout elapsed
    HALF_OPEN --> CLOSED: success_threshold met
    HALF_OPEN --> OPEN: any failure

    CLOSED: Normal Operation
    CLOSED: Calls pass through
    CLOSED: Track failures

    OPEN: Circuit Tripped
    OPEN: Calls rejected immediately
    OPEN: CircuitBreakerError raised

    HALF_OPEN: Recovery Testing
    HALF_OPEN: Limited calls allowed
    HALF_OPEN: Track successes

Implementation Details

The CircuitBreaker class at line 270 implements the pattern:

# backend/services/circuit_breaker.py:270
class CircuitBreaker:
    """Circuit breaker for protecting external service calls.

    Implements the circuit breaker pattern with three states:
    - CLOSED: Normal operation, calls pass through
    - OPEN: Service failing, calls rejected immediately
    - HALF_OPEN: Testing recovery, limited calls allowed
    """

    def __init__(
        self,
        name: str,
        config: CircuitBreakerConfig | None = None,
    ) -> None:
        self._name = name
        self._config = config or CircuitBreakerConfig()
        self._state = CircuitState.CLOSED
        self._failure_count = 0
        # ...

Circuit Breaker Configuration

The CircuitBreakerConfig at line 139 defines behavior:

Parameter Default Description
failure_threshold 5 Failures before opening circuit
recovery_timeout 30.0s Wait time before testing recovery
half_open_max_calls 3 Max calls allowed in half-open state
success_threshold 2 Successes needed to close circuit
excluded_exceptions () Exception types that don't count as failures

Usage Pattern

from backend.services.circuit_breaker import get_circuit_breaker, CircuitBreakerConfig

# Get or create circuit breaker for a service
breaker = get_circuit_breaker(
    "yolo26",
    CircuitBreakerConfig(
        failure_threshold=5,
        recovery_timeout=30.0,
    )
)

# Execute through circuit breaker
try:
    result = await breaker.call(detector_client.detect_objects, image_path)
except CircuitBreakerError:
    # Service unavailable, use fallback
    result = []

Circuit Breaker Registry

The CircuitBreakerRegistry at line 1018 manages multiple breakers:

Circuit Breaker Registry

Global registry managing circuit breakers for yolo26, nemotron, and redis services.

Mermaid source (click to expand)
flowchart TB
    subgraph Registry["CircuitBreakerRegistry"]
        R[Global Registry]
    end

    subgraph Breakers["Individual Circuit Breakers"]
        B1[yolo26<br/>breaker]
        B2[nemotron<br/>breaker]
        B3[redis<br/>breaker]
    end

    subgraph Services["Protected Services"]
        S1[YOLO26<br/>:8095]
        S2[Nemotron LLM<br/>:8091]
        S3[Redis<br/>:6379]
    end

    R --> B1
    R --> B2
    R --> B3

    B1 --> S1
    B2 --> S2
    B3 --> S3

    style S1 fill:#3B82F6,color:#fff
    style S2 fill:#3B82F6,color:#fff
    style S3 fill:#A855F7,color:#fff

Retry Handler with Exponential Backoff

The RetryHandler at line 184 provides automatic retries with exponential backoff for transient failures.

Retry Flow

Retry Handler Flow

Retry flow showing exponential backoff calculation, jitter application, cap enforcement, and dead-letter queue handling.

Mermaid source (click to expand)
flowchart TB
    subgraph Input["Job Processing"]
        JOB[Detection/Analysis Job]
    end

    subgraph RetryLoop["Retry Handler"]
        ATT{Attempt<br/>N of Max?}
        EXEC[Execute<br/>Operation]
        CHK{Success?}
        CALC[Calculate<br/>Backoff Delay]
        WAIT[Wait with<br/>Jitter]
    end

    subgraph Outcomes["Final Outcome"]
        OK[Success<br/>Return Result]
        DLQ[Move to DLQ<br/>dlq:queue_name]
    end

    JOB --> ATT
    ATT -->|Attempt N| EXEC
    ATT -->|Max Exceeded| DLQ

    EXEC --> CHK
    CHK -->|Yes| OK
    CHK -->|No| CALC

    CALC --> WAIT
    WAIT --> ATT

    style OK fill:#76B900,color:#fff
    style DLQ fill:#E74856,color:#fff

Exponential Backoff Algorithm

The RetryConfig at line 64 configures backoff behavior:

# backend/services/retry_handler.py:64
@dataclass
class RetryConfig:
    """Configuration for retry behavior."""

    max_retries: int = 3
    base_delay_seconds: float = 1.0
    max_delay_seconds: float = 30.0
    exponential_base: float = 2.0
    jitter: bool = True

    def get_delay(self, attempt: int) -> float:
        """Calculate delay: base * (exponential_base ^ (attempt - 1))"""
        delay = self.base_delay_seconds * (self.exponential_base ** (attempt - 1))
        delay = min(delay, self.max_delay_seconds)
        if self.jitter:
            jitter_amount = delay * 0.25 * random.random()
            delay = delay + jitter_amount
        return delay

Backoff Timing Example

Attempt Base Delay With Jitter (0-25%)
1 1.0s 1.0s - 1.25s
2 2.0s 2.0s - 2.5s
3 4.0s 4.0s - 5.0s
4 8.0s 8.0s - 10.0s
5 16.0s 16.0s - 20.0s
6+ 30.0s (max) 30.0s - 37.5s

Dead-Letter Queue (DLQ) Management

Jobs that exhaust all retry attempts are moved to dead-letter queues for manual inspection and reprocessing.

DLQ Architecture

Dead-letter queue architecture showing processing queues (detection_queue, analysis_queue) flowing through workers to the retry handler, with failed jobs moving to DLQ storage (dlq:detection_queue, dlq:analysis_queue) and the DLQ management API providing inspection, requeue, and clear operations

DLQ system architecture with queue workers, retry handling, and management API for failed job recovery.

Mermaid source (click to expand)
flowchart TB
    subgraph ProcessingQueues["Processing Queues"]
        DQ[detection_queue]
        AQ[analysis_queue]
    end

    subgraph Workers["Queue Workers"]
        DW[DetectionQueueWorker]
        AW[AnalysisQueueWorker]
    end

    subgraph RetryLayer["Retry Handler"]
        RH[RetryHandler<br/>max_retries=3]
    end

    subgraph DLQs["Dead Letter Queues"]
        DLQ1[dlq:detection_queue]
        DLQ2[dlq:analysis_queue]
    end

    subgraph Management["DLQ Management API"]
        API[/api/dlq/*]
        INSPECT[Inspect Jobs]
        REQUEUE[Requeue Jobs]
        CLEAR[Clear Queue]
    end

    DQ --> DW
    AQ --> AW
    DW --> RH
    AW --> RH

    RH -->|Exhausted| DLQ1
    RH -->|Exhausted| DLQ2

    API --> INSPECT
    API --> REQUEUE
    API --> CLEAR

    DLQ1 -.->|Manual| REQUEUE
    DLQ2 -.->|Manual| REQUEUE
    REQUEUE -.->|Return to| DQ
    REQUEUE -.->|Return to| AQ

    style DLQ1 fill:#E74856,color:#fff
    style DLQ2 fill:#E74856,color:#fff
    style API fill:#3B82F6,color:#fff

DLQ Job Format

Jobs in the DLQ include failure metadata:

{
  "original_job": {
    "camera_id": "front_door",
    "file_path": "/export/foscam/front_door/image_001.jpg",
    "timestamp": "2024-01-15T10:30:00.000000"
  },
  "error": "Connection refused: YOLO26 service unavailable",
  "attempt_count": 3,
  "first_failed_at": "2024-01-15T10:30:01.000000",
  "last_failed_at": "2024-01-15T10:30:15.000000",
  "queue_name": "detection_queue"
}

DLQ Statistics

The DLQStats dataclass at line 175:

# backend/services/retry_handler.py:175
@dataclass
class DLQStats:
    """Statistics about dead-letter queues."""

    detection_queue_count: int = 0
    analysis_queue_count: int = 0
    total_count: int = 0

DLQ API Endpoints

Endpoint Method Description
/api/dlq/stats GET Get DLQ statistics
/api/dlq/{queue_name} GET List jobs in a DLQ
/api/dlq/{queue_name}/requeue POST Move job back to processing
/api/dlq/{queue_name} DELETE Clear all jobs in DLQ

Service Health Monitoring

The ServiceHealthMonitor at line 44 continuously monitors external services and orchestrates automatic recovery.

Health Check Flow

Health Check Flow

Service health monitoring flow showing monitored services, state transitions, and recovery actions.

Mermaid source (click to expand)
flowchart TB
    subgraph Monitor["ServiceHealthMonitor"]
        LOOP[Health Check Loop<br/>Every 15s]
    end

    subgraph Services["Monitored Services"]
        S1[YOLO26<br/>GET /health]
        S2[Nemotron<br/>GET /health]
        S3[Redis<br/>PING]
    end

    subgraph States["Service States"]
        HEALTHY[healthy<br/>Normal operation]
        UNHEALTHY[unhealthy<br/>Health check failed]
        RESTARTING[restarting<br/>Restart in progress]
        FAILED[failed<br/>Max retries exceeded]
    end

    subgraph Recovery["Recovery Actions"]
        BACKOFF[Exponential<br/>Backoff]
        RESTART[Restart<br/>Service]
        BROADCAST[WebSocket<br/>Broadcast]
    end

    LOOP --> S1
    LOOP --> S2
    LOOP --> S3

    S1 & S2 & S3 -->|OK| HEALTHY
    S1 & S2 & S3 -->|Fail| UNHEALTHY

    UNHEALTHY --> BACKOFF
    BACKOFF --> RESTART
    RESTART -->|Success| HEALTHY
    RESTART -->|Fail| RESTARTING
    RESTARTING -->|Max Retries| FAILED

    HEALTHY --> BROADCAST
    UNHEALTHY --> BROADCAST
    FAILED --> BROADCAST

    style HEALTHY fill:#76B900,color:#fff
    style UNHEALTHY fill:#FFB800,color:#000
    style FAILED fill:#E74856,color:#fff
    style RESTARTING fill:#3B82F6,color:#fff

Health Monitor Implementation

# backend/services/health_monitor.py:44
class ServiceHealthMonitor:
    """Monitors service health and orchestrates automatic recovery.

    Status values:
        - healthy: Service responding normally
        - unhealthy: Health check failed
        - restarting: Restart in progress
        - restart_failed: Restart attempt failed
        - failed: Max retries exceeded, giving up
    """

    def __init__(
        self,
        manager: ServiceManager,
        services: list[ServiceConfig],
        broadcaster: EventBroadcaster | None = None,
        check_interval: float = 15.0,
    ) -> None:
        self._manager = manager
        self._services = services
        self._broadcaster = broadcaster
        self._check_interval = check_interval
        # ...

Recovery Backoff Strategy

Recovery attempts use exponential backoff to avoid overwhelming recovering services:

Attempt Backoff Delay Formula
1 5s backoff_base * 2^0
2 10s backoff_base * 2^1
3 20s backoff_base * 2^2
4 40s backoff_base * 2^3
5 (Give up) Max retries exceeded

Graceful Degradation

When services are unavailable, the system degrades gracefully rather than failing completely.

Degradation Modes

Graceful Degradation

Graceful degradation modes showing normal operation, failure scenarios, and degraded behaviors.

Mermaid source (click to expand)
flowchart TB
    subgraph Normal["Normal Operation"]
        N1[Full AI Pipeline]
        N2[Real-time Events]
        N3[Risk Scoring]
    end

    subgraph Degraded["Degraded Modes"]
        D1[Detection Only<br/>No LLM Analysis]
        D2[Queue Buffering<br/>Service Recovery]
        D3[Fallback Risk<br/>Score: 50, Medium]
    end

    subgraph Failed["Failure Scenarios"]
        F1[YOLO26<br/>Unavailable]
        F2[Nemotron<br/>Unavailable]
        F3[Redis<br/>Unavailable]
    end

    F1 -->|Skip Detection| D2
    F2 -->|Use Fallback| D3
    F3 -->|Fail Open| D1

    N1 --> F1
    N1 --> F2
    N1 --> F3

    style Normal fill:#76B900,color:#fff
    style Degraded fill:#FFB800,color:#000
    style Failed fill:#E74856,color:#fff

Degradation Behavior by Component

Component Failure Mode Degradation Behavior
YOLO26 Unreachable DetectorClient returns empty list, detection skipped
Nemotron Unreachable NemotronAnalyzer returns default risk (50, medium)
Redis Unreachable Deduplication fails open (allows processing)
Redis Pub/sub down WebSocket updates unavailable
PostgreSQL Unreachable Full system failure (critical dependency)

Fallback Risk Assessment

When Nemotron is unavailable, the system uses a fallback risk assessment:

# backend/services/nemotron_analyzer.py (within analyze_batch)
# Create fallback risk data when LLM is unavailable
risk_data = {
    "risk_score": 50,
    "risk_level": "medium",
    "summary": "Analysis unavailable - LLM service error",
    "reasoning": "Failed to analyze detections due to service error",
}

Recovery Strategies

Automatic Recovery Sequence

Mermaid source (click to expand)
sequenceDiagram
    participant HM as HealthMonitor
    participant SVC as External Service
    participant SM as ServiceManager
    participant WS as WebSocket

    Note over HM: Check interval: 15s
    HM->>SVC: Health check
    SVC--xHM: Timeout/Error

    HM->>WS: Broadcast "unhealthy"

    loop Retry with backoff
        HM->>HM: Calculate backoff (5s * 2^n)
        HM->>HM: Wait backoff period
        HM->>WS: Broadcast "restarting"
        HM->>SM: Restart service
        SM->>SVC: docker restart / systemctl restart
        HM->>HM: Wait 2s for startup
        HM->>SVC: Health check
        alt Healthy
            SVC-->>HM: OK
            HM->>WS: Broadcast "healthy"
        else Still Unhealthy
            SVC--xHM: Error
            Note over HM: Increment retry count
        end
    end

    alt Max retries exceeded
        HM->>WS: Broadcast "failed"
        Note over HM: Manual intervention required
    end

Service Manager Strategies

The system supports different restart strategies via the ServiceManager interface:

Strategy Implementation Use Case
ShellServiceManager Shell commands (systemctl, scripts) Development, native services
DockerServiceManager Docker CLI (docker restart) Production containers
PodmanServiceManager Podman CLI (podman restart) Podman deployments

Configuration Reference

Circuit Breaker Settings

Environment Variable Default Description
CIRCUIT_BREAKER_FAILURE_THRESHOLD 5 Failures before opening
CIRCUIT_BREAKER_RECOVERY_TIMEOUT 30 Seconds before half-open
CIRCUIT_BREAKER_HALF_OPEN_MAX_CALLS 3 Max test calls
CIRCUIT_BREAKER_SUCCESS_THRESHOLD 2 Successes to close

Retry Handler Settings

Environment Variable Default Description
RETRY_MAX_RETRIES 3 Maximum retry attempts
RETRY_BASE_DELAY 1.0 Initial delay (seconds)
RETRY_MAX_DELAY 30.0 Maximum delay (seconds)
RETRY_EXPONENTIAL_BASE 2.0 Backoff multiplier

Health Monitor Settings

Environment Variable Default Description
HEALTH_CHECK_INTERVAL 15.0 Check interval (seconds)
SERVICE_MAX_RETRIES 5 Max restart attempts
SERVICE_BACKOFF_BASE 5.0 Initial restart backoff

WebSocket Circuit Breaker and Degraded Mode

The system includes a dedicated WebSocket circuit breaker pattern for real-time connection resilience. This provides automatic recovery when Redis pub/sub experiences failures and graceful degradation when recovery fails.

Architecture Overview

WebSocket Circuit Breaker Architecture

WebSocket circuit breaker architecture showing backend services, Redis pub/sub, and frontend clients.

Mermaid source (click to expand)
flowchart TB
    subgraph Backend["Backend Services"]
        SB[SystemBroadcaster<br/>Port: /ws/system]
        EB[EventBroadcaster<br/>Port: /ws/events]
        CB1[WebSocketCircuitBreaker<br/>system_broadcaster]
        CB2[WebSocketCircuitBreaker<br/>event_broadcaster]
    end

    subgraph Redis["Redis Pub/Sub"]
        CH1[system_status channel]
        CH2[security_events channel]
    end

    subgraph Frontend["Frontend Clients"]
        WS[useWebSocket Hook]
        WSM[WebSocketManager<br/>Connection Deduplication]
    end

    SB --> CB1
    EB --> CB2
    CB1 --> CH1
    CB2 --> CH2
    CH1 -.->|Subscribe| SB
    CH2 -.->|Subscribe| EB

    SB -->|Broadcast| WS
    EB -->|Broadcast| WS
    WS --> WSM

    style CB1 fill:#FFB800,color:#000
    style CB2 fill:#FFB800,color:#000
    style WSM fill:#3B82F6,color:#fff

WebSocket Circuit Breaker States

The WebSocketCircuitBreaker implements the circuit breaker pattern specifically for WebSocket broadcaster services.

State Description Behavior
CLOSED Normal operation, WebSocket operations proceed normally All broadcasts pass through
OPEN Too many failures, operations blocked to allow recovery Broadcasts are rejected immediately
HALF_OPEN Testing recovery, limited operations allowed Single test operation allowed per recovery cycle

State Diagram

Note: The WebSocket circuit breaker state diagram is included in the architecture overview diagram above.

Mermaid source (click to expand)
stateDiagram-v2
    [*] --> CLOSED: Initial State

    CLOSED --> OPEN: failures >= threshold (5)
    OPEN --> HALF_OPEN: recovery_timeout (30s) elapsed
    HALF_OPEN --> CLOSED: success_threshold (1) met
    HALF_OPEN --> OPEN: any failure

    CLOSED: Normal Operation
    CLOSED: WebSocket broadcasts pass through
    CLOSED: Track consecutive failures
    CLOSED: Reset failure count on success

    OPEN: Circuit Tripped
    OPEN: Broadcasts rejected immediately
    OPEN: Waiting for recovery timeout
    OPEN: Degraded mode notification sent

    HALF_OPEN: Recovery Testing
    HALF_OPEN: Single test operation allowed
    HALF_OPEN: Track success/failure
    HALF_OPEN: Careful service probing

Configuration

Both SystemBroadcaster and EventBroadcaster use the following circuit breaker configuration:

Parameter Default Description
failure_threshold 5 (MAX_RECOVERY_ATTEMPTS) Consecutive failures before opening circuit
recovery_timeout 30.0s Wait time before transitioning to HALF_OPEN
half_open_max_calls 1 Max calls allowed in HALF_OPEN state
success_threshold 1 Successes needed in HALF_OPEN to close circuit

Backend: Broadcaster Integration

Both EventBroadcaster and SystemBroadcaster integrate the WebSocketCircuitBreaker for pub/sub listener resilience:

# backend/services/system_broadcaster.py
from backend.core.websocket_circuit_breaker import WebSocketCircuitBreaker

class SystemBroadcaster:
    MAX_RECOVERY_ATTEMPTS = 5

    def __init__(self, ...):
        self._circuit_breaker = WebSocketCircuitBreaker(
            failure_threshold=self.MAX_RECOVERY_ATTEMPTS,
            recovery_timeout=30.0,
            half_open_max_calls=1,
            success_threshold=1,
            name="system_broadcaster",
        )
        self._is_degraded = False

    def is_degraded(self) -> bool:
        """Check if the broadcaster is in degraded mode."""
        return self._is_degraded

    def get_circuit_state(self) -> WebSocketCircuitState:
        """Get current circuit breaker state."""
        return self._circuit_breaker.get_state()

Degraded Mode

When the circuit breaker opens and recovery fails, the broadcaster enters degraded mode:

Mermaid source (click to expand)
sequenceDiagram
    participant Redis as Redis Pub/Sub
    participant CB as Circuit Breaker
    participant SB as SystemBroadcaster
    participant WS as WebSocket Clients

    Note over Redis: Redis connection fails

    loop Recovery Attempts (1-5)
        SB->>Redis: Attempt reconnect
        Redis--xSB: Connection failed
        SB->>CB: record_failure()
        CB->>CB: failure_count++
    end

    CB->>CB: failure_count >= 5
    CB->>SB: is_call_permitted() = false
    SB->>SB: Enter degraded mode
    SB->>WS: Broadcast service_status: degraded

    Note over SB: Manual restart required

Degraded Mode Behavior

  1. is_degraded() method - Returns True when all recovery attempts are exhausted
  2. Client notification - Connected clients receive a service_status message:
    {
  "type": "service_status",
  "data": {
    "service": "system_broadcaster",
    "status": "degraded",
    "message": "System status broadcasting is degraded. Updates may be delayed or unavailable.",
    "circuit_state": "open"
  }
}
  3. Graceful handling - WebSocket connections are still accepted, but real-time broadcasts may be delayed or unavailable
  4. CRITICAL logging - Operator alert logged for manual intervention

Recovery Sequence

The broadcaster attempts automatic recovery with exponential backoff:

Recovery Flow

Broadcaster recovery flow showing failure detection, recovery attempts, circuit breaker check, and outcomes.

Mermaid source (click to expand)
flowchart TB
    subgraph Failure["Failure Detection"]
        F1[Redis Connection Error]
        F2[Pub/Sub Listener Dies]
    end

    subgraph Recovery["Recovery Attempts"]
        R1{Attempt < 5?}
        R2[Record Failure]
        R3[Exponential Backoff<br/>1s, 2s, 4s, 8s...]
        R4[Reset Pub/Sub Connection]
        R5[Restart Listener Task]
    end

    subgraph CircuitBreaker["Circuit Breaker Check"]
        CB{is_call_permitted?}
        CB_BLOCK[Block Recovery<br/>Circuit OPEN]
    end

    subgraph Outcome["Outcome"]
        SUCCESS[Recovery Success<br/>Reset Counters]
        DEGRADED[Enter Degraded Mode<br/>Broadcast Status]
    end

    F1 --> R2
    F2 --> R2
    R2 --> CB

    CB -->|Yes| R1
    CB -->|No| CB_BLOCK --> DEGRADED

    R1 -->|Yes| R3 --> R4 --> R5
    R1 -->|No| DEGRADED

    R5 -->|Success| SUCCESS
    R5 -->|Failure| R2

    style DEGRADED fill:#E74856,color:#fff
    style SUCCESS fill:#76B900,color:#fff
    style CB_BLOCK fill:#FFB800,color:#000

Frontend: Client-Side Circuit Breaker Pattern

The frontend implements its own circuit breaker-like behavior through the reconnection logic in webSocketManager.ts. While not a traditional circuit breaker class, the maxReconnectAttempts mechanism provides equivalent protection:

  • Closed State (equivalent): Normal connection, reset on successful open
  • Open State (equivalent): hasExhaustedRetries = true, no more connection attempts
  • Half-Open State (equivalent): Each reconnection attempt tests if the server is available

This approach is more appropriate for client-side WebSocket connections where:

  1. The client cannot "block" operations like a backend service can
  2. The primary failure mode is disconnection, not request failures
  3. User feedback (connection status) is more important than request throttling

Frontend Circuit Breaker State Machine

Frontend State Machine

Frontend circuit breaker state machine showing Connected, Reconnecting, and Exhausted states.

Mermaid source (click to expand)
stateDiagram-v2
    [*] --> Connected: Initial connect()

    Connected --> Reconnecting: onClose event
    Connected: isConnected = true
    Connected: hasExhaustedRetries = false
    Connected: reconnectAttempts = 0

    Reconnecting --> Connected: onOpen event
    Reconnecting --> Reconnecting: attempt < maxReconnectAttempts
    Reconnecting --> Exhausted: attempt >= maxReconnectAttempts
    Reconnecting: isConnected = false
    Reconnecting: Exponential backoff + jitter
    Reconnecting: reconnectAttempts++

    Exhausted --> Connected: Manual connect() call
    Exhausted: hasExhaustedRetries = true
    Exhausted: onMaxRetriesExhausted() called
    Exhausted: No automatic reconnection

WebSocket Manager Architecture

The WebSocketManager provides connection deduplication and automatic reconnection:

WebSocket Manager Architecture

WebSocket Manager architecture showing React components, hook, manager singleton, and managed connection.

Mermaid source (click to expand)
flowchart TB
    subgraph Components["React Components"]
        C1[Dashboard]
        C2[EventFeed]
        C3[SystemStatus]
    end

    subgraph Hook["useWebSocket Hook"]
        H[useWebSocket<br/>Options & Callbacks]
    end

    subgraph Manager["WebSocketManager Singleton"]
        M[Connection Pool]
        SUB[Subscribers Map<br/>Reference Counting]
    end

    subgraph Connection["Managed Connection"]
        WS[WebSocket Instance]
        RT[Reconnect Logic<br/>Exponential Backoff]
        HB[Heartbeat Handler<br/>Ping/Pong]
    end

    C1 & C2 & C3 --> H
    H --> M
    M --> SUB --> WS
    WS --> RT
    WS --> HB

    style M fill:#3B82F6,color:#fff

Client Reconnection Configuration

// frontend/src/hooks/useWebSocket.ts
export interface WebSocketOptions {
  url: string;
  reconnect?: boolean; // Default: true
  reconnectInterval?: number; // Default: 1000ms (base interval)
  reconnectAttempts?: number; // Default: 5 (max attempts)
  connectionTimeout?: number; // Default: 10000ms
  autoRespondToHeartbeat?: boolean; // Default: true
  onMaxRetriesExhausted?: () => void; // Called when max attempts reached
}

Exponential Backoff with Jitter

// frontend/src/hooks/webSocketManager.ts
function calculateBackoffDelay(
  attempt: number,
  baseInterval: number,
  maxInterval: number = 30000
): number {
  const exponentialDelay = baseInterval * Math.pow(2, attempt);
  const cappedDelay = Math.min(exponentialDelay, maxInterval);
  const jitter = Math.random() * 0.25 * cappedDelay;
  return Math.floor(cappedDelay + jitter);
}
Attempt Base Delay Exponential Capped With Jitter (0-25%)
0 1000ms 1000ms 1000ms 1000-1250ms
1 1000ms 2000ms 2000ms 2000-2500ms
2 1000ms 4000ms 4000ms 4000-5000ms
3 1000ms 8000ms 8000ms 8000-10000ms
4 1000ms 16000ms 16000ms 16000-20000ms
5+ 1000ms 32000ms+ 30000ms 30000-37500ms

Client State Tracking

The useWebSocket hook exposes reconnection state:

export interface UseWebSocketReturn {
  isConnected: boolean; // Current connection status
  hasExhaustedRetries: boolean; // True if max attempts reached
  reconnectCount: number; // Current retry attempt count
  lastHeartbeat: Date | null; // Timestamp of last server heartbeat
  connect: () => void; // Manual reconnect trigger
  disconnect: () => void; // Manual disconnect
}

End-to-End Resilience Flow

Mermaid source (click to expand)
sequenceDiagram
    participant Client as Frontend Client
    participant WSM as WebSocketManager
    participant Backend as Backend (FastAPI)
    participant SB as SystemBroadcaster
    participant CB as Circuit Breaker
    participant Redis as Redis

    Note over Redis: Redis goes offline

    SB->>Redis: Pub/Sub subscribe
    Redis--xSB: Connection lost
    SB->>CB: record_failure()

    loop Recovery (up to 5 attempts)
        SB->>Redis: Reconnect attempt
        Redis--xSB: Still unavailable
        SB->>CB: record_failure()
    end

    CB->>SB: is_call_permitted() = false
    SB->>SB: _is_degraded = true
    SB->>Backend: Broadcast degraded status
    Backend->>Client: service_status: degraded

    Note over Client: Client shows degraded banner

    Client->>WSM: Connection lost
    WSM->>WSM: Start reconnection

    loop Client Reconnection (up to 5 attempts)
        WSM->>Backend: WebSocket connect
        Backend-->>WSM: Connection established
        Note over WSM: onClose triggered (backend may drop)
        WSM->>WSM: Exponential backoff
    end

    alt Max Retries Exceeded
        WSM->>Client: onMaxRetriesExhausted()
        Note over Client: Show "Connection lost" UI
    else Redis Recovers
        Redis->>SB: Connection restored
        SB->>CB: record_success()
        CB->>SB: is_call_permitted() = true
        SB->>SB: _is_degraded = false
        SB->>Backend: Resume broadcasting
        Backend->>Client: service_status: healthy
    end

Monitoring and Observability

Backend Metrics

The circuit breaker tracks metrics via get_metrics() and get_status():

Metric Description API Endpoint
failure_count Consecutive failures since last success GET /api/system/health/ready
success_count Consecutive successes in HALF_OPEN state Internal monitoring
total_failures Total failures recorded Prometheus metrics (if enabled)
total_successes Total successes recorded Prometheus metrics (if enabled)
last_failure_time Timestamp of last failure (monotonic) Circuit breaker status
last_state_change Timestamp of last state transition Circuit breaker status
opened_at Timestamp when circuit was last opened Circuit breaker status

Health Check Integration

# Check broadcaster health in health endpoints
broadcaster = get_system_broadcaster_sync()
if broadcaster.is_degraded():
    return {"status": "degraded", "reason": "WebSocket broadcasting unavailable"}

Client-Side Monitoring

// React component monitoring example
const { isConnected, hasExhaustedRetries, reconnectCount, lastHeartbeat } = useWebSocket({
  url: '/ws/system',
  onMaxRetriesExhausted: () => {
    console.error('WebSocket connection failed after max retries');
    showConnectionErrorBanner();
  },
  onHeartbeat: () => {
    updateLastHeartbeatIndicator();
  },
});

Supervisor Task (EventBroadcaster)

The EventBroadcaster includes an additional supervision layer that monitors listener health:

# backend/services/event_broadcaster.py
async def _supervise_listener(self) -> None:
    """Supervision task that monitors listener health and restarts if needed."""
    while self._is_listening:
        await asyncio.sleep(self.SUPERVISION_INTERVAL)  # 30 seconds

        listener_alive = self._listener_task is not None and not self._listener_task.done()

        if listener_alive:
            self._circuit_breaker.record_success()
            self._recovery_attempts = 0
        elif self._is_listening:
            # Listener died - attempt recovery
            if self._circuit_breaker.is_call_permitted():
                await self._restart_listener()
            else:
                self._enter_degraded_mode()

Backend vs Frontend Circuit Breaker Comparison

Aspect Backend (WebSocketCircuitBreaker) Frontend (WebSocketManager)
Implementation Dedicated class with explicit states Reconnection logic with attempt counter
State Tracking WebSocketCircuitState enum (CLOSED/OPEN/HALF) Derived from reconnectAttempts counter
Failure Detection Explicit record_failure() calls onClose event triggers attempt increment
Recovery Testing HALF_OPEN state with limited calls Each reconnect attempt is a recovery test
Blocking Behavior Rejects operations when OPEN Stops automatic reconnection when exhausted
User Notification service_status WebSocket message onMaxRetriesExhausted callback
Manual Reset reset() method connect() method resets attempt counter
Timeout-based Reset Yes (recovery_timeout triggers HALF_OPEN) No (manual connect() required)
Thread Safety asyncio.Lock for async contexts Single-threaded JavaScript (not needed)
Metrics get_metrics() with counters and timestamps getConnectionState() with basic state

Configuration Summary

Component Setting Default Description
Backend CB failure_threshold 5 Failures before circuit opens
Backend CB recovery_timeout 30s Wait before HALF_OPEN transition
Backend SUPERVISION_INTERVAL 30s Listener health check interval
Frontend reconnectAttempts 5 Max client reconnection attempts
Frontend reconnectInterval 1000ms Base backoff interval
Frontend connectionTimeout 10000ms Connection establishment timeout
Frontend maxInterval (backoff) 30000ms Maximum backoff delay

Manual Recovery

When the system enters degraded mode, manual intervention is required:

# Check container health
docker compose -f docker-compose.prod.yml ps

# Check Redis connectivity
docker compose -f docker-compose.prod.yml exec redis redis-cli ping

# Restart the backend service
docker compose -f docker-compose.prod.yml restart backend

# View broadcaster logs
docker compose -f docker-compose.prod.yml logs backend | grep -i "broadcaster\|circuit"

Look for these log patterns:

Log Level Pattern Meaning
CRITICAL EventBroadcaster has entered DEGRADED MODE Requires manual restart
WARNING Circuit breaker is OPEN Recovery blocked, waiting for reset
INFO Restarting pub/sub listener (attempt N/5) Auto-recovery in progress
INFO transitioned HALF_OPEN -> CLOSED (recovered) Service successfully recovered
Document Purpose
Resilience Patterns Guide Developer guide with code examples for circuit breakers, retry logic, and prompt injection prevention
AI Pipeline Detection and analysis flow
Real-Time WebSocket and pub/sub architecture
Data Model Database schema and relationships
Backend AGENTS.md Service implementation details
Frontend Hooks React hooks including useWebSocket
Backend Core Core infrastructure including Redis

This document describes the resilience architecture for the Home Security Intelligence system. For implementation details, see the source files referenced in the frontmatter.
