Resilience Patterns Hub¶

This directory contains comprehensive documentation for the resilience patterns implemented in the Home Security Intelligence system. These patterns ensure reliable operation even when external services (YOLO26, Nemotron LLM, Redis) experience failures.

Pattern Overview¶

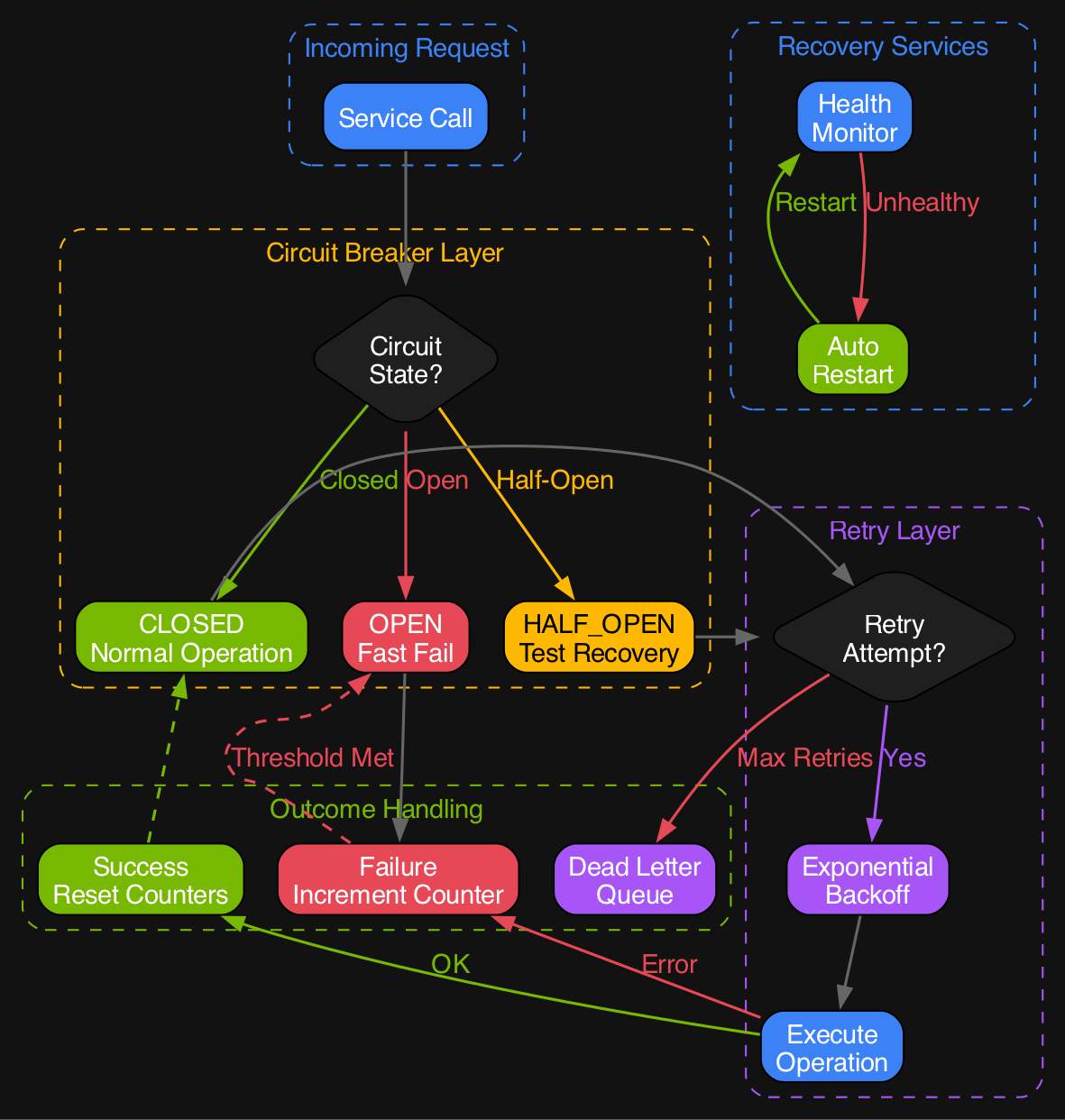

Resilience Pattern Architecture - Circuit breakers, retry handlers, and health monitoring

Pattern	Purpose	Source File
Circuit Breaker	Prevents cascading failures by failing fast	`backend/services/circuit_breaker.py`
Retry Handler	Exponential backoff for transient failures	`backend/services/retry_handler.py`
Dead-Letter Queue	Captures failed jobs for inspection/reprocessing	`backend/services/retry_handler.py`
Graceful Degradation	Maintains operation during partial outages	`backend/services/degradation_manager.py`
Health Monitoring	Automatic service recovery	`backend/services/health_monitor.py`

Architecture Diagram¶

%%{init: {
  'theme': 'dark',
  'themeVariables': {
    'primaryColor': '#3B82F6',
    'primaryTextColor': '#FFFFFF',
    'primaryBorderColor': '#60A5FA',
    'secondaryColor': '#A855F7',
    'tertiaryColor': '#009688',
    'background': '#121212',
    'mainBkg': '#1a1a2e',
    'lineColor': '#666666'
  }
}}%%
flowchart TB
    REQ[Incoming Request] --> CB

    subgraph CB["Circuit Breaker Layer"]
        CB_CHECK{Circuit<br/>State?}
    end

    CB_CHECK -->|Closed/Half-Open| RETRY
    CB_CHECK -->|Open| FAST_FAIL[Fast Fail<br/>when unhealthy]

    subgraph RETRY["Retry Handler Layer"]
        RETRY_EXEC[Execute with<br/>Exponential Backoff]
    end

    RETRY_EXEC --> OUTCOME{Result?}

    OUTCOME -->|Success| SUCCESS[Success<br/>Reset State]
    OUTCOME -->|Failure| FAILURE[Failure<br/>Record Fail]

    FAILURE --> RETRY_CHECK{Attempts<br/>Remaining?}
    RETRY_CHECK -->|Yes| BACKOFF[Wait with<br/>Backoff] --> RETRY_EXEC
    RETRY_CHECK -->|No| DLQ[Dead-Letter Queue<br/>Max Retries Hit]

    FAST_FAIL --> DLQ

    style SUCCESS fill:#76B900,color:#fff
    style DLQ fill:#E74856,color:#fff
    style FAST_FAIL fill:#FFB800,color:#000

Quick Reference¶

Circuit Breaker States¶

State	Prometheus Value	Description
CLOSED	0	Normal operation, calls pass through
OPEN	1	Circuit tripped, calls rejected immediately
HALF_OPEN	2	Testing recovery, limited calls allowed

Default Configuration¶

Component	Parameter	Default
Circuit Breaker	failure_threshold	5
Circuit Breaker	recovery_timeout	30.0s
Circuit Breaker	half_open_max_calls	3
Circuit Breaker	success_threshold	2
Retry Handler	max_retries	3
Retry Handler	base_delay_seconds	1.0
Retry Handler	max_delay_seconds	30.0
Retry Handler	exponential_base	2.0
Health Monitor	check_interval	15.0s
Health Monitor	max_retries	5
Degradation Manager	failure_threshold	3
Degradation Manager	recovery_threshold	2

Prometheus Metrics¶

Metric	Type	Description
`circuit_breaker_state`	Gauge	Current state (0=closed, 1=open, 2=half_open)
`circuit_breaker_failures_total`	Counter	Total failures recorded
`circuit_breaker_state_changes_total`	Counter	State transitions (labeled by from/to)
`circuit_breaker_calls_total`	Counter	Total calls (labeled by result)
`circuit_breaker_rejected_total`	Counter	Calls rejected by open circuit
`hsi_circuit_breaker_state`	Gauge	HSI-prefixed state for Grafana
`hsi_circuit_breaker_trips_total`	Counter	Times circuit has tripped open

Integration Points¶

Service Dependencies¶

%%{init: {
  'theme': 'dark',
  'themeVariables': {
    'primaryColor': '#3B82F6',
    'primaryTextColor': '#FFFFFF',
    'primaryBorderColor': '#60A5FA',
    'secondaryColor': '#A855F7',
    'tertiaryColor': '#009688',
    'background': '#121212',
    'mainBkg': '#1a1a2e',
    'lineColor': '#666666'
  }
}}%%
flowchart LR
    FW[File Watcher] --> DQ[detection_queue]

    subgraph Detection["Detection Pipeline"]
        DQ --> DW[DetectionQueueWorker]
        DW --> CB1[CircuitBreaker<br/>+ RetryHandler]
        CB1 --> YOLO[YOLO26<br/>Protected]
    end

    DW --> AQ[analysis_queue]

    subgraph Analysis["Analysis Pipeline"]
        AQ --> AW[AnalysisQueueWorker]
        AW --> CB2[CircuitBreaker<br/>+ RetryHandler]
        CB2 --> NEM[Nemotron LLM<br/>Protected]
    end

    style YOLO fill:#3B82F6,color:#fff
    style NEM fill:#A855F7,color:#fff
    style CB1 fill:#FFB800,color:#000
    style CB2 fill:#FFB800,color:#000

Global Registry Access¶

from backend.services.circuit_breaker import get_circuit_breaker

# Get or create a named circuit breaker
breaker = get_circuit_breaker("yolo26")

# Check all circuit breaker states
from backend.services.circuit_breaker import _get_registry
registry = _get_registry()
all_status = registry.get_all_status()

Document	Purpose
Resilience Architecture	High-level resilience overview
AI Pipeline	Detection and analysis flow
Real-Time	WebSocket architecture
Backend Services AGENTS.md	Service implementation details
AI Orchestration	AI failure handling
Observability	Error monitoring
Background Services	Worker resilience

Source: NEM-3458 - Resilience Patterns Hub Documentation
