Circuit Breaker Pattern

The circuit breaker pattern protects external services from cascading failures by monitoring failure rates and temporarily blocking calls to unhealthy services. This prevents cascade failures where one failing service overwhelms downstream services.

Source: backend/services/circuit_breaker.py

Overview

The CircuitBreaker class (backend/services/circuit_breaker.py:270-1016) implements a thread-safe async circuit breaker with three states:

  • CLOSED: Normal operation, calls pass through
  • OPEN: Service failing, calls rejected immediately with CircuitBreakerError
  • HALF_OPEN: Testing recovery, limited calls allowed

Key Features

  • Configurable failure thresholds and recovery timeouts
  • Half-open state for gradual recovery testing
  • Excluded exceptions that don't count as failures
  • Thread-safe async implementation using asyncio.Lock
  • Global registry for managing multiple circuit breakers
  • Prometheus metrics integration for monitoring
  • OpenTelemetry tracing support

State Diagram

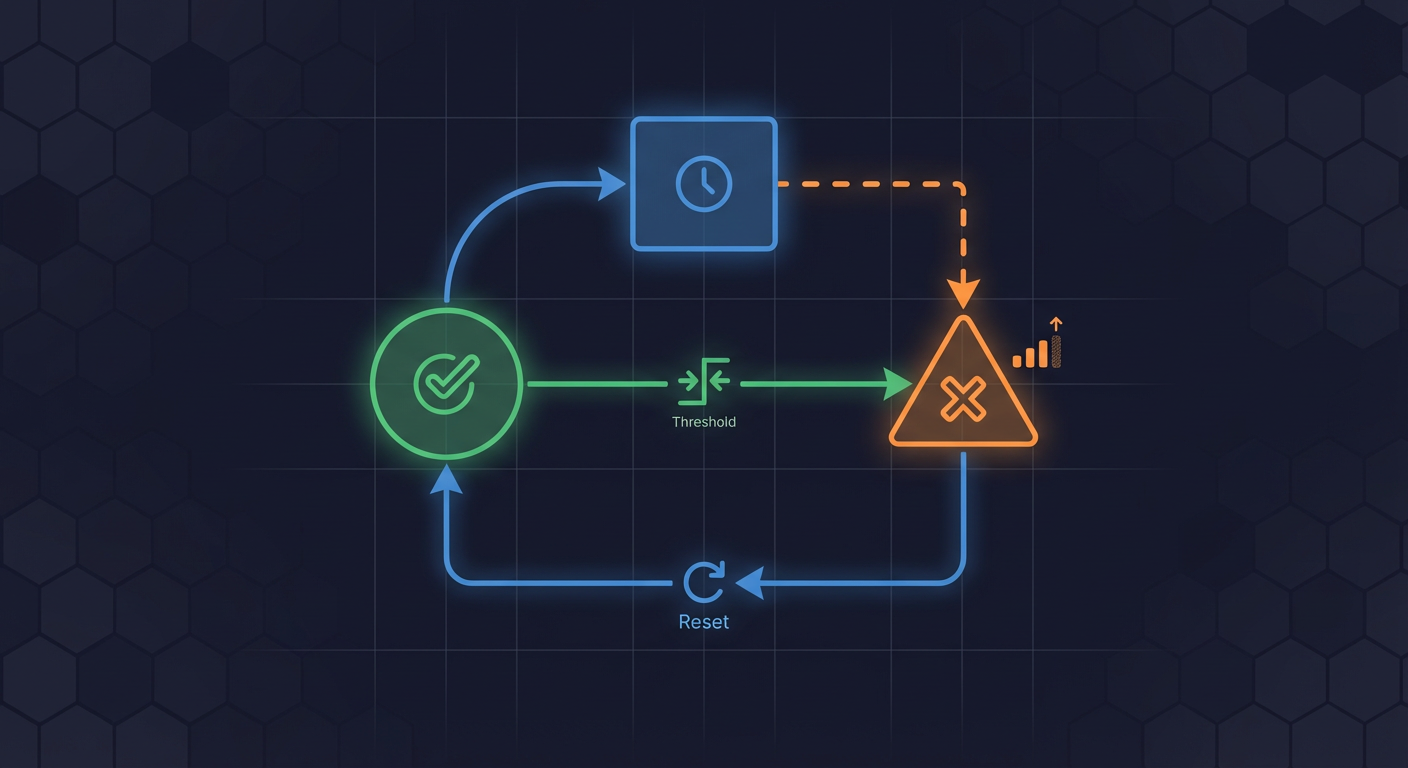

Circuit Breaker State Transitions

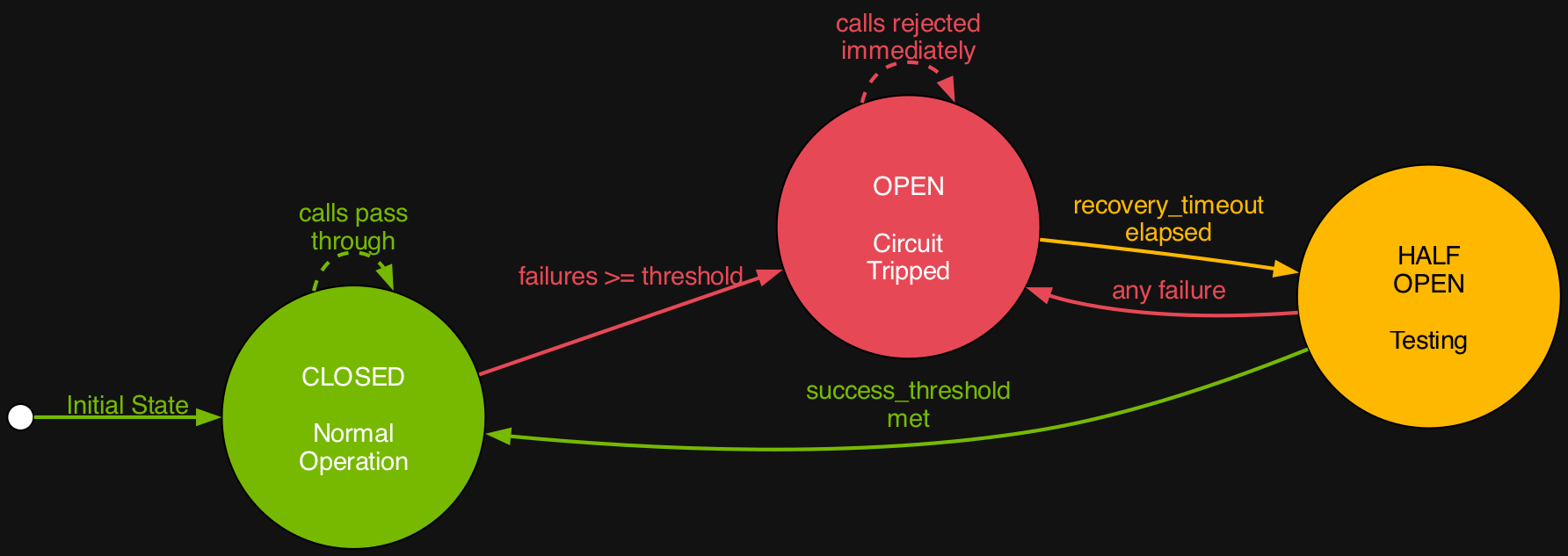

Circuit Breaker State Machine - CLOSED, OPEN, and HALF_OPEN transitions

%%{init: {
  'theme': 'dark',
  'themeVariables': {
    'primaryColor': '#3B82F6',
    'primaryTextColor': '#FFFFFF',
    'primaryBorderColor': '#60A5FA',
    'secondaryColor': '#A855F7',
    'tertiaryColor': '#009688',
    'background': '#121212',
    'mainBkg': '#1a1a2e',
    'lineColor': '#666666'
  }
}}%%
stateDiagram-v2
    [*] --> CLOSED: Initial State

    CLOSED --> OPEN: failures >= threshold
    OPEN --> HALF_OPEN: recovery_timeout elapsed
    HALF_OPEN --> CLOSED: success_threshold met
    HALF_OPEN --> OPEN: any failure occurs

    CLOSED: Normal Operation
    CLOSED: Calls pass through
    CLOSED: Track failures

    OPEN: Circuit Tripped
    OPEN: Calls rejected immediately
    OPEN: CircuitBreakerError raised

    HALF_OPEN: Testing Recovery
    HALF_OPEN: Limited calls allowed
    HALF_OPEN: Track successes

Configuration

The CircuitBreakerConfig dataclass (backend/services/circuit_breaker.py:126-142) defines circuit breaker behavior:

# backend/services/circuit_breaker.py:126-142
@dataclass(slots=True)
class CircuitBreakerConfig:
    """Configuration for circuit breaker behavior."""

    failure_threshold: int = 5
    recovery_timeout: float = 30.0
    half_open_max_calls: int = 3
    success_threshold: int = 2
    excluded_exceptions: tuple[type[Exception], ...] = ()

Configuration Parameters

Parameter Type Default Description
failure_threshold int 5 Number of consecutive failures before opening circuit
recovery_timeout float 30.0 Seconds to wait before transitioning from OPEN to HALF_OPEN
half_open_max_calls int 3 Maximum concurrent calls allowed in HALF_OPEN state
success_threshold int 2 Consecutive successes needed in HALF_OPEN to close circuit
excluded_exceptions tuple () Exception types that do not count as failures

Pre-Registered Circuit Breakers

The application pre-registers circuit breakers at startup for all known external services (backend/main.py:266-315):

Service Type Configuration
yolo26 AI Service failure_threshold=5, recovery_timeout=30s
nemotron AI Service failure_threshold=5, recovery_timeout=30s
postgresql Infrastructure failure_threshold=10, recovery_timeout=60s
redis Infrastructure failure_threshold=10, recovery_timeout=60s

AI Service Configuration (quick failure detection):

ai_service_config = CircuitBreakerConfig(
    failure_threshold=5,      # Open after 5 consecutive failures
    recovery_timeout=30.0,    # Try recovery after 30 seconds
    half_open_max_calls=3,    # Allow 3 test calls in half-open
)

Infrastructure Configuration (more tolerant for transient issues):

infrastructure_config = CircuitBreakerConfig(
    failure_threshold=10,     # Open after 10 consecutive failures
    recovery_timeout=60.0,    # Try recovery after 60 seconds
    half_open_max_calls=5,    # Allow 5 test calls in half-open
)

## CircuitState Enum

The `CircuitState` enum (`backend/services/circuit_breaker.py:118-123`) defines the three states:

```python
# backend/services/circuit_breaker.py:118-123
class CircuitState(StrEnum):
    """Circuit breaker states."""

    CLOSED = auto()
    OPEN = auto()
    HALF_OPEN = auto()

Usage Patterns

Method 1: Call Wrapper

from backend.services.circuit_breaker import CircuitBreaker, CircuitBreakerConfig

config = CircuitBreakerConfig(
    failure_threshold=5,
    recovery_timeout=30.0,
)
breaker = CircuitBreaker(name="ai_service", config=config)

try:
    result = await breaker.call(async_operation, arg1, arg2)
except CircuitBreakerError:
    # Handle service unavailable
    result = fallback_value

Method 2: Async Context Manager

async with breaker:
    result = await async_operation()

The context manager (backend/services/circuit_breaker.py:939-970) handles:

  • State checking on entry
  • Call counting in HALF_OPEN state
  • Success/failure recording on exit

Method 3: Protected Call

# backend/services/circuit_breaker.py:823-862
result = await breaker.protected_call(
    lambda: client.fetch_data(),
    record_on=(ConnectionError, TimeoutError),
)

Method 4: Protect Context Manager

# backend/services/circuit_breaker.py:864-917
try:
    async with breaker.protect():
        result = await risky_operation()
except CircuitOpenError as e:
    # Provides recovery_time_remaining for Retry-After headers
    raise HTTPException(
        status_code=503,
        headers={"Retry-After": str(int(e.recovery_time_remaining))}
    )

Global Registry

The CircuitBreakerRegistry class (backend/services/circuit_breaker.py:985-1056) manages multiple circuit breakers:

# backend/services/circuit_breaker.py:1071-1084
from backend.services.circuit_breaker import get_circuit_breaker

# Get or create from global registry
breaker = get_circuit_breaker("yolo26", CircuitBreakerConfig(
    failure_threshold=5,
    recovery_timeout=30.0,
))

# The registry ensures singleton instances per name
another_ref = get_circuit_breaker("yolo26")
assert breaker is another_ref

Registry Methods

Method Description
get_or_create(name, config) Get existing or create new circuit breaker
get(name) Get existing circuit breaker (returns None if not found)
get_all_status() Get status of all circuit breakers
reset_all() Reset all circuit breakers to CLOSED
list_names() List all registered circuit breaker names

Prometheus Metrics

The circuit breaker emits metrics for monitoring (backend/services/circuit_breaker.py:64-115):

Legacy Metrics

Metric Type Labels Description
circuit_breaker_state Gauge service Current state (0=closed, 1=open, 2=half_open)
circuit_breaker_failures_total Counter service Total failures recorded
circuit_breaker_state_changes_total Counter service, from_state, to_state State transitions
circuit_breaker_calls_total Counter service, result Total calls (success/failure)
circuit_breaker_rejected_total Counter service Calls rejected by open circuit

HSI-Prefixed Metrics (Grafana Dashboard)

Metric Type Labels Description
hsi_circuit_breaker_state Gauge service Current state for Grafana
hsi_circuit_breaker_trips_total Counter service Times circuit has tripped open

State Transitions

CLOSED to OPEN

Triggered when failure_count >= failure_threshold (backend/services/circuit_breaker.py:535-568):

# backend/services/circuit_breaker.py:535-568
def _transition_to_open(self) -> None:
    """Transition circuit to OPEN state."""
    prev_state = self._state
    self._state = CircuitState.OPEN
    self._opened_at = time.monotonic()
    self._success_count = 0
    self._half_open_calls = 0
    self._last_state_change = datetime.now(UTC)

    # Update Prometheus metrics
    CIRCUIT_BREAKER_STATE.labels(service=self._name).set(1)
    HSI_CIRCUIT_BREAKER_STATE.labels(service=self._name).set(1)
    HSI_CIRCUIT_BREAKER_TRIPS_TOTAL.labels(service=self._name).inc()

OPEN to HALF_OPEN

Triggered when recovery_timeout elapses (backend/services/circuit_breaker.py:528-533, 570-598):

# backend/services/circuit_breaker.py:528-533
def _should_attempt_recovery(self) -> bool:
    """Check if recovery timeout has elapsed."""
    if self._opened_at is None:
        return False
    elapsed = time.monotonic() - self._opened_at
    return elapsed >= self._config.recovery_timeout

HALF_OPEN to CLOSED

Triggered when success_count >= success_threshold (backend/services/circuit_breaker.py:600-628):

# backend/services/circuit_breaker.py:600-628
def _transition_to_closed(self) -> None:
    """Transition circuit to CLOSED state."""
    self._state = CircuitState.CLOSED
    self._failure_count = 0
    self._success_count = 0
    self._opened_at = None
    self._half_open_calls = 0
    self._last_state_change = datetime.now(UTC)

    CIRCUIT_BREAKER_STATE.labels(service=self._name).set(0)
    HSI_CIRCUIT_BREAKER_STATE.labels(service=self._name).set(0)

HALF_OPEN to OPEN

Triggered on any failure during HALF_OPEN (backend/services/circuit_breaker.py:519-521):

# backend/services/circuit_breaker.py:519-521
if self._state == CircuitState.HALF_OPEN:
    # Any failure in half-open reopens the circuit
    self._transition_to_open()

Exception Classes

CircuitBreakerError

Primary exception raised when circuit is open (backend/services/circuit_breaker.py:187-228):

# backend/services/circuit_breaker.py:187-228
class CircuitBreakerError(Exception):
    """Exception raised when circuit breaker is open."""

    def __init__(
        self,
        service_name: str,
        state: str | CircuitState | None = None,
        *,
        recovery_timeout: float | None = None,
    ) -> None:
        self.service_name = service_name
        self.name = service_name  # Alias for compatibility
        self.recovery_timeout = recovery_timeout

CircuitOpenError

Exception with recovery timing information (backend/services/circuit_breaker.py:234-255):

# backend/services/circuit_breaker.py:234-255
class CircuitOpenError(Exception):
    """Raised when circuit breaker prevents call proactively."""

    def __init__(self, service_name: str, recovery_time_remaining: float) -> None:
        self.service_name = service_name
        self.recovery_time_remaining = recovery_time_remaining

Status and Metrics Methods

get_status()

Returns dictionary with current state (backend/services/circuit_breaker.py:661-682):

status = breaker.get_status()
# Returns:
# {
#     "name": "yolo26",
#     "state": "closed",
#     "failure_count": 0,
#     "success_count": 0,
#     "total_calls": 150,
#     "rejected_calls": 0,
#     "last_failure_time": None,
#     "opened_at": None,
#     "config": {
#         "failure_threshold": 5,
#         "recovery_timeout": 30.0,
#         "half_open_max_calls": 3,
#         "success_threshold": 2,
#     }
# }

get_metrics()

Returns CircuitBreakerMetrics dataclass (backend/services/circuit_breaker.py:684-708):

# backend/services/circuit_breaker.py:145-184
@dataclass(slots=True)
class CircuitBreakerMetrics:
    """Metrics for circuit breaker monitoring."""

    name: str
    state: CircuitState
    failure_count: int = 0
    success_count: int = 0
    total_calls: int = 0
    rejected_calls: int = 0
    last_failure_time: datetime | None = None
    last_state_change: datetime | None = None

Manual Control

reset()

Manually reset to CLOSED state (backend/services/circuit_breaker.py:630-651):

breaker.reset()  # Synchronous reset
await breaker.reset_async()  # Async version with lock

force_open()

Force circuit to OPEN state for maintenance (backend/services/circuit_breaker.py:653-659):

breaker.force_open()  # For planned maintenance

Thread Safety

The circuit breaker uses asyncio.Lock for thread-safe state management (backend/services/circuit_breaker.py:319):

# backend/services/circuit_breaker.py:319
self._lock = asyncio.Lock()

Async methods acquire the lock before state changes:

  • allow_call() - backend/services/circuit_breaker.py:389-400
  • _record_success() - backend/services/circuit_breaker.py:478-499
  • _record_failure() - backend/services/circuit_breaker.py:501-526

Sync methods (for compatibility) operate without locks:

  • record_success() - backend/services/circuit_breaker.py:749-763
  • record_failure() - backend/services/circuit_breaker.py:769-786

Best Practices

  1. Name circuit breakers descriptively: Use service names like "yolo26", "nemotron", "redis"
  2. Use the global registry: Ensures singleton instances and centralized management
  3. Configure excluded exceptions: Don't count validation errors as circuit breaker failures
  4. Monitor metrics: Set up Grafana alerts on hsi_circuit_breaker_state changes
  5. Implement fallbacks: Always have a degraded response when circuit is open

Integration with Other Patterns

Circuit Breaker + Retry Pattern

The circuit breaker works with the retry handler (backend/services/retry_handler.py) to provide comprehensive failure handling:

from backend.services.circuit_breaker import get_circuit_breaker
from backend.services.retry_handler import with_retry

breaker = get_circuit_breaker("ai_service")

@with_retry(max_attempts=3, backoff_factor=2.0)
async def call_ai_service():
    async with breaker:
        return await ai_client.analyze(data)

Flow:

  1. Retry handler attempts the operation
  2. Circuit breaker checks if service is healthy
  3. If circuit is open, immediately fails (no retry)
  4. If circuit is closed, executes operation
  5. Success/failure recorded for circuit state management

Circuit Breaker + Graceful Degradation

When circuit is open, use fallback responses:

from backend.services.circuit_breaker import CircuitBreakerError

async def get_risk_analysis(detection):
    try:
        async with nemotron_breaker:
            return await nemotron_client.analyze(detection)
    except CircuitBreakerError:
        # Fallback: use rule-based risk scoring
        return await rule_based_scorer.score(detection)

WebSocket Circuit Breaker

A specialized circuit breaker exists for WebSocket connections (backend/core/websocket_circuit_breaker.py):

from backend.core.websocket_circuit_breaker import WebSocketCircuitBreaker

ws_breaker = WebSocketCircuitBreaker(
    name="event_ws",
    max_failures=3,
    recovery_timeout=10.0,
)

async with ws_breaker.protect():
    await websocket.send_json(event)

Observability

Grafana Dashboard Queries

Monitor circuit breaker state:

# Current state (0=closed, 1=open, 2=half_open)
hsi_circuit_breaker_state{service="yolo26"}

# Trip rate (circuit opening events)
rate(hsi_circuit_breaker_trips_total[5m])

# Rejection rate (calls blocked by open circuit)
rate(circuit_breaker_rejected_total[5m])

Alerting Rules

# Alert when circuit opens
- alert: CircuitBreakerOpen
  expr: hsi_circuit_breaker_state > 0
  for: 1m
  labels:
    severity: warning
  annotations:
    summary: 'Circuit breaker {{ $labels.service }} is open'

# Alert on high failure rate
- alert: CircuitBreakerHighFailureRate
  expr: rate(circuit_breaker_failures_total[5m]) > 0.1
  for: 5m
  labels:
    severity: warning

Testing Circuit Breakers

Unit Test Example

import pytest
from backend.services.circuit_breaker import (
    CircuitBreaker,
    CircuitBreakerConfig,
    CircuitState,
    reset_circuit_breaker_registry,
)

@pytest.fixture(autouse=True)
def reset_registry():
    reset_circuit_breaker_registry()
    yield
    reset_circuit_breaker_registry()

async def test_circuit_opens_after_threshold():
    config = CircuitBreakerConfig(failure_threshold=3)
    breaker = CircuitBreaker(name="test", config=config)

    # Record failures
    for _ in range(3):
        breaker.record_failure()

    assert breaker.state == CircuitState.OPEN

async def test_circuit_recovers():
    config = CircuitBreakerConfig(
        failure_threshold=3,
        recovery_timeout=0.1,  # 100ms for testing
        success_threshold=2,
    )
    breaker = CircuitBreaker(name="test", config=config)

    # Open the circuit
    for _ in range(3):
        breaker.record_failure()
    assert breaker.state == CircuitState.OPEN

    # Wait for recovery timeout
    await asyncio.sleep(0.15)

    # Trigger transition to half-open
    assert breaker.allow_request() is True
    assert breaker.state == CircuitState.HALF_OPEN

    # Record successes to close
    breaker.record_success()
    breaker.record_success()
    assert breaker.state == CircuitState.CLOSED

Source: NEM-3458 - Circuit Breaker Documentation, NEM-4119 - Circuit Breaker Pattern Documentation
