Health Monitoring and Auto-Recovery

The ServiceHealthMonitor provides continuous health monitoring and automatic recovery of dependent services with exponential backoff restart strategies.

Source: backend/services/health_monitor.py

Overview

The ServiceHealthMonitor class (backend/services/health_monitor.py:44-401) provides:

  • Periodic health checks for all configured services
  • Automatic restart with exponential backoff on failure
  • Configurable max retries before giving up
  • WebSocket broadcast of service status changes
  • Graceful shutdown support
  • Event history tracking

Service Status Values

Status Description
healthy Service responding normally
unhealthy Health check failed
restarting Restart in progress
restart_failed Restart attempt failed
restart_disabled Service unhealthy but restart disabled
failed Max retries exceeded, giving up

Configuration

ServiceConfig

Service configuration is defined in backend/services/service_managers.py:

@dataclass
class ServiceConfig:
    """Configuration for a monitored service."""

    name: str              # Service identifier
    health_url: str        # Health check endpoint
    restart_cmd: str | None  # Restart command (None = disabled)
    max_retries: int       # Max restart attempts
    backoff_base: float    # Base delay for exponential backoff

ServiceHealthMonitor Constructor

Defined in backend/services/health_monitor.py:59-89:

# backend/services/health_monitor.py:59-89
def __init__(
    self,
    manager: ServiceManager,
    services: list[ServiceConfig],
    broadcaster: EventBroadcaster | None = None,
    check_interval: float = 15.0,
    max_events: int = 100,
) -> None:
    """Initialize the health monitor.

    Args:
        manager: ServiceManager implementation for health checks and restarts
        services: List of service configurations to monitor
        broadcaster: Optional EventBroadcaster for WebSocket status updates
        check_interval: Seconds between health check cycles (default: 15.0)
        max_events: Maximum number of health events to track (default: 100)
    """

Configuration Parameters

Parameter Type Default Description
manager ServiceManager Required Implementation for health checks and restarts
services list[ServiceConfig] Required Services to monitor
broadcaster EventBroadcaster None WebSocket broadcaster for status updates
check_interval float 15.0 Seconds between health check cycles
max_events int 100 Maximum health events to retain

Health Event Tracking

HealthEvent Dataclass

Defined in backend/services/health_monitor.py:27-41:

# backend/services/health_monitor.py:27-41
@dataclass(slots=True)
class HealthEvent:
    """Represents a health-related event for tracking failure history."""

    timestamp: datetime
    service: str
    event_type: str  # "failure", "recovery", "restart"
    message: str | None = None

Event Types

Type Description
failure Service health check failed or restart failed
recovery Service recovered from unhealthy state
restart Restart attempt initiated

Health Check Loop

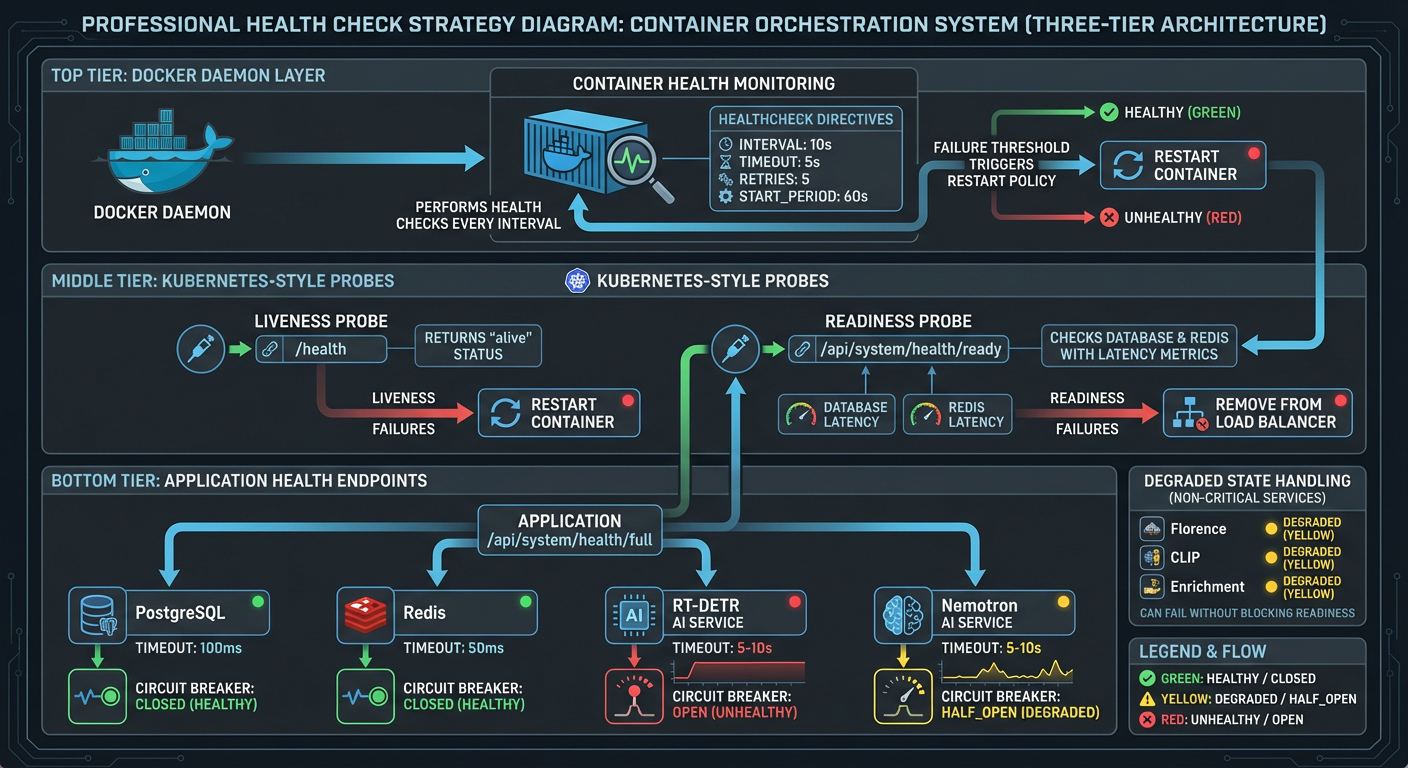

Health Check Strategy - Periodic monitoring with exponential backoff recovery

The main monitoring loop (backend/services/health_monitor.py:130-184):

# backend/services/health_monitor.py:130-184
async def _health_check_loop(self) -> None:
    """Main loop - check all services every N seconds."""
    while self._running:
        try:
            for service in self._services:
                if not self._running:
                    break

                try:
                    is_healthy = await self._manager.check_health(service)

                    if is_healthy:
                        # Service recovered or still healthy
                        if self._failure_counts.get(service.name, 0) > 0:
                            logger.info(f"Service {service.name} recovered")
                            self._failure_counts[service.name] = 0
                            await self._broadcast_status(service, "healthy", "Service recovered")
                    else:
                        # Service is unhealthy
                        await self._broadcast_status(service, "unhealthy", "Health check failed")
                        await self._handle_failure(service)

                except Exception as e:
                    await self._broadcast_status(service, "unhealthy", f"Health check error: {e}")
                    await self._handle_failure(service)

            await asyncio.sleep(self._check_interval)

        except asyncio.CancelledError:
            break

Failure Handling with Exponential Backoff

Recovery Algorithm

The _handle_failure() method (backend/services/health_monitor.py:186-287):

# backend/services/health_monitor.py:186-287
async def _handle_failure(self, service: ServiceConfig) -> None:
    """Handle service failure with exponential backoff restart."""
    # Check if restart is disabled
    if service.restart_cmd is None:
        await self._broadcast_status(service, "restart_disabled", "...")
        return

    # Increment failure count
    current_failures = self._failure_counts.get(service.name, 0) + 1
    self._failure_counts[service.name] = current_failures

    # Check max retries
    if current_failures > service.max_retries:
        await self._broadcast_status(service, "failed", "Max retries exceeded")
        return

    # Calculate exponential backoff: backoff_base * 2^(failures-1)
    backoff_delay = service.backoff_base * (2 ** (current_failures - 1))

    # Wait for backoff period
    await asyncio.sleep(backoff_delay)

    # Attempt restart
    await self._broadcast_status(service, "restarting", f"Attempt {current_failures}/{service.max_retries}")
    restart_success = await self._manager.restart(service)

    if restart_success:
        # Verify health after restart
        await asyncio.sleep(2)  # Brief pause before health check
        is_healthy = await self._manager.check_health(service)

        if is_healthy:
            self._failure_counts[service.name] = 0
            await self._broadcast_status(service, "healthy", "Service restarted successfully")

Backoff Timing

With backoff_base=5.0 (default):

Attempt Backoff Delay Formula
1 5s 5 * 2^0
2 10s 5 * 2^1
3 20s 5 * 2^2
4 40s 5 * 2^3
5 80s 5 * 2^4

WebSocket Status Broadcasting

Broadcast Format

Status updates use a canonical message envelope (backend/services/health_monitor.py:310-368):

# backend/services/health_monitor.py:350-359
event_data = {
    "type": "service_status",
    "data": {
        "service": service.name,
        "status": status,
        "message": message,
    },
    "timestamp": datetime.now(UTC).isoformat(),
}

Example WebSocket Message

{
  "type": "service_status",
  "data": {
    "service": "yolo26",
    "status": "restarting",
    "message": "Attempting restart (attempt 2/5)"
  },
  "timestamp": "2024-01-15T10:30:15.000000+00:00"
}

Lifecycle Management

Starting the Monitor

# backend/services/health_monitor.py:91-107
async def start(self) -> None:
    """Start the health check loop.

    This method is idempotent - calling when already running has no effect.
    """
    if self._running:
        logger.warning("ServiceHealthMonitor already running")
        return

    logger.info("Starting ServiceHealthMonitor")
    self._running = True
    self._failure_counts.clear()

    # Start health check loop in background
    self._task = asyncio.create_task(self._health_check_loop())

Stopping the Monitor

# backend/services/health_monitor.py:109-128
async def stop(self) -> None:
    """Stop the health check loop gracefully."""
    if not self._running:
        return

    logger.info("Stopping ServiceHealthMonitor")
    self._running = False

    # Cancel health check task
    if self._task:
        self._task.cancel()
        with contextlib.suppress(asyncio.CancelledError):
            await self._task
        self._task = None

Status and Monitoring

get_status()

Get current failure counts (backend/services/health_monitor.py:370-382):

# backend/services/health_monitor.py:370-382
def get_status(self) -> dict[str, dict[str, int | str]]:
    """Get current status of all monitored services."""
    return {
        service.name: {
            "failure_count": self._failure_counts.get(service.name, 0),
            "max_retries": service.max_retries,
        }
        for service in self._services
    }

get_recent_events()

Get event history (backend/services/health_monitor.py:384-396):

# backend/services/health_monitor.py:384-396
def get_recent_events(self, limit: int = 50) -> list[HealthEvent]:
    """Get recent health events.

    Args:
        limit: Maximum number of events to return (default: 50)

    Returns:
        List of recent HealthEvent objects, most recent first
    """
    events = list(self._health_events)
    events.reverse()
    return events[:limit]

is_running Property

# backend/services/health_monitor.py:398-401
@property
def is_running(self) -> bool:
    """Check if the health monitor is running."""
    return self._running

Service Manager Integration

The monitor uses a ServiceManager interface for health checks and restarts:

# backend/services/service_managers.py
class ServiceManager(ABC):
    """Abstract interface for service management."""

    @abstractmethod
    async def check_health(self, service: ServiceConfig) -> bool:
        """Check if a service is healthy."""
        pass

    @abstractmethod
    async def restart(self, service: ServiceConfig) -> bool:
        """Restart a service."""
        pass

Available Implementations

Manager Description Use Case
ShellServiceManager Shell commands Development, systemd services
DockerServiceManager Docker CLI Production Docker/Podman containers

Usage Example

from backend.services.health_monitor import ServiceHealthMonitor
from backend.services.service_managers import (
    ServiceConfig,
    DockerServiceManager,
)
from backend.services.event_broadcaster import get_event_broadcaster

# Define services to monitor
services = [
    ServiceConfig(
        name="yolo26",
        health_url="http://localhost:8095/health",
        restart_cmd="docker restart yolo26",
        max_retries=5,
        backoff_base=5.0,
    ),
    ServiceConfig(
        name="nemotron",
        health_url="http://localhost:8091/health",
        restart_cmd="docker restart nemotron",
        max_retries=5,
        backoff_base=5.0,
    ),
    ServiceConfig(
        name="redis",
        health_url="redis://localhost:6379",
        restart_cmd=None,  # Restart disabled for Redis
        max_retries=3,
        backoff_base=5.0,
    ),
]

# Create monitor
manager = DockerServiceManager()
broadcaster = await get_event_broadcaster()

monitor = ServiceHealthMonitor(
    manager=manager,
    services=services,
    broadcaster=broadcaster,
    check_interval=15.0,
)

# Start monitoring
await monitor.start()

# Check status
status = monitor.get_status()
for service_name, service_status in status.items():
    print(f"{service_name}: failures={service_status['failure_count']}")

# Get recent events
events = monitor.get_recent_events(limit=10)
for event in events:
    print(f"{event.timestamp}: {event.service} - {event.event_type}")

# Stop gracefully
await monitor.stop()

Recovery Sequence Diagram

%%{init: {'theme': 'dark'}}%%
sequenceDiagram
    participant HM as Health Monitor
    participant SVC as Service
    participant DS as Docker/Systemd
    participant WS as WebSocket Clients

    HM->>SVC: check_health()
    SVC--xHM: unhealthy

    Note over HM: Wait backoff (5s)

    HM->>SVC: restart()
    SVC->>DS: restart command
    DS-->>SVC: restarted
    SVC-->>HM: success

    Note over HM: Wait 2s for startup

    HM->>SVC: check_health()
    SVC-->>HM: healthy

    HM->>WS: broadcast "healthy"

Best Practices

  1. Set appropriate check intervals: Balance responsiveness with system load
  2. Configure restart commands carefully: Test commands work in production environment
  3. Monitor failure counts: Track failure_count metrics for alerting
  4. Use WebSocket broadcasts: Keep UI informed of service status
  5. Test recovery paths: Simulate failures to verify auto-recovery works

Source: NEM-3458 - Health Monitoring Documentation
