Security Hub

Security model, input validation, data protection, and hardening guidelines for the AI-powered home security monitoring system

Security Architecture Overview

Overview

This hub documents the security considerations and implementations for the Home Security Intelligence system. The system is designed for single-user, trusted network deployment - it operates on a local network without exposure to the public internet.

The system implements defense-in-depth security measures including input validation, secure HTTP headers, path traversal protection, and SSRF prevention.

Key Assumptions:

Assumption Implication
Single-user deployment No role-based access control
Trusted local network API key authentication is optional
No internet exposure CORS allows local origins by default
Camera data is sensitive Path traversal protection on all media endpoints

Security Architecture

Security Middleware Stack

flowchart TB
    subgraph External["External Boundary"]
        CAM[IP Cameras]
        BROWSER[Browser Client]
    end

    subgraph AppLayer["Application Layer"]
        subgraph Middleware["Security Middleware Stack"]
            AUTH[AuthMiddleware]
            CORS[CORSMiddleware]
            SEC[SecurityHeadersMiddleware]
            BODY[BodySizeLimitMiddleware]
            RATE[RateLimiter]
        end

        subgraph Validation["Input Validation"]
            PYDANTIC[Pydantic Schemas]
            SANIT[Sanitization Utils]
            PATH[Path Validation]
        end

        subgraph Routes["API Routes"]
            API[FastAPI Routes]
            MEDIA[Media Endpoints]
            WS[WebSocket]
        end
    end

    subgraph Data["Data Layer"]
        DB[(PostgreSQL)]
        REDIS[(Redis)]
        FS[File System]
    end

    CAM -->|FTP| FS
    BROWSER --> AUTH --> CORS --> SEC --> BODY --> RATE --> API
    API --> PYDANTIC --> SANIT
    MEDIA --> PATH
    API --> DB
    WS --> REDIS
    MEDIA --> FS

Auth Flow

The following diagram illustrates the first-time setup guard and authentication flow. When no admin user exists, the SetupGuardMiddleware returns 503 until registration is completed. After the first admin is created, all requests pass through normally.

sequenceDiagram
    participant Client
    participant Guard as SetupGuardMiddleware
    participant API as FastAPI
    participant DB as PostgreSQL
    Client->>Guard: Any API request
    alt No admin user exists
        Guard-->>Client: 503 Service Unavailable
        Note over Client: Must register first
        Client->>API: POST /api/auth/register
        API->>DB: Create admin user
        API-->>Client: 201 Created (JWT token)
    else Admin exists
        Guard->>API: Pass through
        API-->>Client: Normal response
    end

Security Documents

Document Description
Input Validation Pydantic validation, SQL injection prevention, sanitization
Data Protection Sensitive data handling, image storage, log sanitization
Network Security CORS configuration, trusted network assumptions
Security Headers HTTP security headers, CSP policy
Authentication Roadmap Future authentication implementation considerations

Security Controls Summary

Current Implementation

Control Implementation File Reference
Input Validation Pydantic schemas with field validators backend/api/schemas/*.py
SQL Injection SQLAlchemy ORM with parameterized queries backend/core/database.py
Path Traversal Path validation on all media endpoints backend/api/routes/media.py:42-124
XSS Prevention React automatic escaping + CSP headers backend/api/middleware/security_headers.py
SSRF Protection URL validation with IP range blocking backend/core/url_validation.py
Rate Limiting Tiered rate limits per endpoint type backend/api/middleware/rate_limit.py
Body Size Limits 10MB request body limit backend/main.py:1145-1147
Security Headers Defense-in-depth HTTP headers backend/api/middleware/security_headers.py

Optional Security Features

Feature Environment Variable Default
API Key Authentication API_KEY_ENABLED false
HSTS Preload HSTS_PRELOAD false
TLS/HTTPS TLS_ENABLED false
Request Recording REQUEST_RECORDING_ENABLED false

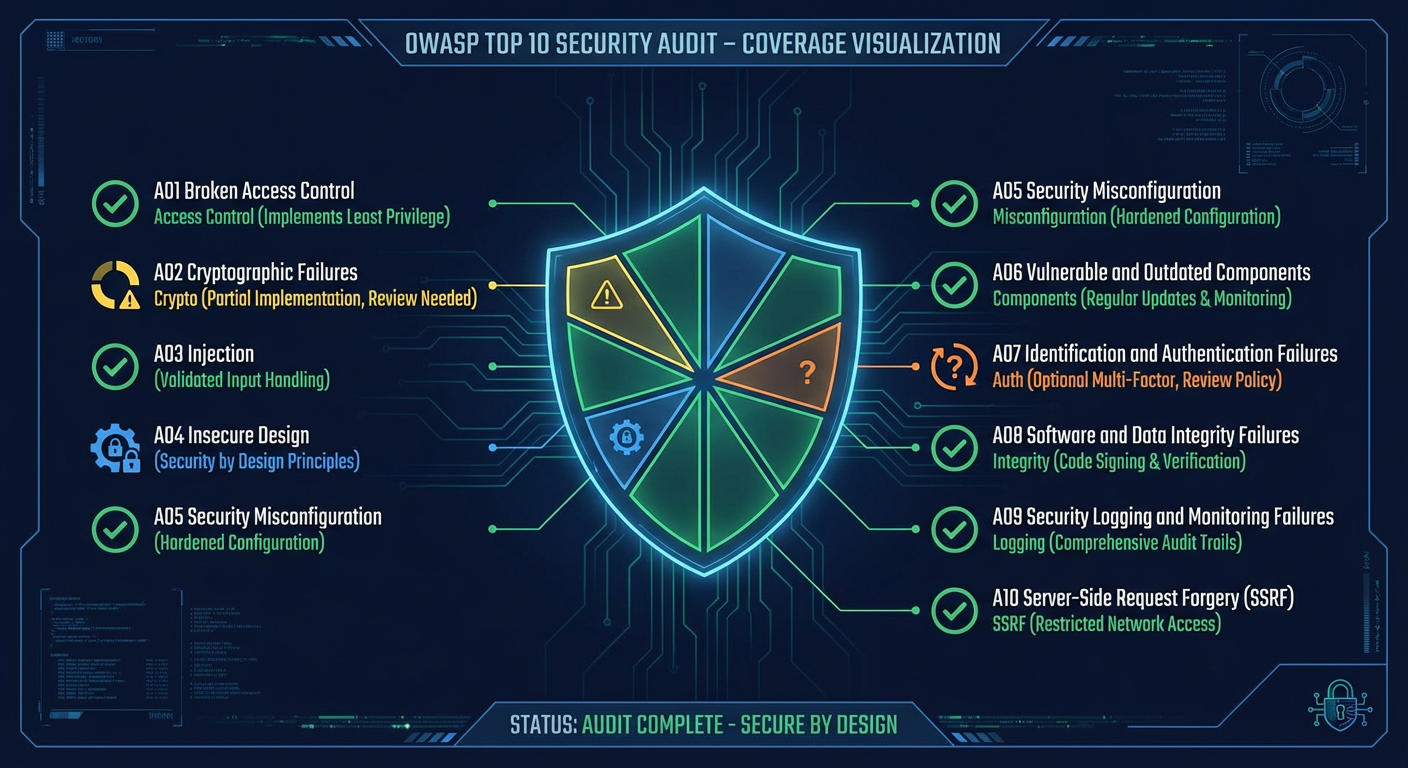

OWASP Top 10 Coverage

OWASP Coverage

OWASP Category Mitigation Status
A01 Broken Access Control Path traversal protection, media allowlists Implemented
A02 Cryptographic Failures SHA-256 API key hashing, optional TLS Partial
A03 Injection Pydantic validation, SQLAlchemy ORM Implemented
A04 Insecure Design Single-user model, defense-in-depth By Design
A05 Security Misconfiguration Security headers, restrictive defaults Implemented
A06 Vulnerable Components Dependabot, pre-commit hooks Implemented
A07 Authentication Failures Optional API key auth Optional
A08 Integrity Failures Content-Type validation, CSP Implemented
A09 Logging Failures Structured logging with sanitization Implemented
A10 SSRF URL validation, blocked IP ranges Implemented

Key Files

File Purpose
backend/main.py:1083-1162 Middleware stack configuration
backend/api/middleware/auth.py API key authentication
backend/api/middleware/security_headers.py HTTP security headers
backend/core/sanitization.py Input and error sanitization
backend/core/url_validation.py SSRF protection
backend/api/schemas/camera.py Camera input validation
backend/api/routes/media.py Path traversal protection
backend/core/config.py Authentication settings

Last updated: 2026-01-24 - Initial security hub documentation for NEM-3464
