Authentication Roadmap

Future authentication implementation considerations for multi-user and remote access scenarios

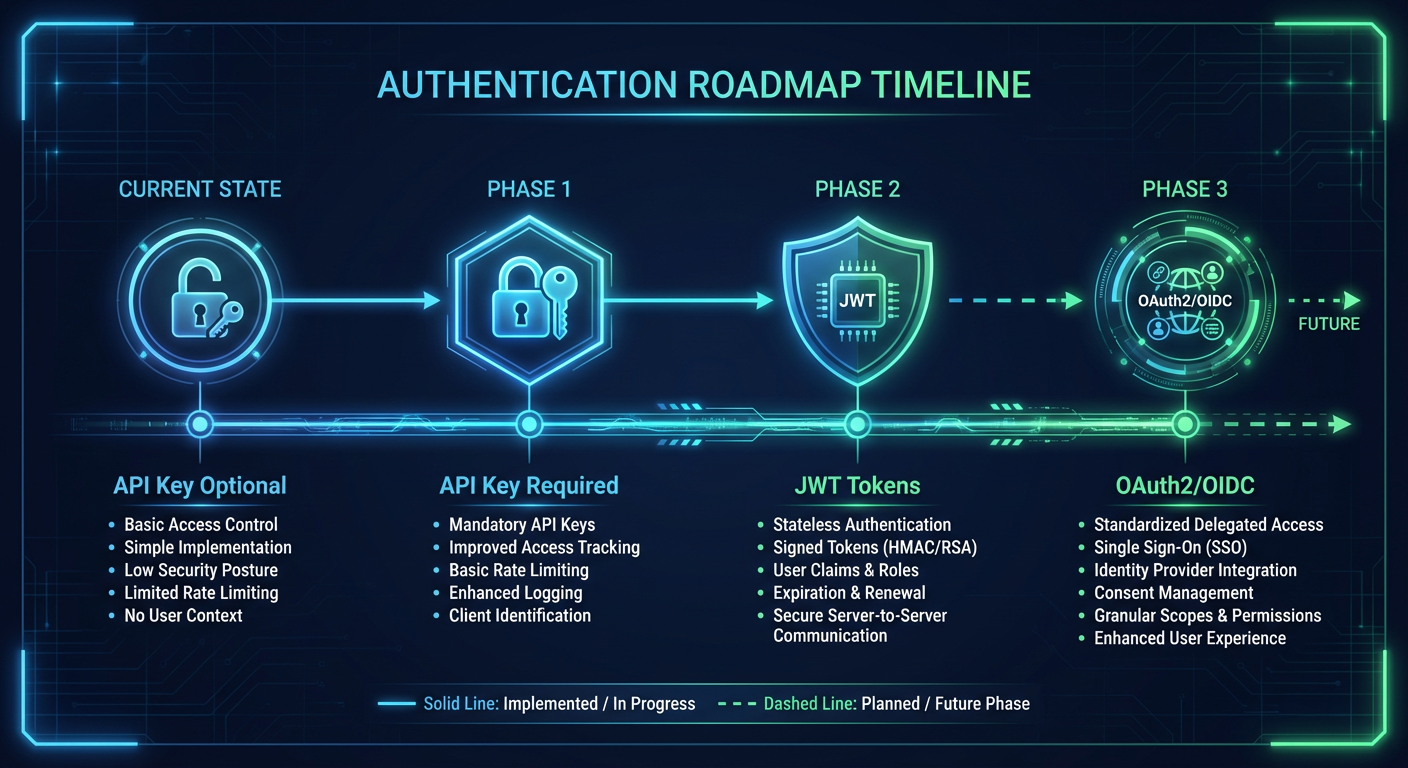

Authentication Roadmap Overview

Key Files

  • backend/core/config.py:1090-1098 - Current API key authentication settings
  • backend/api/middleware/auth.py - Current AuthMiddleware implementation
  • backend/api/middleware/websocket_auth.py - WebSocket token validation

Overview

The Home Security Intelligence system is currently designed for single-user, trusted network deployment and does not require authentication by default. However, optional API key authentication is available for environments where access control is desired.

This document outlines the current authentication state and provides a roadmap for future enhancements if multi-user or remote access requirements emerge.

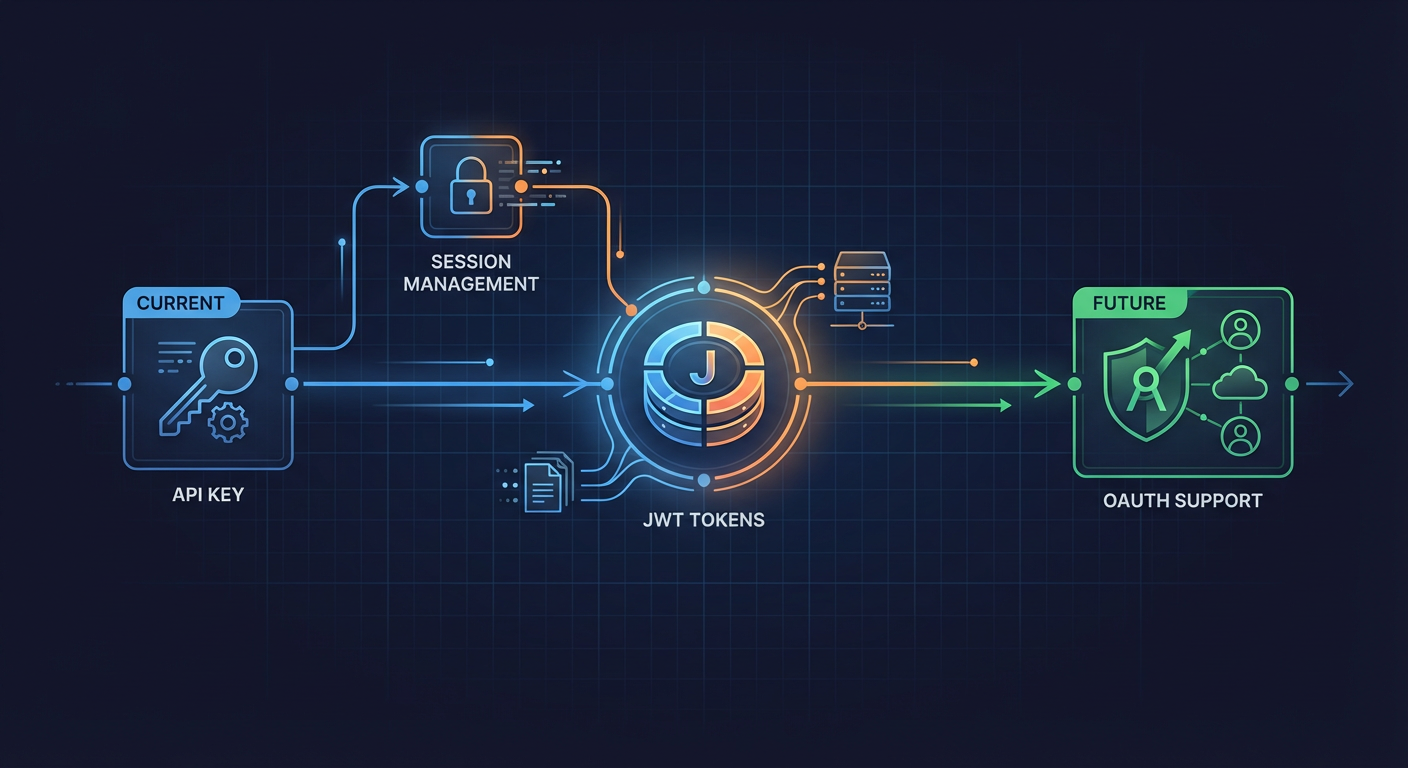

Auth Evolution

Authentication Flow

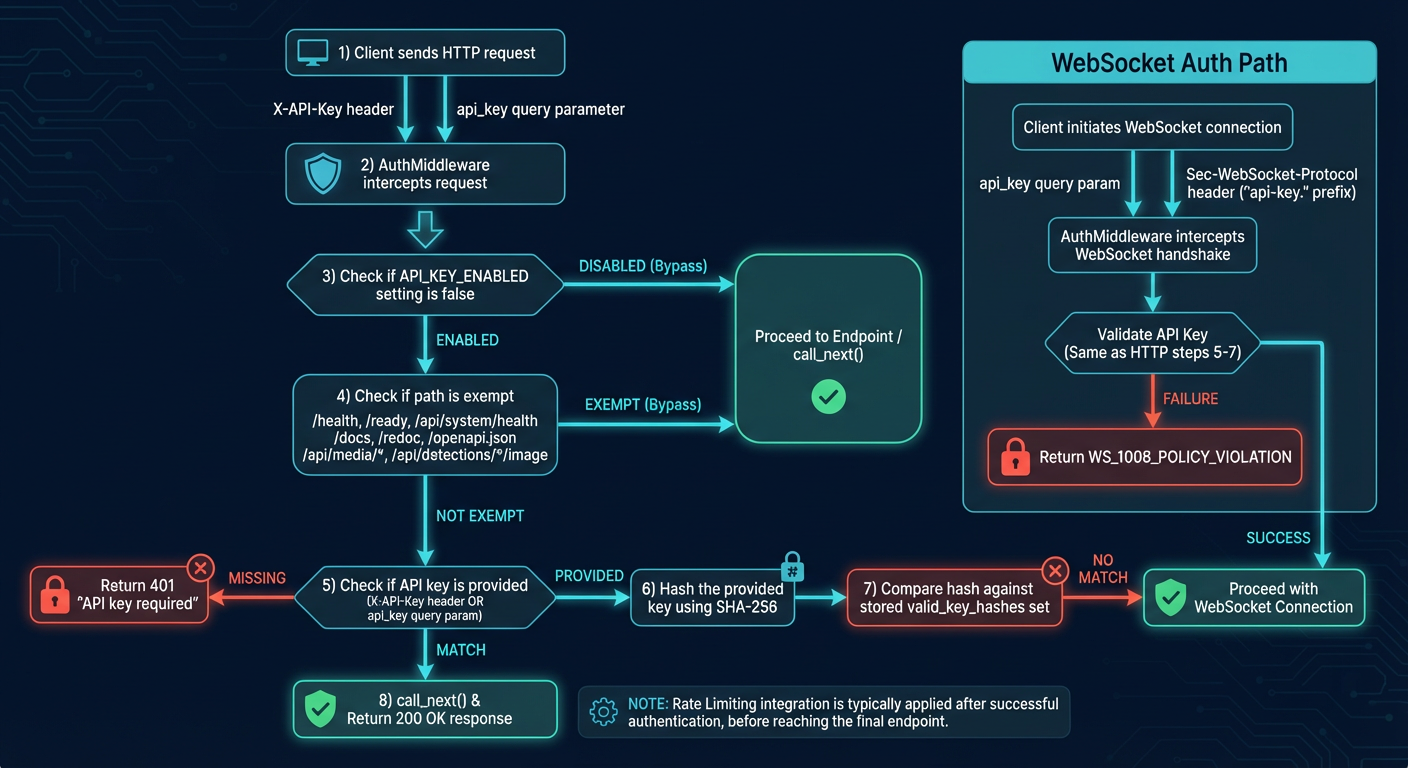

Authentication Flow Diagram showing the complete authentication process from user request through validation and response

Current Authentication State

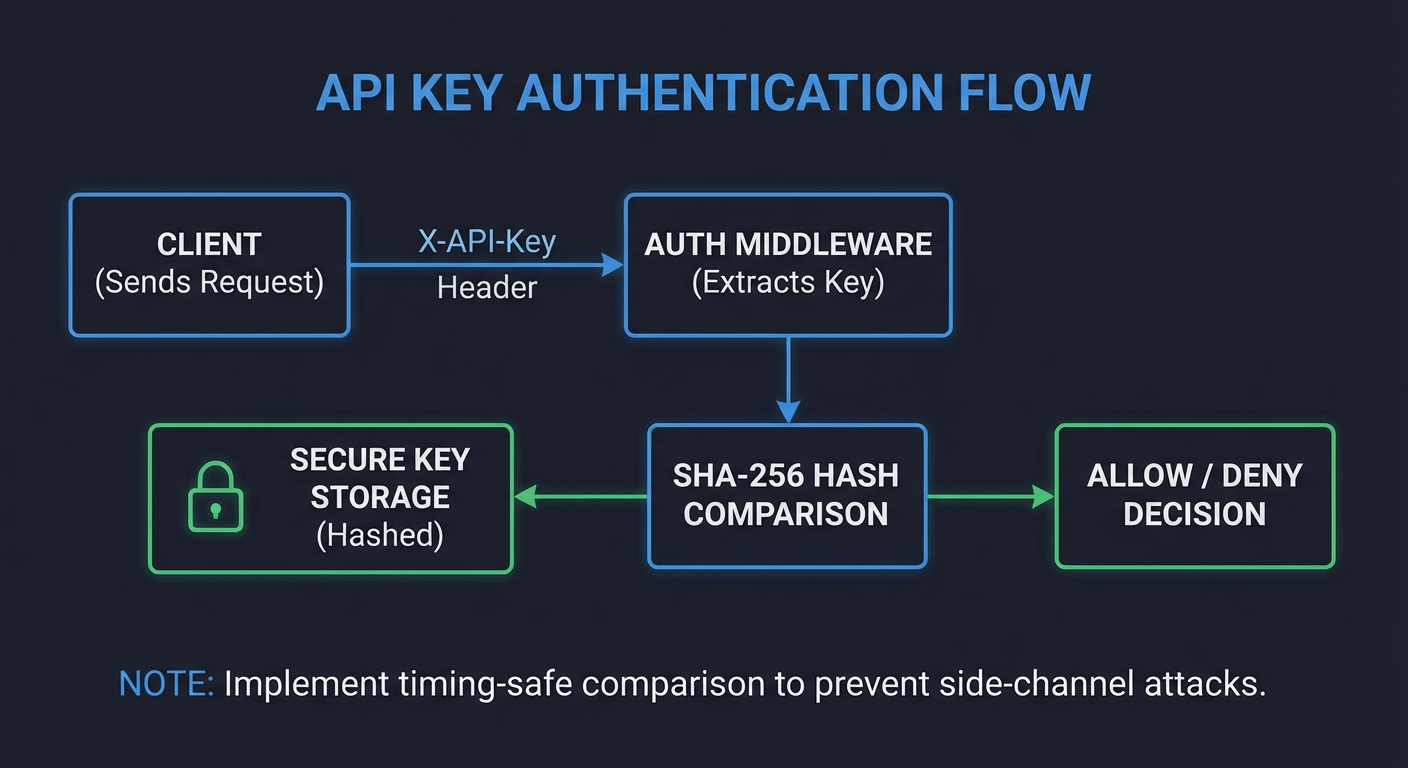

API Key Authentication

API Key Authentication (Optional)

The system supports optional API key authentication:

# From backend/core/config.py:1090-1098
api_key_enabled: bool = Field(
    default=False,
    description="Enable API key authentication (default: False for development)",
)
api_keys: list[str] = Field(
    default=[],
    description="List of valid API keys (plain text, hashed on startup)",
)

Enabling API Key Authentication

# Enable authentication
export API_KEY_ENABLED=true

# Configure API keys (comma-separated or JSON array)
export API_KEYS='["your-secret-key-1","your-secret-key-2"]'

API Key Middleware

When enabled, requests must include the API key:

# Via header (preferred)
curl -H "X-API-Key: your-secret-key" http://localhost:8000/api/events

# Via query parameter (fallback)
curl "http://localhost:8000/api/events?api_key=your-secret-key"

Implementation Details

# From backend/api/middleware/auth.py (conceptual)
class AuthMiddleware(BaseHTTPMiddleware):
    """API key authentication middleware."""

    def __init__(self, app, api_keys: list[str]):
        super().__init__(app)
        # Hash keys on initialization for secure comparison
        self.hashed_keys = {self._hash_key(k) for k in api_keys}

    async def dispatch(self, request: Request, call_next):
        # Skip auth for health check endpoint
        if request.url.path in ["/health", "/api/health"]:
            return await call_next(request)

        # Extract API key
        api_key = request.headers.get("X-API-Key") or request.query_params.get("api_key")

        if not api_key:
            return JSONResponse(
                status_code=401,
                content={"detail": "API key required"}
            )

        # Constant-time comparison
        if not self._verify_key(api_key):
            return JSONResponse(
                status_code=401,
                content={"detail": "Invalid API key"}
            )

        return await call_next(request)

Why Authentication is Currently Optional

The system operates under these assumptions:

Assumption Implication
Single user No need to distinguish between users
Local network Network itself provides access control
No internet exposure No remote attackers
Physical security Users have physical access to the server

When to Enable Authentication:

  • Shared home network with multiple trusted users
  • VPN access from outside the home
  • Additional defense-in-depth layer desired

Future Authentication Roadmap

Phase 1: Enhanced API Key Management

Priority: Medium Complexity: Low

Improvements to the existing API key system:

Feature Description
Key rotation Generate new keys without downtime
Key scopes Limit keys to specific endpoints (read-only, admin)
Key expiration Automatic key expiration with renewal
Audit logging Log key usage for security monitoring

Implementation Considerations:

# Enhanced API key schema
api_keys:
  - key: "hashed-key-1"
    name: "Mobile App"
    scopes: ["read:events", "read:detections"]
    expires_at: "2025-12-31T00:00:00Z"
    created_at: "2025-01-01T00:00:00Z"

Phase 2: JWT Token Authentication

Priority: Low Complexity: Medium

Stateless authentication for multi-device scenarios:

sequenceDiagram
    participant Client
    participant Auth as Auth Endpoint
    participant API as Protected API
    participant JWT as JWT Validator

    Client->>Auth: POST /api/auth/login (credentials)
    Auth-->>Client: JWT access_token + refresh_token
    Client->>API: GET /api/events (Bearer token)
    API->>JWT: Validate token
    JWT-->>API: Token valid, user claims
    API-->>Client: 200 OK (events)

Token Structure:

{
  "sub": "user-id",
  "exp": 1735689600,
  "iat": 1735603200,
  "scope": ["read:events", "write:cameras"],
  "device_id": "mobile-app-1"
}

Implementation Dependencies:

  • python-jose or PyJWT library
  • Secure key management for signing
  • Token revocation mechanism (Redis blacklist)

Phase 3: OAuth2/OIDC Integration

Priority: Low Complexity: High

Integration with external identity providers:

Provider Use Case
Home Assistant Smart home integration
Google/GitHub Personal accounts
Keycloak Self-hosted IdP

OpenID Connect Flow:

sequenceDiagram
    participant User
    participant Frontend
    participant Backend
    participant IdP as Identity Provider

    User->>Frontend: Click Login
    Frontend->>IdP: Redirect to /authorize
    User->>IdP: Authenticate
    IdP->>Frontend: Redirect with code
    Frontend->>Backend: POST /callback (code)
    Backend->>IdP: Exchange code for tokens
    IdP-->>Backend: access_token, id_token
    Backend-->>Frontend: Session cookie

Phase 4: Role-Based Access Control (RBAC)

Priority: Low Complexity: Medium

For multi-user households:

Role Permissions
Admin Full access, user management
Viewer Read-only access to events/cameras
Operator Acknowledge alerts, manage cameras

Database Schema Extension:

CREATE TABLE users (
    id UUID PRIMARY KEY,
    email VARCHAR(255) UNIQUE,
    password_hash VARCHAR(255),
    role VARCHAR(50),
    created_at TIMESTAMP
);

CREATE TABLE sessions (
    id UUID PRIMARY KEY,
    user_id UUID REFERENCES users(id),
    token_hash VARCHAR(255),
    expires_at TIMESTAMP
);

WebSocket Authentication

Current Implementation

WebSocket connections can validate tokens:

# From backend/api/middleware/websocket_auth.py (conceptual)
async def validate_websocket_token(websocket: WebSocket) -> bool:
    """Validate token for WebSocket connection."""
    token = websocket.query_params.get("token")
    if not token:
        return False
    return await verify_token(token)

Future Enhancement

Support JWT in WebSocket connections:

// Client-side
const ws = new WebSocket(`ws://localhost:8000/ws?token=${jwt}`);

// Or via Sec-WebSocket-Protocol header
const ws = new WebSocket('ws://localhost:8000/ws', ['access_token', jwt]);

Security Considerations

Password Storage

If user authentication is implemented:

# Use bcrypt or argon2 for password hashing
from passlib.context import CryptContext

pwd_context = CryptContext(schemes=["bcrypt"], deprecated="auto")

def hash_password(password: str) -> str:
    return pwd_context.hash(password)

def verify_password(password: str, hashed: str) -> bool:
    return pwd_context.verify(password, hashed)

Session Management

Security Control Implementation
Session timeout 24 hours for web, 30 days for mobile
Concurrent sessions Limit to 5 active sessions
Session revocation Logout invalidates all sessions
Secure cookies HttpOnly, Secure, SameSite=Strict

Rate Limiting for Auth Endpoints

# More aggressive limits for auth endpoints
auth_rate_limiter = RateLimiter(
    requests_per_minute=10,
    lockout_duration=300  # 5 minute lockout
)

Migration Path

If authentication becomes required:

1. Enable API Key Authentication

# Minimal change - add API key requirement
export API_KEY_ENABLED=true
export API_KEYS='["your-generated-key"]'

2. Add User Database (Optional)

-- Migration: add users table
ALTER TABLE events ADD COLUMN user_id UUID;

3. Deploy Authentication Service (Optional)

For OAuth2/OIDC, deploy alongside existing services:

# docker-compose.override.yml
services:
  keycloak:
    image: quay.io/keycloak/keycloak
    environment:
      KEYCLOAK_ADMIN: admin
      KEYCLOAK_ADMIN_PASSWORD: admin
    ports:
      - '8080:8080'

Last updated: 2026-01-24 - Authentication roadmap for NEM-3464
