Data Protection

Sensitive data handling, image storage security, and log sanitization

Data Protection Overview

Key Files

  • backend/api/routes/media.py:42-124 - Secure media serving with path validation
  • backend/core/sanitization.py:133-230 - Error message sanitization
  • backend/core/config.py:1090-1098 - API key configuration (hashed storage)
  • backend/api/middleware/auth.py - API key hashing implementation
  • backend/api/middleware/request_recorder.py - Request body redaction
  • backend/core/logging.py - Structured logging with sensitive data filtering

Overview

The Home Security Intelligence system handles sensitive data including camera images, video footage, and detection records. This document covers the protection mechanisms for:

  1. Image and Video Storage - Secure serving with path traversal prevention
  2. Credential Protection - API key hashing and secure storage
  3. Log Sanitization - Preventing sensitive data leakage in logs
  4. Error Message Filtering - Removing internal paths and credentials from responses

Image and Video Storage Security

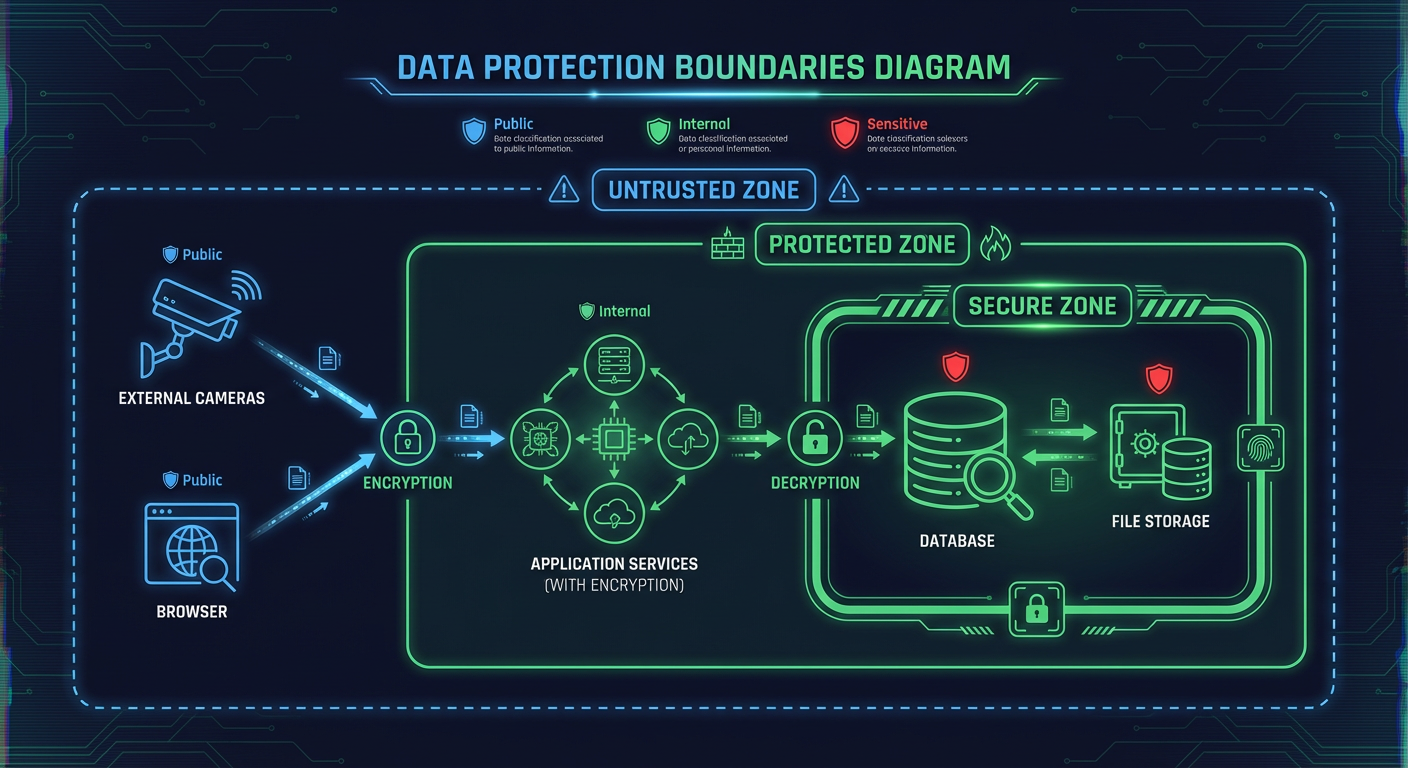

Data Protection Zones

Path Traversal Protection

All media endpoints validate paths to prevent directory traversal attacks:

# From backend/api/routes/media.py:42-124
def _validate_and_resolve_path(base_path: Path, requested_path: str) -> Path:
    """Validate and resolve a file path securely."""

    # Check path length to prevent buffer overflow attacks
    if len(requested_path) > MAX_PATH_LENGTH:
        raise HTTPException(
            status_code=status.HTTP_414_URI_TOO_LONG,
            detail=MediaErrorResponse(
                error=f"Path too long. Maximum length is {MAX_PATH_LENGTH} characters.",
                path=requested_path[:100] + "...",
            ).model_dump(),
        )

    # Check for path traversal attempts
    if ".." in requested_path or requested_path.startswith("/"):
        raise HTTPException(
            status_code=status.HTTP_403_FORBIDDEN,
            detail=MediaErrorResponse(
                error="Path traversal detected",
                path=requested_path,
            ).model_dump(),
        )

    # Resolve the full path
    full_path = (base_path / requested_path).resolve()

    # Ensure the resolved path is within the base directory
    try:
        full_path.relative_to(base_path.resolve())
    except ValueError as err:
        raise HTTPException(
            status_code=status.HTTP_403_FORBIDDEN,
            detail=MediaErrorResponse(
                error="Access denied - path outside allowed directory",
                path=requested_path,
            ).model_dump(),
        ) from err

    return full_path

Security Checks Performed:

Check Purpose Response Code
Path length limit Prevent buffer overflow 414 URI Too Long
.. traversal Block parent directory access 403 Forbidden
Absolute path Block direct path injection 403 Forbidden
relative_to() Verify path is within base 403 Forbidden
File extension Allowlist media types 403 Forbidden

Allowed File Types

Only specific media types are served:

# From backend/api/routes/media.py:31-39
ALLOWED_TYPES = {
    ".jpg": "image/jpeg",
    ".jpeg": "image/jpeg",
    ".png": "image/png",
    ".gif": "image/gif",
    ".mp4": "video/mp4",
    ".avi": "video/x-msvideo",
    ".webm": "video/webm",
}

Storage Organization

Camera images are stored in a structured hierarchy:

/cameras/
  ├── front_door/
  │   ├── 2024/
  │   │   └── 01/
  │   │       └── 15/
  │   │           └── image_001.jpg
  ├── backyard/
  │   └── ...

Security Properties:

  • Camera ID validation prevents accessing other cameras' data
  • Date-based organization limits enumeration surface
  • No direct database file storage (file paths only)

Credential Protection

API Key Hashing

When API key authentication is enabled, keys are hashed using SHA-256:

# From backend/api/middleware/auth.py (conceptual)
import hashlib

def hash_api_key(api_key: str) -> str:
    """Hash an API key using SHA-256."""
    return hashlib.sha256(api_key.encode()).hexdigest()

def verify_api_key(provided_key: str, stored_hash: str) -> bool:
    """Verify an API key against its stored hash."""
    return hash_api_key(provided_key) == stored_hash

Configuration Security

API keys are configured via environment variables and hashed on startup:

# From backend/core/config.py:1090-1098
api_key_enabled: bool = Field(
    default=False,
    description="Enable API key authentication (default: False for development)",
)
api_keys: list[str] = Field(
    default=[],
    description="List of valid API keys (plain text, hashed on startup)",
)

Best Practices:

Practice Implementation
Never log API keys Keys redacted in request logs
Environment variables Keys passed via API_KEYS env var
Timing-safe comparison Constant-time string comparison
No plaintext storage Keys hashed immediately on load

Log Sanitization

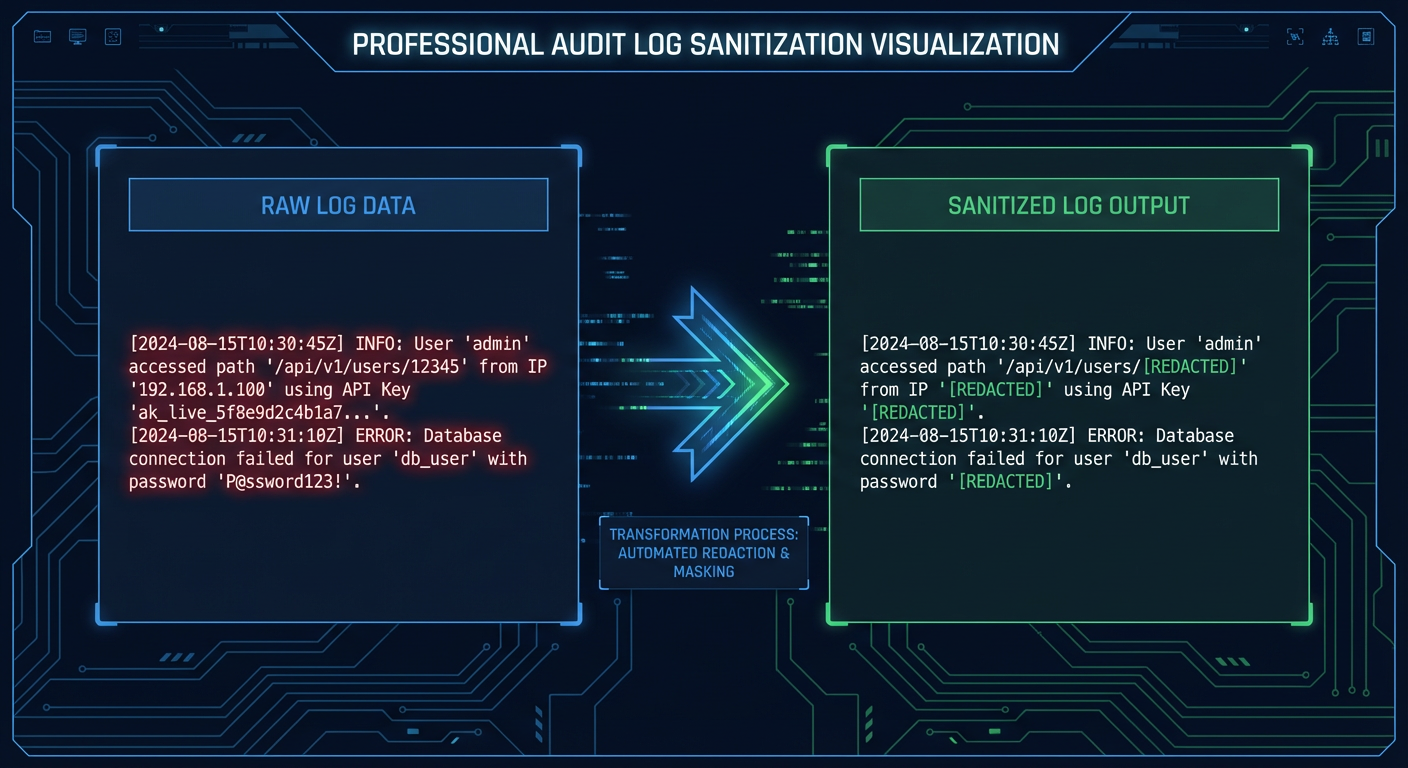

Log Sanitization

Error Message Sanitization

The sanitize_error_for_response() function removes sensitive data:

# From backend/core/sanitization.py:133-230
def sanitize_error_for_response(error: Exception, context: str = "") -> str:
    """Sanitize an exception for safe inclusion in API responses.

    Removes potentially sensitive information like:
    - Full file paths (keeps only filename)
    - Stack traces
    - Internal module names
    - Database connection details
    - URL credentials (user:password@host)
    - JSON password values
    - Windows paths
    """

Sensitive Patterns Redacted:

# From backend/core/sanitization.py:200-217
sensitive_patterns = [
    # JSON-style password values
    (re.compile(r'(["\'])password\1\s*:\s*["\'][^"\']*["\']', re.IGNORECASE),
     '"password": "[REDACTED]"'),
    # Key-value password patterns
    (re.compile(r"password[=:]\s*\S+", re.IGNORECASE), "password=[REDACTED]"),
    # Bearer tokens
    (re.compile(r"Bearer\s+\S+", re.IGNORECASE), "Bearer [REDACTED]"),
    # API keys
    (re.compile(r"api[_-]?key[=:]\s*\S+", re.IGNORECASE), "api_key=[REDACTED]"),
    # Secret/token values
    (re.compile(r"secret[=:]\s*\S+", re.IGNORECASE), "secret=[REDACTED]"),
    (re.compile(r"token[=:]\s*\S+", re.IGNORECASE), "token=[REDACTED]"),
    # IPv4 addresses
    (re.compile(r"\b\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\b"), "[IP_REDACTED]"),
]

Path Sanitization for Logs

File paths in error messages are reduced to filenames only:

# From backend/core/sanitization.py:103-130
def sanitize_path_for_error(path: str) -> str:
    """Sanitize a file path for safe inclusion in error messages.

    Removes the directory path and returns only the filename.
    """
    if not path:
        return "[unknown]"

    # Extract just the filename
    parts = path.replace("\\", "/").rsplit("/", 1)
    filename = parts[1] if len(parts) == 2 else parts[0]

    # Limit length
    if len(filename) > 100:
        filename = filename[:97] + "..."

    return filename

Example Transformations:

Input Output
/var/app/data/cameras/front_door/img.jpg img.jpg
C:\Users\admin\secret\config.json config.json
/etc/passwd passwd

Request Body Redaction

Debug request recording redacts sensitive fields:

# From backend/api/middleware/request_recorder.py
def redact_request_body(body: dict) -> dict:
    """Redact sensitive fields from request body for logging."""
    sensitive_keys = {"password", "api_key", "secret", "token", "authorization"}
    redacted = {}
    for key, value in body.items():
        if key.lower() in sensitive_keys:
            redacted[key] = "[REDACTED]"
        elif isinstance(value, dict):
            redacted[key] = redact_request_body(value)
        else:
            redacted[key] = value
    return redacted

Data Retention

Configurable Retention Period

Detection and event data is retained for a configurable period:

# From backend/core/config.py:618-623
retention_days: int = Field(
    default=30,
    gt=0,
    description="Number of days to retain events and detections",
)

Automated Cleanup

The cleanup service removes old data:

# Cleanup removes:
# - Detection records older than retention_days
# - Event records older than retention_days
# - Orphaned media files
# - Expired Redis keys

Container Name Sanitization

Container names are validated to prevent command injection:

# From backend/core/sanitization.py:38-77
def sanitize_container_name(name: str) -> str:
    """Sanitize a container name to prevent command injection.

    Only allows alphanumeric characters, hyphens, and underscores.
    Names must start with an alphanumeric character.
    """
    if not name:
        raise ValueError("Container name cannot be empty")

    if len(name) > CONTAINER_NAME_MAX_LENGTH:
        raise ValueError(f"Container name exceeds maximum length of {CONTAINER_NAME_MAX_LENGTH}")

    if not CONTAINER_NAME_PATTERN.match(name):
        raise ValueError("Container name contains invalid characters")

    return name

Database Security

Connection String Protection

Database connection strings are not logged:

# Environment variable: DATABASE_URL
# Format: postgresql+asyncpg://user:password@host:port/database  # pragma: allowlist secret
# Password portion is never included in logs

Query Parameterization

All database queries use SQLAlchemy's parameterized queries:

# Safe - SQLAlchemy parameterizes all values
result = await session.execute(
    select(Detection).where(Detection.camera_id == camera_id)
)

Last updated: 2026-01-24 - Data protection documentation for NEM-3464
