Testing Hub¶

This hub documents the comprehensive testing infrastructure for the AI-powered home security monitoring system. The system follows Test-Driven Development (TDD) practices with a multi-layered testing strategy.

Test Pyramid¶

                    /\
                   /  \
                  / E2E \              < 2% - Critical user flows
                 /--------\
                / Contract  \          < 5% - API contracts, WebSocket messages
               /  Security   \
              /---------------\
             /   Integration   \       ~15% - Multi-component workflows
            /-------------------\
           /        Unit         \     ~80% - Isolated component testing
          /-----------------------\

Documentation Index¶

Document	Purpose
Unit Testing	pytest patterns, fixtures, mocking strategies
Integration Testing	Database tests, API tests, parallel execution
E2E Testing	Playwright patterns, Page Object Model
Test Fixtures	Factory patterns, Hypothesis strategies
Coverage Requirements	Coverage gates, CI enforcement

Quick Reference¶

Running Tests¶

# Full validation (recommended before PRs)
./scripts/validate.sh

# Backend unit tests (parallel)
uv run pytest backend/tests/unit/ -n auto --dist=worksteal

# Backend integration tests (serial; pyproject addopts default to -n 8,
# so -n0 overrides them — matches the project quick reference and CI rerun
# tiers, avoiding concurrent schema-creation deadlocks)
uv run pytest backend/tests/integration/ -n0 --timeout=30

# Frontend tests
cd frontend && npm test

# E2E tests (Playwright)
cd frontend && npx playwright test

Test Structure¶

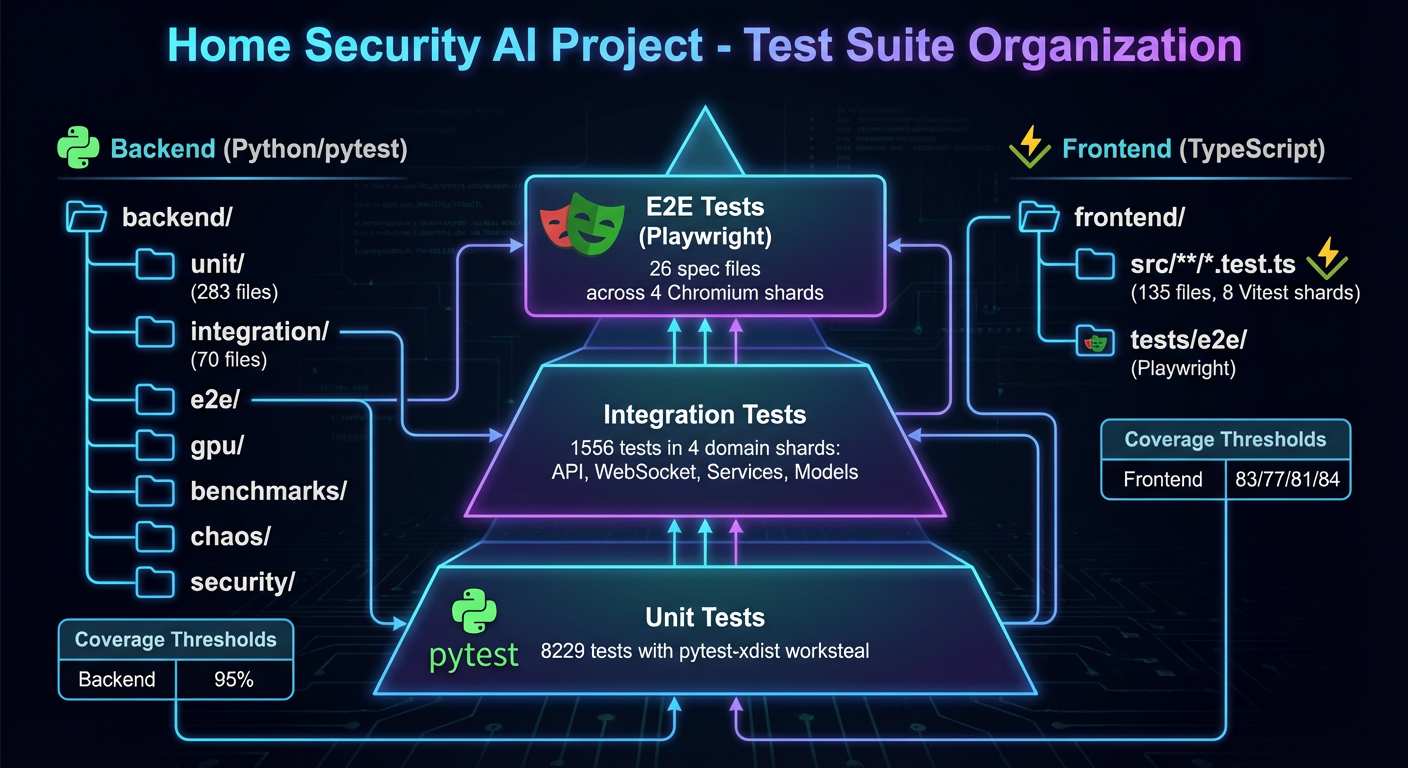

Test Suite Organization

backend/tests/
  conftest.py              # Root fixtures (database, Redis, HTTP client)
  factories.py             # factory_boy test data factories
  hypothesis_strategies.py # Hypothesis strategies for property-based testing
  strategies.py            # Additional domain-specific strategies
  unit/                    # ~680 test files - isolated component testing
  integration/             # ~200 test files - multi-component workflows
  e2e/                     # Pipeline integration tests
  benchmarks/              # Performance regression detection
  chaos/                   # Chaos engineering failure tests
  contracts/               # API contract validation
  security/                # Security vulnerability tests
  gpu/                     # GPU service integration tests

frontend/
  src/__tests__/           # Vitest component/hook tests
  tests/e2e/               # Playwright E2E tests
    fixtures/              # API mocks, test data
    pages/                 # Page Object Model
    specs/                 # Test specifications

Coverage Requirements¶

See Coverage Requirements for the full model.

Test Type	Minimum	Enforcement
Backend Combined	80%	Absolute floor: `validate.sh`, `nightly-full-gate.yml`
Backend PR diff gate	85 (relative baseline, ruling A7.1)	Diff gate on merged shard data, 0.5pp noise band
Backend Unit tier	84	CI merge step, only when the tier fully passed
Backend Integration tier	37	CI merge step, only when the tier fully passed
Frontend Statements	80	`merge-shard-coverage.mjs --enforce` (all shards passed)
Frontend Branches	74.6	same
Frontend Functions	78.4	same
Frontend Lines	80.9	same

Key Configuration Files¶

File	Purpose
`pyproject.toml:529-568`	Coverage configuration (`fail_under = 85` diff-gate baseline)
`pyproject.toml` (`[tool.pytest]`)	pytest configuration and markers
`frontend/vite.config.ts` (`test.coverage`, thresholds ~:400-433)	Vitest configuration and coverage thresholds
`frontend/playwright.config.ts`	Playwright E2E configuration

Testing Philosophy¶

TDD Workflow¶

RED: Write a failing test that defines expected behavior
GREEN: Implement minimal code to make the test pass
REFACTOR: Improve code quality while keeping tests green

Test Isolation¶

Unit tests: All external dependencies mocked
Integration tests: Real database, mocked Redis (per-worker isolation)
E2E tests: Full stack with API mocks

Parallel Execution¶

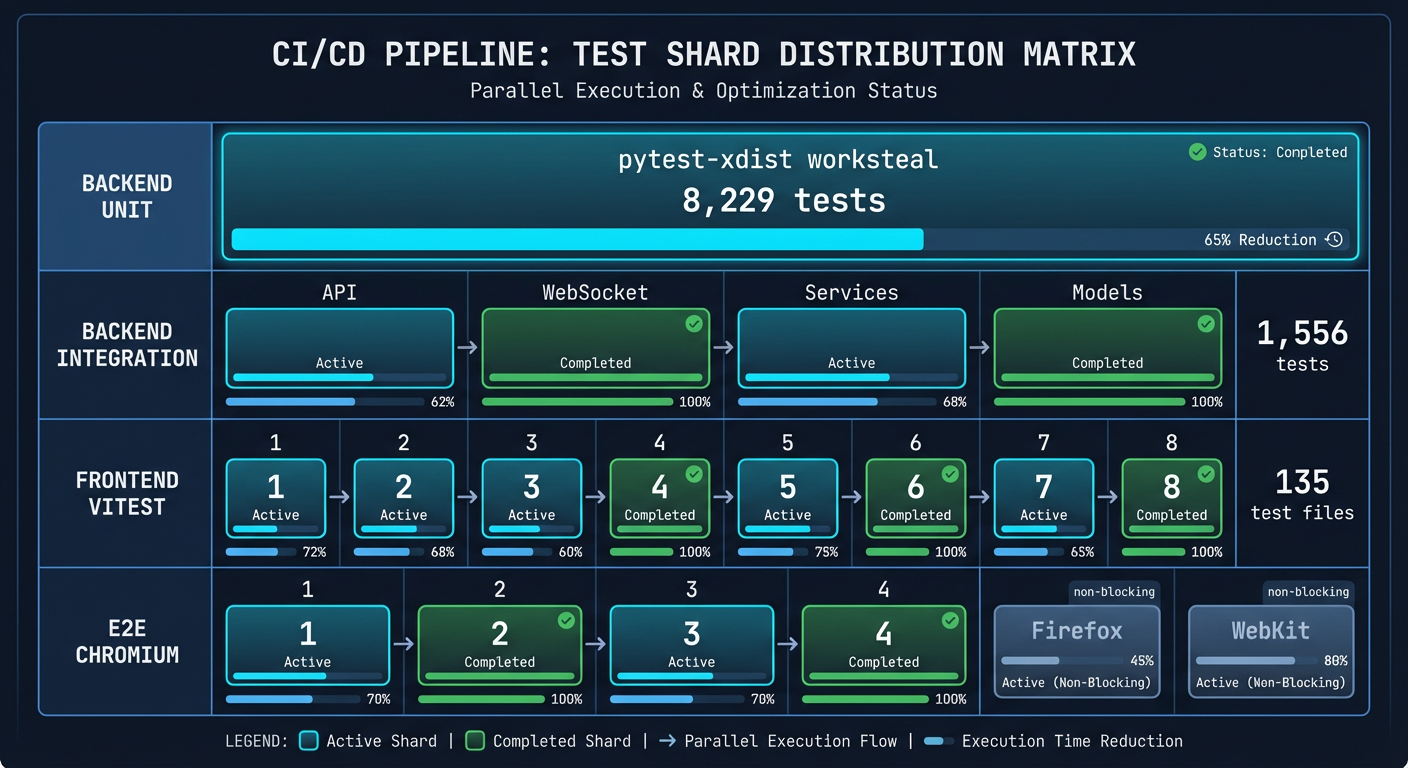

Test Shard Distribution Matrix

Backend tests support parallel execution via pytest-xdist:

Unit tests: -n auto --dist=worksteal (fully parallel)
Integration tests: pyproject addopts defaults to -n 8 --dist=worksteal; CI shards suites across jobs (xdist inside each shard), and the flaky-rerun tier runs -n0 because concurrent schema creation can deadlock

Each pytest-xdist worker gets its own PostgreSQL database (security_test_gw0, etc.) for complete isolation.

CI/CD Pipeline¶

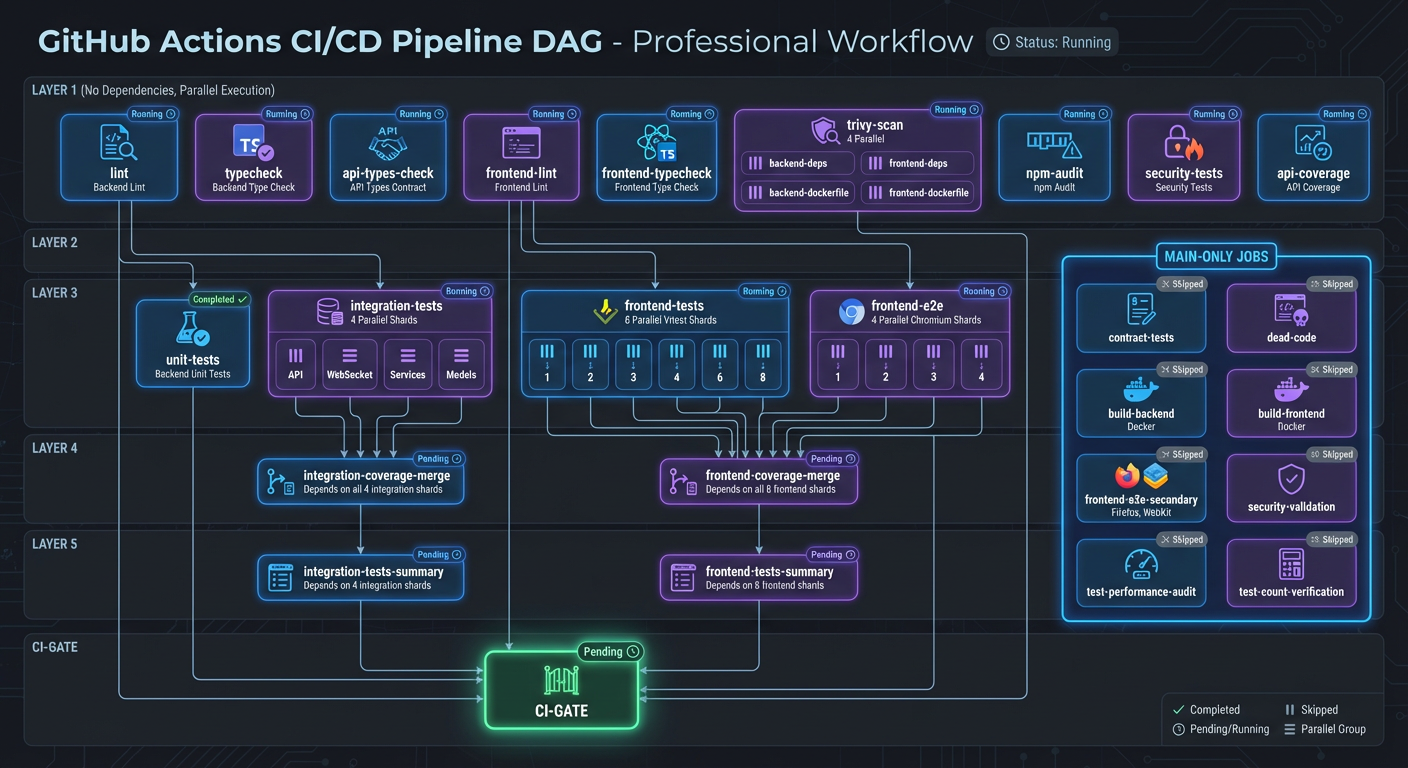

CI/CD Pipeline DAG showing test stages, dependencies, and parallel execution paths

The CI/CD pipeline orchestrates test execution across multiple stages with parallelization for optimal performance. The DAG structure ensures proper ordering of build, lint, unit test, integration test, and deployment stages.
