Alert System Technical Documentation¶

Technical deep-dive into the alert/notification system for developers.

Time to read: ~10 min Prerequisites: Codebase Tour

Overview¶

The alert system notifies users when security events match configured rule conditions:

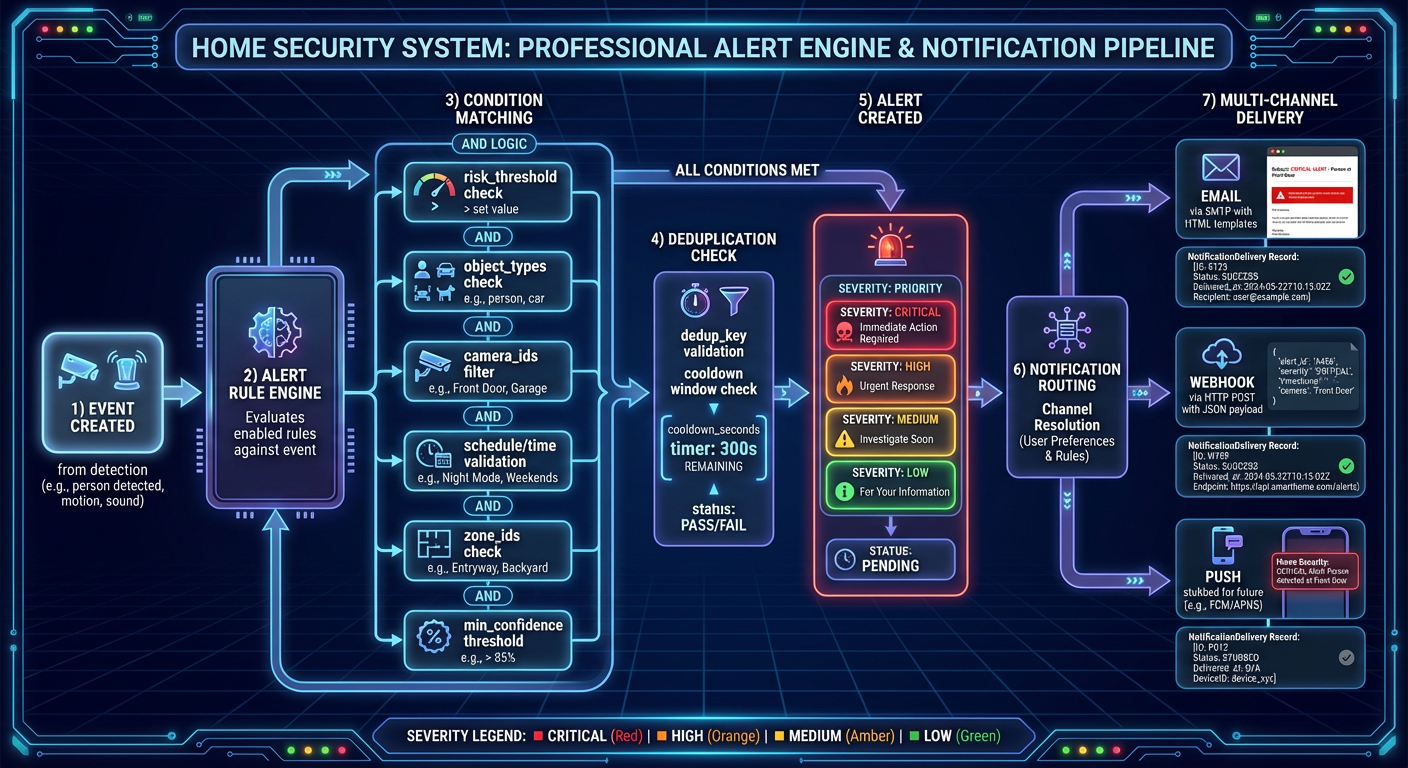

Alert Engine Pipeline

Alert engine pipeline showing events flowing through rule evaluation, deduplication, and notification delivery.

Events --> [Alert Rules] --> [Alert Engine] --> [Dedup] --> [Notification]

Component	File	Purpose
Alert Rules	`backend/models/alert.py`	Define trigger conditions
Alert Engine	`backend/services/alert_engine.py`	Evaluate rules against events
Deduplication	`backend/services/alert_dedup.py`	Prevent alert fatigue
Notification	`backend/services/notification.py`	Deliver through channels

Key Design Decisions:

AND logic: All conditions in a rule must match
Multiple rules can trigger for the same event
Higher severity rules take precedence
Cooldown-based deduplication using time windows

Alert Rules¶

Rule Structure¶

# backend/models/alert.py
class AlertRule(Base):
    id: Mapped[str]                    # UUID
    name: Mapped[str]                  # Human-readable name
    enabled: Mapped[bool]              # Active/inactive
    severity: Mapped[AlertSeverity]    # LOW, MEDIUM, HIGH, CRITICAL

    # Conditions (all must match)
    risk_threshold: Mapped[int | None]      # Alert when risk >= threshold
    object_types: Mapped[list | None]       # ["person", "vehicle", ...]
    camera_ids: Mapped[list | None]         # Specific cameras (empty = all)
    min_confidence: Mapped[float | None]    # 0.0-1.0 confidence threshold
    schedule: Mapped[dict | None]           # Time-based conditions

    # Deduplication
    dedup_key_template: Mapped[str]         # "{camera_id}:{rule_id}"
    cooldown_seconds: Mapped[int]           # Default: 300

    # Notification
    channels: Mapped[list | None]           # ["email", "webhook"]

Supported Conditions¶

Condition	Type	Description
`risk_threshold`	`int`	Min risk score (0-100)
`object_types`	`list[str]`	Object classes to match
`camera_ids`	`list[str]`	Camera restrictions
`min_confidence`	`float`	Min detection confidence
`schedule`	`dict`	Time-based restrictions

Schedule Format¶

{
  "days": ["monday", "tuesday"],
  "start_time": "22:00",
  "end_time": "06:00",
  "timezone": "America/New_York"
}

If start_time > end_time, schedule spans midnight.

Evaluation Pipeline¶

sequenceDiagram
    participant E as Event
    participant AE as AlertEngine
    participant D as Dedup
    participant N as Notification

    E->>AE: evaluate_event(event)
    AE->>AE: Load enabled rules
    loop For each rule
        AE->>AE: Check all conditions
        alt Matches
            AE->>D: Check cooldown
            alt Not in cooldown
                AE->>AE: Add to triggered
            end
        end
    end
    AE->>N: deliver_alert(alert)

Alert Rule Condition Evaluation¶

All conditions in a rule must match (AND logic) for the rule to trigger:

flowchart TD
    A[Event Received] --> B{Risk threshold<br>condition set?}
    B -->|Yes| C{event.risk_score >=<br>rule.risk_threshold?}
    B -->|No| D{Object types<br>condition set?}
    C -->|No| FAIL[Rule does NOT match]
    C -->|Yes| D

    D -->|Yes| E{Detection object_type<br>in rule.object_types?}
    D -->|No| F{Camera IDs<br>condition set?}
    E -->|No| FAIL
    E -->|Yes| F

    F -->|Yes| G{event.camera_id<br>in rule.camera_ids?}
    F -->|No| H{Min confidence<br>condition set?}
    G -->|No| FAIL
    G -->|Yes| H

    H -->|Yes| I{Detection confidence >=<br>rule.min_confidence?}
    H -->|No| J{Schedule<br>condition set?}
    I -->|No| FAIL
    I -->|Yes| J

    J -->|Yes| K{Current time within<br>rule.schedule?}
    J -->|No| PASS[Rule MATCHES]
    K -->|No| FAIL
    K -->|Yes| PASS

    style PASS fill:#22C55E,color:#fff
    style FAIL fill:#EF4444,color:#fff

Deduplication¶

Prevents alert fatigue using cooldown windows:

# Dedup key format: "camera_id:object_type:zone"
# Example: "front_door:person:entry_zone"

dedup_key_template = "{camera_id}:{rule_id}"  # Default
cooldown_seconds = 300  # 5 minutes

Race Condition Prevention: Uses SELECT ... FOR UPDATE SKIP LOCKED for atomic check-then-insert.

Notification Channels¶

Channel	Status	Required Config
Email	Implemented	`SMTP_HOST`, `SMTP_FROM_ADDRESS`
Webhook	Implemented	`DEFAULT_WEBHOOK_URL`
Push	Stubbed	Not yet implemented

Configuration¶

# Enable notifications
NOTIFICATION_ENABLED=true

# Email (SMTP)
SMTP_HOST=smtp.gmail.com
SMTP_PORT=587
SMTP_USER=your-email@gmail.com
SMTP_PASSWORD=app-specific-password
SMTP_FROM_ADDRESS=alerts@yourdomain.com
DEFAULT_EMAIL_RECIPIENTS=["admin@example.com"]

# Webhook
DEFAULT_WEBHOOK_URL=https://hooks.example.com/alerts
WEBHOOK_TIMEOUT_SECONDS=30

Webhook Payload¶

{
  "type": "security_alert",
  "alert": {
    "id": "550e8400-...",
    "event_id": 123,
    "severity": "high",
    "dedup_key": "front_door:person"
  },
  "metadata": {
    "rule_name": "Night Intruder Alert",
    "matched_conditions": ["risk_score >= 70"]
  },
  "timestamp": "2025-12-28T12:00:01Z"
}

Alert History¶

Alert Model¶

class Alert(Base):
    id: Mapped[str]                      # UUID
    event_id: Mapped[int]                # Related event
    rule_id: Mapped[str | None]          # Triggering rule
    severity: Mapped[AlertSeverity]
    status: Mapped[AlertStatus]          # PENDING/DELIVERED/ACKNOWLEDGED/DISMISSED
    dedup_key: Mapped[str]
    created_at: Mapped[datetime]
    delivered_at: Mapped[datetime | None]
    alert_metadata: Mapped[dict | None]  # Matched conditions

Status Flow¶

stateDiagram-v2
    [*] --> PENDING: Alert created
    PENDING --> DELIVERED: Notification sent
    DELIVERED --> ACKNOWLEDGED: User reviewed
    DELIVERED --> DISMISSED: User dismissed
    ACKNOWLEDGED --> [*]
    DISMISSED --> [*]

The alert lifecycle progresses through these states:

PENDING: Alert created but notification not yet sent
DELIVERED: Notification successfully sent via configured channels
ACKNOWLEDGED: User has reviewed and acknowledged the alert
DISMISSED: User has dismissed the alert without action

API Reference¶

Alert Rules¶

Method	Endpoint	Description
GET	`/api/alerts/rules`	List rules
POST	`/api/alerts/rules`	Create rule
GET	`/api/alerts/rules/{id}`	Get rule
PUT	`/api/alerts/rules/{id}`	Update rule
DELETE	`/api/alerts/rules/{id}`	Delete rule
POST	`/api/alerts/rules/{id}/test`	Test against events

Create Rule:

curl -X POST http://localhost:8000/api/alerts/rules \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Night Intruder",
    "severity": "critical",
    "risk_threshold": 70,
    "object_types": ["person"],
    "schedule": {"start_time": "22:00", "end_time": "06:00"},
    "channels": ["email", "webhook"]
  }'

Notification¶

Method	Endpoint	Description
GET	`/api/notification/config`	Get config status
POST	`/api/notification/test`	Test a channel

Test Notification:

curl -X POST http://localhost:8000/api/notification/test \
  -H "Content-Type: application/json" \
  -d '{"channel": "email", "email_recipients": ["test@example.com"]}'

Adding a Notification Channel¶

To add a new channel (e.g., Slack):

Add enum value:

# backend/services/notification.py
class NotificationChannel(str, Enum):
    SLACK = "slack"

Add config check:

def is_slack_configured(self) -> bool:
    return bool(self.settings.slack_webhook_url)

Implement send method:

async def send_slack(self, alert: Alert, url: str | None) -> NotificationDelivery:
    url = url or self.settings.slack_webhook_url
    if not url:
        return NotificationDelivery(
            channel=NotificationChannel.SLACK,
            success=False,
            error="No Slack webhook configured"
        )
    # Build and send Slack payload
    payload = {"text": f"Alert: {alert.severity.value}"}
    response = await self._get_http_client().post(url, json=payload)
    return NotificationDelivery(
        channel=NotificationChannel.SLACK,
        success=response.status_code == 200,
        delivered_at=datetime.now(UTC) if response.status_code == 200 else None
    )

Register handler:

# In _send_to_channel
channel_handlers = {
    # ... existing ...
    NotificationChannel.SLACK: lambda: self.send_slack(alert, slack_url),
}

Add settings:

# backend/core/config.py
slack_webhook_url: str | None = Field(default=None)

Adding a Condition Type¶

To add a new condition (e.g., weather):

Add field to AlertRule:

weather_conditions: Mapped[list | None] = mapped_column(JSON, nullable=True)

Add evaluation logic:

# In _evaluate_rule
if rule.weather_conditions:
    current = await self._get_current_weather()
    if current not in rule.weather_conditions:
        return False, []
    matched_conditions.append(f"weather in {rule.weather_conditions}")

Add schema field and create migration.

Frontend Integration¶

Alert UI: frontend/src/components/alerts/AlertsPage.tsx

Fetches events with risk_level: "high" and "critical"
Provides severity filtering and pagination
Uses EventCard component for display

Real-time updates use WebSocket via EventBroadcaster for event notifications.

Next Steps¶

Data Model - Database schema
Pipeline Overview - How events are generated
