Backend Architecture Patterns¶

Last Updated: January 2026 | Status: Active

This document covers three key architectural patterns used in the backend:

Repository Pattern - Database access abstraction
Result Type Pattern - Structured operation outcomes
RFC 7807 Problem Details - Standardized error responses

Architecture Diagrams¶

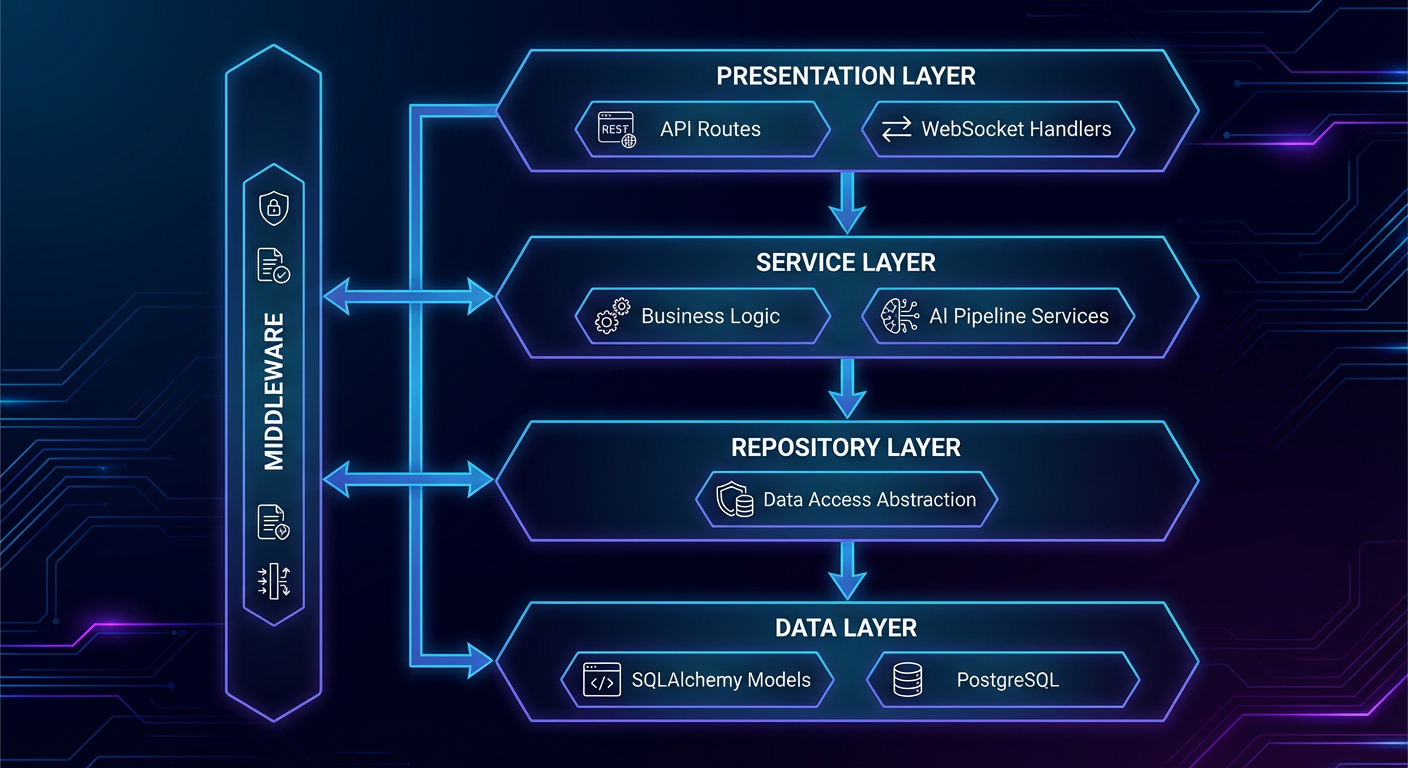

Backend Layered Architecture

Backend layered architecture showing the separation between API routes, services, repositories, and database.

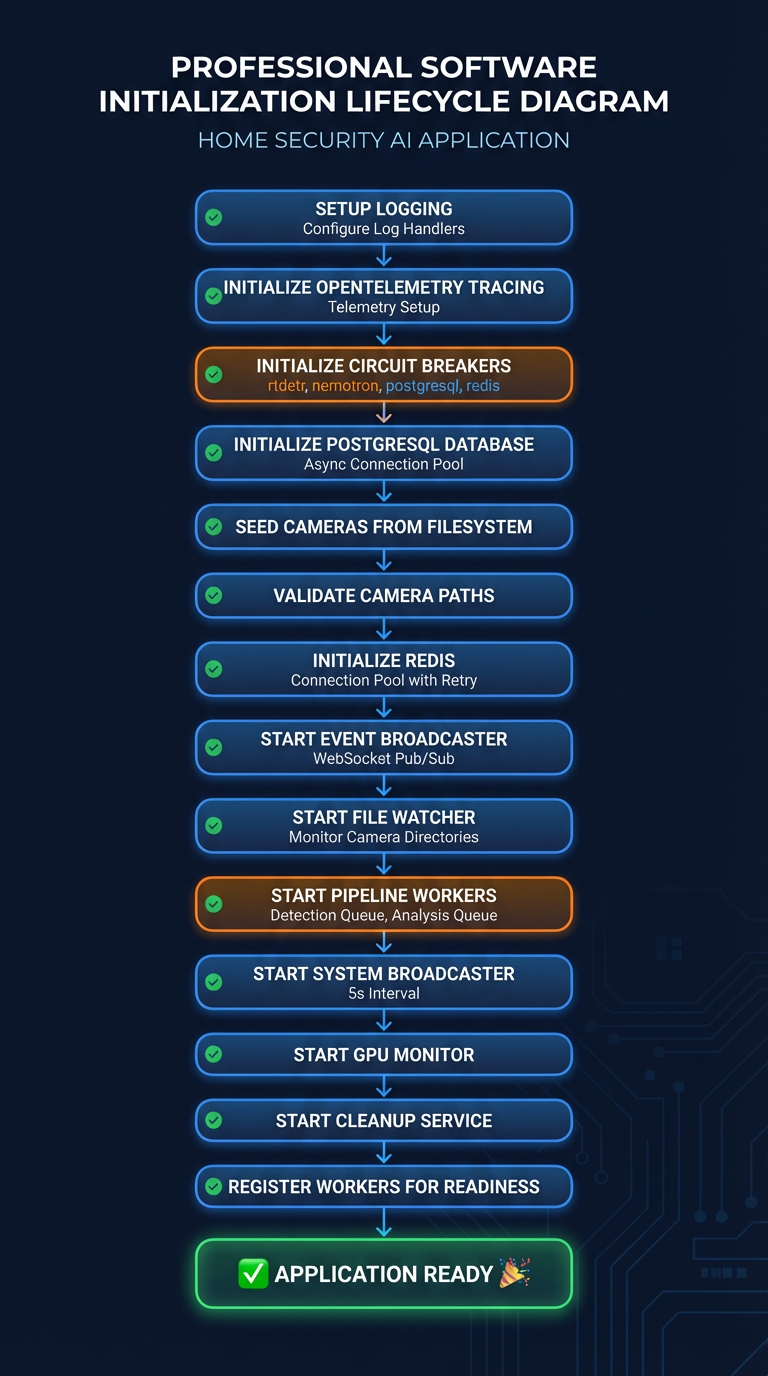

Backend Init Lifecycle

Backend initialization lifecycle showing the startup sequence and dependency injection.

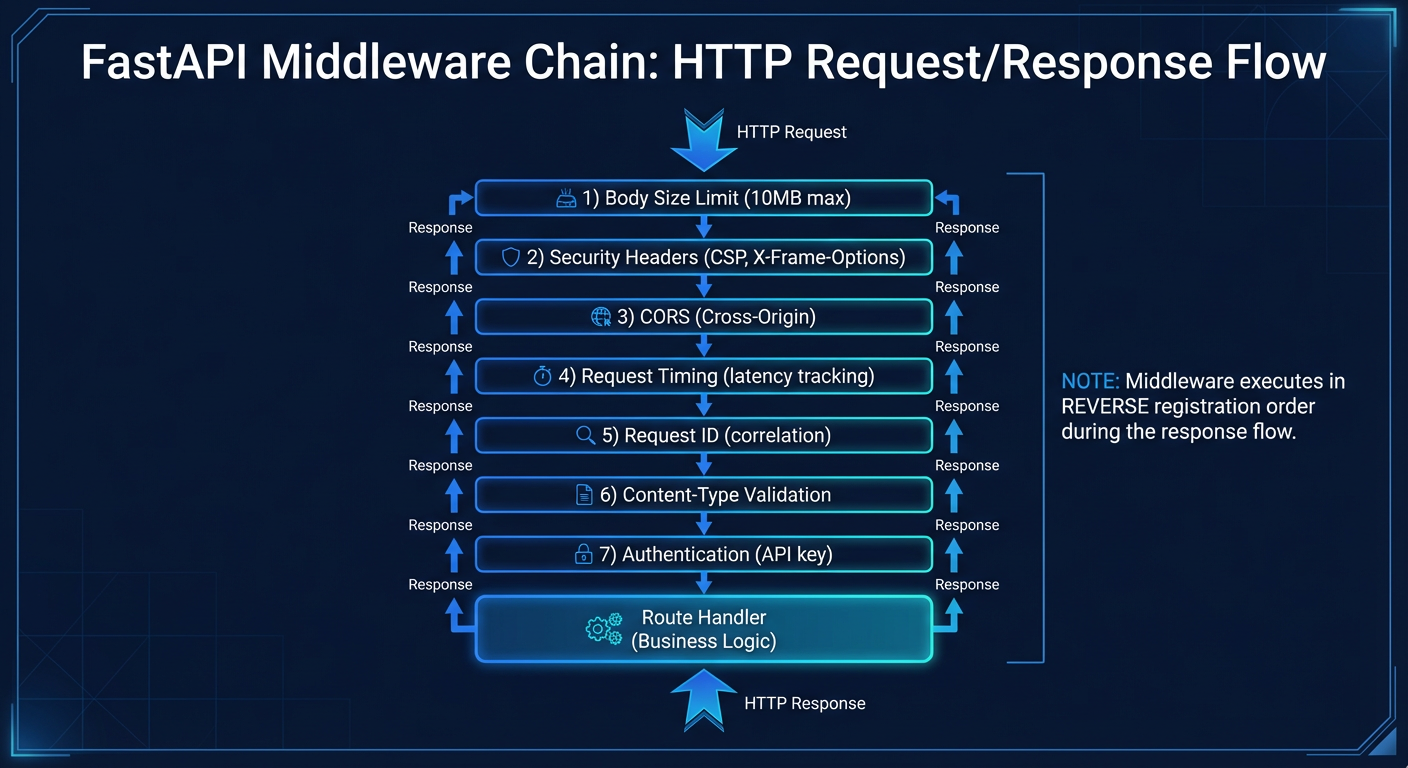

Middleware Chain

API middleware chain showing request processing through authentication, rate limiting, and error handling.

Table of Contents¶

Repository Pattern
What It Is
Why We Use It
Architecture Overview
Base Repository Class
Creating Domain Repositories
Usage Patterns
Best Practices
Result Type Pattern
Overview
Implementation
Usage Examples
When to Use
RFC 7807 Problem Details
What Is RFC 7807
Our Implementation
Error Response Format
Creating Custom Error Types
Exception Hierarchy

Repository Pattern¶

What It Is¶

The Repository pattern is a design pattern that mediates between the domain and data mapping layers, acting as an in-memory collection of domain objects. In our codebase, repositories provide a clean, type-safe interface for database operations while hiding SQLAlchemy implementation details.

Why We Use It¶

Benefit	Description
Separation of Concerns	Database logic is isolated from business logic and API routes
Testability	Easy to mock repositories for unit testing without a database
Type Safety	Generic base class with full type hints via `Repository[T]`
Consistency	Standard CRUD operations across all entity types
Query Encapsulation	Complex queries are encapsulated in repository methods

Architecture Overview¶

flowchart TD
    subgraph Consumers["Consumer Layer"]
        API["API Routes<br/>(FastAPI)"]
        SVC["Services<br/>(Business)"]
        BG["Background<br/>Workers"]
    end

    subgraph DataAccess["Data Access Layer"]
        REPO["Repositories"]
    end

    subgraph ORM["ORM Layer"]
        SA["SQLAlchemy ORM<br/>(AsyncSession)"]
    end

    subgraph Database["Database"]
        PG[(PostgreSQL)]
    end

    API --> REPO
    SVC --> REPO
    BG --> REPO
    REPO --> SA
    SA --> PG

Repository Hierarchy:

Repository[T] (Generic Base)
  |-- CameraRepository
  |-- EventRepository
  +-- DetectionRepository

Base Repository Class¶

The base Repository[T] class provides common CRUD operations for all entity types:

# backend/repositories/base.py
from typing import Generic, TypeVar, Any
from collections.abc import Sequence
from sqlalchemy import func, select
from sqlalchemy.ext.asyncio import AsyncSession

T = TypeVar("T", bound="Base")

class Repository(Generic[T]):
    """Generic repository base class providing common CRUD operations."""

    model_class: type[T]  # Subclasses must set this

    def __init__(self, session: AsyncSession) -> None:
        self.session = session

Available Methods:

Method	Description	Return Type
`get_by_id(id)`	Retrieve entity by primary key	`T \\| None`
`get_all()`	Retrieve all entities	`Sequence[T]`
`list_paginated(skip, limit)`	Retrieve with pagination	`Sequence[T]`
`get_many(ids)`	Retrieve multiple by IDs	`Sequence[T]`
`create(entity)`	Create new entity	`T`
`create_many(entities)`	Batch create entities	`Sequence[T]`
`update(entity)`	Update existing entity	`T`
`merge(entity)`	Merge detached entity	`T`
`save(entity)`	Upsert (create or update)	`T`
`delete(entity)`	Delete entity	`None`
`delete_by_id(id)`	Delete by primary key	`bool`
`exists(id)`	Check if entity exists	`bool`
`count()`	Count total entities	`int`

Creating Domain Repositories¶

To create a repository for a specific entity:

# backend/repositories/camera_repository.py
from backend.models import Camera
from backend.repositories.base import Repository

class CameraRepository(Repository[Camera]):
    """Repository for Camera entity database operations."""

    model_class = Camera  # Required: set the model class

    # Add domain-specific methods
    async def get_by_folder_path(self, folder_path: str) -> Camera | None:
        """Find a camera by its upload folder path."""
        stmt = select(Camera).where(Camera.folder_path == folder_path)
        result = await self.session.execute(stmt)
        return result.scalar_one_or_none()

    async def get_online_cameras(self) -> Sequence[Camera]:
        """Get all cameras with status='online'."""
        return await self.get_by_status("online")

    async def get_by_status(self, status: str) -> Sequence[Camera]:
        """Get all cameras with a specific status."""
        stmt = select(Camera).where(Camera.status == status)
        result = await self.session.execute(stmt)
        return result.scalars().all()

    async def update_last_seen(self, camera_id: str) -> Camera | None:
        """Update a camera's last_seen_at timestamp."""
        camera = await self.get_by_id(camera_id)
        if camera is None:
            return None
        camera.last_seen_at = datetime.now(UTC)
        await self.session.flush()
        await self.session.refresh(camera)
        return camera

Usage Patterns¶

In API Routes (Dependency Injection)¶

from fastapi import APIRouter, Depends, HTTPException
from sqlalchemy.ext.asyncio import AsyncSession

from backend.core.database import get_db
from backend.repositories import CameraRepository

router = APIRouter()

@router.get("/cameras/{camera_id}")
async def get_camera(
    camera_id: str,
    db: AsyncSession = Depends(get_db),
):
    repo = CameraRepository(db)
    camera = await repo.get_by_id(camera_id)
    if not camera:
        raise HTTPException(status_code=404, detail="Camera not found")
    return camera

In Services (Context Manager)¶

from backend.core.database import get_session
from backend.repositories import EventRepository

async def process_unreviewed_events():
    async with get_session() as session:
        repo = EventRepository(session)
        unreviewed = await repo.get_unreviewed()

        for event in unreviewed:
            # Process each event
            await process_event(event)
            await repo.mark_reviewed(event.id, notes="Processed automatically")

Transaction Handling¶

Repositories work within the session's transaction context. Multiple repository operations share the same transaction:

async with get_session() as session:
    camera_repo = CameraRepository(session)
    event_repo = EventRepository(session)

    # Both operations in same transaction
    camera = await camera_repo.get_by_id("front_door")
    events = await event_repo.get_by_camera_id(camera.id)

    # Update both entities
    camera.status = "active"
    for event in events:
        event.reviewed = True

    # Session auto-commits on context exit (or rollbacks on error)

Paginated Queries¶

async def list_events_paginated(
    page: int = 1,
    per_page: int = 20,
    db: AsyncSession = Depends(get_db),
):
    repo = EventRepository(db)
    skip = (page - 1) * per_page
    events = await repo.list_paginated(skip=skip, limit=per_page)
    total = await repo.count()

    return {
        "events": events,
        "page": page,
        "per_page": per_page,
        "total": total,
        "pages": (total + per_page - 1) // per_page,
    }

Best Practices¶

Always use async methods - All repository methods are async for non-blocking I/O
Keep repositories thin - Domain logic belongs in services, not repositories
Use type hints - The generic Repository[T] provides full type inference
Encapsulate complex queries - Add custom methods for domain-specific queries:

async def get_high_risk_events(self, threshold: int = 70) -> Sequence[Event]:
    """Get events with risk score at or above threshold."""
    stmt = select(Event).where(Event.risk_score >= threshold)
    result = await self.session.execute(stmt)
    return result.scalars().all()

Handle None returns - Methods like get_by_id return None if not found
Use list_paginated() for large tables - Avoid loading all records with get_all()
Prefer exists() over get_by_id() for existence checks - More efficient

Result Type Pattern¶

Result Type Overview¶

The Result type pattern provides a structured way to represent operation outcomes that can either succeed with a value or fail with an error. Unlike exceptions that can propagate unexpectedly, Result types make success and failure states explicit in the type signature.

Result Type Implementation¶

Our codebase uses dataclass-based Result types for operations that can fail:

# backend/services/retry_handler.py
from dataclasses import dataclass
from typing import Any

@dataclass(slots=True)
class RetryResult:
    """Result of a retry operation."""

    success: bool
    result: Any = None
    error: str | None = None
    attempts: int = 0
    moved_to_dlq: bool = False

Key Characteristics:

success - Boolean indicating operation outcome
result - The actual value when successful
error - Error message when failed
Additional context fields as needed

Result Type Usage Examples¶

Creating Results¶

# Success case
def successful_operation() -> RetryResult:
    data = perform_operation()
    return RetryResult(
        success=True,
        result=data,
        attempts=1,
    )

# Failure case
def failed_operation() -> RetryResult:
    return RetryResult(
        success=False,
        error="Operation timed out after 3 attempts",
        attempts=3,
        moved_to_dlq=True,
    )

Consuming Results¶

async def process_with_retry(job_data: dict) -> None:
    handler = RetryHandler(redis_client)

    result = await handler.with_retry(
        operation=detect_objects,
        job_data=job_data,
        queue_name="detection_queue",
    )

    if result.success:
        # Handle successful result
        detections = result.result
        await save_detections(detections)
    else:
        # Handle failure
        logger.error(
            f"Detection failed: {result.error}",
            extra={
                "attempts": result.attempts,
                "moved_to_dlq": result.moved_to_dlq,
            }
        )

Domain-Specific Result Types¶

# backend/services/alert_dedup.py
@dataclass(slots=True)
class DedupResult:
    """Result of deduplication check."""

    is_duplicate: bool
    existing_alert: Alert | None = None
    seconds_until_cooldown_expires: int | None = None

    @property
    def existing_alert_id(self) -> str | None:
        """Get the ID of the existing alert if duplicate."""
        return self.existing_alert.id if self.existing_alert else None

# Usage
async def check_duplicate(dedup_key: str, cooldown_seconds: int = 300) -> DedupResult:
    """Check if an alert with the same dedup_key exists within cooldown."""
    cutoff_time = datetime.now(UTC) - timedelta(seconds=cooldown_seconds)

    # Query for existing alert within cooldown window
    stmt = (
        select(Alert)
        .where(Alert.dedup_key == dedup_key)
        .where(Alert.created_at >= cutoff_time)
        .order_by(Alert.created_at.desc())
        .limit(1)
    )
    result = await session.execute(stmt)
    existing_alert = result.scalar_one_or_none()

    if existing_alert:
        alert_age = (datetime.now(UTC) - existing_alert.created_at).total_seconds()
        seconds_remaining = max(0, int(cooldown_seconds - alert_age))
        return DedupResult(
            is_duplicate=True,
            existing_alert=existing_alert,
            seconds_until_cooldown_expires=seconds_remaining,
        )

    return DedupResult(is_duplicate=False)

When to Use Result Types¶

Use Result Types When	Use Exceptions When
Failure is expected and normal	Failure is exceptional and rare
Caller must handle failure	Error should propagate up the stack
Multiple failure modes exist	Single failure mode with HTTP mapping
Background job processing	Request/response API handling
Retry logic with state tracking	Simple pass/fail operations

Examples in Our Codebase:

RetryResult - Retry handler outcomes with attempt counts
DedupResult - Deduplication check with cooldown info
DeliveryResult - Notification delivery with per-channel status
EvaluationResult - Alert rule evaluation outcomes

RFC 7807 Problem Details¶

What Is RFC 7807¶

RFC 7807 "Problem Details for HTTP APIs" defines a standardized format for machine-readable error responses. It provides a consistent structure that clients can parse programmatically.

Key Benefits:

Standardized - Industry-standard format recognized by HTTP clients
Machine-Readable - Structured JSON that clients can parse
Extensible - Can add custom fields while remaining compliant
Self-Documenting - Includes URIs for problem type documentation

Our Implementation¶

Error responses use the application/problem+json media type with RFC 7807 structure:

# backend/api/schemas/problem_details.py
from pydantic import BaseModel, Field

class ProblemDetail(BaseModel):
    """RFC 7807 Problem Details object for API error responses."""

    type: str = Field(
        default="about:blank",
        description="A URI reference that identifies the problem type.",
    )

    title: str = Field(
        ...,
        description="A short, human-readable summary of the problem type.",
    )

    status: int = Field(
        ...,
        ge=100,
        le=599,
        description="The HTTP status code.",
    )

    detail: str = Field(
        ...,
        description="A human-readable explanation specific to this occurrence.",
    )

    instance: str | None = Field(
        default=None,
        description="A URI reference identifying the specific occurrence.",
    )

Error Response Format¶

Standard Error Response:

{
  "type": "about:blank",
  "title": "Not Found",
  "status": 404,
  "detail": "Camera 'front_door' does not exist",
  "instance": "/api/cameras/front_door"
}

Field Descriptions:

Field	Required	Description	Example
`type`	No	URI identifying problem type	`"about:blank"` or custom URI
`title`	Yes	Standard HTTP status phrase	`"Not Found"`
`status`	Yes	HTTP status code (100-599)	`404`
`detail`	Yes	Specific error message	`"Camera 'front_door' does not exist"`
`instance`	No	Request path or error ID	`"/api/cameras/front_door"`

Common Error Responses:

// 400 Bad Request
{
    "type": "about:blank",
    "title": "Bad Request",
    "status": 400,
    "detail": "The 'limit' parameter must be a positive integer",
    "instance": "/api/events"
}

// 401 Unauthorized
{
    "type": "about:blank",
    "title": "Unauthorized",
    "status": 401,
    "detail": "Missing or invalid API key",
    "instance": "/api/cameras"
}

// 409 Conflict
{
    "type": "about:blank",
    "title": "Conflict",
    "status": 409,
    "detail": "Camera with name 'Front Door' already exists",
    "instance": "/api/cameras"
}

// 503 Service Unavailable
{
    "type": "about:blank",
    "title": "Service Unavailable",
    "status": 503,
    "detail": "AI detection service is temporarily unavailable",
    "instance": "/api/detections"
}

Creating Custom Error Types¶

Using HTTPException¶

For simple cases, raise HTTPException which is automatically converted to RFC 7807:

from fastapi import HTTPException

@router.get("/cameras/{camera_id}")
async def get_camera(camera_id: str):
    camera = await repo.get_by_id(camera_id)
    if not camera:
        raise HTTPException(
            status_code=404,
            detail=f"Camera '{camera_id}' does not exist"
        )
    return camera

Using Custom Exceptions¶

For domain-specific errors with additional context:

# backend/core/exceptions.py
from typing import Any

class SecurityIntelligenceError(Exception):
    """Base exception for all application-specific errors."""

    default_message: str = "An unexpected error occurred"
    default_error_code: str = "INTERNAL_ERROR"
    default_status_code: int = 500

    def __init__(
        self,
        message: str | None = None,
        *,
        error_code: str | None = None,
        status_code: int | None = None,
        details: dict[str, Any] | None = None,
    ) -> None:
        self.message = message or self.default_message
        self.error_code = error_code or self.default_error_code
        self.status_code = status_code or self.default_status_code
        self.details = details or {}
        super().__init__(self.message)


class CameraNotFoundError(SecurityIntelligenceError):
    """Raised when a camera is not found."""

    default_error_code = "CAMERA_NOT_FOUND"
    default_status_code = 404

    def __init__(self, camera_id: str, **kwargs: Any) -> None:
        message = f"Camera with id '{camera_id}' not found"
        details = kwargs.pop("details", {}) or {}
        details["camera_id"] = camera_id
        super().__init__(message, details=details, **kwargs)

Exception Hierarchy¶

Our exception hierarchy maps directly to HTTP status codes:

SecurityIntelligenceError (base)
│
├── ValidationError (400)
│   ├── InvalidInputError
│   ├── DateRangeValidationError
│   └── BoundingBoxValidationError
│
├── AuthenticationError (401)
├── AuthorizationError (403)
│
├── NotFoundError (404)
│   ├── CameraNotFoundError
│   ├── EventNotFoundError
│   ├── DetectionNotFoundError
│   └── MediaNotFoundError
│
├── ConflictError (409)
│   ├── DuplicateResourceError
│   └── PromptVersionConflictError
│
├── RateLimitError (429)
│
├── ExternalServiceError (503)
│   ├── AIServiceError
│   │   ├── DetectorUnavailableError
│   │   ├── AnalyzerUnavailableError
│   │   └── EnrichmentUnavailableError
│   ├── DatabaseError
│   ├── CacheError
│   └── CircuitBreakerOpenError
│
└── InternalError (500)
    ├── ConfigurationError
    └── ProcessingError

Exception Handler Registration¶

Exception handlers are registered in backend/api/exception_handlers.py:

def register_exception_handlers(app: FastAPI) -> None:
    """Register all exception handlers with the FastAPI application."""

    # Standard HTTP exceptions - RFC 7807 format
    app.add_exception_handler(
        StarletteHTTPException,
        problem_details_exception_handler,
    )

    # Application-specific exceptions
    app.add_exception_handler(
        SecurityIntelligenceError,
        security_intelligence_exception_handler,
    )

    # Database errors
    app.add_exception_handler(SQLAlchemyError, sqlalchemy_exception_handler)

    # Redis errors
    app.add_exception_handler(RedisError, redis_exception_handler)

    # Catch-all for unhandled exceptions
    app.add_exception_handler(Exception, generic_exception_handler)

Using Custom Exceptions in Routes¶

from backend.core.exceptions import (
    CameraNotFoundError,
    DetectorUnavailableError,
    ValidationError,
)

@router.get("/cameras/{camera_id}")
async def get_camera(camera_id: str, db: AsyncSession = Depends(get_db)):
    repo = CameraRepository(db)
    camera = await repo.get_by_id(camera_id)

    if not camera:
        raise CameraNotFoundError(camera_id)

    return camera


@router.post("/detect")
async def detect_objects(image_path: str):
    if not image_path.startswith("/export/foscam/"):
        raise ValidationError(
            "Invalid image path",
            details={"path": image_path, "constraint": "Must be under /export/foscam/"}
        )

    try:
        result = await detector_client.detect(image_path)
    except TimeoutError as e:
        raise DetectorUnavailableError(
            "Detection timed out after 30 seconds",
            original_error=e,
        )

    return result

Backend Architecture - System design overview
Data Model Reference - Database schema documentation
Testing Guide - Testing patterns and fixtures
API Reference - REST API documentation

Quick Reference¶

Repository Pattern¶

# Define repository
class MyRepository(Repository[MyModel]):
    model_class = MyModel

# Use in route
repo = MyRepository(session)
entity = await repo.get_by_id(id)

Result Type¶

# Define result type
@dataclass
class MyResult:
    success: bool
    value: Any = None
    error: str | None = None

# Return result
return MyResult(success=True, value=data)

RFC 7807 Error¶

# Raise HTTP exception (auto-converted to RFC 7807)
raise HTTPException(status_code=404, detail="Not found")

# Raise custom exception
raise CameraNotFoundError(camera_id)

Backend Architecture Patterns¶

Architecture Diagrams¶

Table of Contents¶

Repository Pattern¶

What It Is¶

Why We Use It¶

Architecture Overview¶

Base Repository Class¶

Creating Domain Repositories¶

Usage Patterns¶

In API Routes (Dependency Injection)¶

In Services (Context Manager)¶

Transaction Handling¶

Paginated Queries¶

Best Practices¶

Result Type Pattern¶

Result Type Overview¶

Result Type Implementation¶

Result Type Usage Examples¶

Creating Results¶

Consuming Results¶

Domain-Specific Result Types¶

When to Use Result Types¶

RFC 7807 Problem Details¶

What Is RFC 7807¶

Our Implementation¶

Error Response Format¶

Creating Custom Error Types¶

Using HTTPException¶

Using Custom Exceptions¶

Exception Hierarchy¶

Exception Handler Registration¶

Using Custom Exceptions in Routes¶

Related Documentation¶

Quick Reference¶

Repository Pattern¶

Result Type¶

RFC 7807 Error¶
