Batching Logic¶

How detections are grouped before LLM analysis.

Time to read: ~8 min Prerequisites: Detection Service

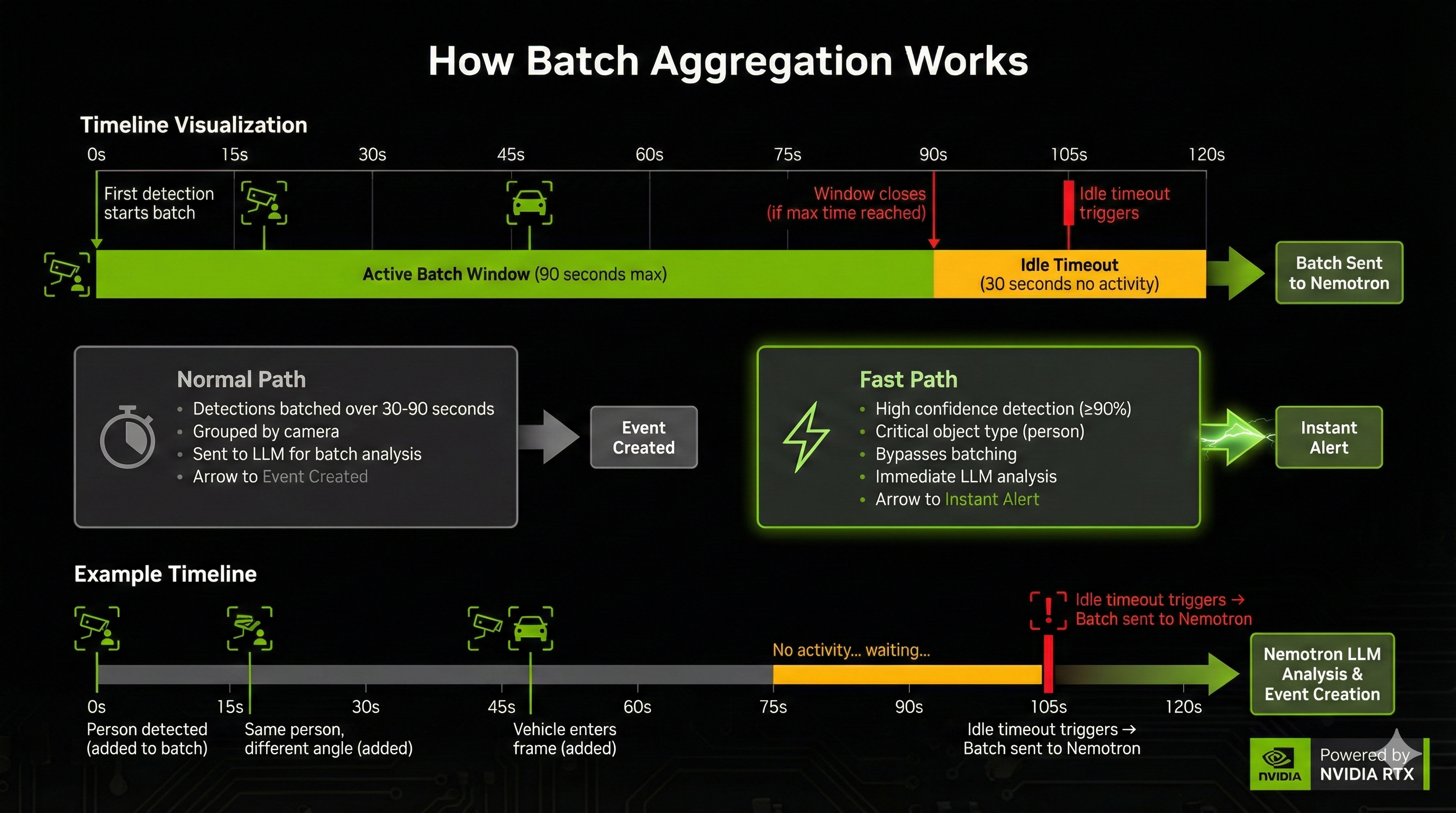

Batch aggregator flow diagram showing the detection batching lifecycle: new detections arriving trigger batch creation or addition, the 90-second window timeout and 30-second idle timeout conditions, fast-path bypass for high-confidence person detections, and the final batch closure pushing jobs to the analysis queue

Why We Batch¶

Better LLM Context: A "person approaching door" event might span 30 seconds across 15 images. Analyzing together gives full context.
Reduced Noise: Individual frame detections can be noisy. Batching smooths false positives.
Efficiency: One LLM call for 10 detections is more efficient than 10 separate calls.
Meaningful Events: Users want "Person at front door for 45 seconds" not "15 separate person detections."

Source Files¶

/backend/services/batch_aggregator.py - Batch management
/backend/services/pipeline_workers.py - BatchTimeoutWorker

Batch Lifecycle¶

No Active Batch
      |
      | First detection arrives
      v
  Batch Active (collecting)
      |
      +-- Detection added --> Update last_activity
      |
      +-- Window timeout (90s from start) --> Close
      |
      +-- Idle timeout (30s no activity) --> Close
      |
      +-- Force close (API call) --> Close
      v
  Batch Closed
      |
      | Push to analysis_queue
      | Cleanup Redis keys
      v
  Event Created

Timing Parameters¶

Parameter	Default	Environment Variable
Window timeout	90s	`BATCH_WINDOW_SECONDS`
Idle timeout	30s	`BATCH_IDLE_TIMEOUT_SECONDS`
Check interval	10s	(hardcoded)

Redis Key Structure¶

All batch keys have a 1-hour TTL for orphan cleanup:

batch:{camera_id}:current       -> batch_id (string)
batch:{batch_id}:camera_id      -> camera_id (string)
batch:{batch_id}:detections     -> ["det_1", "det_2", ...] (JSON array)
batch:{batch_id}:started_at     -> 1703764800.123 (Unix timestamp)
batch:{batch_id}:last_activity  -> 1703764845.456 (Unix timestamp)

Adding a Detection¶

When add_detection() is called:

Check if batch exists for camera
If no batch: Create new with UUID, set started_at and last_activity
If batch exists: Append detection_id, update last_activity
Check for fast-path eligibility

async def add_detection(
    self,
    camera_id: str,
    detection_id: int,
    confidence: float,
    object_type: str
) -> str | None:
    """Add detection to batch. Returns batch_id or fast_path_id."""
    # Fast path check
    if self._is_fast_path_eligible(confidence, object_type):
        return await self._process_fast_path(detection_id)

    # Get or create batch
    batch_id = await self._get_or_create_batch(camera_id)

    # Add detection to batch
    await self._add_to_batch(batch_id, detection_id)

    return batch_id

Fast Path¶

High-confidence detections of critical object types bypass batching:

Eligibility Criteria¶

def _is_fast_path_eligible(self, confidence: float, object_type: str) -> bool:
    return (
        confidence >= self.fast_path_confidence_threshold
        and object_type in self.fast_path_object_types
    )

Default configuration:

Confidence threshold: 0.90
Object types: ["person"]

Fast Path Flow¶

Detection arrives
      |
      v
confidence >= 0.90 AND object_type == "person"?
      |
      +-- Yes --> FAST PATH
      |             |
      |             v
      |       Immediate LLM analysis
      |             |
      |             v
      |       Create Event (is_fast_path=true)
      |             |
      |             v
      |       WebSocket broadcast
      |
      +-- No --> Normal batching

Latency: Fast path events complete in ~3-6 seconds vs. 30-90 seconds for normal path.

Batch Timeout Check¶

The BatchTimeoutWorker runs every 10 seconds:

async def check_batch_timeouts(self):
    """Check all active batches for timeout conditions."""
    now = time.time()

    for camera_id in await self._get_active_cameras():
        batch_id = await self._get_current_batch(camera_id)
        if not batch_id:
            continue

        started_at = await self._get_batch_started_at(batch_id)
        last_activity = await self._get_batch_last_activity(batch_id)

        # Window timeout: 90s from batch start
        if now - started_at >= self.batch_window_seconds:
            await self._close_batch(batch_id, "window_timeout")

        # Idle timeout: 30s since last detection
        elif now - last_activity >= self.batch_idle_timeout_seconds:
            await self._close_batch(batch_id, "idle_timeout")

Closing a Batch¶

When a batch closes:

Get all detection IDs from Redis
Push job to analysis_queue
Clear Redis keys
Log batch closure reason

async def _close_batch(self, batch_id: str, reason: str):
    """Close batch and queue for analysis."""
    camera_id = await self._get_batch_camera_id(batch_id)
    detection_ids = await self._get_batch_detection_ids(batch_id)

    job = {
        "batch_id": batch_id,
        "camera_id": camera_id,
        "detection_ids": detection_ids,
        "timestamp": time.time(),
        "close_reason": reason
    }

    await self.redis.lpush("analysis_queue", json.dumps(job))
    await self._cleanup_batch_keys(batch_id, camera_id)

Analysis Queue Format¶

{
  "batch_id": "a3f9c8b2d1e4f5g6h7i8j9k0",
  "camera_id": "front_door",
  "detection_ids": ["1", "2", "3", "4", "5"],
  "timestamp": 1703764890.123,
  "close_reason": "idle_timeout"
}

Configuration¶

Variable	Default	Description
`BATCH_WINDOW_SECONDS`	90	Maximum batch duration
`BATCH_IDLE_TIMEOUT_SECONDS`	30	Close if no activity
`FAST_PATH_CONFIDENCE_THRESHOLD`	0.90	Fast path threshold
`FAST_PATH_OBJECT_TYPES`	["person"]	Fast path object types

Next Steps¶

Risk Analysis - LLM processing and scoring
Pipeline Overview - Full pipeline flow
