Risk Analysis

NVIDIA Nemotron LLM integration for risk scoring and event generation.

Time to read: ~15 min Prerequisites: Batching Logic

What NVIDIA Nemotron Does

NVIDIA Nemotron analyzes batched detections and generates:

  1. Risk score (0-100)
  2. Risk level (low/medium/high/critical)
  3. Human-readable summary
  4. Detailed reasoning explanation
  5. Entity-level threat assessments (with enrichment)
  6. Recommended actions

Model Options

Deployment Model File VRAM Context
Production NVIDIA Nemotron-3-Nano-30B-A3B Nemotron-3-Nano-30B-A3B-Q4_K_M.gguf ~14.7 GB 131,072
Development Nemotron Mini 4B Instruct nemotron-mini-4b-instruct-q4_k_m.gguf ~3 GB 4,096

Source Files

  • /ai/nemotron/AGENTS.md - Comprehensive NVIDIA Nemotron documentation
  • /ai/nemotron/ - Model files and configuration
  • /backend/services/nemotron_analyzer.py - Analysis service
  • /backend/services/prompts.py - Prompt templates (5 tiers)

Analysis Flow

Batch closed
      |
      v
Load detection details from DB
      |
      v
Format prompt with context
      |
      v
Call Nemotron /completion
      |
      v
Parse JSON response
      |
      v
Validate and normalize
      |
      v
Create Event record
      |
      v
Broadcast via WebSocket

Prompt Engineering

ChatML Format

NVIDIA Nemotron uses ChatML format with special delimiters. All prompts follow this structure:

<|im_start|>system
{system message}
<|im_end|>
<|im_start|>user
{user message with detection context}
<|im_end|>
<|im_start|>assistant
{model response begins here}

Stop Tokens: ["<|im_end|>", "<|im_start|>"] - Model stops at these tokens.

Prompt Templates (5 Tiers)

The backend automatically selects the appropriate prompt based on available enrichment data:

Template Constant Name When Used
Basic RISK_ANALYSIS_PROMPT Fallback when no enrichment available
Enriched ENRICHED_RISK_ANALYSIS_PROMPT Zone/baseline/cross-camera context available
Full Enriched FULL_ENRICHED_RISK_ANALYSIS_PROMPT Enriched + license plates/faces from pipeline
Vision VISION_ENHANCED_RISK_ANALYSIS_PROMPT Florence-2 extraction + context enrichment
Model Zoo MODEL_ZOO_ENHANCED_RISK_ANALYSIS_PROMPT Full model zoo (violence, weather, clothing, etc.)

Prompt Template Selection Decision Tree

flowchart TD
    A[Start: Select Prompt Template] --> B{Model Zoo<br>enrichment available?}
    B -->|Yes| C[MODEL_ZOO_ENHANCED_RISK_ANALYSIS_PROMPT]
    B -->|No| D{Florence-2 vision<br>attributes available?}
    D -->|Yes| E[VISION_ENHANCED_RISK_ANALYSIS_PROMPT]
    D -->|No| F{License plates or<br>faces detected?}
    F -->|Yes| G[FULL_ENRICHED_RISK_ANALYSIS_PROMPT]
    F -->|No| H{Zone/baseline/cross-camera<br>context available?}
    H -->|Yes| I[ENRICHED_RISK_ANALYSIS_PROMPT]
    H -->|No| J[RISK_ANALYSIS_PROMPT<br>Basic Fallback]

    style C fill:#76B900,color:#000
    style E fill:#76B900,color:#000
    style G fill:#76B900,color:#000
    style I fill:#76B900,color:#000
    style J fill:#F59E0B,color:#000

Basic Prompt (Fallback)

Used when enrichment services are unavailable:

RISK_ANALYSIS_PROMPT = """<|im_start|>system
You are a home security risk analyzer.
IMPORTANT: Output ONLY a valid JSON object...<|im_end|>
<|im_start|>user
Analyze these detections and output a JSON risk assessment.

Camera: {camera_name}
Time: {start_time} to {end_time}
Detections:
{detections_list}

Risk levels: low (0-29), medium (30-59), high (60-84), critical (85-100)

Output JSON:
{{"risk_score": N, "risk_level": "level", "summary": "text", "reasoning": "text"}}<|im_end|>
<|im_start|>assistant
"""

Enriched Prompt

Adds contextual intelligence:

  • Zone Analysis: Entry points, high-security areas
  • Baseline Comparison: Expected vs. actual activity patterns
  • Deviation Score: 0 (normal) to 1 (highly unusual)
  • Cross-Camera Correlation: Activity seen on other cameras

Full Enriched Prompt

All enriched context plus vision pipeline results:

  • License Plates: Known vs. unknown vehicles
  • Face Detections: Presence of identifiable faces
  • OCR Text: Text recognized in images

Vision Enhanced Prompt

Florence-2 vision-language model attributes:

  • Person Attributes: Clothing, carrying items, actions
  • Vehicle Attributes: Color, type, commercial markings
  • Re-Identification Context: Track entities across cameras
  • Scene Analysis: Environment description
  • Service Worker Detection: Lower risk for delivery/utility workers

Model Zoo Enhanced Prompt

Comprehensive enrichment from full model zoo:

  • Violence Detection: ViT violence classifier alerts
  • Weather Context: Visibility and weather conditions
  • Clothing Analysis: FashionCLIP + SegFormer (suspicious attire, face coverings)
  • Vehicle Classification: Type, commercial status, damage
  • Pet Detection: False positive filtering for household pets
  • Pose Analysis: Crouching, running, lying detection
  • Action Recognition: Security-relevant behaviors
  • Image Quality: Blur, noise, tampering indicators

Context Provided to LLM

Depending on the prompt template selected, NVIDIA Nemotron receives:

Basic Context:

  1. Camera Name: Human-readable identifier (e.g., "front_door")
  2. Time Window: ISO format timestamps
  3. Detection List: Timestamps, object types, confidence scores

Enriched Context Additions: 4. Day of Week: Weekday/weekend patterns 5. Zone Analysis: Which security zones triggered 6. Baseline Comparison: Historical activity patterns 7. Deviation Score: Statistical anomaly measure 8. Cross-Camera Activity: Correlated detections

Vision Context Additions: 9. Detailed Attributes: Per-detection clothing, colors, actions 10. Re-ID Context: Entity tracking across cameras 11. Scene Analysis: Environment and lighting description

Model Zoo Context Additions: 12. Violence Alerts: Explicit violence detection flags 13. Weather/Visibility: Environmental conditions 14. Clothing Segmentation: Face covering detection 15. Vehicle Damage: Security-relevant vehicle damage 16. Pet Classifications: False positive filtering

API Call

Endpoint: POST http://localhost:8091/completion

Request:

{
  "prompt": "<ChatML formatted prompt>",
  "temperature": 0.7,
  "top_p": 0.95,
  "max_tokens": 1536,
  "stop": ["<|im_end|>", "<|im_start|>"]
}

Response:

{
  "content": "<think>Analyzing detections...</think>{\"risk_score\": 65, ...}",
  "model": "Nemotron-3-Nano-30B-A3B-Q4_K_M.gguf",
  "tokens_predicted": 287,
  "tokens_evaluated": 1245
}

Note: NVIDIA Nemotron-3-Nano outputs <think>...</think> reasoning blocks before the JSON response. The backend strips these before parsing.

Output Format

The LLM produces JSON:

{
  "risk_score": 65,
  "risk_level": "high",
  "summary": "Unknown person detected approaching front door at night",
  "reasoning": "Single person detection at 2:15 AM is unusual.
               The person appeared to be approaching the entrance.
               Time of day and approach pattern warrant elevated concern."
}

Risk Level Mapping

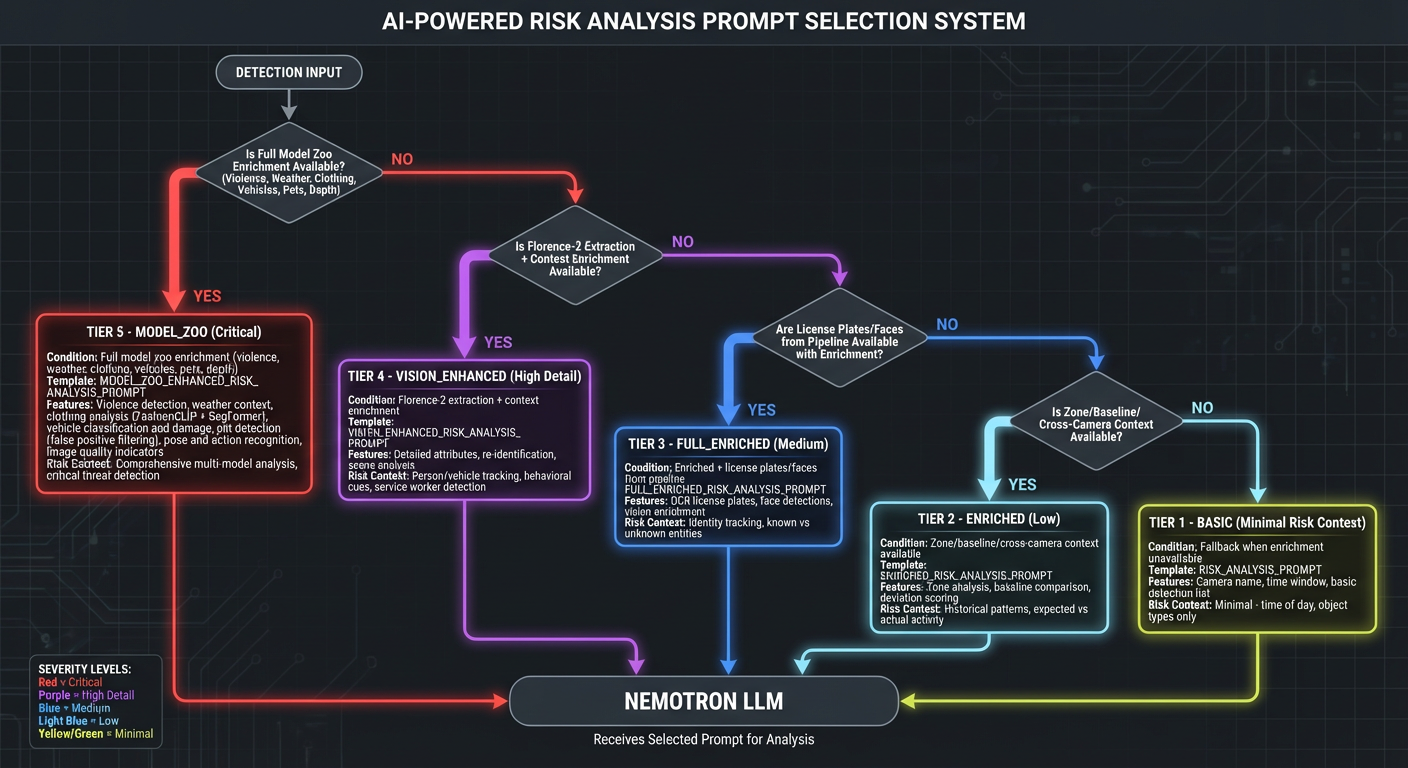

Risk Analysis Decision Tree

Decision tree diagram showing how the LLM analyzes detection context to determine risk scores and levels.

Score Range Level Description
0-29 low Normal activity, no concern
30-59 medium Unusual but not threatening
60-84 high Suspicious, needs attention
85-100 critical Potential threat, immediate action

Risk Level State Diagram

stateDiagram-v2
    direction LR

    [*] --> LOW: score 0-29
    [*] --> MEDIUM: score 30-59
    [*] --> HIGH: score 60-84
    [*] --> CRITICAL: score 85-100

    state LOW {
        note right of LOW
            Normal activity
            No concern
            No alert triggered
        end note
    }

    state MEDIUM {
        note right of MEDIUM
            Unusual activity
            Not threatening
            Optional notification
        end note
    }

    state HIGH {
        note right of HIGH
            Suspicious activity
            Needs attention
            Alert triggered
        end note
    }

    state CRITICAL {
        note right of CRITICAL
            Potential threat
            Immediate action
            Priority alert
        end note
    }

    LOW --> [*]: Event processed
    MEDIUM --> [*]: Event processed
    HIGH --> [*]: Event processed
    CRITICAL --> [*]: Event processed

Validation and Normalization

The _validate_risk_data() method ensures valid output:

def _validate_risk_data(self, data: dict) -> dict:
    # Validate risk_score (0-100, integer)
    risk_score = data.get("risk_score", 50)
    risk_score = max(0, min(100, int(risk_score)))

    # Validate risk_level
    valid_levels = ["low", "medium", "high", "critical"]
    risk_level = str(data.get("risk_level", "medium")).lower()

    if risk_level not in valid_levels:
        # Infer from risk_score
        if risk_score < 30:
            risk_level = "low"
        elif risk_score < 60:
            risk_level = "medium"
        elif risk_score < 85:
            risk_level = "high"
        else:
            risk_level = "critical"

    return {
        "risk_score": risk_score,
        "risk_level": risk_level,
        "summary": data.get("summary", "Risk analysis completed"),
        "reasoning": data.get("reasoning", "No detailed reasoning provided"),
    }

JSON Extraction

LLM output may contain extra text. The analyzer extracts JSON using regex:

json_pattern = r"\{[^{}]*(?:\{[^{}]*\}[^{}]*)*\}"
matches = re.findall(json_pattern, text, re.DOTALL)

Fallback Behavior

When LLM analysis fails, default values are used:

{
    "risk_score": 50,
    "risk_level": "medium",
    "summary": "Analysis unavailable - LLM service error",
    "reasoning": "Failed to analyze detections due to service error"
}

Error Handling

Error Response Recovery
Batch not found Raise ValueError Skip batch
Nemotron unreachable Use fallback Event created
Nemotron timeout (60s) Use fallback Event created
Invalid LLM JSON Use fallback Event created

Performance

Metric Production (30B) Development (4B)
Inference time 2-5 seconds per batch 1-3 seconds per batch
Token generation ~50-100 tokens/second ~100-200 tokens/second
Context processing ~1000 tokens/second ~2000 tokens/second
Concurrent requests 1-2 (configured) 2-4 (configurable)
VRAM usage ~14.7 GB ~3 GB
Context window 131,072 tokens (128K) 4,096 tokens

The production 30B model enables analyzing significantly more context (hours of detection history vs. minutes with 4B).

Event Database Model

CREATE TABLE events (
    id SERIAL PRIMARY KEY,
    batch_id VARCHAR NOT NULL,
    camera_id VARCHAR NOT NULL,
    started_at TIMESTAMP NOT NULL,
    ended_at TIMESTAMP NOT NULL,
    risk_score INTEGER NOT NULL,
    risk_level VARCHAR NOT NULL,
    summary TEXT,
    reasoning TEXT,
    detection_ids TEXT,  -- JSON array
    reviewed BOOLEAN DEFAULT FALSE,
    notes TEXT,
    is_fast_path BOOLEAN DEFAULT FALSE
);

WebSocket Broadcast

After event creation, broadcast to all connected clients:

await self.broadcaster.broadcast_event({
    "type": "new_event",
    "event": event.to_dict()
})

Clients receive:

{
  "type": "new_event",
  "event": {
    "id": 42,
    "camera_id": "front_door",
    "risk_score": 65,
    "risk_level": "high",
    "summary": "Unknown person detected...",
    "started_at": "2025-12-28T14:30:00",
    "ended_at": "2025-12-28T14:31:30"
  }
}
