Zone Configuration Guide¶

Complete guide to configuring and using detection zones for focused security monitoring.

Overview¶

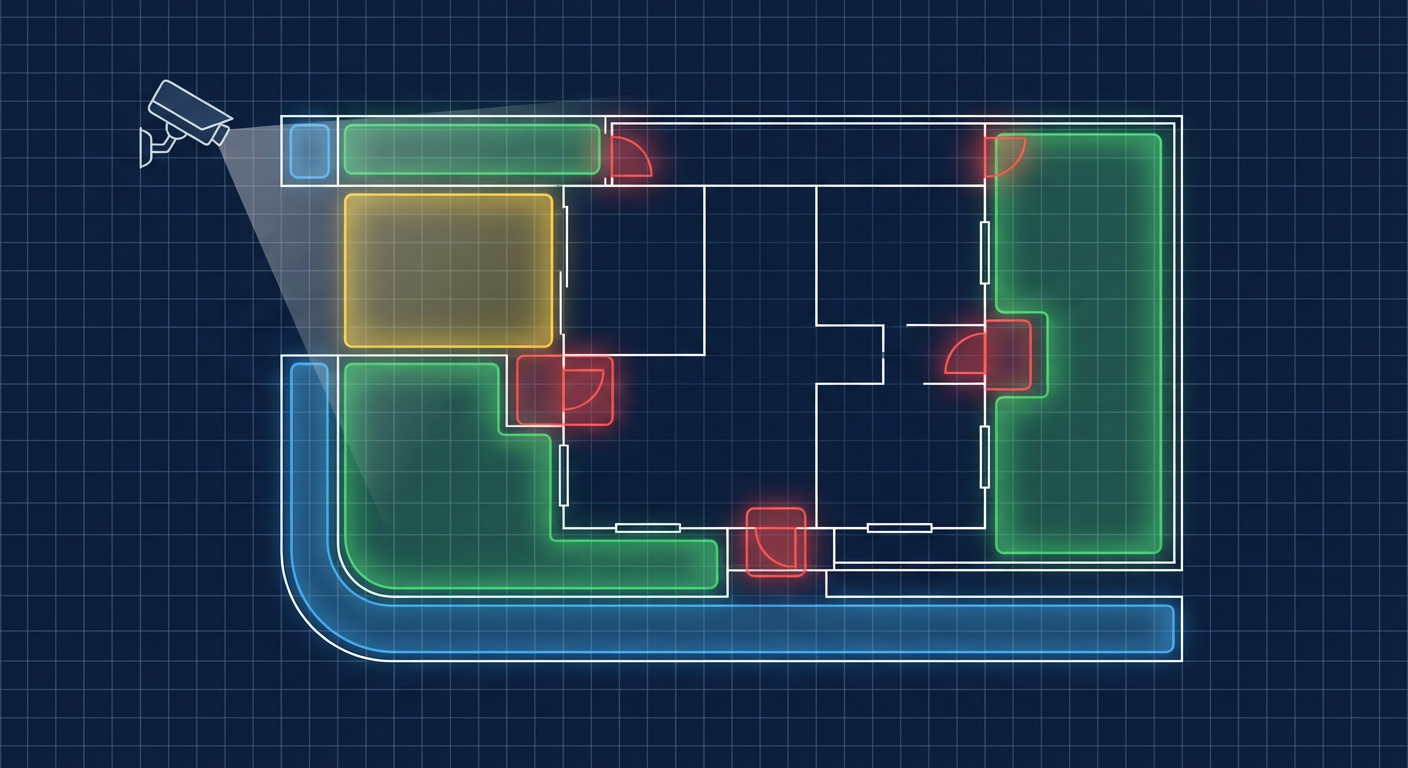

Detection zones allow you to define specific regions within camera views for targeted AI analysis. Instead of processing the entire frame equally, zones help the AI prioritize activity in designated areas like entry points, driveways, and restricted areas.

Benefits of Using Zones¶

Zone Types¶

Each zone has a type that affects AI behavior and alert prioritization:

Note: These are CameraZone types. PolygonZone (analytics zones) uses a different set of types: monitored, excluded, restricted.

Zone Types Comparison¶

The system uses two distinct zone models. CameraZone provides semantic labels for risk context (stored in the camera_zones table), while PolygonZone defines geometric regions for dwell time and crossing analytics (stored in the analytics_zone table).

flowchart LR
    subgraph CZ["CameraZone<br/>(camera_zones table)"]
        direction TB
        CZ1[entry_point]
        CZ2[driveway]
        CZ3[sidewalk]
        CZ4[yard]
        CZ5[other]
    end
    subgraph PZ["PolygonZone<br/>(analytics_zone table)"]
        direction TB
        PZ1[monitored]
        PZ2[excluded]
        PZ3[restricted]
    end
    CZ -->|"Semantic labeling<br/>for risk context"| RISK[Risk Scoring]
    PZ -->|"Geometric regions<br/>for dwell/crossing analytics"| ANALYTICS[Zone Analytics]

Zone Type Decision Tree¶

%%{init: {
  'theme': 'dark',
  'themeVariables': {
    'primaryColor': '#3B82F6',
    'primaryTextColor': '#FFFFFF',
    'primaryBorderColor': '#60A5FA',
    'secondaryColor': '#A855F7',
    'tertiaryColor': '#009688',
    'background': '#121212',
    'mainBkg': '#1a1a2e',
    'lineColor': '#666666'
  }
}}%%
flowchart TD
    START["What is the primary<br/>purpose of this area?"]

    START --> ENTRY{"Entry/Exit<br/>to property?"}
    START --> DRIVE{"Vehicle<br/>access?"}
    START --> WALK{"Pedestrian<br/>path?"}
    START --> YARD_Q{"Yard/lawn<br/>area?"}
    START --> OTHER["None of<br/>the above"]

    ENTRY --> EP1[entry_point]
    DRIVE --> DW[driveway]
    WALK --> SW[sidewalk]
    YARD_Q --> YD[yard]
    OTHER --> OTH[other]

    style EP1 fill:#EF4444,color:#fff
    style DW fill:#F97316,color:#fff
    style SW fill:#3B82F6,color:#fff
    style YD fill:#22C55E,color:#fff
    style OTH fill:#6B7280,color:#fff

Creating Zones¶

Using the Zone Editor¶

1. Navigate to Settings > Cameras
2. Click the map pin icon on the camera card
3. The Zone Editor opens with camera snapshot

Drawing Rectangle Zones (Recommended)¶

Best for most use cases:

1. Click the Rectangle button in the toolbar
2. Click and hold at one corner
3. Drag to the opposite corner
4. Release to complete
5. Configure zone settings in the form

Drawing Polygon Zones¶

For irregular areas:

1. Click the Polygon button
2. Click to place each vertex point
3. Continue clicking to add points
4. Double-click to close the shape
5. Configure zone settings

Zone Form Settings¶

Priority Guidelines¶

Zone Intelligence Features¶

Dwell Time Tracking¶

The system tracks how long objects remain in zones:

%%{init: {
  'theme': 'dark',
  'themeVariables': {
    'primaryColor': '#3B82F6',
    'primaryTextColor': '#FFFFFF',
    'primaryBorderColor': '#60A5FA',
    'secondaryColor': '#A855F7',
    'tertiaryColor': '#009688',
    'background': '#121212',
    'mainBkg': '#1a1a2e',
    'lineColor': '#666666'
  }
}}%%
flowchart LR
    ENTER["Detection<br/>enters zone"]
    TIMER["Timer<br/>starts"]
    LEAVE["Detection<br/>leaves zone"]
    RECORD["Dwell time<br/>recorded"]
    ALERT{"Dwell<br/>threshold?"}
    NORMAL["Normal<br/>activity"]
    EXTENDED["Extended<br/>dwell alert"]
    PROLONGED["Prolonged<br/>dwell alert"]

    ENTER --> TIMER
    TIMER --> LEAVE
    LEAVE --> RECORD
    RECORD --> ALERT
    ALERT -->|"< 2x baseline"| NORMAL
    ALERT -->|"2-5x baseline"| EXTENDED
    ALERT -->|"> 5x baseline"| PROLONGED

    style NORMAL fill:#22C55E,color:#fff
    style EXTENDED fill:#F59E0B,color:#fff
    style PROLONGED fill:#EF4444,color:#fff

Dwell Time Alerts:

• Normal dwell: No alert
• Extended dwell (2x baseline): Medium alert
• Prolonged dwell (5x baseline): High alert

Configuration:

{
  "dwell_threshold_seconds": 30,
  "extended_dwell_multiplier": 2.0,
  "prolonged_dwell_multiplier": 5.0
}

Line Crossing Detection¶

Detects when objects cross zone boundaries:

WebSocket Events:

{
  "type": "zone.entered",
  "data": {
    "zone_id": "uuid",
    "zone_name": "Front Door",
    "zone_type": "entry_point",
    "entity_type": "person",
    "timestamp": "2026-01-26T14:30:00Z"
  }
}

Approach Vector Calculation¶

The system calculates if objects are approaching zones:

{
  "is_approaching": true,
  "direction_degrees": 45.0,
  "speed_normalized": 0.02,
  "distance_to_zone": 0.15,
  "estimated_arrival_seconds": 7.5
}

Direction Convention:

• 0 degrees = Moving up (toward top of frame)
• 90 degrees = Moving right
• 180 degrees = Moving down
• 270 degrees = Moving left

Household Integration¶

Zone Ownership¶

Assign zones to household members:

{
  "zone_id": "uuid",
  "owner_id": "member-uuid",
  "allowed_member_ids": ["member-1", "member-2"],
  "allowed_vehicle_ids": ["vehicle-1"]
}

Owner Benefits:

• Receives all notifications for this zone
• Can customize zone-specific alert settings
• Visual badge shows owner avatar

Trust Configuration¶

Configure who triggers alerts in which zones:

Trust Matrix Example:

                    | Driveway | Front Door | Backyard | Garage |
--------------------|----------|------------|----------|--------|
Family (full trust) |    OK    |     OK     |    OK    |   OK   |
Service (partial)   |    OK    |     OK     | 9-5 only |  ALERT |
Unknown             |  ALERT   |   ALERT    |  ALERT   | ALERT  |

Schedule-Based Access¶

Configure time-based trust rules:

{
  "member_ids": ["service-worker-1"],
  "schedule": {
    "days": ["monday", "tuesday", "wednesday", "thursday", "friday"],
    "start_time": "09:00",
    "end_time": "17:00",
    "timezone": "America/New_York"
  }
}

Zone API Reference¶

List Zones¶

GET /api/cameras/{camera_id}/zones

Query Parameters:

Response:

{
  "zones": [
    {
      "id": "uuid",
      "camera_id": "front_door",
      "name": "Front Porch",
      "zone_type": "entry_point",
      "shape": "rectangle",
      "coordinates": [
        [0.1, 0.2],
        [0.9, 0.2],
        [0.9, 0.8],
        [0.1, 0.8]
      ],
      "color": "#EF4444",
      "priority": 90,
      "enabled": true,
      "created_at": "2026-01-15T10:00:00Z"
    }
  ]
}

Create Zone¶

POST /api/cameras/{camera_id}/zones
Content-Type: application/json

{
  "name": "Front Porch",
  "zone_type": "entry_point",
  "shape": "rectangle",
  "coordinates": [[0.1, 0.2], [0.9, 0.2], [0.9, 0.8], [0.1, 0.8]],
  "color": "#EF4444",
  "priority": 90,
  "enabled": true
}

Update Zone¶

PUT /api/cameras/{camera_id}/zones/{zone_id}
Content-Type: application/json

{
  "name": "Updated Name",
  "priority": 95
}

Delete Zone¶

DELETE /api/cameras/{camera_id}/zones/{zone_id}

Zone Household Config¶

# Get household config for zone
GET /api/zones/{zone_id}/household

# Update household config
PUT /api/zones/{zone_id}/household
{
  "owner_id": "member-uuid",
  "allowed_member_ids": ["member-1", "member-2"]
}

Zone Baseline API¶

Note: The Zone Baseline API is not yet implemented. The database model (zone_activity_baselines table) exists, but the REST API endpoints are planned for a future release. See NEM-4064 for tracking.

Get Zone Baseline (Planned)¶

GET /api/zones/{zone_id}/baseline

Planned Response:

{
  "zone_id": "uuid",
  "hourly_pattern": [2, 1, 0, 0, 0, 1, 5, 12, 15, 10, 8, 7, ...],
  "day_of_week_pattern": [45, 52, 48, 50, 55, 62, 58],
  "typical_dwell_time": 15.5,
  "typical_crossing_rate": 4.2,
  "baseline_computed_at": "2026-01-25T00:00:00Z"
}

Zone Anomalies (Planned)¶

GET /api/zones/{zone_id}/anomalies
?start_date=2026-01-20&end_date=2026-01-26

Response:

{
  "anomalies": [
    {
      "type": "unusual_time",
      "zone_id": "uuid",
      "deviation": 3.2,
      "description": "Activity at 3:14am - typically no activity 1-6am",
      "detected_at": "2026-01-25T03:14:00Z"
    }
  ]
}

Coordinate System¶

Zones use normalized coordinates (0.0 to 1.0):

%%{init: {
  'theme': 'dark',
  'themeVariables': {
    'primaryColor': '#3B82F6',
    'primaryTextColor': '#FFFFFF',
    'primaryBorderColor': '#60A5FA',
    'background': '#121212',
    'mainBkg': '#1a1a2e'
  }
}}%%
graph TD
    subgraph Frame["Camera Frame (Normalized)"]
        TL["(0.0, 0.0)<br/>Top Left"]
        TR["(1.0, 0.0)<br/>Top Right"]
        CTR["(0.5, 0.5)<br/>Center"]
        BL["(0.0, 1.0)<br/>Bottom Left"]
        BR["(1.0, 1.0)<br/>Bottom Right"]
    end

    TL --- TR
    TL --- BL
    TR --- BR
    BL --- BR
    TL -.-> CTR
    TR -.-> CTR
    BL -.-> CTR
    BR -.-> CTR

    style TL fill:#3B82F6,color:#fff
    style TR fill:#3B82F6,color:#fff
    style BL fill:#3B82F6,color:#fff
    style BR fill:#3B82F6,color:#fff
    style CTR fill:#A855F7,color:#fff

Why Normalized?

Zones work regardless of camera resolution. A zone at (0.2, 0.3) to (0.8, 0.7) covers the same relative area whether your camera is 720p or 4K.

Coordinate Validation:

• All coordinates must be between 0.0 and 1.0
• Minimum 3 vertices for polygon zones
• Coordinates should form a valid, non-self-intersecting shape

Example Zone Configurations¶

Front Door Camera¶

[
  {
    "name": "Front Door",
    "zone_type": "entry_point",
    "priority": 95,
    "color": "#EF4444",
    "rationale": "Critical - direct entry point"
  },
  {
    "name": "Front Porch",
    "zone_type": "entry_point",
    "priority": 80,
    "color": "#EF4444",
    "rationale": "High priority approach area"
  },
  {
    "name": "Front Walk",
    "zone_type": "monitored",
    "priority": 50,
    "color": "#3B82F6",
    "rationale": "Standard foot traffic monitoring"
  }
]

Driveway Camera¶

[
  {
    "name": "Garage Door",
    "zone_type": "entry_point",
    "priority": 90,
    "color": "#EF4444",
    "rationale": "Critical access point"
  },
  {
    "name": "Driveway",
    "zone_type": "monitored",
    "priority": 60,
    "color": "#F59E0B",
    "rationale": "Vehicle activity monitoring"
  }
]

Backyard Camera¶

[
  {
    "name": "Back Door",
    "zone_type": "entry_point",
    "priority": 95,
    "color": "#EF4444",
    "rationale": "Critical entry point"
  },
  {
    "name": "Pool Area",
    "zone_type": "restricted",
    "priority": 90,
    "color": "#EF4444",
    "rationale": "Safety critical - child/pet alert"
  },
  {
    "name": "Fence Line",
    "zone_type": "monitored",
    "priority": 75,
    "color": "#10B981",
    "rationale": "Perimeter breach detection"
  },
  {
    "name": "Patio",
    "zone_type": "other",
    "priority": 40,
    "color": "#3B82F6",
    "rationale": "Known activity area"
  }
]

Best Practices¶

Do¶

Don't¶

Troubleshooting¶

Zone Not Triggering¶

Check:

1. Is the zone enabled? (eye icon is open)
2. Is the zone large enough to cover the area?
3. Is the object actually within zone boundaries?
4. Is the camera online and processing?

Fix: Edit zone to expand boundaries or verify enabled state.

Too Many Alerts from Zone¶

Try:

1. Shrink the zone to focus on critical area
2. Lower the zone priority
3. Check for overlapping zones
4. Add household members to reduce false positives
5. Configure trust rules for expected visitors

Detections Not Attributed to Zones¶

Check:

1. Zone is enabled
2. Zone covers the detection location
3. Detection confidence meets threshold
4. No higher-priority overlapping zone

Zone Appears in Wrong Position¶

Causes:

• Camera angle changed after zone creation
• Different resolution between preview and live feed

Fix: Delete and re-draw the zone using current camera feed.
