PostgreSQL Database Setup and Management

Complete guide to setting up, configuring, and maintaining PostgreSQL for Home Security Intelligence.

Time to read: ~12 min Prerequisites: Container runtime (Docker/Podman), PostgreSQL basics

Database Overview

Home Security Intelligence uses PostgreSQL 16+ as its primary data store. PostgreSQL was chosen for full-text search (TSVECTOR), JSONB support, and robust async performance via asyncpg.

Note: SQLite is not supported. PostgreSQL is required for all deployments.

Schema Summary

Table Group Tables Purpose
Security Data cameras, events, detections, zones Core monitoring data
Alerting alerts, alert_rules Notification system
System gpu_stats, logs, audit_logs, api_keys Operations and audit
Analytics activity_baselines, class_baselines Anomaly detection

Storage Estimates

Deployment Cameras Monthly Growth
Small 1-4 500MB-2GB
Medium 5-8 2GB-5GB
Large 8+ 5GB+

GPU stats at 5-second polling adds ~100MB/month.

Initial Setup

# Start PostgreSQL container
docker compose -f docker-compose.prod.yml up -d postgres

# Verify health
docker compose -f docker-compose.prod.yml ps postgres

Required credentials (must be set in .env):

IMPORTANT: There is no default password. POSTGRES_PASSWORD must be explicitly set or the container will fail to start. See Security - Database Credentials for details.

POSTGRES_USER=security                  # Default username
POSTGRES_PASSWORD=<your-secure-password>  # REQUIRED - generate with: openssl rand -base64 32
POSTGRES_DB=security                    # Default database name

Option 2: Native PostgreSQL

# Install (Ubuntu/Debian)
sudo apt install postgresql postgresql-contrib

# Create database and user
sudo -u postgres psql
CREATE USER security WITH PASSWORD 'your_secure_password';
CREATE DATABASE security OWNER security;
\q

Run Migrations

source .venv/bin/activate
cd backend
alembic upgrade head

# Verify
alembic current

Configuration

DATABASE_URL Format

postgresql+asyncpg://username:password@host:port/database

Examples:

# Container deployment
DATABASE_URL=postgresql+asyncpg://security:password@postgres:5432/security

# Native development
DATABASE_URL=postgresql+asyncpg://security:password@localhost:5432/security

Connection Pool Settings

Default pool configuration (tunable in backend/core/database.py):

Setting Default Description
pool_size 10 Base connections
max_overflow 20 Burst capacity
pool_timeout 30s Wait for connection
pool_recycle 1800s Connection lifetime

Migrations

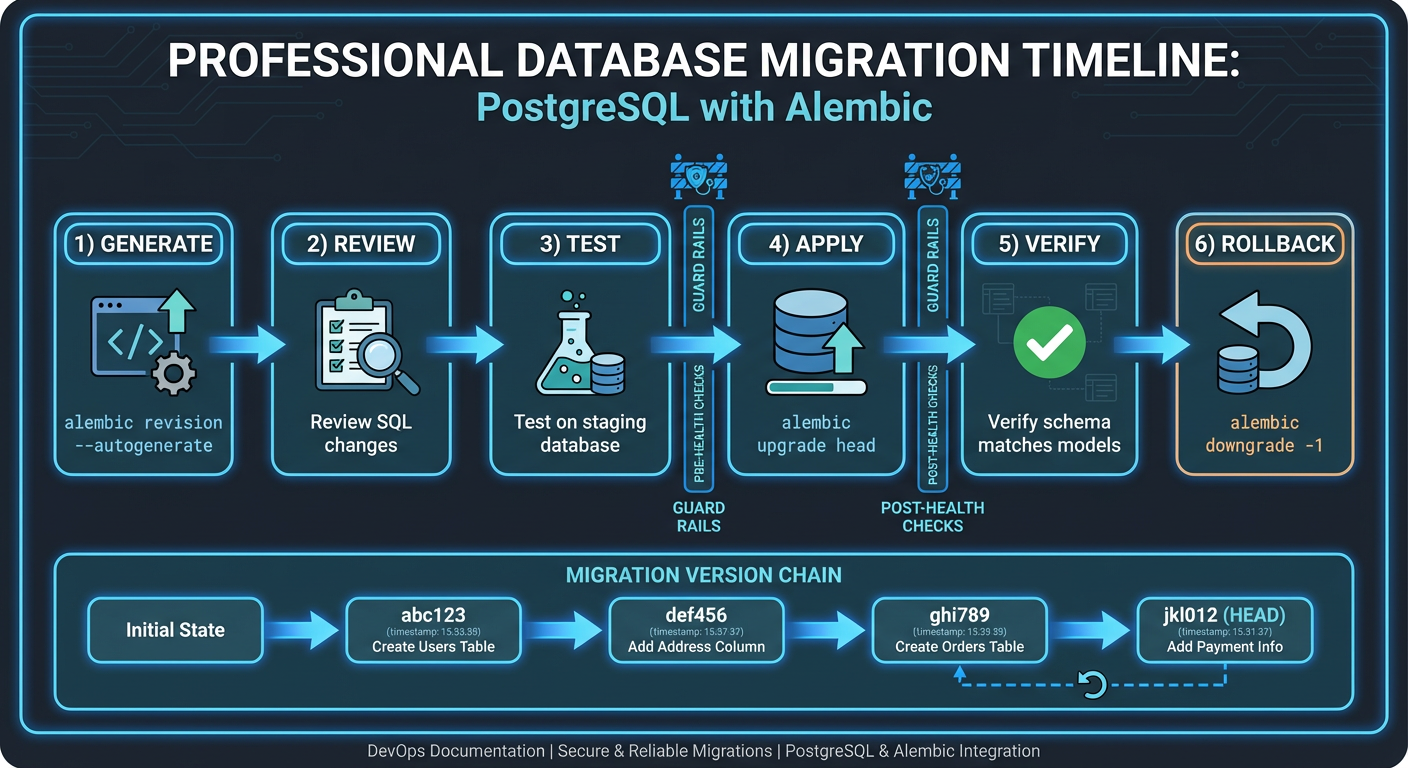

Database Migration Timeline

Database migration timeline showing Alembic version history and upgrade/downgrade paths.

Common Commands

cd backend

# Apply all migrations
alembic upgrade head

# Check status
alembic current
alembic history

# Roll back one migration
alembic downgrade -1

# Roll back to specific revision
alembic downgrade <revision_id>

Creating Migrations (Developers)

# Auto-generate from model changes
alembic revision --autogenerate -m "description"

# Preview SQL without applying
alembic upgrade head --sql

Handling Failures

  1. Check error: alembic upgrade head 2>&1
  2. Verify state: SELECT * FROM alembic_version;
  3. Fix and stamp: alembic stamp <revision_id>

Maintenance

Vacuum and Analyze

# Via container
docker compose exec postgres psql -U security -d security -c "VACUUM ANALYZE;"

-- High-churn tables specifically
VACUUM ANALYZE detections;
VACUUM ANALYZE events;
VACUUM ANALYZE gpu_stats;

Monitor Database Size

-- Total size
SELECT pg_size_pretty(pg_database_size('security'));

-- By table
SELECT tablename,
  pg_size_pretty(pg_total_relation_size('public.' || tablename)) as size
FROM pg_tables WHERE schemaname = 'public'
ORDER BY pg_total_relation_size('public.' || tablename) DESC;

Index Health

-- Check index usage
SELECT indexname, idx_scan as scans
FROM pg_stat_user_indexes
ORDER BY idx_scan DESC LIMIT 10;

Data Retention

Configuration

Data Type Default Variable
Events, Detections, GPU Stats 30 days RETENTION_DAYS
Logs 7 days LOG_RETENTION_DAYS

CleanupService runs daily at 03:00.

Preview Cleanup

curl -X POST "http://localhost:8000/api/system/cleanup?dry_run=true"

Manual Cleanup

-- Delete old events (cascades to detections)
DELETE FROM events WHERE started_at < NOW() - INTERVAL '30 days';

-- Reclaim space
VACUUM ANALYZE;

Troubleshooting

Connection Refused

# Verify PostgreSQL is running
docker compose -f docker-compose.prod.yml ps postgres

# Test connectivity
pg_isready -h localhost -p 5432 -U security

# Check logs
docker compose -f docker-compose.prod.yml logs postgres

Fix: Ensure DATABASE_URL uses postgres for container or localhost for native.

Authentication Failed

# Test credentials
docker compose exec postgres psql -U security -d security -c "SELECT 1;"

# Reset password
docker compose exec postgres psql -U postgres -c \
  "ALTER USER security WITH PASSWORD 'new_password';"

Migration Conflicts

# Check state
alembic current

# If schema matches but tracking is off
alembic stamp <revision_id>

Slow Queries

-- Find slow queries
SELECT pid, now() - query_start AS duration, query, state
FROM pg_stat_activity
WHERE (now() - query_start) > interval '5 seconds';

-- Analyze a query
EXPLAIN ANALYZE SELECT * FROM events WHERE risk_score > 70;

-- Run maintenance
VACUUM ANALYZE;

Disk Full

# Check space
docker system df

# Emergency cleanup
DELETE FROM gpu_stats WHERE recorded_at < NOW() - INTERVAL '7 days';
VACUUM FULL;

Quick Reference

Essential Commands

# Start database
docker compose -f docker-compose.prod.yml up -d postgres

# Connect to database
docker compose exec postgres psql -U security -d security

# Run migrations
cd backend && alembic upgrade head

# Check health
docker compose exec postgres pg_isready -U security -d security

# Backup
docker compose exec postgres pg_dump -U security security > backup.sql

# Restore
docker compose exec -T postgres psql -U security security < backup.sql

Connection URLs

Environment URL
Container postgresql+asyncpg://security:password@postgres:5432/security
Native postgresql+asyncpg://security:password@localhost:5432/security
