Troubleshooting Index¶

Your first stop when something goes wrong. Find your symptom, get to the solution fast.

Time to read: ~5 min Prerequisites: None

Quick Self-Check Before Troubleshooting¶

Before diving into specific issues, run these quick checks:

# 1. System health (is everything running?)
curl -s http://localhost:8000/api/system/health | jq .

# 2. Service status (are all containers up?)
docker compose -f docker-compose.prod.yml ps

# 3. GPU status (is the GPU available?)
nvidia-smi

# 4. Recent logs (any obvious errors?)
docker compose -f docker-compose.prod.yml logs --tail=50 backend

If all services show "healthy" and containers are running, proceed to the specific symptom below.

Fast Triage Flow (Health → Fix)¶

Use this when you're not sure where to start.

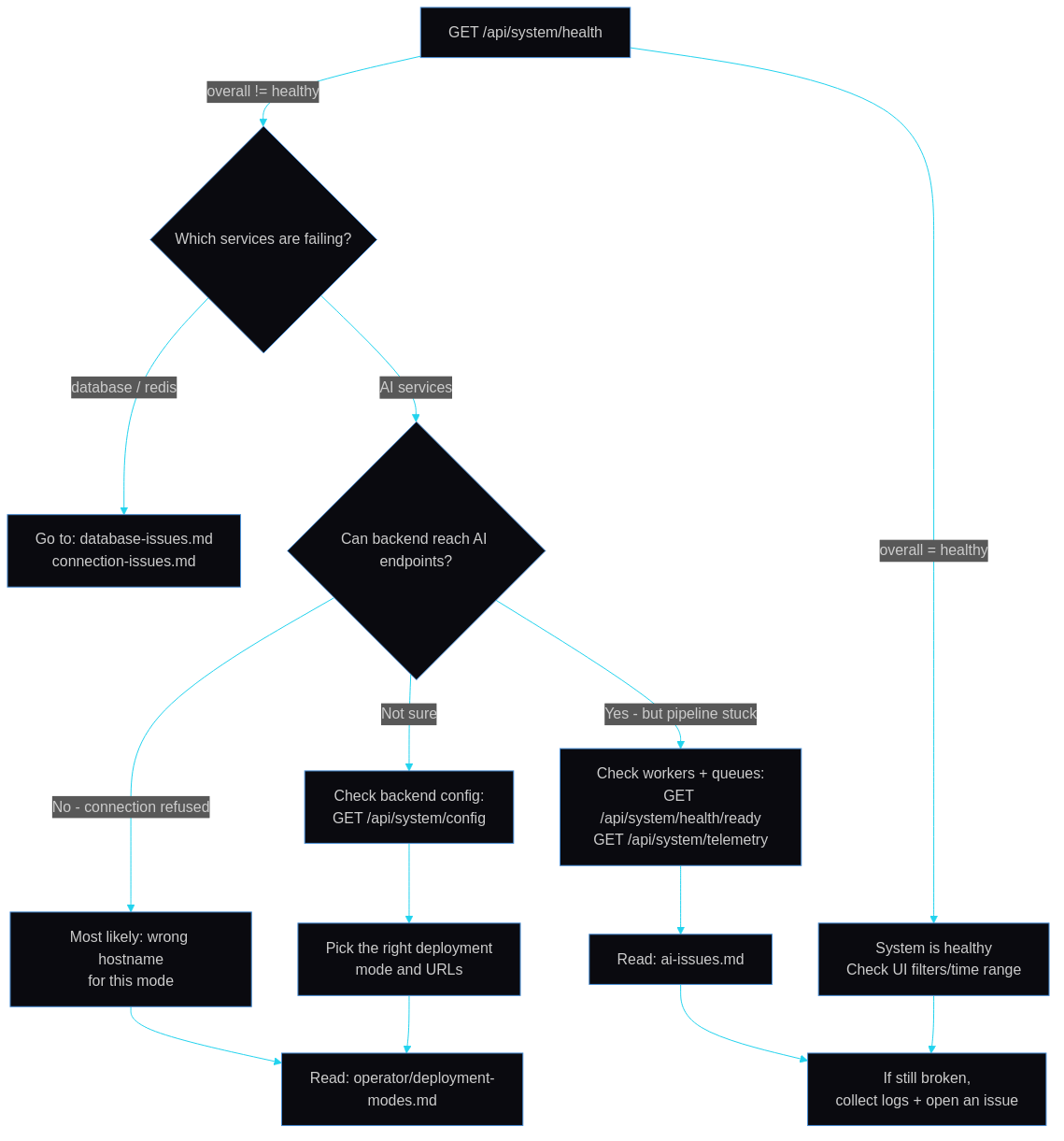

Decision tree for diagnosing system health issues: Start with the health check endpoint, then follow the path based on which services are failing to quickly identify and resolve problems.

Symptom Quick Reference Table¶

Dashboard Shows No Events¶

What You See¶

• Empty activity feed
• No recent events in timeline
• Risk gauge may be at 0 or stale

Quick Diagnosis¶

# Check if events exist in database
curl -s http://localhost:8000/api/events?limit=5 | jq '.pagination.total'

# Check pipeline status
curl -s http://localhost:8000/api/system/pipeline | jq .

Possible Causes (Most Likely First)¶

1. File watcher not running - Images not being picked up
2. AI services not running - Detections not being created
3. No images uploaded - Cameras not sending images
4. Batch not completing - Detections queued but not analyzed

Solutions¶

1. Check file watcher status:

curl -s http://localhost:8000/api/system/health/ready | jq '.workers[] | select(.name | test("file_watcher|detection"))'

If not running, restart backend: docker compose -f docker-compose.prod.yml restart backend

2. Verify images are being uploaded:

ls -lt /export/foscam/*/  # Should show recent files

3. Check AI service health:

curl http://localhost:8090/yolo26/health     # YOLO26 (AI gateway router)
curl http://localhost:8091/health            # Nemotron (ai-llm container)
curl http://localhost:8090/florence/health   # Florence-2 (optional router)
curl http://localhost:8090/clip/health       # CLIP (optional router)
curl http://localhost:8090/enrichment/health # Heavy enrichment (optional router)
curl http://localhost:8090/enrich-lt/health  # Light enrichment (optional router)

4. Check queue depths:

curl -s http://localhost:8000/api/system/telemetry | jq '.queues'

If queues are growing but not processing, AI services may be down.

See: Connection Issues, AI Issues

Risk Gauge Stuck at 0¶

What You See¶

• Dashboard risk gauge shows 0 or minimal value
• Events exist but have null risk scores
• "Analyzing..." spinner never completes

Quick Diagnosis¶

# Check recent events for risk scores
curl -s http://localhost:8000/api/events?limit=3 | jq '.items[].risk_score'

# Check Nemotron health
curl -s http://localhost:8091/health

Possible Causes¶

1. Nemotron service not running - Most common cause
2. Nemotron timeout - Model too slow or overloaded
3. LLM response parsing failure - Invalid JSON from model

Solutions¶

1. Start Nemotron if not running:

./ai/start_llm.sh
# Or if containerized:
docker compose -f docker-compose.prod.yml up -d ai-llm

2. Check Nemotron logs:

docker compose -f docker-compose.prod.yml logs -f ai-llm
# Host-run ./ai/start_nemotron.sh writes /tmp/nemotron.log;
# ./ai/start_llm.sh logs to its terminal

3. Increase timeout if needed:

# In .env
NEMOTRON_READ_TIMEOUT=300.0  # Default is 120s

4. Test Nemotron directly:

curl -X POST http://localhost:8091/completion \
  -H "Content-Type: application/json" \
  -d '{"prompt": "Say hello", "max_tokens": 20}'

See: AI Issues - Analysis Failing

Camera Shows Offline¶

What You See¶

• Camera status indicator shows offline/error
• No new detections from specific camera
• last_seen_at timestamp is stale

Quick Diagnosis¶

# Check camera status in database
curl -s http://localhost:8000/api/cameras | jq '.items[] | {id, name, status, last_seen_at}'

# Check if images exist in camera folder
ls -lt /export/foscam/<camera_name>/ | head -5

Possible Causes¶

1. Camera not FTP uploading - Network or camera config issue
2. Wrong folder path - Camera registered with incorrect path
3. File permissions - Backend cannot read camera folder
4. Camera hardware issue - Camera offline or rebooting

Solutions¶

1. Verify camera is uploading:

# Watch for new files
watch -n 5 'ls -lt /export/foscam/<camera_name>/ | head -3'

2. Check folder path in camera settings:

curl -s http://localhost:8000/api/cameras | jq '.items[] | {id, name, folder_path}'

3. Fix permissions:

sudo chmod -R 755 /export/foscam/

4. Check FTP server status:

systemctl status vsftpd  # If using vsftpd

See: Connection Issues - File Watcher

AI Not Working¶

What You See¶

• Health check shows AI services as unhealthy
• Error: "YOLO26 service connection refused"
• Error: "Nemotron service connection refused"
• No detections being created

Quick Diagnosis¶

# Overall AI status
curl -s http://localhost:8000/api/system/health | jq '.services.ai'

# Individual service checks (production topology: Triton gateway + LLM container)
curl http://localhost:8090/yolo26/health  # Should return {"status": "healthy", ...}
curl http://localhost:8091/health         # Should return {"status": "ok"}

Possible Causes (Most Likely First)¶

1. AI containers not running - ai-gateway and ai-llm start with the stack
2. Port conflicts - Something else using 8090/8091
3. GPU not available - CUDA not initialized (see Triton Rootless CUDA under rootless Podman)
4. Model files missing - Models not downloaded

Solutions¶

1. Start AI services:

# Production (containers)
docker compose -f docker-compose.prod.yml up -d ai-gateway ai-llm

# Host-run development (no unified wrapper script exists)
./ai/start_detector.sh  # Standalone YOLO26 server (PORT default 8090)
./ai/start_llm.sh       # Host-run Nemotron dev LLM on 8091

2. Check for port conflicts:

lsof -i :8090  # AI gateway port (8095 if using YOLO26_PORT from .env)
lsof -i :8091  # Nemotron port

3. Verify CUDA:

python3 -c "import torch; print(torch.cuda.is_available())"

4. Download models if missing:

./ai/download_models.sh
# Nemotron lands in ${AI_MODELS_PATH:-/export/ai_models}/nemotron/nemotron-3-nano-30b-a3b-q4km/
# (Nemotron-3-Nano-30B-A3B-Q4_K_M.gguf, ~14.7GB); the rest go to model-zoo/

5. Check AI service logs:

docker compose -f docker-compose.prod.yml logs --tail=100 ai-gateway ai-llm
# Host-run: start_nemotron.sh writes /tmp/nemotron.log; start_detector.sh/start_llm.sh
# log to their terminal

See: AI Issues, GPU Issues

WebSocket Disconnected¶

What You See¶

• Dashboard shows "Disconnected" status
• Real-time updates stop working
• Events appear in timeline but feed not updating
• Browser console shows WebSocket errors

Quick Diagnosis¶

# Test WebSocket endpoint
websocat ws://localhost:8000/ws/events

# Check backend is responding
curl http://localhost:8000/api/system/health

Possible Causes¶

1. Backend not running - Container down
2. Proxy/firewall issues - WebSocket blocked
3. Idle timeout - Connection closed due to inactivity
4. Rate limiting - Too many reconnection attempts

Solutions¶

1. Restart backend:

docker compose -f docker-compose.prod.yml restart backend

2. Check backend logs:

docker compose -f docker-compose.prod.yml logs -f backend | grep -i websocket

3. Adjust idle timeout:

# In .env
WEBSOCKET_IDLE_TIMEOUT_SECONDS=600  # Increase from default 300

4. Check live WebSocket connections:

curl -s http://localhost:8000/api/system/health/websocket | jq

5. Clear browser cache and reload

See: Connection Issues - WebSocket

High CPU/Memory Usage¶

What You See¶

• System becomes slow or unresponsive
• Container restarts due to OOM
• Backend logs show high latency

Quick Diagnosis¶

# Container resource usage
docker stats

# Queue backlogs
curl -s http://localhost:8000/api/system/telemetry | jq '.queues'

# DLQ size
curl -s http://localhost:8000/api/dlq/stats

Possible Causes¶

1. Queue backlog - Images piling up faster than processed
2. Too many cameras - Overloading the system
3. Memory leak - Long-running process issue
4. Insufficient resources - Container limits too low

Solutions¶

1. Check and clear queues if backed up:

# View queue sizes (Redis Streams mode is the default — USE_REDIS_STREAMS=true)
redis-cli xlen detections:stream
redis-cli xlen analysis:stream

# If severely backed up, you may need to clear
# CAUTION: This loses queued jobs (with consumer groups, delete/recreate the group too)
redis-cli del detections:stream

2. Increase container memory limits:

# In docker-compose.prod.yml
services:
  backend:
    deploy:
      resources:
        limits:
          memory: 2G

3. Reduce camera throughput:

• Increase camera upload interval
• Reduce number of active cameras

4. Restart services:

docker compose -f docker-compose.prod.yml restart

Disk Space Running Out¶

What You See¶

• Error: "No space left on device"
• Database operations fail
• Thumbnail generation fails

Quick Diagnosis¶

# Check disk usage
df -h

# Check storage stats
curl -s http://localhost:8000/api/system/storage | jq .

# Database size
psql -h localhost -U security -d security -c "SELECT pg_size_pretty(pg_database_size('security'));"

Possible Causes¶

1. Retention too long - Default 30 days may be too much
2. Cleanup not running - Scheduled cleanup failing
3. Thumbnails accumulating - Largest storage consumer
4. Camera images not cleaned - Original images retained

Solutions¶

1. Run immediate cleanup:

# Preview first
curl -s -X POST "http://localhost:8000/api/system/cleanup?dry_run=true" | jq .

# Execute cleanup
curl -X POST http://localhost:8000/api/system/cleanup

2. Reduce retention period:

# In .env
RETENTION_DAYS=14      # Reduce from default 30
LOG_RETENTION_DAYS=3   # Reduce from default 7

3. Vacuum PostgreSQL:

psql -h localhost -U security -d security -c "VACUUM FULL;"

4. Enable image deletion (if you have backups): Configure delete_images=True in cleanup service

See: Database Issues - Disk Space

Slow AI Inference¶

What You See¶

• Detection takes >100ms (expected: 5-20ms per frame via the gateway's TensorRT engines — see YOLO26 performance)
• LLM responses take >30s (expected: 2-5s)
• Queue backlogs growing

Quick Diagnosis¶

# Check GPU utilization
nvidia-smi

# Check the gateway reports models ready
curl -s http://localhost:8090/health | jq

# Check pipeline latency
curl -s http://localhost:8000/api/system/pipeline-latency | jq .

Possible Causes¶

1. Running on CPU instead of GPU - Most common
2. GPU thermal throttling - Temperature too high
3. VRAM exhausted - Too many models loaded
4. Other GPU processes - Competing for resources

Solutions¶

1. Verify GPU is being used:

# tritonserver and llama-server should hold GPU memory
nvidia-smi --query-compute-apps=pid,name,used_memory --format=csv

# A host-run standalone detector reports its device directly
curl -s http://localhost:8095/health | jq '.device'  # "cuda:0" or "cpu"

2. Check temperature:

nvidia-smi  # Temperature should be < 85C

3. Free GPU memory:

# Restart the AI stack (drops loaded models and re-initialises CUDA)
docker compose -f docker-compose.prod.yml restart ai-gateway ai-llm

See: GPU Issues

CORS Errors in Browser¶

What You See¶

• Browser console: "CORS policy blocked"
• API calls work in curl but fail in browser
• Dashboard shows errors loading data

Quick Diagnosis¶

# Test CORS headers (origin = whatever the browser actually reports, e.g. the Vite dev server)
curl -v -X OPTIONS -H "Origin: https://localhost:8444" \
  http://localhost:8000/api/events 2>&1 | grep -i "access-control"

Solutions¶

1. Update CORS_ORIGINS in .env (default ships https://localhost:8444 and internal http://frontend:8080):

CORS_ORIGINS=["https://localhost:8444", "https://192.168.1.20:8444", "https://your-domain.com"]

2. Restart backend after changes:

docker compose -f docker-compose.prod.yml restart backend

See: Connection Issues - CORS

Emergency Procedures¶

System Won't Start At All¶

Symptoms: All services fail to start, immediate crashes

Steps:

1. Check Docker is running: docker info
2. Check for conflicting containers: docker ps -a
3. Remove stuck containers: docker compose -f docker-compose.prod.yml down -v
4. Check environment file: cat .env
5. Rebuild if needed: docker compose -f docker-compose.prod.yml build --no-cache
6. Start with verbose logs: docker compose -f docker-compose.prod.yml up

Database Corruption Suspected¶

Symptoms: SQL errors, missing data, inconsistent state

Steps:

1. Stop all services: docker compose -f docker-compose.prod.yml down
2. Create backup: pg_dump -h localhost -U security security > backup_emergency.sql
3. Check for issues: psql -h localhost -U security -d security -c "\dt"
4. If corrupted, restore from backup
5. As last resort, recreate the database (this project has no Alembic — the schema is created directly from the SQLAlchemy models on next backend start):

   dropdb -h localhost -U postgres security
   createdb -h localhost -U postgres -O security security
   docker compose -f docker-compose.prod.yml up -d backend   # init_db creates the schema


Complete Data Loss Recovery¶

Symptoms: Database empty, no events, no history

Steps:

1. Check if data exists but service cannot connect
2. Check Docker volumes: docker volume ls
3. Restore from backup if available:

   psql -h localhost -U security security < backup.sql


4. If no backup, the system will start fresh when cameras resume uploading

Security Breach Suspected¶

Symptoms: Unauthorized access, unknown API activity, modified settings

Steps:

1. Immediately stop external access
2. Check for rejected requests — with API_KEY_ENABLED=true, calls without a valid X-API-Key header are refused with 401 and show up in the backend logs:

   docker compose -f docker-compose.prod.yml logs backend | grep -iE "401|unauthorized"


3. Review logs for suspicious activity:

   grep -i "unauthorized\|forbidden\|invalid" backend/data/logs/security.log


4. Rotate API keys if used
5. Review CORS origins and network exposure
6. Consider enabling API_KEY_ENABLED=true if not already

Information to Gather for Bug Reports¶

If you need to report an issue, collect this information:

# 1. System health summary
curl -s http://localhost:8000/api/system/health | jq . > health.json

# 2. System configuration (REDACT PASSWORDS)
curl -s http://localhost:8000/api/system/config | jq . > config.json

# 3. Recent backend logs
docker compose -f docker-compose.prod.yml logs --tail=200 backend > backend.log

# 4. GPU information
nvidia-smi > gpu.txt

# 5. Container status
docker compose -f docker-compose.prod.yml ps -a > containers.txt

# 6. Queue status
curl -s http://localhost:8000/api/system/telemetry | jq . > telemetry.json

# 7. Environment (REDACT SENSITIVE VALUES)
cat .env | grep -v PASSWORD | grep -v SECRET | grep -v KEY > env_safe.txt

Troubleshooting Detailed Guides¶

• GPU Issues - CUDA, VRAM, temperature, container GPU access
• Triton Rootless CUDA - ai-gateway cudaGetDeviceCount err=3 in rootless Podman
• Connection Issues - Network, containers, WebSocket, CORS
• AI Issues - YOLO26, Nemotron, pipeline, batch processing
• Database Issues - PostgreSQL connection, migrations, disk space

Getting Help¶

If you can't resolve an issue:

1. Check this index first - Most common problems are covered
2. Review specific troubleshooting pages - Detailed solutions for each area
3. Search GitHub Issues - Someone may have solved it
4. Open a new issue with:
5. Clear description of the problem
6. Steps to reproduce
7. Information gathered (see above)
8. What you've already tried

See Also¶

• AI Troubleshooting (Operator) - Quick AI fixes
• GPU Setup - GPU configuration guide
• Environment Variable Reference - Configuration options
• Glossary - Terms and definitions

Back to Operator Hub | User Hub
