Alerts¶

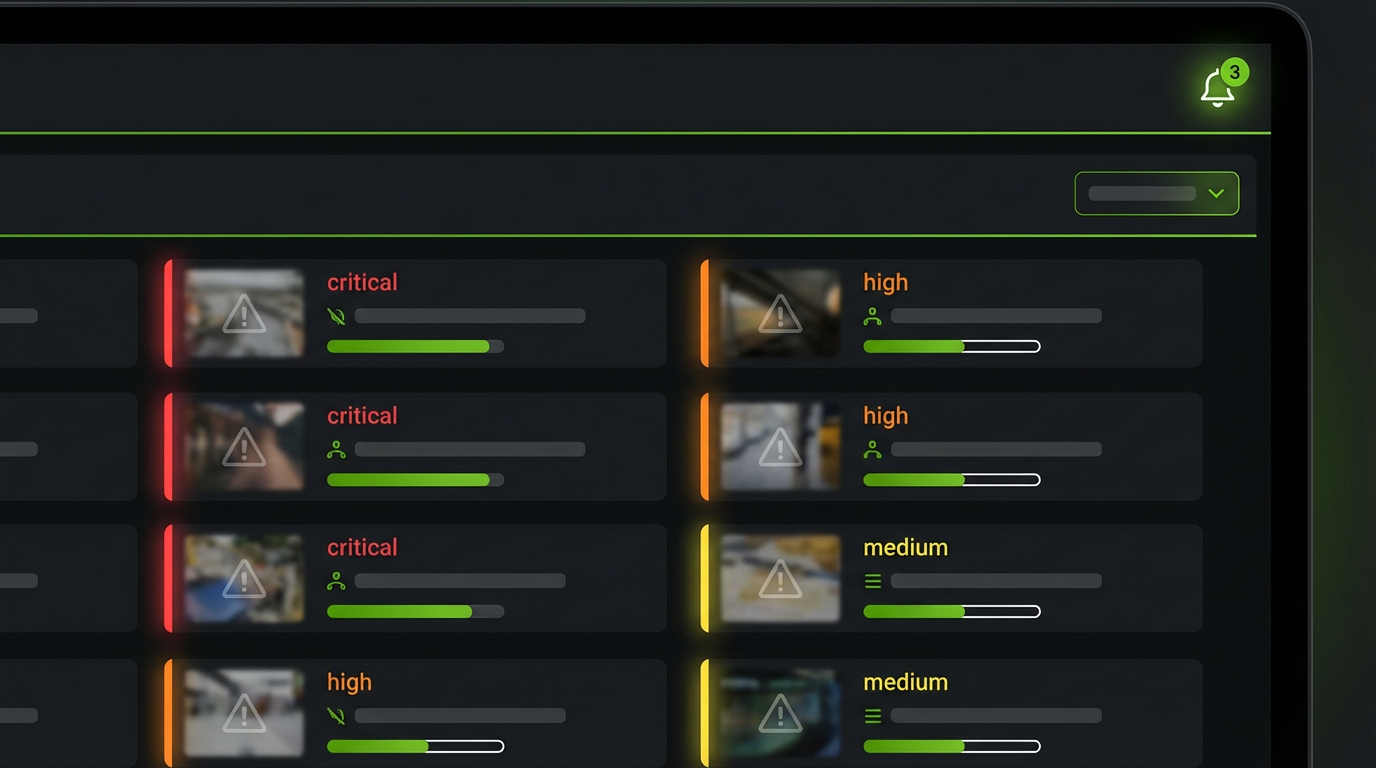

AI-generated visualization of the alerts interface with severity-coded notification cards.

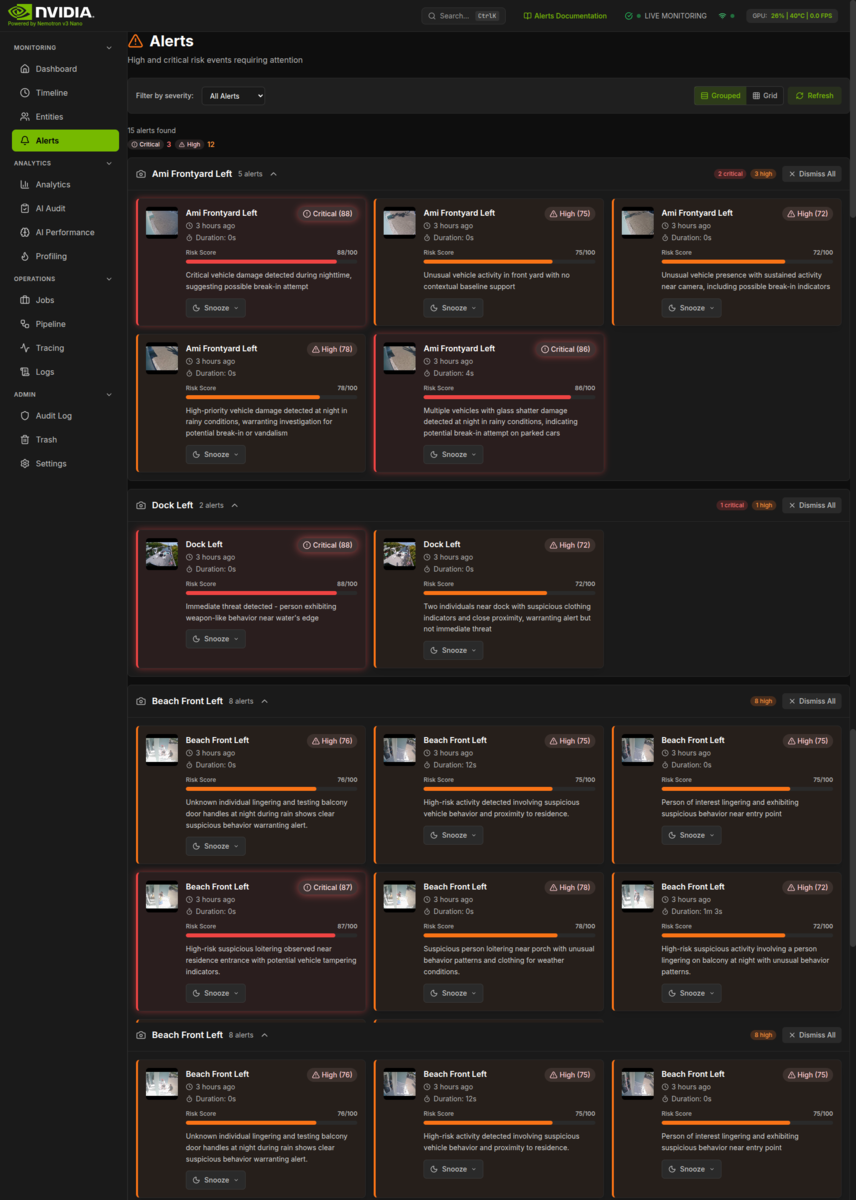

The Alerts page displays high and critical risk security events that require immediate attention.

What You're Looking At¶

The Alerts page is your notification center for significant security events. Unlike the general Events page that shows all detections, Alerts focuses exclusively on high-risk and critical events that the AI has flagged as potentially dangerous or unusual. These are the events you should review immediately.

Key features at a glance:

• Severity Filtering - Filter alerts by "All", "Critical Only", or "High Only" using a dropdown selector
• Event Cards - Individual event summaries displayed as cards with risk badges
• Risk Summary Badges - Visual indicators showing counts of critical and high severity events
• Infinite Scroll - Efficiently loads alerts as you scroll (25 per page)
• Event Detail Modal - Click any card to view full event details with navigation

Key Components¶

Severity Filter¶

A dropdown selector at the top lets you filter by severity level:

The results summary shows a count of total alerts found and displays risk summary badges with counts for critical and high severity events when available.

Note: The AlertFilters component (with filter buttons including "Unread") exists in the codebase for advanced filtering scenarios but the main Alerts page uses a simpler dropdown-based filter.

Event Cards¶

Each event card displays:

• Camera Name - Which camera captured the event
• Timestamp - When the event started (formatted date/time)
• Risk Badge - Color-coded severity indicator with risk level label
• Summary - AI-generated description of what was detected
• Thumbnail - Event thumbnail image when available
• Detection Tags - Object types detected (person, vehicle, etc.)

The Alerts page reuses the EventCard component from the Events page, providing a consistent experience across the application.

Dedicated AlertCard Component:

A separate AlertCard component exists for alert-specific displays (used in advanced scenarios). It includes additional features:

• Status Badge - Shows alert status:
• "Unacknowledged" (red) - for pending alerts
• "Acknowledged" (green) - for acknowledged alerts
• Selection Checkbox - For bulk operations
• Action Buttons - Acknowledge, Dismiss, View Event, Snooze dropdown

Card styling in AlertCard indicates severity with a colored left border:

• Critical: Red border and red-tinted background
• High: Orange border and orange-tinted background
• Medium: Yellow border and yellow-tinted background
• Low: Blue border and blue-tinted background

Alert Actions¶

When using the AlertCard component, each card has action buttons:

On the main Alerts page (using EventCard), clicking a card opens the Event Detail Modal where you can:

• View the full AI-generated summary
• See all detections with confidence scores
• Mark the event as reviewed
• Navigate between alerts using prev/next arrows

Bulk Operations¶

When you have multiple alerts to manage, use the bulk actions toolbar:

1. Select All / Deselect All - Toggle selection for all visible alerts
2. Selection Count - Shows how many alerts are selected
3. Acknowledge Selected - Mark all selected alerts as reviewed
4. Dismiss Selected - Dismiss all selected alerts at once
5. Clear Selection - Deselect all without taking action

Event Detail Modal¶

Clicking any alert card opens a detailed view showing:

• Full event summary from AI analysis
• All detections (objects, people, vehicles, etc.)
• Event timeline (start and end times)
• Mark as reviewed option
• Navigation arrows to move between alerts

Alert Rules¶

Alert rules define when and how alerts are triggered. You can create custom rules to match your security needs.

Rule Conditions (AND Logic)¶

All conditions in a rule must match for an alert to trigger:

How conditions work: When multiple conditions are specified, they are evaluated using AND logic - all conditions must match for the rule to trigger. If a condition field is left empty (e.g., no cameras selected), it matches all values for that field.

Diagram: Alert Rule Evaluation Flow¶

flowchart TD
    subgraph Trigger["Event Trigger"]
        A[New Event Created] --> B[Load Enabled Rules]
    end

    subgraph Evaluation["Rule Evaluation Loop"]
        B --> C{More Rules?}
        C -->|Yes| D[Get Next Rule]
        D --> E{Risk >= Threshold?}
        E -->|No| C
        E -->|Yes| F{Object Type Matches?}
        F -->|No| C
        F -->|Yes| G{Camera Matches?}
        G -->|No| C
        G -->|Yes| H{Confidence >= Min?}
        H -->|No| C
        H -->|Yes| I{Within Schedule?}
        I -->|No| C
        I -->|Yes| J[All Conditions Met]
    end

    subgraph Trust["Entity Trust Check"]
        J --> K{Trusted Entity?}
        K -->|Yes| L[Suppress Alert]
        K -->|No| M{Untrusted Entity?}
        M -->|Yes| N[Escalate Severity]
        M -->|No| O[Normal Severity]
    end

    subgraph Dedup["Deduplication Check"]
        N --> P[Build Dedup Key]
        O --> P
        P --> Q{Within Cooldown?}
        Q -->|Yes| R[Suppress Duplicate]
        Q -->|No| S[Create Alert]
    end

    subgraph Delivery["Alert Delivery"]
        S --> T[Set Status: PENDING]
        T --> U[Send Notifications]
        U --> V[Set Status: DELIVERED]
        V --> W[Broadcast WebSocket]
    end

    C -->|No| X[Done]
    L --> C
    R --> C

    style Trigger fill:#e0f2fe
    style Evaluation fill:#fef3c7
    style Trust fill:#f3e8ff
    style Dedup fill:#fed7aa
    style Delivery fill:#d1fae5

Rule Severity Levels¶

Entity Trust Integration¶

The alert engine considers entity trust status when generating alerts:

• Trusted Entities: If ANY detection in an event is linked to a trusted person (like a family member), all alerts for that event are suppressed entirely. This means if a trusted person is detected alongside unknown individuals, no alert is generated.
• Untrusted Entities: If a detection is linked to an untrusted person (and no trusted entities are present), alert severity is escalated by one level:
• Low becomes Medium
• Medium becomes High
• High becomes Critical
• Critical stays Critical (already at maximum)
• Unknown Entities: Normal processing, severity based on rule configuration

Trust Priority: TRUSTED > UNTRUSTED > UNKNOWN. The presence of a trusted entity always takes precedence.

Cooldown and Deduplication¶

To prevent alert fatigue, the system uses cooldown periods and deduplication:

Cooldown Period:

• Minimum time between similar alerts (default: 5 minutes / 300 seconds)
• Configurable per rule via cooldown_seconds field
• Must be a non-negative integer

Deduplication Key (dedup_key):

• Unique identifier used to detect duplicate alerts
• Built from template variables that capture the alert's key characteristics
• Default template: {camera_id}:{rule_id}

Template Variables: | Variable | Description | |----------|-------------| | {camera_id} | The camera that detected the event | | {rule_id} | The alert rule that triggered | | {object_type} | The type of object detected (person, vehicle, etc.) |

Example Templates:

• {camera_id}:{rule_id} - One alert per camera per rule during cooldown
• {camera_id}:{object_type}:{rule_id} - Separate cooldowns for different object types
• {camera_id}:{object_type} - Rule-agnostic deduplication by camera and object

How it works: When an alert triggers, the system builds a dedup_key from the template. If another alert with the same dedup_key was created within the cooldown window, the new alert is suppressed. For example, if you get an alert for "person at front door" with a 5-minute cooldown, you won't get another identical alert for 5 minutes, even if the camera captures multiple frames.

Notification Channels¶

Alerts can be delivered through multiple channels:

• Email - Send alert details to configured email addresses
• Webhook - POST alert data to external services
• Pushover - Push notifications to mobile devices

Testing Rules Before Enabling¶

Before enabling a rule in production, you can test it against historical events using the rule testing endpoint:

POST /api/alerts/rules/{rule_id}/test

Request body:

{
  "event_ids": [1, 2, 3], // Optional: specific events to test
  "limit": 50, // Default: test against 50 most recent events
  "test_time": "2024-01-15T22:30:00Z" // Optional: override current time for schedule testing
}

Response:

{
  "rule_id": "uuid",
  "rule_name": "Night Intruder Alert",
  "events_tested": 50,
  "events_matched": 12,
  "match_rate": 0.24,
  "results": [
    {
      "event_id": 123,
      "camera_id": "front_door",
      "risk_score": 75,
      "object_types": ["person"],
      "matches": true,
      "matched_conditions": ["risk_score >= 60", "object_type in ['person']", "within_schedule"],
      "started_at": "2024-01-15T22:45:00Z"
    }
  ]
}

This allows you to validate rule configuration without generating actual alerts.

Settings and Configuration¶

Creating an Alert Rule¶

1. Navigate to Settings > Alert Rules
2. Click "Create Rule"

3. Fill in the rule form:

4. Name: Descriptive rule name (e.g., "Night Intruder Alert")

5. Description: Optional explanation of the rule's purpose
6. Enabled: Toggle to activate/deactivate the rule

7. Severity: Choose the alert severity level

8. Configure trigger conditions:

9. Set risk threshold (0-100)

10. Select object types to match
11. Choose specific cameras (or leave empty for all)

12. Set minimum confidence threshold

13. Configure schedule (optional):

14. Enable schedule toggle

15. Select active days
16. Set start and end times

17. Choose timezone

18. Configure notifications:

19. Select notification channels

20. Set cooldown period (seconds between duplicate alerts)

21. Save the rule

Example Rules¶

Night Person Detection

Name: Night Intruder Alert
Severity: High
Risk Threshold: 60
Object Types: person
Schedule:
  - Days: (all days - leave empty)
  - Start Time: 22:00
  - End Time: 06:00
  - Timezone: America/New_York
Cooldown: 300 seconds
Dedup Key Template: {camera_id}:{object_type}:{rule_id}

Vehicle in Driveway

Name: Vehicle Alert
Severity: Medium
Object Types: vehicle
Cameras: driveway_cam
Cooldown: 600 seconds
Dedup Key Template: {camera_id}:{rule_id}

Critical Package Detection

Name: Package Delivery
Severity: Low
Object Types: package
Cameras: front_porch
Min Confidence: 0.8
Cooldown: 1800 seconds (30 min)

Unknown Face Detection

Name: Unknown Face Alert
Severity: High
Object Types: face
Risk Threshold: 50
Cooldown: 300 seconds
Channels: email, pushover

Weekend Security

Name: Weekend All Activity
Severity: Medium
Risk Threshold: 40
Schedule:
  - Days: saturday, sunday
  - Start Time: 00:00
  - End Time: 23:59
  - Timezone: UTC
Cooldown: 600 seconds

Troubleshooting¶

No alerts are showing¶

1. Check filter settings - Make sure you haven't filtered out all alerts
2. Verify alert rules exist - Go to Settings > Alert Rules and ensure rules are enabled
3. Check rule conditions - Rules may be too restrictive (e.g., risk threshold too high)
4. Confirm events are being detected - Check the Events page to see if detections are occurring

Too many alerts (alert fatigue)¶

1. Increase cooldown period - Set longer cooldown times on rules (e.g., 600+ seconds)
2. Raise risk threshold - Only alert on higher-risk events
3. Add camera filters - Limit rules to specific high-priority cameras
4. Use schedules - Only alert during specific time windows
5. Mark trusted entities - Add family members and regular visitors as trusted to suppress alerts

Alerts not matching expected events¶

1. Check object types - Ensure the object type filter includes the detection type
2. Verify camera selection - Confirm the camera is included in the rule
3. Check confidence threshold - Lower min_confidence if detections are being filtered out
4. Review schedule settings - Ensure current time falls within schedule

Snooze not working¶

1. Snooze applies to the specific alert, not the underlying detection pattern
2. New events with different characteristics will still generate alerts
3. For persistent suppression, use cooldown settings in alert rules or mark entities as trusted

WebSocket updates not appearing¶

1. Check connection status - Look for the health indicator in the header
2. Refresh the page - WebSocket connections may need re-establishment
3. Check backend logs - Look for WebSocket emission errors

Understanding Risk Levels¶

Risk scores are calculated by the Nemotron AI model, ranging from 0-100. Understanding these levels helps you prioritize your response.

Risk Level Reference¶

Factors That Influence Risk Scores¶

The AI analyzes multiple factors:

• What was detected - Person, vehicle, animal, or package
• Time of day - Activity at unusual hours scores higher
• Behavior patterns - Lingering, approaching entry points, or unusual movement
• Location context - Sidewalk vs. trying door handles
• Detection confidence - Clear images produce more reliable scores

Reading AI Reasoning¶

Each alert includes an "AI Reasoning" section explaining why the system assigned a particular risk score:

• What it observed - "Person detected near side gate at 2:47 AM"
• Behavioral analysis - "Subject exhibited slow, deliberate movement pattern"
• Time context - "Activity occurred outside normal hours"
• Risk factors - "Multiple indicators: unfamiliar individual, unusual hour, lingering behavior"

Common False Positives¶

No AI system is perfect. Here are common causes of false positive alerts:

Tips for handling false positives:

1. Mark events as reviewed with notes like "FedEx delivery" to build pattern history
2. If shadow-related alerts are frequent, consider adjusting camera angles
3. Use detection zones to exclude high-motion areas like roads or tree lines

Alert Deduplication¶

The system prevents duplicate alerts using a deduplication mechanism to reduce alert fatigue.

How Deduplication Works¶

When an alert rule triggers, the system checks if a similar alert was recently sent. If so, the new alert is suppressed during the cooldown period.

Deduplication Key Format:

The key combines event characteristics:

{camera_id}:{object_type}:{zone}

Examples:

• front_door:person - Person detected at front door
• backyard:vehicle:driveway - Vehicle in backyard driveway zone
• garage:person:entry - Person in garage entry zone

Cooldown Timeline Example¶

10:00:00 - Alert: "Person at front door" (SENT)
10:02:00 - Alert: "Person at front door" (suppressed - within 5min cooldown)
10:04:00 - Alert: "Person at front door" (suppressed - within 5min cooldown)
10:06:00 - Alert: "Person at front door" (SENT - cooldown expired)

Why Deduplication Matters¶

Without deduplication, you might receive:

• 20 alerts for the same person walking to your door
• Multiple alerts for a car slowly pulling into the driveway
• Repeated notifications while reviewing a single incident

With deduplication:

• One alert per distinct security event
• Cooldown period prevents notification spam
• All underlying detections still visible in event details

Tips for Managing Alerts¶

1. Respond to Critical alerts promptly - Even if most turn out to be nothing, the one time it matters will be worth it
2. Set up notifications - Do not rely solely on checking the dashboard
3. Review AI reasoning - The explanation often provides useful context the summary omits
4. Add notes to events - Document "Delivery driver" or "Neighbor's guest" to build pattern history
5. Mark events as reviewed - Track what you have already looked at
6. Trust your instincts - If something feels wrong even with a low score, investigate
7. Use trust classification - Mark family members as "Trusted" to suppress alerts for them

Technical Deep Dive¶

For developers wanting to understand the underlying systems.

Architecture¶

• Data Model: Data Model - Database schema and relationships
• Real-time Events: Real-time Architecture - WebSocket implementation
• AI Pipeline: AI Pipeline - Detection and risk scoring

Related Code¶

Frontend:

• Page Component: frontend/src/components/alerts/AlertsPage.tsx
• Alert Card: frontend/src/components/alerts/AlertCard.tsx
• Alert Filters: frontend/src/components/alerts/AlertFilters.tsx
• Bulk Actions: frontend/src/components/alerts/AlertActions.tsx
• Rule Form: frontend/src/components/alerts/AlertRuleForm.tsx
• Legacy Form: frontend/src/components/alerts/AlertForm.tsx
• Validation Schema: frontend/src/schemas/alertRule.ts
• Component Index: frontend/src/components/alerts/index.ts

Backend:

• Alert Model: backend/models/alert.py - Alert and AlertRule SQLAlchemy models
• Alert Engine: backend/services/alert_engine.py - Rule evaluation and condition matching
• Deduplication: backend/services/alert_dedup.py - Cooldown and duplicate prevention
• Alert Service: backend/services/alert_service.py - Business logic layer
• API Routes: backend/api/routes/alerts.py - REST endpoints

API Endpoints¶

Alert Rules:

Alert Instances:

Alert Status Flow¶

Alerts have four possible statuses:

Diagram: Alert Status State Machine¶

stateDiagram-v2
    [*] --> PENDING: Alert Created

    PENDING --> DELIVERED: Notification Sent
    PENDING --> ACKNOWLEDGED: User Acknowledges
    PENDING --> DISMISSED: User Dismisses

    DELIVERED --> ACKNOWLEDGED: User Acknowledges
    DELIVERED --> DISMISSED: User Dismisses

    ACKNOWLEDGED --> DISMISSED: User Dismisses

    DISMISSED --> [*]: Final State

    state PENDING {
        [*] --> Queued
        Queued: Waiting for delivery
        Queued: Red "Unacknowledged" badge
    }

    state DELIVERED {
        [*] --> Sent
        Sent: Notifications dispatched
        Sent: Channels notified
    }

    state ACKNOWLEDGED {
        [*] --> Reviewed
        Reviewed: User has seen alert
        Reviewed: Green "Acknowledged" badge
    }

    state DISMISSED {
        [*] --> Closed
        Closed: No longer active
        Closed: Removed from list
    }

• PENDING: Initial state when alert is created
• DELIVERED: Alert has been sent via notification channels
• ACKNOWLEDGED: User has marked the alert as reviewed
• DISMISSED: Alert has been dismissed (final state)

WebSocket Events¶

WebSocket broadcasts use background tasks with retry logic to ensure delivery without blocking the main HTTP request.

Database Schema¶

alerts table:

Indexes: event_id, rule_id, severity, status, created_at, dedup_key, (dedup_key + created_at), delivered_at, (event_id + rule_id + delivered_at)

alert_rules table:

Constraints:

• risk_threshold must be 0-100 when specified
• min_confidence must be 0.0-1.0 when specified
• cooldown_seconds must be non-negative

Indexes: name, enabled, severity
