Analytics¶

Analytics dashboard for monitoring detection trends, risk analysis, and camera performance metrics.

What You're Looking At¶

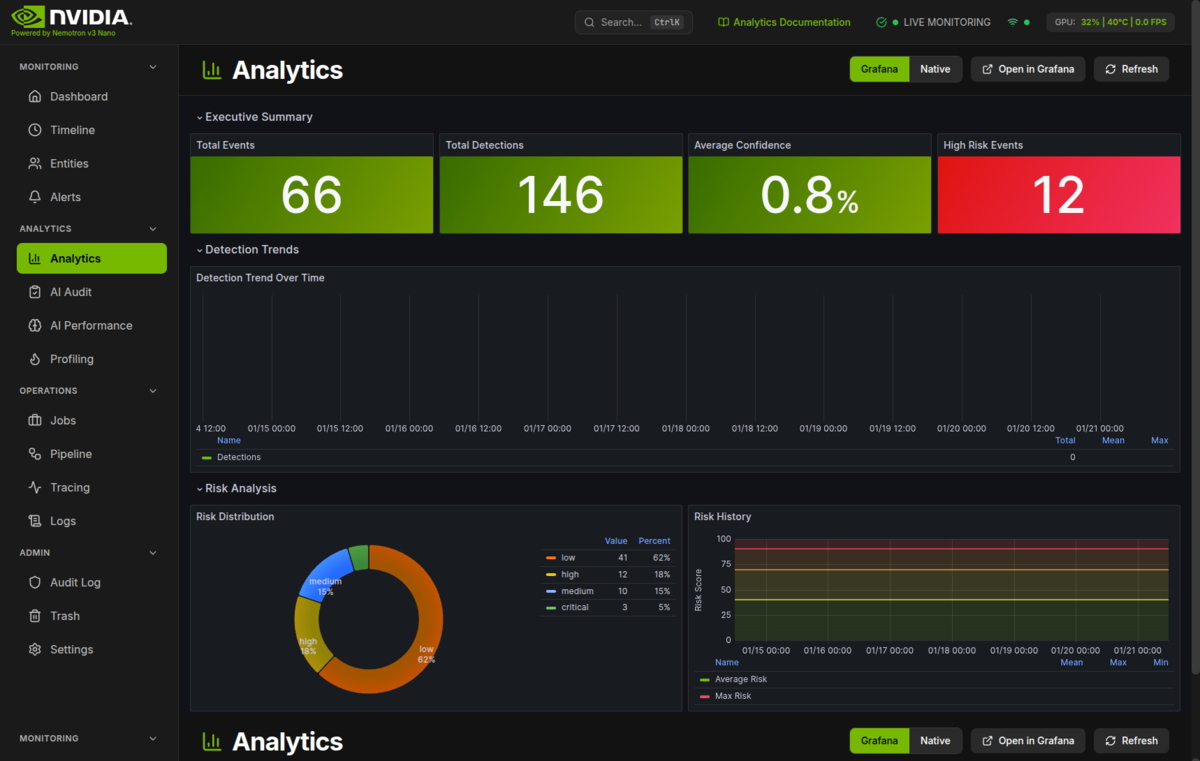

The Analytics page provides comprehensive insights into security detection patterns, risk trends, and camera performance. Powered by Grafana dashboards, this page helps you understand activity patterns, identify anomalies, and monitor system health.

Layout Overview¶

+----------------------------------------------------------+
|  HEADER: BarChart Icon | "Analytics" | Action Buttons     |
+----------------------------------------------------------+
|                                                          |
|  +----------------------------------------------------+  |
|  |                                                    |  |
|  |           GRAFANA DASHBOARD EMBED                  |  |
|  |                                                    |  |
|  |  +------------+ +------------+ +------------+      |  |
|  |  | Detection  | | Risk       | | Camera     |      |  |
|  |  | Trends     | | Analysis   | | Performance|      |  |
|  |  +------------+ +------------+ +------------+      |  |
|  |                                                    |  |
|  |  +------------------------------------------+      |  |
|  |  |                                          |      |  |
|  |  |           VISUALIZATION PANELS           |      |  |
|  |  |                                          |      |  |
|  |  +------------------------------------------+      |  |
|  |                                                    |  |
|  +----------------------------------------------------+  |
|                                                          |
+----------------------------------------------------------+

The page embeds the HSI Analytics dashboard from Grafana, which provides:

• Detection Trends - Daily detection counts visualized over time
• Risk Analysis - Risk score distribution and historical breakdown
• Camera Activity - Metrics and activity patterns per camera
• Activity Baselines - Learned patterns for anomaly detection

Key Components¶

Header Controls¶

View Modes¶

The Analytics page supports two view modes:

Grafana View (Default)¶

The primary view embeds the HSI Analytics Grafana dashboard (hsi-analytics) in kiosk mode. This provides:

• Consistent visualization style with other monitoring dashboards
• Auto-refresh every 30 seconds
• Full Grafana interactivity (zoom, pan, time range selection)
• Access to all Grafana features when opened in full mode

Native View¶

A fallback view showing select React-based analytics components:

Use native view when Grafana is unavailable or for quick access to specific metrics.

Grafana Dashboard Panels¶

The embedded Grafana dashboard includes panels for:

Understanding Analytics Data¶

Detection Trends¶

The detection trend visualization shows how many detections occur over time:

Risk Analysis¶

Events are categorized by risk level based on AI analysis:

Camera Performance¶

Monitor camera health through:

• Uptime percentage - Days with detections vs. total days
• Activity distribution - Which cameras are most active
• Detection quality - Confidence scores of AI detections

Using Analytics Effectively¶

Daily Review¶

1. Check detection trends for any unusual spikes
2. Review high-risk events in the risk distribution panel
3. Verify all cameras show expected activity

Weekly Review¶

1. Compare this week's trends to previous weeks
2. Look for pattern changes in activity levels
3. Check if any cameras are underperforming

After Incidents¶

1. Use time range selection to focus on incident period
2. Review risk levels during the timeframe
3. Check which cameras captured the activity

Settings & Configuration¶

Grafana URL¶

The Grafana URL is automatically configured from the backend. If the embedded dashboard fails to load:

1. Verify Grafana is running
2. Check the grafana_url config setting
3. Verify network connectivity between frontend and Grafana

Dashboard Configuration¶

The HSI Analytics dashboard is provisioned automatically:

# Grafana provisioning location
monitoring/grafana/dashboards/analytics.json

Auto-Refresh¶

The embedded dashboard refreshes every 30 seconds automatically. Use the manual Refresh button for immediate updates.

Troubleshooting¶

Dashboard Shows "No Data"¶

1. Check time range: Expand the time period in Grafana
2. Verify cameras are active: Check camera status in the Dashboard
3. Check AI pipeline: Verify the detection pipeline is running
4. Verify datasources: Confirm Grafana can reach the backend API

"Failed to load configuration" Error¶

The frontend couldn't fetch the Grafana URL from the backend:

1. Verify the backend is running
2. Check network connectivity
3. The dashboard will use /grafana as a fallback

Dashboard Loads But Shows Empty Panels¶

1. Check that data exists in the database
2. Verify the Grafana datasource is configured correctly
3. Try opening in full Grafana to see any error messages

Native View Shows Errors¶

If the native view components fail to load:

1. Check backend API connectivity
2. Verify the /api/analytics/* endpoints are responding
3. Check browser console for specific error messages

Technical Deep Dive¶

Architecture¶

flowchart LR
    subgraph DataSources["Data Sources"]
        DB[(PostgreSQL)]
        B[Backend API]
    end

    subgraph Visualization["Visualization"]
        G[Grafana]
        F[Frontend]
    end

    DB --> B
    B --> G
    G -->|iframe embed| F
    B -->|native API| F

    style DataSources fill:#e0f2fe
    style Visualization fill:#dcfce7

Related Code¶

Frontend:

• Analytics Page: frontend/src/components/analytics/AnalyticsPage.tsx
• Camera Uptime Card: frontend/src/components/analytics/CameraUptimeCard.tsx
• Pipeline Latency Panel: frontend/src/components/analytics/PipelineLatencyPanel.tsx
• Grafana URL Utility: frontend/src/utils/grafanaUrl.ts

Backend:

• Analytics Routes: backend/api/routes/analytics.py
• System Routes: backend/api/routes/system.py (pipeline latency)

Infrastructure:

• Grafana Dashboard: monitoring/grafana/dashboards/analytics.json
• Grafana Container: docker-compose.prod.yml (grafana service)

API Endpoints¶

Data Flow¶

1. Detection data is stored in PostgreSQL via the AI pipeline
2. Backend API aggregates and serves analytics data
3. Grafana queries the backend API for visualizations
4. Frontend embeds the Grafana dashboard in an iframe
5. Native view components query the API directly
