Dashboard¶

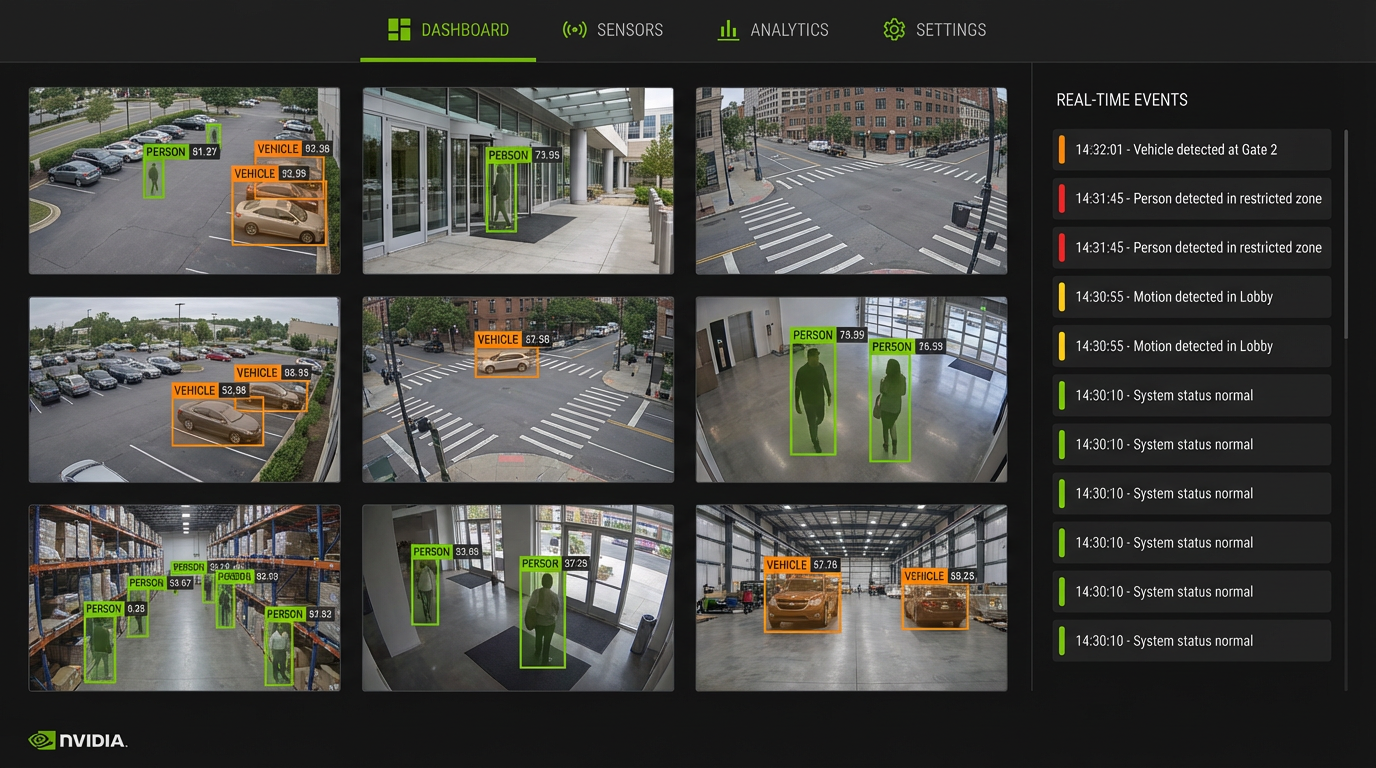

AI-generated visualization of the security dashboard interface with camera grid and real-time event feed.

The main monitoring view showing real-time security status across all cameras.

What You're Looking At¶

The Dashboard is your central hub for home security monitoring. When you open the dashboard, you see the main Security Dashboard page - your home base for monitoring everything happening around your property. The system automatically watches your cameras, detects movement, and uses AI to assess whether activity might be a security concern.

Layout Overview¶

%%{init: {'theme': 'dark'}}%%
flowchart TB
    subgraph Header["HEADER"]
        Logo["Logo"]
        LiveStatus["Live Status"]
        GPUStats["GPU Stats"]
    end

    subgraph Main["MAIN LAYOUT"]
        subgraph Sidebar["SIDEBAR"]
            Dash["[Dash]"]
            Time["[Time]"]
            Ent["[Ent]"]
            Alrt["[Alrt]"]
            Logs["[Logs]"]
            Syst["[Syst]"]
            Sett["[Sett]"]
        end

        subgraph Content["MAIN CONTENT"]
            Title["Security Dashboard"]
            subgraph Stats["STATS ROW"]
                Cam["Cameras"]
                Evts["Events"]
                Risk["Risk"]
                Sys["System"]
            end
            subgraph Widgets["WIDGETS"]
                RiskGauge["RISK GAUGE"]
                GPUWidget["GPU STATS"]
            end
            subgraph CameraGrid["CAMERA GRID"]
                Cam1["Cam1"]
                Cam2["Cam2"]
                Cam3["Cam3"]
            end
            subgraph ActivityFeed["LIVE ACTIVITY FEED"]
                Event1["Event 1"]
                Event2["Event 2"]
                Event3["Event 3"]
            end
        end
    end

It provides a customizable layout with these default widgets:

• Stats Row - Key metrics including active cameras, events today, current risk level, and system status
• Camera Grid - Live status of all connected cameras with thumbnails
• Activity Feed - Real-time scrolling list of recent detection events

Additional widgets can be enabled via the Configure button:

• GPU Statistics - NVIDIA GPU utilization, memory, temperature, and inference metrics
• Pipeline Telemetry - AI pipeline latency, throughput, and queue metrics
• Pipeline Queues - Detection and analysis queue depths

Key Components¶

Stats Row¶

The Stats Row displays four clickable metric cards at the top of the dashboard:

The Risk Sparkline displays a mini chart of the last 10 risk scores, providing a visual trend of recent activity levels.

Reading the Sparkline:

The sparkline only appears when there are at least 2 recent events to compare. The line color matches the current risk level (green, yellow, orange, or red).

Tip: A rising sparkline with increasing risk scores may indicate developing security concerns worth investigating, even if the current score is still moderate.

Risk Levels¶

The risk score is determined by the NVIDIA Nemotron LLM analyzing detected objects, time of day, location context, and behavioral patterns. Scores map to four severity levels:

What Each Level Typically Means:

• Low (0-29): Regular household activity, family members coming and going, expected deliveries, animals and wildlife, normal neighborhood traffic
• Medium (30-59): Unfamiliar people near property, activity at unusual hours, longer-than-normal presence, vehicles stopping briefly
• High (60-84): Unknown individuals approaching doors/windows, activity late at night, multiple people acting together, repeated visits by same unknown person
• Critical (85-100): Attempted unauthorized entry, suspicious behavior near entry points, known threat indicators, emergency situations

How Nemotron Calculates Risk:

1. Object Detection: YOLO26 identifies objects (persons, vehicles, animals) with confidence scores
2. Batch Aggregation: Related detections are grouped into up to 90-second time windows (closing after 30 seconds of idle or when max detections reached)
3. Context Analysis: Nemotron evaluates:
4. Time of day (e.g., 2 AM person detection vs noon)
5. Object types and confidence levels
6. Camera location (e.g., entry points vs backyard)
7. Detection frequency and patterns
8. Risk Assessment: LLM generates a score, level, summary, and reasoning

Diagram: Risk Score Calculation Flow¶

flowchart TD
    subgraph Detection["Object Detection"]
        A[Camera Captures Image] --> B[YOLO26 Processing]
        B --> C{Objects Detected?}
        C -->|No| D[Discard Frame]
        C -->|Yes| E[Extract Objects with Confidence]
    end

    subgraph Batching["Batch Aggregation"]
        E --> F[Add to Detection Batch]
        F --> G{Batch Complete?}
        G -->|"90s window OR<br/>30s idle OR<br/>max detections"| H[Close Batch]
        G -->|No| F
    end

    subgraph Analysis["Nemotron Analysis"]
        H --> I[Evaluate Context]
        I --> J[Time of Day]
        I --> K[Object Types]
        I --> L[Camera Location]
        I --> M[Detection Patterns]
        J & K & L & M --> N[LLM Risk Assessment]
    end

    subgraph Output["Risk Output"]
        N --> O[Risk Score 0-100]
        O --> P{Score Range}
        P -->|0-29| Q[Low - Green]
        P -->|30-59| R[Medium - Yellow]
        P -->|60-84| S[High - Orange]
        P -->|85-100| T[Critical - Red]
    end

    style Detection fill:#e0f2fe
    style Batching fill:#fef3c7
    style Analysis fill:#f3e8ff
    style Output fill:#dcfce7

Camera Grid¶

Each camera card displays:

• Thumbnail - Latest snapshot (refreshed on page load)
• Camera name - Location identifier (e.g., "Front Door")
• Status badge - Current connection status
• Last seen time - When the camera was last active

Status Indicators:

Click any camera card to navigate to the Timeline filtered to that camera's events.

Activity Feed¶

The right panel shows a real-time scrolling list of recent security events:

• Thumbnail - Small preview image from the detection
• Camera name - Which camera captured it
• Risk badge - Color-coded severity level with score
• Summary - AI-generated description of the event
• Timestamp - Relative time (e.g., "5 mins ago") or absolute date

Features:

• Auto-scroll: New events automatically scroll into view (can be paused)
• Click to expand: Click any event to open it in the Timeline with full details
• Event limit: Shows the 10 most recent events by default

GPU Statistics (Optional)¶

When enabled via Configure, displays real-time NVIDIA GPU metrics:

• Utilization - GPU compute usage percentage
• Memory - VRAM usage (used / total in GB)
• Temperature - GPU temperature with color coding
• Power Usage - Wattage consumption
• Inference FPS - AI model frames per second
• History Charts - Tabbed view of utilization, temperature, and memory trends

Temperature Color Coding:

Power Color Coding:

Controls:

• Pause/Resume - Stop or start data collection
• Clear - Reset the history chart data

Pipeline Telemetry (Optional)¶

When enabled via Configure, displays AI pipeline metrics:

• Queue Depths - Detection and analysis queue sizes
• Processing Latency - Average, p95, and p99 latencies for each stage
• Throughput - Detections and analyses per minute
• Error Rate - Pipeline error percentage
• History Charts - Detection latency, analysis latency, and throughput trends

Pipeline Queues (Optional)¶

Shows the current backlog of images waiting to be processed:

Queue Status Colors:

A warning message appears when queues exceed the threshold (default: 10), indicating processing is falling behind and events may be delayed.

AI Enrichment Data in Event Details¶

When you view an event in detail (by clicking an event in the Activity Feed), the system shows AI Enrichment Analysis - additional information extracted by specialized AI models that run on each detection. This enrichment data provides deeper insight into what was detected.

What is AI Enrichment?¶

Basic object detection tells you "there is a person" or "there is a vehicle." AI enrichment goes further:

• For vehicles: What type? What color? Any damage? Is there a license plate?
• For people: What are they wearing? Are they carrying anything? Face visible?
• For animals: Is it a cat or dog? Is it likely a household pet?
• For the scene: What's the weather? What's the image quality?

This additional context helps the system assign more accurate risk scores and helps you understand situations at a glance.

Enrichment Data Types¶

Vehicle Information¶

Damage Types (Security Relevant):

• Glass Shatter - Broken windows (possible break-in)
• Lamp Broken - Damaged headlights/taillights
• Cracks, Dents, Scratches - Body damage
• Tire Flat - Deflated or damaged tires

Person Information¶

Security Flags:

• Suspicious Attire (yellow warning) - Face coverings, all-dark clothing at night, masks
• Service Uniform (blue info) - Delivery driver uniforms, maintenance worker clothing

License Plate Detection¶

Pet Identification¶

Pet detection helps reduce false alarms - when the system identifies a high-confidence household pet with no other concerning factors, it can automatically lower the risk score.

Weather Conditions¶

Weather context helps interpret events - a person running in rain may be rushing to get inside rather than fleeing a scene.

Understanding Confidence Scores¶

Each enrichment section shows a confidence badge indicating how certain the AI is:

How Enrichment Affects Risk Scores¶

Factors that increase risk:

• Suspicious attire (face coverings, all-dark at night)
• High-security vehicle damage (broken glass, broken lights)
• Poor image quality (possible camera tampering)
• Violence detection (when multiple people are present)

Factors that decrease risk:

• Confirmed household pets
• Service uniforms (delivery drivers, maintenance workers)
• Commercial vehicles (during daytime)

Customizing the Dashboard¶

Click the Configure button (gear icon) in the top-right corner to:

1. Toggle widgets - Show or hide any widget using the switches
2. Reorder widgets - Use up/down arrows to change display order
3. Reset to defaults - Restore the original layout

Configuration is saved to your browser's localStorage and persists across sessions.

Default Configuration:

Real-Time Updates¶

The dashboard receives real-time updates via WebSocket connections:

• Events channel (/ws/events) - New security events as they're created
• System channel (/ws/system) - GPU stats, queue depths, service health every 5 seconds

Connection Status¶

At the top of the dashboard, a status indicator shows whether you are receiving real-time updates:

• Connected (green pulsing dot with "LIVE MONITORING") - Everything is working normally
• Disconnected - Real-time updates paused; data may be stale

If disconnected, the dashboard will still show the most recent data but will not update automatically until connection is restored. A (Disconnected) indicator appears in the header when WebSocket connections are lost.

Hovering over the status indicator displays a tooltip showing the health of individual services (database, Redis, detector, file watcher, Nemotron).

Diagram: Connection Status States¶

stateDiagram-v2
    [*] --> Connecting: Page Load

    Connecting --> Connected: WebSocket Opens
    Connecting --> Disconnected: Connection Failed

    Connected --> Disconnected: Connection Lost
    Connected --> Connected: Heartbeat OK

    Disconnected --> Reconnecting: Auto-Retry (5s)

    Reconnecting --> Connected: Reconnect Success
    Reconnecting --> Disconnected: Retry Failed

    state Connected {
        [*] --> LiveMonitoring
        LiveMonitoring --> LiveMonitoring: Receive Events
        LiveMonitoring: Green pulsing dot
        LiveMonitoring: "LIVE MONITORING" badge
    }

    state Disconnected {
        [*] --> Stale
        Stale: Data may be stale
        Stale: "(Disconnected)" indicator
    }

    state Reconnecting {
        [*] --> Attempting
        Attempting: Exponential backoff
        Attempting: Max 5 retries
    }

Troubleshooting¶

Risk score shows "0"¶

No events have been detected recently. This is normal when cameras are idle or the system just started.

System Status shows "Unknown"¶

The system status WebSocket may still be connecting. This typically resolves within a few seconds of page load.

Camera shows "Offline"¶

1. Verify the camera is powered on and connected to the network
2. Check FTP upload settings on the camera (should point to your server)
3. Ensure the camera's folder exists at /export/foscam/{camera_name}/
4. Check the backend logs for FTP connection errors

Activity Feed is empty¶

No events have been detected in the current time range. Possible causes:

• Cameras are not detecting motion
• Detection confidence is below threshold (default 50%)
• AI services (YOLO26 or Nemotron) are offline

GPU Statistics shows "N/A"¶

• The GPU monitoring service may not have data yet (wait 5-10 seconds)
• NVIDIA drivers may not be properly configured on the host
• The AI services container may not have GPU access

Dashboard looks different than expected¶

Your dashboard configuration is stored in localStorage. Click Configure > Reset to Defaults to restore the standard layout.

Navigation¶

The left sidebar provides navigation to different areas of the application:

The current page is highlighted in bright green.

Keyboard Shortcuts¶

When viewing event details (from the Activity Feed):

Tips for Effective Dashboard Use¶

For Everyday Monitoring¶

1. Keep Stats Row and Camera Grid visible for a quick overview
2. Enable Activity Feed if you want to see events in real-time
3. Hide technical widgets (GPU, Pipeline) unless troubleshooting
4. Check the dashboard periodically to stay aware of security status
5. Watch the risk gauge - if it turns yellow, orange, or red, investigate the activity feed

For Technical Monitoring¶

1. Enable GPU Statistics to monitor AI hardware health
2. Add Pipeline Telemetry to track processing performance
3. Use Pipeline Queues to spot processing bottlenecks
4. Monitor GPU temperature - high temperatures may indicate the system needs attention

When Investigating Events¶

1. Use the Pause button on the Activity Feed to stop auto-scrolling
2. Click any event to see full details in a popup window
3. Review high and critical events promptly
4. Add notes to events for future reference

Quick Reference¶

Color Guide¶

Status Indicators¶

Common Actions¶

Technical Deep Dive¶

For developers wanting to understand the underlying systems.

Architecture¶

• AI Pipeline: Detection, Batching, and Analysis Flow
• Real-time Updates: WebSocket and Redis Pub/Sub
• Risk Level Configuration: See frontend/src/utils/risk.ts for threshold definitions

Related Code¶

Frontend:

• Dashboard Page: frontend/src/components/dashboard/DashboardPage.tsx
• Dashboard Layout: frontend/src/components/dashboard/DashboardLayout.tsx
• Stats Row: frontend/src/components/dashboard/StatsRow.tsx
• Camera Grid: frontend/src/components/dashboard/CameraGrid.tsx
• Activity Feed: frontend/src/components/dashboard/ActivityFeed.tsx
• GPU Stats: frontend/src/components/dashboard/GpuStats.tsx
• Pipeline Telemetry: frontend/src/components/dashboard/PipelineTelemetry.tsx
• Configuration Modal: frontend/src/components/dashboard/DashboardConfigModal.tsx
• Configuration Store: frontend/src/stores/dashboardConfig.ts

Hooks:

• WebSocket Events: frontend/src/hooks/useEventStream.ts
• System Status: frontend/src/hooks/useSystemStatus.ts
• Risk Utilities: frontend/src/utils/risk.ts

Backend:

• Event Broadcasting: backend/services/event_broadcaster.py
• System Broadcasting: backend/services/system_broadcaster.py
• Nemotron Analyzer: backend/services/nemotron_analyzer.py
• Batch Aggregator: backend/services/batch_aggregator.py
