Entities¶

The Entities page provides comprehensive tracking and re-identification of people and vehicles detected across your security camera network. Using AI-powered visual embeddings, the system automatically recognizes when the same person or vehicle appears on different cameras.

What You're Looking At¶

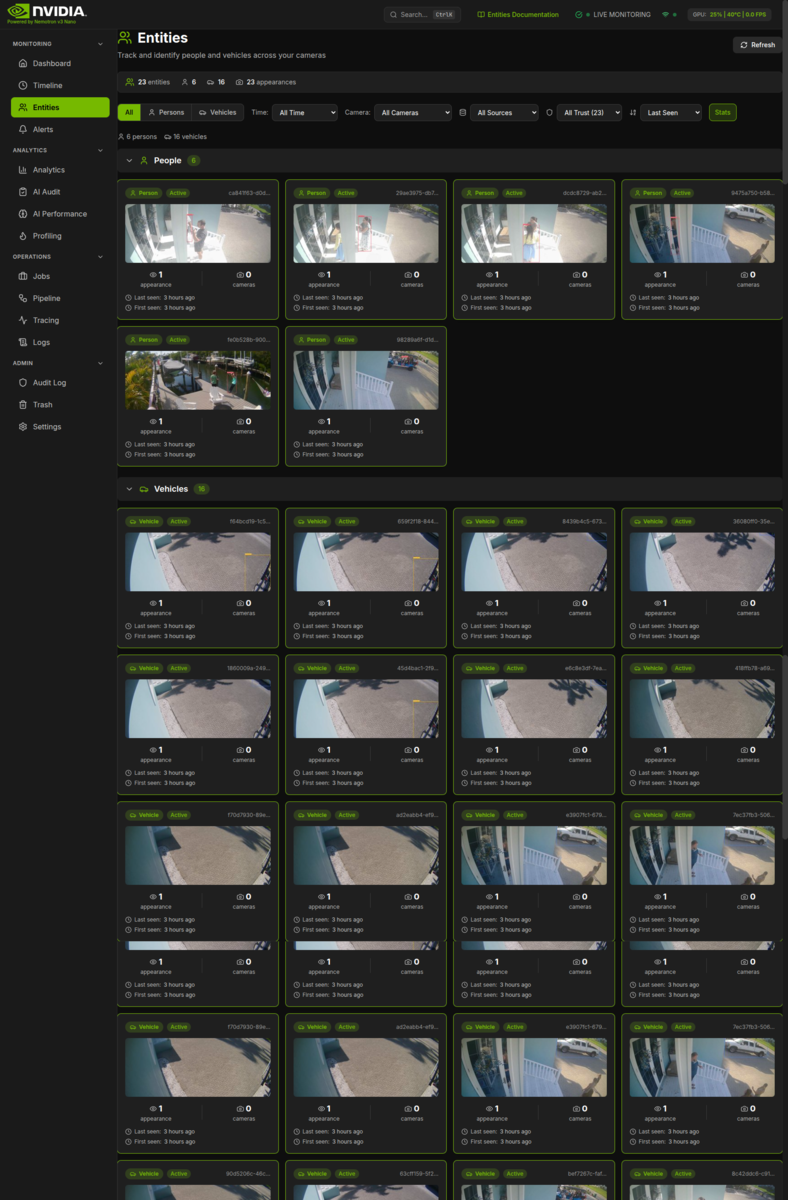

The Entities page is your central hub for entity tracking and management. It provides:

• Entity Grid - Visual cards showing all tracked persons and vehicles
• Statistics Card - Overview of total entities, appearances, and repeat visitors
• Filtering Controls - Filter by type, time range, camera, data source, and trust status
• Detail Modal - Full entity history with detection images and appearance timeline

When a person or vehicle is detected, the system generates a 768-dimensional CLIP embedding (visual fingerprint) that allows matching across different camera views with high accuracy.

Key Components¶

Entity Cards¶

Each entity card displays:

• Entity Type Badge - Person (user icon) or Vehicle (car icon) with NVIDIA green (#76B900) accent
• Trust Status Badge - Trusted (green shield with checkmark), Suspicious (amber warning triangle), or no badge for Unknown/Unclassified
• Thumbnail - Most recent detection image (128px height), or placeholder icon matching entity type
• Appearance Count - How many times this entity has been detected (eye icon)
• Cameras Seen - Number of unique cameras where the entity appeared (camera icon)
• Timestamps - When the entity was first and last seen (relative formatting like "5 minutes ago", "2 days ago")
• Entity ID - Truncated UUID displayed in the card header (hover for full ID)

Click any entity card to open the detail modal with full history. Cards support keyboard navigation (Enter/Space to activate).

Entity Statistics Card¶

The collapsible statistics panel at the top shows:

• Total Entities - Unique persons and vehicles tracked
• Persons Count - Number of tracked people
• Vehicles Count - Number of tracked vehicles
• Repeat Visitors - Entities seen more than once
• Total Appearances - Sum of all detection events

Toggle the "Stats" button to show/hide this panel. Data refreshes automatically every 60 seconds.

Re-Identification (CLIP Embeddings)¶

The system uses CLIP ViT-L (Vision Transformer Large) to generate visual embeddings for person and vehicle re-identification across cameras.

How It Works:

1. Detection - YOLO26 detects a person or vehicle in a camera frame
2. Embedding Generation - The detected region is cropped and processed through the CLIP model
3. 768-Dimensional Vector - The model outputs a compact visual fingerprint (embedding)
4. Cosine Similarity Matching - New embeddings are compared against existing entity embeddings using cosine similarity
5. Entity Assignment - If similarity >= 85% (configurable DEFAULT_SIMILARITY_THRESHOLD = 0.85), the detection is linked to an existing entity; otherwise, a new entity is created

What CLIP Can Match:

• Same person at different angles or poses
• Same person across different cameras with varying lighting
• Same vehicle from different viewpoints
• Same person/vehicle over multiple days (within 30-day retention)

Limitations:

• Very different clothing may reduce person similarity scores
• Extreme lighting differences or occlusion can affect accuracy
• Very similar-looking individuals may be incorrectly merged (rare)
• Vehicles of the same make/model/color may match incorrectly

Technical Details:

• Model: CLIP ViT-L/14 (Vision Transformer Large with 14x14 patches)
• Embedding Dimension: 768 floats
• Memory Usage: ~800MB VRAM on GPU
• Fallback: CPU processing available if GPU is unavailable
• TTL: Embeddings cached in Redis for 24 hours (86400 seconds)

Trust Classification¶

Entities can be classified based on whether they are known and trusted. This helps filter alerts and focus on unknown or suspicious activity.

Trust Status Values:

Setting Trust Status:

Trust status can be set from the Entity Detail Modal using the action buttons:

• "Mark as Trusted" - Sets entity to trusted status (green shield icon)
• "Mark as Suspicious" - Sets entity to untrusted status (amber warning icon)
• "Reset" - Clears classification back to unclassified (gray shield icon)

Use Cases:

• Mark family members as "Trusted" to reduce alert noise
• Flag unknown visitors as "Suspicious" for monitoring
• Filter the entity list by trust status to focus on specific categories

TrustClassificationControls Component:

The standalone TrustClassificationControls component provides advanced trust management:

• Status Badge - Shows current trust status with appropriate icon and color
• Help Tooltip - Hover for description of current status
• Action Buttons - Click to change status (shows all three options)
• Confirmation Dialog - Requires confirmation before changing status
• Loading State - Shows spinner during API call
• Error Handling - Displays error message if update fails
• Size Variants - sm, md, lg for different contexts
• Read-Only Mode - Can display status badge without action buttons

Entity Detail Modal¶

Clicking an entity card opens a modal with comprehensive entity information:

Header Section:

• Entity thumbnail (64px circular) or placeholder icon
• Entity type title with NVIDIA green icon (Person/Vehicle)
• Full entity ID (monospace font for easy copying)
• Current trust status badge with icon
• Trust classification action buttons (contextual - only shows options not currently set)

Statistics Row (4 cards):

• Appearances - Total detection count (eye icon)
• Cameras - Number of unique cameras (camera icon)
• First seen - Relative timestamp of first detection (clock icon)
• Last seen - Relative timestamp of most recent detection (clock icon)

Cameras List:

• Badge for each camera where the entity was detected
• Camera icon with camera name/ID

Detection History:

• Image gallery with previous/next navigation arrows
• Thumbnail strip for quick navigation (64px thumbnails with confidence scores)
• Metadata card for selected detection:
• Camera name
• Timestamp (relative format)
• Object type badge
• Confidence percentage
• "View Full Size" button opens a lightbox with full-resolution image
• "Load more" button for paginated detection history (infinite query)

Appearance Timeline (EntityTimeline component):

• Chronological list of all sightings (most recent first)
• Thumbnail (48px circular), camera name, and timestamp for each
• Similarity score badges (when available) in NVIDIA green
• Vertical dotted timeline connector visualization
• Empty state with entity-type icon when no appearances

Modal Controls:

• Close button (X icon) in header
• Close button in footer
• Click outside to close (backdrop)
• Smooth transitions using Headless UI

Re-ID History Panel¶

The ReidHistoryPanel component provides advanced re-identification features for comparing entity appearances:

Features:

• Side-by-Side Comparison - Select up to 2 appearances to compare visually
• Timeline View - Chronological list of all appearances with thumbnails
• Camera Tracking - See which cameras captured each appearance

Similarity Score Badges:

Color-coded badges indicate matching confidence:

Attributes Display:

When available, the panel shows extracted attributes for each appearance:

• Clothing color/type
• Vehicle color/make
• Other visual characteristics extracted by the AI

Usage:

1. Open an entity detail modal
2. Click on appearances in the timeline to select them
3. Select a second appearance to enable side-by-side comparison
4. Click "Clear" to reset the selection

Settings & Configuration¶

Filter Options¶

Entity Type:

• All - Show all tracked entities
• Persons - Show only people
• Vehicles - Show only vehicles

Time Range:

• All Time - No time filtering
• Last 1h - Entities seen in the past hour
• Last 24h - Entities seen in the past day
• Last 7d - Entities seen in the past week
• Last 30d - Entities seen in the past month
• Custom Range - Specify start/end dates

Camera:

• All Cameras - Show entities from all cameras
• Specific camera - Filter to a single camera

Data Source:

• All Sources - Combined Redis and PostgreSQL data
• Real-time (24h) - Redis hot cache only
• Historical (30d) - PostgreSQL persistence only

Trust Status:

• All Trust - Show all entities regardless of trust status (shows count)
• Trusted - Show only trusted entities (shows count)
• Suspicious - Show only untrusted entities (shows count)
• Unknown - Show only unclassified entities (shows count)

Sort Options:

• Last Seen - Most recently seen first
• First Seen - Most recently discovered first
• Appearances - Most frequently seen first

Backend Configuration¶

Entity tracking behavior is configured via environment variables:

Storage Architecture¶

Entities use a hybrid storage pattern:

• Redis (Hot Cache) - 24-hour TTL for fast recent lookups
• PostgreSQL (Persistence) - 30-day retention for historical data

The HybridEntityStorage service coordinates write-through storage to both systems and tiered reads (Redis first, PostgreSQL fallback).

Troubleshooting¶

Entity shows "No appearances recorded"¶

The entity record exists but no detection history was found. This can happen if:

1. The detection images were cleaned up (retention policy)
2. There was a data synchronization issue

Try refreshing the page or checking the Events page for related detections.

Entities not matching across cameras¶

If the same person/vehicle creates multiple entity records:

1. Lighting conditions - Extreme lighting differences can affect embedding accuracy
2. Angle variations - Very different viewing angles may reduce similarity
3. Threshold too high - Consider if the 85% similarity threshold is appropriate

The system logs similarity scores - check backend logs for matching attempts.

Entity images show placeholder instead of thumbnail¶

1. Image not available - The detection image may have been cleaned up
2. Loading error - Check browser network tab for failed image requests
3. Path issue - Verify the /export/foscam/ mount is accessible

Trust status not saving¶

1. API error - Check browser console for failed API requests
2. Permissions - Verify backend service is running
3. Database - Check PostgreSQL connection status

Slow entity list loading¶

1. Large dataset - Use time range filters to limit results
2. Pagination - The page uses cursor-based infinite scroll with 50 items per page
3. Background refresh - Auto-refresh runs every 30 seconds; watch for the "Updating..." indicator
4. Trust filtering - Trust filtering happens client-side after data loads, which may cause slight delays on large datasets

"Failed to load entity statistics" error¶

1. Backend service - Ensure the backend is running
2. Database connection - Check PostgreSQL connectivity
3. Time range - Very large time ranges may timeout

Technical Deep Dive¶

For developers wanting to understand the underlying systems.

Architecture¶

• Re-Identification Pipeline: AI Pipeline Architecture
• Data Model: Entity Data Model
• Real-time Updates: WebSocket Implementation
• System Overview: Architecture Overview

Key Services¶

Backend Services:

• ReIdentificationService - CLIP embedding generation and matching
• EntityClusteringService - Deduplication and entity assignment
• HybridEntityStorage - Redis/PostgreSQL coordination

Frontend Hooks:

• useEntitiesInfiniteQuery - Cursor-based paginated entity list with infinite scroll (30s auto-refresh)
• useEntityDetailQuery - Single entity detail fetch
• useEntityHistory - Entity detection history with infinite query pagination
• useEntityStats - Aggregated statistics (60s auto-refresh)
• useEntitiesV2Query - V2 API hook with historical support and source filtering

Related Code¶

Frontend:

• Page Component: frontend/src/components/entities/EntitiesPage.tsx
• Entity Card: frontend/src/components/entities/EntityCard.tsx
• Detail Modal: frontend/src/components/entities/EntityDetailModal.tsx
• Timeline: frontend/src/components/entities/EntityTimeline.tsx
• Stats Card: frontend/src/components/entities/EntityStatsCard.tsx
• Trust Controls: frontend/src/components/entities/TrustClassificationControls.tsx
• Re-ID History: frontend/src/components/entities/ReidHistoryPanel.tsx
• Empty State: frontend/src/components/entities/EntitiesEmptyState.tsx

Frontend Hooks:

• Infinite Query: frontend/src/hooks/useEntitiesInfiniteQuery.ts
• Entity Query: frontend/src/hooks/useEntitiesQuery.ts
• Entity History: frontend/src/hooks/useEntityHistory.ts

Backend:

• Re-ID Service: backend/services/reid_service.py
• CLIP Loader: backend/services/clip_loader.py
• Clustering Service: backend/services/entity_clustering_service.py
• Hybrid Storage: backend/services/hybrid_entity_storage.py
• API Routes: backend/api/routes/entities.py

API Endpoints¶

CLIP Embedding Details¶

The CLIP ViT-L model provides:

• 768-dimensional embeddings for robust visual representation
• ~800MB VRAM usage on GPU
• CPU fallback available if GPU is unavailable
• Cosine similarity matching with 0.85 default threshold (DEFAULT_SIMILARITY_THRESHOLD)
• Embedding TTL: 24 hours (86400 seconds) in Redis cache

Embeddings are computed by the ai-clip container service, keeping the model in a dedicated container for better VRAM management.

Empty State¶

When no entities have been tracked, the EntitiesEmptyState component displays:

• Animated illustration with floating icons (person, vehicle, location, clock)
• Explanation of what entities are and how they're created
• "How it works" section with 4 steps:
• Camera detects a person or vehicle
• AI extracts visual features
• System matches across all camera feeds
• Entity profile created with movement history
• CTA button linking to detection settings

This provides onboarding guidance for new users.

Best Practices for Trust Classification¶

Mark as Trusted¶

• Family members and regular visitors
• Delivery drivers you recognize
• Your own vehicles
• Neighbors you know

Mark as Suspicious¶

• Unknown persons lingering on property
• Vehicles casing the area
• People attempting to access restricted areas
• Anyone who triggered a genuine alert

Leave Unknown¶

• First-time visitors until identified
• Entities with insufficient data
• Ambiguous detections

Privacy Considerations¶

Entity tracking stores:

• Detection images and thumbnails
• Appearance timestamps
• Camera locations
• Re-identification embeddings

To protect privacy:

• Only family members should have access to the system
• Review and delete entities as needed
• Set appropriate data retention policies
• Use trust classification responsibly
• Embeddings are stored locally and expire after 24 hours
