Operations¶

AI-generated visualization of the system monitoring dashboard with GPU metrics, container status, and circuit breakers.

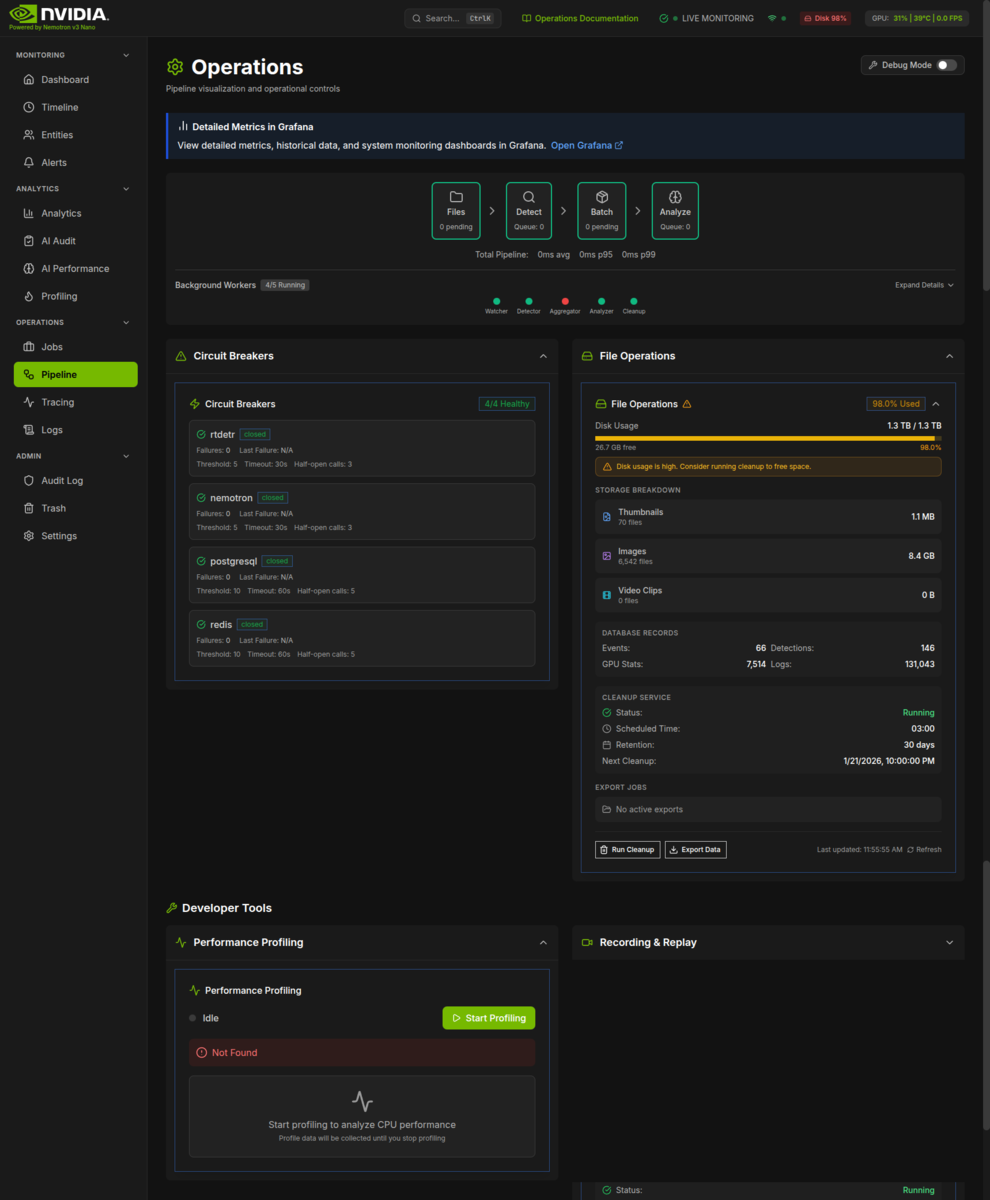

The operations dashboard for pipeline visualization, circuit breaker management, file cleanup, and detailed system metrics through Grafana integration.

What You're Looking At¶

The Operations page is your control center for system administration. Unlike the Dashboard which focuses on security events, Operations provides:

• Pipeline Flow Visualization - See how images move through the AI processing stages
• Circuit Breaker Controls - Reset tripped circuit breakers to restore service connectivity
• File Operations - Manage disk storage and run cleanup tasks
• Debug Mode - Enable additional diagnostics when troubleshooting
• Developer Tools - Performance profiling, configuration inspection, log level control, and test data generation

For detailed historical metrics and custom dashboards, click the Grafana link banner at the top.

Key Components¶

Pipeline Flow Visualization¶

The pipeline visualization shows the four processing stages as a horizontal flow diagram:

Diagram: AI Pipeline Flow¶

flowchart LR
    subgraph Files["Files Stage"]
        F1[Camera Uploads]
        F2[File Watcher]
        F1 --> F2
    end

    subgraph Detect["Detection Stage"]
        D1[Detection Queue]
        D2[YOLO26]
        D1 --> D2
    end

    subgraph Batch["Batching Stage"]
        B1[Group Related]
        B2[Time Windows]
        B1 --> B2
    end

    subgraph Analyze["Analysis Stage"]
        A1[Analysis Queue]
        A2[Nemotron LLM]
        A1 --> A2
    end

    Files --> Detect --> Batch --> Analyze

    style Files fill:#e0f2fe,stroke:#0284c7
    style Detect fill:#fef3c7,stroke:#ca8a04
    style Batch fill:#fed7aa,stroke:#ea580c
    style Analyze fill:#f3e8ff,stroke:#9333ea

Stage Cards: Each stage displays:

• Queue depth - Items waiting to be processed (Detect and Analyze stages)
• Average latency - Average processing time (Detect and Analyze stages)
• Throughput - Items processed per minute (Batch stage only)
• Pending count - Files awaiting processing (Files and Batch stages)

Health Status Colors: | Border Color | Status | Meaning | |-------------|--------|---------| | Emerald | Healthy | Queue < 10, latency normal | | Yellow | Degraded | Queue 10-50 or latency 2-5x baseline | | Red | Critical | Queue > 50 or latency > 5x baseline |

Background Workers Section: Below the pipeline shows worker status with a summary badge indicating how many workers are running (e.g., "5/5 Running"). Click "Expand Details" to see the full list with status for each worker.

Worker types:

• Watcher (file_watcher) - Monitors camera FTP directories for new images
• Detector (detection_worker) - Processes the detection queue with YOLO26
• Aggregator (batch_aggregator) - Groups related detections into batches (90-second windows)
• Analyzer (analysis_worker) - Processes batches through Nemotron for risk analysis
• Cleanup (cleanup_service) - Removes old data based on retention policy

Worker status dots:

• Green = Running
• Yellow = Degraded
• Red = Stopped

Total Pipeline Latency: Shows end-to-end timing (avg, P95, P99) from file arrival to analysis completion. This is calculated by summing the detect and analyze stage latencies.

Circuit Breakers Panel¶

Circuit breakers protect the system from cascading failures by temporarily blocking requests to failing services. The panel header displays a summary badge (e.g., "3/3 Healthy") showing how many circuit breakers are in a healthy closed state.

Circuit States: | State | Badge Color | Description | |-------|------------|-------------| | closed | Green | Normal operation, requests pass through | | open | Red | Service failing, requests blocked | | half_open | Yellow | Testing if service recovered |

Circuit Breaker Details (shown for each circuit breaker):

• Failure count - Number of consecutive failures
• Last failure - Time since the last recorded failure (displayed as relative time, e.g., "5s ago")
• Configuration - Threshold, recovery timeout (seconds), and half-open max calls

Reset Button: When a circuit breaker is open or half_open, a "Reset" button appears. Clicking it will:

1. Force the circuit back to closed state
2. Clear the failure count
3. Allow requests through immediately

When to reset: After fixing the underlying issue (service restarted, network restored, etc.)

When NOT to reset: If the root cause hasn't been addressed - the circuit will just trip again.

Diagram: Circuit Breaker State Machine¶

stateDiagram-v2
    [*] --> Closed: Initial State

    Closed --> Closed: Request Success
    Closed --> Open: Failures >= Threshold

    Open --> HalfOpen: Recovery Timeout Expires
    Open --> Open: Requests Blocked

    HalfOpen --> Closed: Test Calls Succeed
    HalfOpen --> Open: Test Call Fails

    state Closed {
        [*] --> Normal
        Normal: Requests pass through
        Normal: Green badge
        Normal: Failure count tracked
    }

    state Open {
        [*] --> Blocking
        Blocking: All requests blocked
        Blocking: Red badge
        Blocking: Timer counting down
    }

    state HalfOpen {
        [*] --> Testing
        Testing: Limited test calls allowed
        Testing: Yellow badge
        Testing: Evaluating recovery
    }

    note right of Closed
        Default: 5 failures to open
    end note

    note right of Open
        Default: 30s recovery timeout
    end note

    note right of HalfOpen
        Default: 3 test calls allowed
        2 successes needed to close
    end note

File Operations Panel¶

Manages disk storage and data cleanup tasks. The panel header shows a summary badge with current disk usage percentage and can be collapsed/expanded by clicking the header.

Disk Usage Section:

• Progress bar showing percent used (emerald when healthy, yellow when >= 85%)
• Total/used/free space in human-readable format
• Warning banner when usage exceeds 85% with recommendation to run cleanup

Storage Breakdown:

• Thumbnails - Detection preview images (blue icon)
• Images - Full-resolution camera captures from Foscam (purple icon)
• Video Clips - Event video recordings (cyan icon)

Each category shows file count and total size.

Database Records: Shows counts for:

• Events
• Detections
• GPU Stats
• Logs

Cleanup Service Summary:

• Running state with status indicator (green checkmark or gray X)
• Scheduled cleanup time
• Retention period (default: 30 days)
• Next scheduled cleanup timestamp (if available)

Orphaned Files Warning: Appears when files exist on disk but aren't referenced in the database. Shows the count of orphaned files and total size that can be reclaimed. Click "Clean Up" to delete these files.

Run Cleanup Button: Opens a confirmation modal showing what will be deleted:

• Events older than retention period
• Associated detections
• GPU stats
• Log entries
• Thumbnails
• Estimated space to reclaim

The modal requires explicit confirmation before deletion proceeds.

Export Data Button: Initiates data export jobs. Disabled when export jobs are already running or pending.

Active Exports Section: Shows recent export jobs with:

• Job status (pending, running, completed, failed)
• Progress bar for running jobs
• Start/creation time
• Error messages for failed jobs

Last Updated: Displays when data was last refreshed. Click "Refresh" to manually update.

Debug Mode Toggle¶

Available only when the backend has DEBUG=true in its configuration. The toggle appears in the page header next to the title.

When enabled (orange highlight):

• The toggle container shows an orange border and background tint
• A wrench icon appears in orange color
• The toggle state persists to localStorage

Note: The Circuit Breakers panel component supports an optional WebSocket Broadcasters debug section that can display event and system broadcaster status. This feature requires additional implementation to pass the debugMode and webSocketStatus props to the panel.

Developer Tools Section¶

A dedicated section for development and debugging tools, accessible below the main operational panels. Each tool is in a collapsible section with state persisted to localStorage via the useSystemPageSections hook.

Performance Profiling Panel¶

Monitor and analyze application performance with the ProfilingPanel component:

• Start and stop CPU/memory profiling sessions
• Download profiling data for external analysis
• View real-time performance metrics

Recording & Replay Panel¶

Capture and replay system behavior for debugging with the RecordingReplayPanel component:

• Record API requests and responses
• Replay recorded sessions for debugging
• Manage saved recording sessions

Configuration Inspector Panel¶

View and explore runtime configuration with the ConfigInspectorPanel component:

• Hierarchical tree view of all configuration values
• Search and filter by key or value
• See where each config value is defined (environment, file, default)

Log Level Panel¶

Dynamically adjust logging verbosity with the LogLevelPanel component:

• Set log levels per logger (DEBUG, INFO, WARNING, ERROR, CRITICAL)
• Changes take effect immediately without restart
• View current log level settings

Test Data Panel¶

Generate test data for development with the TestDataPanel component:

• Create synthetic security events
• Generate test detections and alerts
• Bulk operations for creating multiple test records
• Cleanup functions to remove test data

Grafana Integration Banner¶

A blue Callout banner appears below the page header, linking to Grafana at the configured URL (default: http://localhost:3002).

The banner reads: "View detailed metrics, historical data, and system monitoring dashboards in Grafana." with an "Open Grafana" link that opens in a new tab.

Grafana provides:

• Detailed historical metrics and time-series charts
• Custom dashboards for infrastructure monitoring
• Advanced queries and alerting capabilities
• No authentication required (anonymous access enabled)

Settings & Configuration¶

Operations page settings are managed through environment variables and backend configuration:

Grafana URL¶

Set via GRAFANA_URL environment variable or backend config API. Default: http://localhost:3002. The frontend fetches this from /api/system/config on page load.

Cleanup Configuration¶

• Retention days - How long to keep data (default: 30 days)
• Cleanup time - Daily scheduled cleanup time
• Configured in backend settings via CLEANUP_TIME and RETENTION_DAYS environment variables

Circuit Breaker Thresholds¶

Each circuit breaker has configurable:

• Failure threshold - Failures before opening (default: 5)
• Recovery timeout - Seconds before attempting recovery (default: 30)
• Half-open max calls - Test calls allowed in half-open state (default: 3)
• Success threshold - Successful calls needed to close from half-open (default: 2)

Debug Mode¶

Enable by setting DEBUG=true in backend environment. The toggle visibility is controlled by the backend config. When shown, the toggle persists its state to localStorage under the key system-debug-mode.

Poll Intervals¶

• Telemetry data: 5 seconds (automatic polling)
• Worker status: 10 seconds (automatic polling)
• File operations: 30 seconds (configurable via pollingInterval prop)

Section State Persistence¶

The collapsible sections (Circuit Breakers, File Operations) persist their expanded/collapsed state to localStorage via the useSystemPageSections hook.

Troubleshooting¶

Pipeline Stage Shows Critical (Red Border)¶

Symptoms: Queue depth > 50 or latency > 5x baseline

Possible causes:

1. AI model service is down or slow
2. GPU is overloaded with other tasks
3. Many cameras detecting motion simultaneously

Resolution:

1. Check AI Models on the Dashboard page for service health
2. Review GPU Stats for utilization and memory
3. Check circuit breaker states for tripped services
4. Consider reducing camera sensitivity temporarily

Circuit Breaker Won't Stay Closed¶

Symptoms: Circuit breaker trips again shortly after reset

Root cause: The underlying service is still experiencing failures

Resolution:

1. Check service logs for error messages
2. Verify network connectivity to the service
3. Ensure service container is running (check docker/podman)
4. Review resource usage (memory, CPU, GPU)
5. Fix the underlying issue before resetting

High Disk Usage Warning¶

Symptoms: Yellow warning banner showing > 85% disk usage

Resolution:

1. Click "Run Cleanup" to preview deletable data
2. If orphaned files exist, click "Clean Up" in the warning banner
3. Consider reducing retention period in settings
4. Add more disk space if cleanup doesn't free enough

Worker Shows Stopped (Red Dot)¶

Symptoms: One or more workers have red status dots

Possible causes:

1. Container crashed and needs restart
2. Service encountered unrecoverable error
3. Insufficient system resources

Resolution:

1. Check container status in Grafana or with docker ps
2. Review container logs for error messages
3. Restart the affected container
4. Check system resources (memory, disk)

Debug Mode Toggle Not Appearing¶

Symptoms: Debug mode toggle is not visible in the header

Cause: Backend doesn't have DEBUG=true in its environment

Resolution: Set DEBUG=true in the backend environment and restart the service. This is a security feature - debug mode should only be enabled in development.

Grafana Link Returns Error¶

Symptoms: Clicking "Open Grafana" shows connection error

Possible causes:

1. Grafana container is not running
2. Wrong URL configured
3. Port not exposed correctly

Resolution:

1. Check Grafana container status
2. Verify GRAFANA_URL configuration
3. Ensure port 3002 is accessible

Understanding Health Status Colors¶

Throughout the Operations page, colors indicate health status:

Common Questions¶

Why is my queue depth high?¶

High queue depth means images are arriving faster than they can be processed. This can happen when:

• Many cameras detect motion simultaneously
• GPU is overloaded with other tasks
• AI models are loading or restarting

Usually resolves automatically. If persistent, consider reducing camera sensitivity or upgrading GPU.

Why is a circuit breaker open?¶

A circuit opens when a service fails repeatedly. Check:

1. The service logs for errors
2. Network connectivity
3. Available system resources

You can manually reset the circuit once the issue is resolved.

What does "degraded" mean?¶

Degraded indicates a service is working but experiencing issues:

• Slow response times
• Intermittent errors
• High resource usage

The system continues operating but may be slower than normal.

Why is a worker stopped?¶

A stopped worker (red dot) means that background service is not running. Check:

1. Container status in the Containers panel
2. System logs for error messages
3. Available system resources

Restarting the container typically resolves this.

Why are latencies high?¶

High latency (shown in yellow/red in the Pipeline Metrics) indicates slow processing:

• GPU may be overloaded
• Large batch of images being processed
• System resources constrained

Check Grafana dashboards for GPU utilization and system resource issues.

Quick Reference: Troubleshooting by Symptom¶

Technical Deep Dive¶

For developers wanting to understand the underlying systems.

Architecture¶

• AI Pipeline: AI Pipeline Architecture - How images flow through detection and analysis
• Resilience Patterns: Circuit Breakers and Degradation - Fault tolerance and recovery strategies
• Real-time Updates: Real-time Architecture - WebSocket and event broadcasting
• System Overview: System Architecture Overview - High-level system design

Related Code¶

Hooks Used¶

API Endpoints¶
