Event Timeline¶

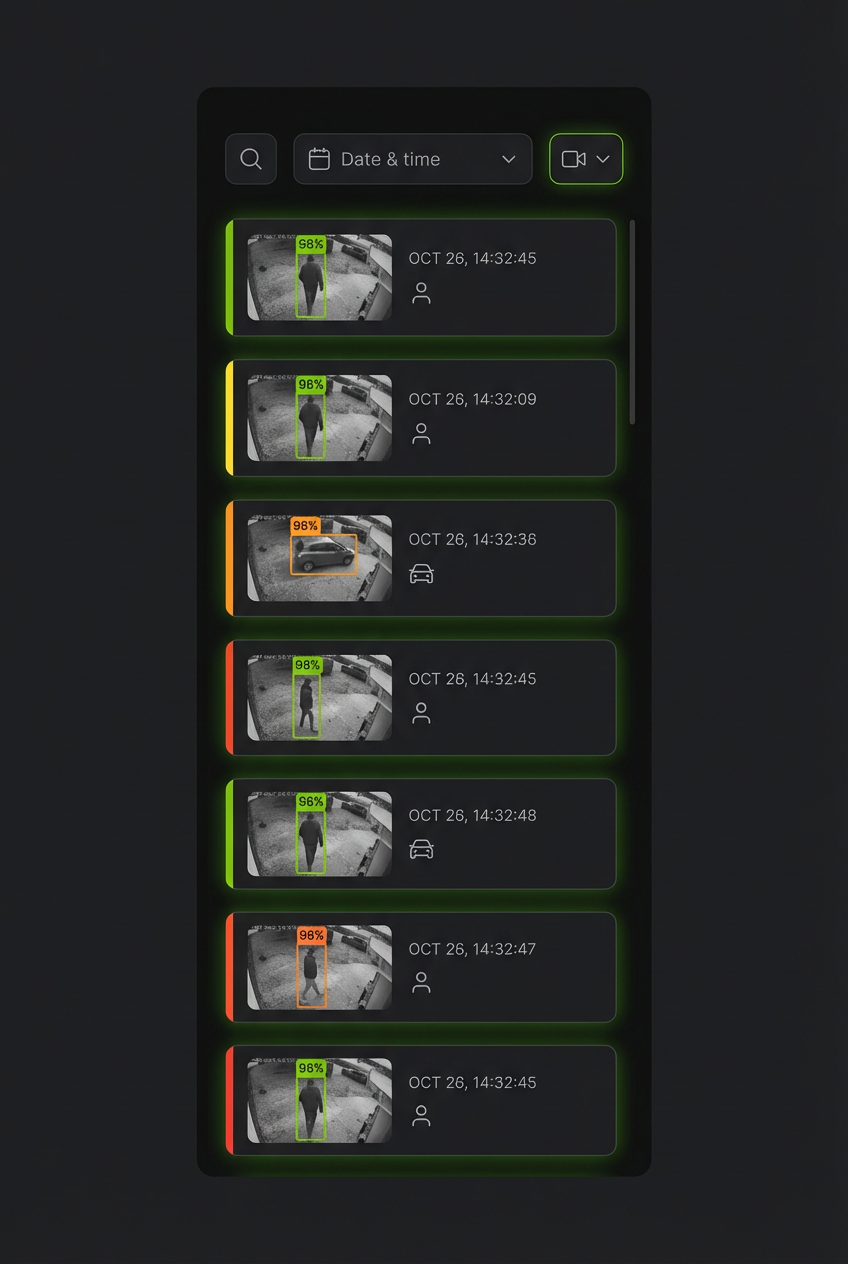

AI-generated visualization of the event timeline showing security events with risk-level color coding.

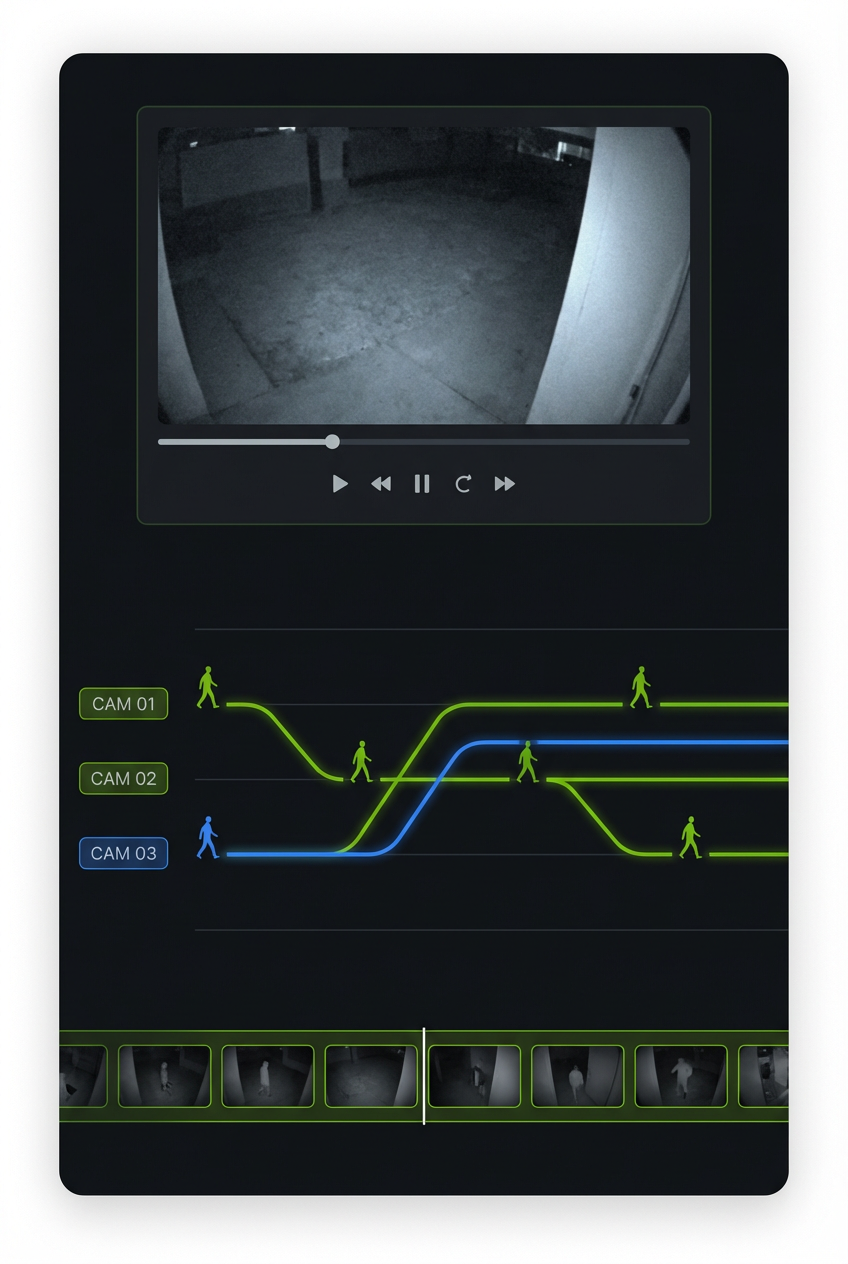

AI-generated visualization of the investigation interface with cross-camera entity tracking.

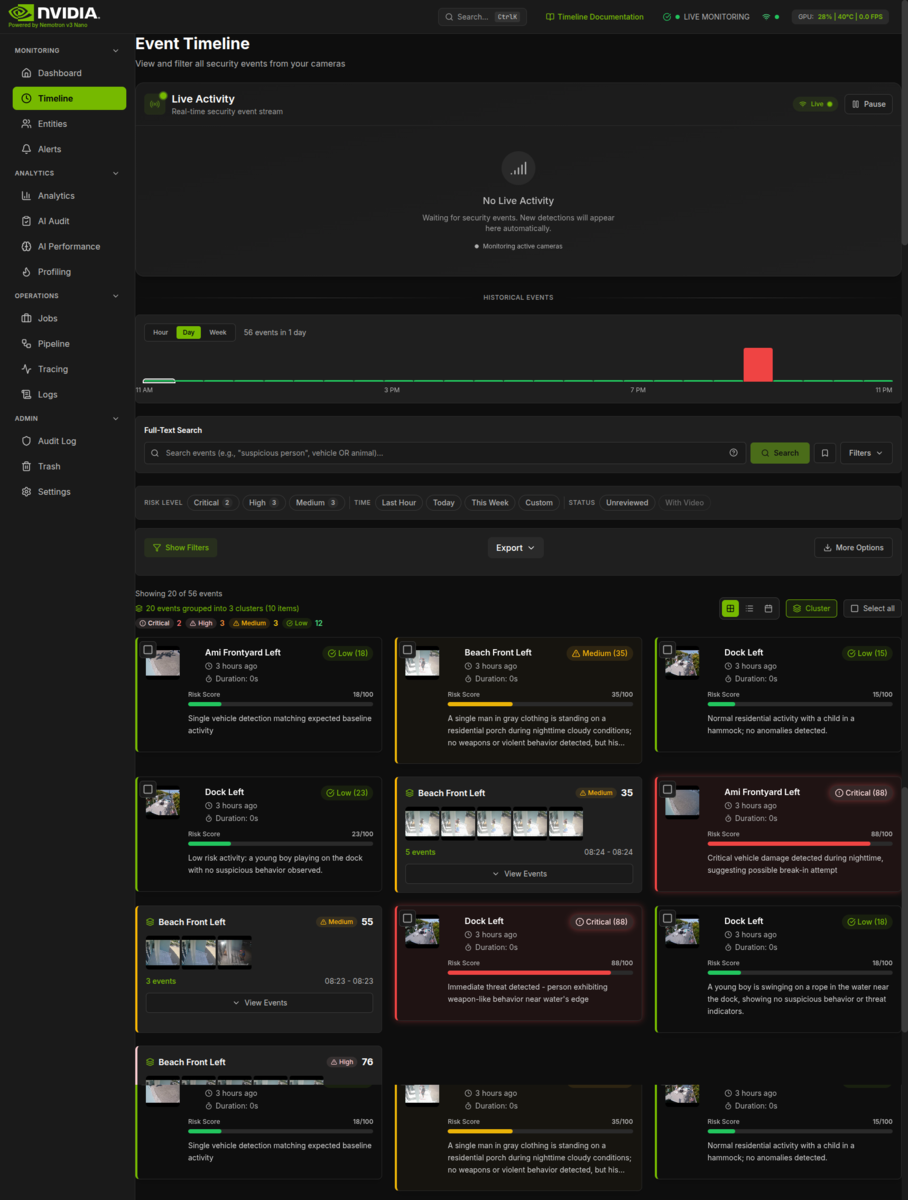

The chronological event viewer for reviewing, searching, and managing security detection events.

What You're Looking At¶

The Event Timeline is your primary interface for reviewing security events detected by the AI system. Unlike the Dashboard which shows real-time overview status, the Timeline provides detailed access to both live incoming events and historical records with powerful filtering, searching, and bulk management capabilities.

The page is divided into two main sections:

1. Live Activity Section - Real-time events streaming via WebSocket with pause/resume controls
2. Historical Events Section - Paginated list of past events with filtering, full-text search, and bulk operations

The component is implemented in frontend/src/components/events/EventTimeline.tsx and is accessible via the /timeline route.

Key Components¶

Live Activity Section¶

The top section displays real-time security events as they are detected. This section uses the LiveActivitySection component (frontend/src/components/events/LiveActivitySection.tsx).

• Connection Status Indicator - Shows WebSocket connection state:

• Green "Live" badge with Wifi icon and animated pulse - Connected and receiving events

• Yellow "Disconnected" badge with WifiOff icon - Connection lost, attempting to reconnect

• Live Activity Stats - Quick counts of recent events by risk level (only shown on larger screens):

• Total recent event count with Activity icon

• Critical (red badge with count)
• High (orange badge with count)
• Medium (yellow badge with count)

• Low (green badge with count)

• Pause/Resume Button - Toggle to freeze the live feed:

• Useful when reviewing a specific event

• When paused, a translucent overlay displays "Updates paused"
• The Radio icon pulses when connected and not paused

• Click "Resume" (with Play icon) to continue receiving events

• Activity Feed - Scrolling list of the 10 most recent events (configurable via maxItems prop) showing:

• Timestamp (relative time like "2 minutes ago")

• Camera name
• Risk score badge
• Event summary snippet

• Click any event to open its detail modal

• Empty State - When no events are present:

• Shows a Signal icon with "No Live Activity" message

• Displays contextual message based on connection status
• When connected: "Waiting for security events. New detections will appear here automatically."

• When disconnected: "Connection lost. Attempting to reconnect..."

• Footer Stats - Shows "Showing X of Y recent events" and "Auto-refreshing" indicator

Historical Events Section¶

Below the live section, separated by a "Historical Events" divider:

Full-Text Search Bar¶

Powerful search capability across all event data using PostgreSQL full-text search. Implemented in frontend/src/components/search/SearchBar.tsx.

• Search Input - Enter keywords, phrases, or boolean queries
• Clear Button (X icon) - Clears the current search query when text is present

• Search Syntax Help (HelpCircle icon) - Shows supported query formats in a tooltip:

• person vehicle - Implicit AND (both terms required)

• "suspicious person" - Exact phrase match
• person OR animal - Either term matches
• person NOT cat - Exclude term
• front_door - Search by camera name

• person AND vehicle - Explicit AND

• Search Button - Submit the search query (disabled when empty or searching)

• Save Search (Save icon) - Save frequently used queries with custom names (appears only when query exists)
• Opens a modal to name and save the current search with filters
• Saved Searches (Bookmark icon) - Load previously saved searches
• Shows count badge of saved searches
• Displays saved search name, query, and filter count
• Delete individual saved searches with trash icon
• Filters Toggle - Expand advanced filter options within search
• Shows "Active" badge when filters are applied

Search Example Queries:

Relevance Scoring - Search results are sorted by relevance:

Browse Mode Filters¶

When not in search mode, the filter panel provides structured filtering. Expand by clicking "Show Filters":

• Active badge - Green badge shows when any filters are active
• Clear All Filters - Reset all filters to defaults (disabled when no filters active)

Diagram: Filter Application Flow¶

flowchart TD
    subgraph Input["User Input"]
        A[User Opens Timeline] --> B{Search or Browse?}
    end

    subgraph Search["Full-Text Search Path"]
        B -->|Search| C[Enter Search Query]
        C --> D[Apply Search Filters]
        D --> E[PostgreSQL ts_rank Query]
        E --> F[Sort by Relevance Score]
    end

    subgraph Browse["Browse Mode Path"]
        B -->|Browse| G[Select Browse Filters]
        G --> H[Camera Filter]
        G --> I[Risk Level Filter]
        G --> J[Status Filter]
        G --> K[Object Type Filter]
        G --> L[Date Range Filter]
        G --> M[Sort Order]
    end

    subgraph Query["Query Building"]
        H & I & J & K & L --> N[Combine with AND Logic]
        N --> O[Apply Sort Order]
        M --> O
        F --> P[Apply Pagination]
        O --> P
    end

    subgraph Results["Results Display"]
        P --> Q[Fetch Page of Events]
        Q --> R[Render Event Cards]
        R --> S{More Events?}
        S -->|Yes| T[Enable Infinite Scroll]
        T --> U[User Scrolls Down]
        U --> P
        S -->|No| V[Show End Message]
    end

    style Input fill:#e0f2fe
    style Search fill:#fef3c7
    style Browse fill:#f3e8ff
    style Query fill:#fed7aa
    style Results fill:#d1fae5

Search Mode Filters (when in full-text search):

The search bar has its own advanced filters panel with similar options:

• Camera, Severity (includes "High & Critical" combined option), Object Type, Status
• Start Date and End Date
• Clear All button

Export Options¶

Three export methods for data analysis (all respect current filters):

1. Quick Export - Immediately download CSV with current filters
2. Disabled when no events match current filters
3. Shows loading spinner during export
4. Advanced Export - Expanded panel with:
5. Format selection (CSV, Excel/XLSX)
6. Filter refinement specific to export
7. Export preview showing estimated record count
8. Export Modal - Full-screen export dialog (frontend/src/components/exports/ExportModal.tsx) with additional options

Note: Export is rate-limited to 10 requests per minute to prevent abuse.

Results Summary¶

Shows current view statistics:

• Event counts: "Showing 20 of 1,234 events"
• Risk breakdown badges: Critical (5), High (12), Medium (45), Low (200)
• "Filters active" indicator when filters are applied

Bulk Actions¶

When events are loaded, bulk operations become available:

• Select All/Deselect All - Toggle selection for all visible events
• Selection Counter - Shows "X selected" when events are checked
• Mark as Reviewed - Bulk mark selected events as reviewed
• Mark Not Reviewed - Bulk unmark selected events

Event Cards¶

Each event displays as a card (frontend/src/components/events/EventCard.tsx) with:

• Left Border Color - Risk level indicator (4px border):

• Green (border-l-risk-low) = Low risk (0-30)

• Yellow (border-l-risk-medium) = Medium risk (31-60)
• Orange (border-l-risk-high) = High risk (61-85)

• Red (border-l-red-500) = Critical risk (86-100)

• Thumbnail - Detection image from the event (64x64 pixels)

• Falls back to Eye icon placeholder if no image available
• Camera Name - Which camera captured the event (truncated with hover tooltip)
• Timestamp - Relative time ("5 minutes ago", "2 hours ago", "3 days ago")
• Shows full formatted date for events older than 1 week
• Duration - How long the event lasted (with Timer icon)
• Risk Badge - Colored badge with score and level label (via RiskBadge component)
• Object Type Badges - Icons for detected objects (person, vehicle, etc.) via ObjectTypeBadge
• Risk Score Progress Bar - Visual 0-100 score representation with animated fill
• AI Summary - Truncated description (expandable via TruncatedText component)
• Detection List - Object labels with confidence percentages (sorted highest first):
• Green border = High confidence (85%+)
• Yellow border = Medium confidence (70-84%)
• Red border = Low confidence (<70%)
• Shows aggregate stats: Average and Maximum confidence
• AI Reasoning (expandable accordion) - Full explanation of risk assessment
• Selection Checkbox - Top-left corner for bulk operations (semi-transparent background)
• Snooze Button (optional) - Dropdown to snooze event for 15 min, 1 hr, 4 hr, or 8 hr
• View Details Button (optional) - Opens detail modal

Card Interactions:

• Click anywhere on card (except buttons) to open Event Detail Modal
• Keyboard accessible: Tab to focus, Enter/Space to activate
• Cards have hover state with background color change

Click any card to open the Event Detail Modal.

Event Detail Modal¶

Full-screen overlay showing complete event information (frontend/src/components/events/EventDetailModal.tsx). Uses Headless UI's Dialog component with smooth transitions.

Modal Header¶

• Camera name (large, 2xl font)
• Full timestamp with Clock icon (formatted with month, day, year, time)
• Event duration with Timer icon (when start/end times available)
• Risk badge with score (large size)
• Close button (X icon) - top right corner

Tab Navigation¶

Three tabs with underline indicator:

• Details - Primary event information and media
• AI Audit - Detailed AI evaluation breakdown (via EventAuditDetail component)
• Video Clip - Generated video sequence (via EventVideoPlayer component)

Details Tab Content¶

1. Media Display

2. For video detections: Video player with poster thumbnail, codec info, duration, resolution

3. For image detections: DetectionImage component with bounding boxes overlay
4. Click image to open full-size lightbox (via Lightbox component)

5. Shows video metadata badge: duration, resolution, codec

6. Detection Sequence Thumbnail Strip (ThumbnailStrip component)

7. Horizontal strip of all detection thumbnails

8. Click to view specific detection in main display
9. Double-click for full-size lightbox (images only, not videos)

10. Shows loading state while fetching detections

11. AI Summary

12. Full summary text

13. "Re-evaluate" button with RefreshCw icon to trigger new AI analysis
14. Shows success/error feedback after re-evaluation attempt

15. Success auto-dismisses after 3 seconds

16. AI Scene Description (when scene_caption available)

17. Florence-2 generated scene caption

18. Italicized text in bordered card for distinction

19. Eye icon header

20. AI Reasoning (when available)

21. Detailed explanation of risk assessment factors

22. Green-tinted background card

23. Detected Objects

24. Full list sorted by confidence (highest first)

25. Confidence bars with color-coded fill (red/yellow/green)
26. Shows percentage and visual bar for each detection

27. Aggregate stats header: Average and Maximum confidence with TrendingUp icon

28. AI Enrichment Analysis (EnrichmentPanel component, when enrichment_data available)

29. License plate detection and OCR results

30. Face detection information
31. Vehicle classification and damage detection
32. Clothing analysis (FashionCLIP and SegFormer)
33. Violence detection
34. Image quality assessment

35. Pet classification

36. Re-ID Matches (ReidMatchesPanel component, when detection selected)

37. Cross-camera entity matching results

38. Shows same person/vehicle seen elsewhere

39. Entity type inferred from detection labels

40. Entity Tracking (EntityTrackingPanel component, when entity_id linked)

41. Cross-camera movement history

42. Timeline of entity appearances

43. Notes Section

    • Textarea for manual annotations (4 rows)
    • Save Notes button with Save icon
    • "Saved" indicator with CheckCircle2 icon (auto-dismisses after 3 seconds)
    • Pre-populated from event notes if existing

44. Detection Feedback

    • Correct Detection (ThumbsUp, green) - Quick feedback, no form required
    • False Positive (ThumbsDown, red) - Opens form for notes
    • Wrong Severity (AlertCircle, yellow) - Opens form for expected severity and notes
    • Shows existing feedback with submission date if previously submitted
    • Uses React Query mutation for submission

45. Event Details Panel (bordered card at bottom)

    • Event ID (monospace font)
    • Camera name
    • Risk score out of 100
    • Duration (when timestamps available)
    • Review status: "Reviewed" (green CheckCircle2) or "Pending Review" (yellow)
    • Video Details section (when video detection selected):
    • Video Duration
    • Resolution (width x height)
    • Codec (uppercase)

Modal Footer Actions¶

• Previous/Next buttons - Navigate between events (ArrowLeft/ArrowRight icons)
• Keyboard: Left/Right arrow keys also work
• Flag Event - Mark for special attention (yellow when flagged, shows Flag icon)
• Download Media - Download detection images/videos (Download icon)
• Mark as Reviewed - Complete review workflow (green button with CheckCircle2)
• Only shown when event is not yet reviewed

Infinite Scroll¶

Historical events load automatically as you scroll:

• Shows "Loading more events..." indicator
• Displays total loaded vs. total count
• "You've seen all events" when reaching the end
• Retry button if loading fails

Understanding Risk Scores¶

Risk scores are calculated by the Nemotron AI model analyzing:

• Object type and context - Person at night vs. delivery during day
• Time of day - Higher scores for unusual hours
• Historical patterns - Anomaly detection from learned norms
• Detection confidence - Lower confidence affects score
• Camera location - Front door vs. backyard context

Risk Levels: | Score Range | Level | Color | Meaning | |-------------|-------|-------|---------| | 0-30 | Low | Green | Normal activity, routine events | | 31-60 | Medium | Yellow | Worth monitoring, slightly unusual | | 61-85 | High | Orange | Significant event, review promptly | | 86-100 | Critical | Red | Potential threat, immediate attention |

Understanding Detection Confidence¶

Detection confidence indicates how certain YOLO26 is about its detection:

Aggregate metrics shown:

• Avg - Average confidence across all detections
• Max - Highest individual detection confidence

Settings & Configuration¶

Timeline behavior is configured through component props and localStorage:

Component Defaults:

• Events per page - 20 events loaded per scroll (hardcoded in useEventsInfiniteQuery)
• Live activity max items - 10 events shown (configurable via maxItems prop)
• Auto-scroll live feed - Controlled by pause/resume toggle; resumes on "Resume" click
• Default sort order - Newest first (configurable via Sort By filter dropdown)

localStorage Persistence:

• Saved searches (via useSavedSearches hook) - Stores name, query, and filters
• Search pagination state uses URL parameters (search_page, search_limit) for deep linking

Note: Global timeline settings are not currently exposed in the Settings page. The mentioned options would require implementation if desired.

Keyboard Shortcuts¶

URL Deep Linking¶

The Timeline supports URL parameters for direct navigation:

• ?camera=cam-1 - Pre-filter by camera ID
• ?risk_level=high - Pre-filter by risk level
• ?event=123 - Open specific event detail modal
• ?search_page=2 - Navigate to search result page
• ?search_limit=50 - Set search results per page

Example: /timeline?camera=front_door&risk_level=critical&event=456

Troubleshooting¶

Live Activity shows "Disconnected"¶

1. Check your network connection
2. Look for WebSocket errors in browser console
3. Verify backend is running: curl http://localhost:8000/api/system/health/ready
4. The connection will automatically retry every few seconds

Search returns no results¶

1. Check for typos in search query
2. Try broader search terms (remove quotes for phrase search)
3. Verify date range doesn't exclude expected events
4. Clear other filters that might conflict

Events not loading / Infinite scroll stuck¶

1. Check browser console for API errors
2. Click "Retry" button if visible
3. Verify backend connectivity
4. Refresh the page to reset pagination state

Export fails or is empty¶

1. Verify filters aren't excluding all events
2. Check export preview count before exporting
3. Large exports may take time - watch for progress indicator
4. Export is rate-limited to 10 requests per minute

Event images not loading¶

1. Images are served from detection storage
2. Verify /export/foscam/ mount is accessible
3. Check detection IDs exist in database
4. Thumbnails are generated from first detection

Selection doesn't persist after scroll¶

This is by design - new events loaded via infinite scroll need to be explicitly selected. Bulk operations apply only to currently selected events.

Event Video Clips¶

When you need more context than a single image can provide, video clips let you see the full sequence of events around a detection.

What are Event Clips?¶

Event clips are short video sequences generated from the detection images captured during an event. They show you:

• The moments before the detection occurred
• The detection itself
• The moments after

This gives you context that static images cannot provide, helping you understand what actually happened.

Viewing Video Clips¶

To view a video clip for an event:

1. Open any event by clicking its card in the Event Timeline
2. In the Event Detail Modal, click the Video Clip tab
3. The video player will appear if a clip is available

Generating Clips¶

If no clip exists yet, you will see a message with a Generate Clip button:

1. Click Generate Clip
2. Wait for processing (a spinner shows progress)
3. Once complete, the video player appears automatically

Tip: Clip generation uses the detection images from the event to create a video slideshow. The process typically takes a few seconds.

Clip Generation Details¶

Downloading Clips¶

Click the Download button below the video player to save the clip to your device. The file will be named event_{id}_clip.mp4.

Clip Storage¶

Clips are stored for 30 days along with other event data. After that, they are automatically cleaned up to save storage space.

Entity Re-Identification¶

Entity re-identification helps you track the same person or vehicle as they appear across different cameras. This is especially useful for understanding movement patterns and investigating incidents.

What is Entity Re-ID?¶

When a person or vehicle is detected, the system creates a unique visual fingerprint (called an embedding) using AI. This fingerprint can be compared against other detections to find matches, even across different cameras.

Entity re-identification workflow: Detections from different cameras are converted to AI embeddings and compared to track the same person or vehicle across your property.

How Matching Works¶

The system uses CLIP ViT-L, a powerful visual AI model, to analyze each detection:

Understanding Similarity Scores¶

Viewing Entity History¶

When you open an event with detected persons or vehicles, the AI Enrichment panel may show re-identification information:

1. Open an event from the Timeline
2. Look for the AI Enrichment Analysis section
3. Expand the Person or Vehicle accordion
4. Previous sightings appear with camera name, time, and similarity score

Factors Affecting Matching¶

Re-identification accuracy depends on:

• Image Quality: Clear, well-lit images produce better embeddings
• Angle: Similar viewing angles improve matching
• Occlusion: Partially hidden subjects are harder to match
• Clothing/Appearance: Significant changes (like removing a jacket) may affect matching
• Time Gap: The system retains embeddings for 24 hours

Using Entity Tracking for Investigations¶

When investigating an incident:

1. Start with the primary event - Find the event of interest
2. Check re-ID matches - See if this person/vehicle appeared elsewhere
3. Build a timeline - Follow their path across cameras
4. Note timestamps - Track arrival, departure, and dwell times

Privacy Note: Entity re-identification operates locally on your system. Embeddings are stored temporarily in Redis and automatically expire after 24 hours.

AI Enrichment Details¶

The AI Enrichment panel provides additional context extracted by vision models:

Vehicle Analysis¶

• Type: Car, truck, SUV, van, motorcycle
• Color: Primary vehicle color
• Damage: Visible damage indicators
• Commercial: Whether it appears to be a commercial vehicle

Person Analysis¶

• Clothing: Description of visible attire
• Action: What the person appears to be doing
• Carrying: Objects being carried (packages, bags, tools)
• Suspicious Attire: Flagged if wearing face covering, etc.
• Service Uniform: Identified delivery or service worker attire

Additional Enrichments¶

• License Plate: OCR text extraction when visible
• Pet Identification: Type and breed recognition
• Weather Conditions: Detected weather from image
• Image Quality: Assessment of image clarity

Investigation Workflow¶

For a thorough investigation:

1. Identify the event of interest in the Timeline
2. Open the Event Detail Modal to see full details
3. Review the detection sequence using the thumbnail strip
4. Watch the video clip if available (or generate one)
5. Check AI enrichments for vehicle/person details
6. Review entity re-ID to see if this person/vehicle appeared elsewhere
7. Add notes documenting your findings
8. Mark as reviewed when complete

Live Activity Feed¶

The Live Activity Feed shows security events as they happen in real-time at the top of the Timeline page.

Understanding the Feed¶

Each event in the feed shows:

1. Thumbnail - Small image from when event occurred
2. Camera Name - Which camera detected activity
3. Risk Badge - Colored label showing risk level
4. Summary - Brief AI-generated description
5. Timestamp - When it occurred ("Just now", "5 mins ago", etc.)

Using the Feed¶

• Click any event to see full details in a popup
• Events appear with newest at the bottom (the feed auto-scrolls to keep you at the latest)
• Feed shows up to 10 recent events

Auto-Scroll Feature¶

The feed automatically scrolls when new events arrive:

• Click Pause to stop auto-scrolling (useful when reading)
• Click Resume to turn auto-scrolling back on

When paused, you can manually scroll through events.

Event Lifecycle¶

How events flow through the system:

Diagram: Event Lifecycle Flow¶

flowchart TD
    subgraph Capture["Camera Capture"]
        A[Camera Detects Motion] --> B[Image Uploaded via FTP]
    end

    subgraph Detection["AI Detection"]
        B --> C[File Watcher Detects Image]
        C --> D[YOLO26 Object Detection]
        D --> E{Objects Found?}
        E -->|No| F[Discard]
        E -->|Yes| G[Create Detection Record]
    end

    subgraph Batching["Batch Aggregation"]
        G --> H[Add to Detection Batch]
        H --> I{Batch Ready?}
        I -->|No| H
        I -->|Yes| J[Close Batch]
    end

    subgraph Analysis["Risk Analysis"]
        J --> K[Nemotron LLM Analysis]
        K --> L[Generate Risk Score]
        L --> M[Create Summary & Reasoning]
        M --> N[Create Event Record]
    end

    subgraph Delivery["Event Delivery"]
        N --> O[Broadcast via WebSocket]
        O --> P[Appears in Live Feed]
        O --> Q[Triggers Alert Rules]
    end

    subgraph Review["User Review"]
        P --> R[User Clicks Event]
        R --> S[View Event Details]
        S --> T[Add Notes]
        T --> U[Mark as Reviewed]
    end

    style Capture fill:#e0f2fe
    style Detection fill:#fef3c7
    style Batching fill:#fed7aa
    style Analysis fill:#f3e8ff
    style Delivery fill:#d1fae5
    style Review fill:#dbeafe

Tips for Reviewing Events¶

1. Start with unreviewed events: Use the Status filter to show only unreviewed events
2. Focus on high risk first: Sort by Highest Risk to address critical issues first
3. Use bulk actions: Select multiple similar events and mark them reviewed together
4. Add notes: Document your findings for future reference
5. Check the detection sequence: Multiple frames may reveal important context
6. Review AI reasoning: Understand why the system assigned a particular risk level

Technical Deep Dive¶

For developers wanting to understand the underlying systems.

Architecture¶

• Event Processing: Event Pipeline Architecture
• AI Risk Scoring: AI Pipeline Documentation
• Real-time Updates: Real-time Architecture
• Data Model: Database Schema

Related Code¶

API Endpoints¶

Rate Limiting:

• Export endpoint: 10 requests/minute
• Bulk operations: 10 requests/minute with burst of 2

Hooks Reference¶

useEventStream Details¶

The useEventStream hook (frontend/src/hooks/useEventStream.ts) provides:

interface UseEventStreamReturn {
  events: SecurityEvent[]; // Array of received events (max 100)
  isConnected: boolean; // WebSocket connection status
  latestEvent: SecurityEvent | null; // Most recent event
  clearEvents: () => void; // Clear event buffer
  sequenceStats: SequenceStatistics; // Ordering statistics
}

Features:

• Deduplication: LRU cache (10,000 entries, 1-hour TTL) prevents duplicate events
• Sequence Validation: Handles out-of-order messages with buffering and resync
• Memory Bounded: Maximum 100 events kept in state, oldest evicted
• Automatic Reconnection: Via underlying useWebSocket hook

Message Types Handled:

• event: Security event data with optional sequence number
• heartbeat: Connection keepalive (handled internally)
• error: WebSocket error messages (logged)

useInfiniteScroll Details¶

The useInfiniteScroll hook (frontend/src/hooks/useInfiniteScroll.ts) provides:

interface UseInfiniteScrollReturn {
  sentinelRef: (node: HTMLElement | null) => void; // Attach to sentinel element
  isLoadingMore: boolean; // Loading state
  error: Error | null; // Last error
  retry: () => void; // Retry failed load
  clearError: () => void; // Clear error state
}

Options:

• onLoadMore: Callback when sentinel becomes visible
• hasMore: Whether more data exists
• isLoading: Current loading state
• enabled: Toggle observation (default: true)
• threshold: Intersection threshold (default: 0.1)
• rootMargin: Pre-load margin (default: '100px')
